NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT

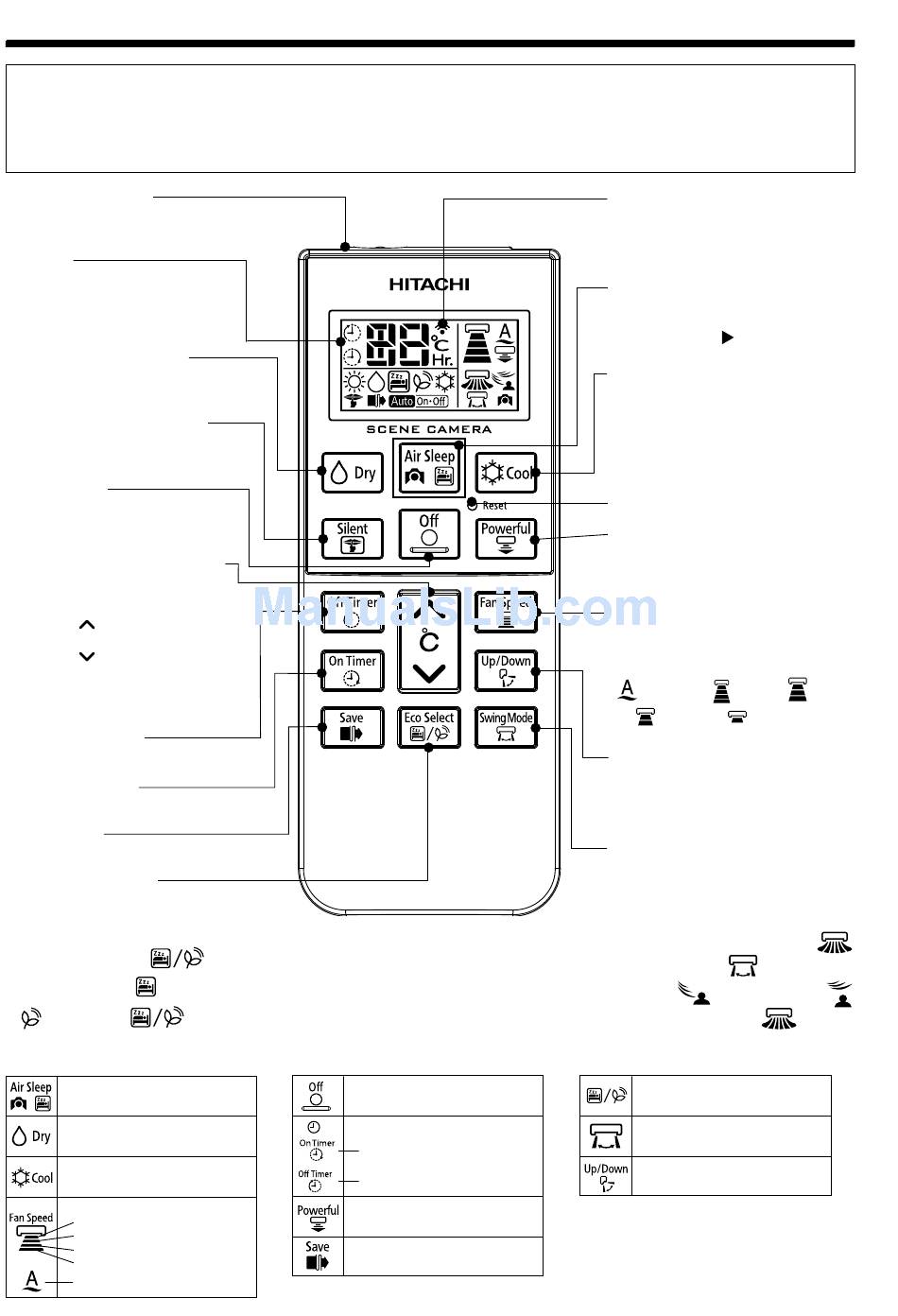

REMOTE CONTROLLER
This controls the operation of the indoor unit. Signal range to reach indoor unit is about 7 meters. If inverter lamp is
used, the range of control may be shorter.
This unit can be fi xed on a wall using the fi xture provided. Before fi xing it, make sure the indoor unit can be controlled
from the remote controller.
Signal Transmitting
Point this window toward the indoor
unit when controlling it.
Display
This indicates the room
temperature selected, timer status,
function and intensity of circulation
selected.
DEHUMIDIFYING button
Use this button to dehumidify the
room or start operation.
ONE-TOUCH SILENT button
Use this button to set the SILENT
mode.
STOP button
Press this button to stop operation
only.
ROOM TEMPERATURE setting
buttons
Press these buttons to set the
room temperature.
Press the [ ] button to raise the
room temperature.
Press the [ ] button to lower the
room temperature.
Keep pressing and the value will
change more quickly.
OFF-TIMER button
Select to turn OFF time.
ON-TIMER button
Select to turn ON time.
SAVE Button
Use this button to set the SAVE mode.
ECO SELECT Button
Use this button to select the Air Sleep
operating mode.
Every time you press the button, the
mode will change from
: Air Sleep + Eco) ➞
(Air Sleep only)
➞ (Eco only) ➞
Eco) cyclically
AIR SLEEP
DEHUMIDIFY / START
COOLING / START
FAN SPEED
SILENT
LOW
MED
HI
AUTO
(Default
(Air Sleep +
STOP
TIMER SELECTOR
POWERFUL MODE
SAVE
ON TIMER
OFF TIMER
– 6 –
Transmission sign
The transmission sign blinks when a
signal is sent.
AIR SLEEP button
Use this button to set a comfortable
air sleep temperature in the room or
start operation. ( p. 9)
COOLING button
Use this button to set cooling mode
in the room or start operation.
RESET button
POWERFUL MODE buttonA
Use this button to deliver faster and
more comfortable air-conditioning or
start operation.
FAN SPEED selector button
This determines the fan speed.
Every time you press this button, the
intensity of circulation will change from
(AUTO) ➞ (HI) ➞
➞ (LOW) ➞
(SILENT).
UP/DOWN SWING (VERTICAL)
BUTTON
Controls the angle of the horizontal
air defl ector.
SWING MODE (HORIZONTAL)
BUTTON
Use this button to select the operating
mode.
Every time you press the button,
the mode will change from
(Smart swing) ➞
(Auto swing)➞
CANCEL (Direct airfl ow)➞
(Indirect airflow)➞
swing) cyclically.
ECO SELECT
SWING MODE
UP/DOWN SWING
(MED)
(Smart
