DX Air Curtain

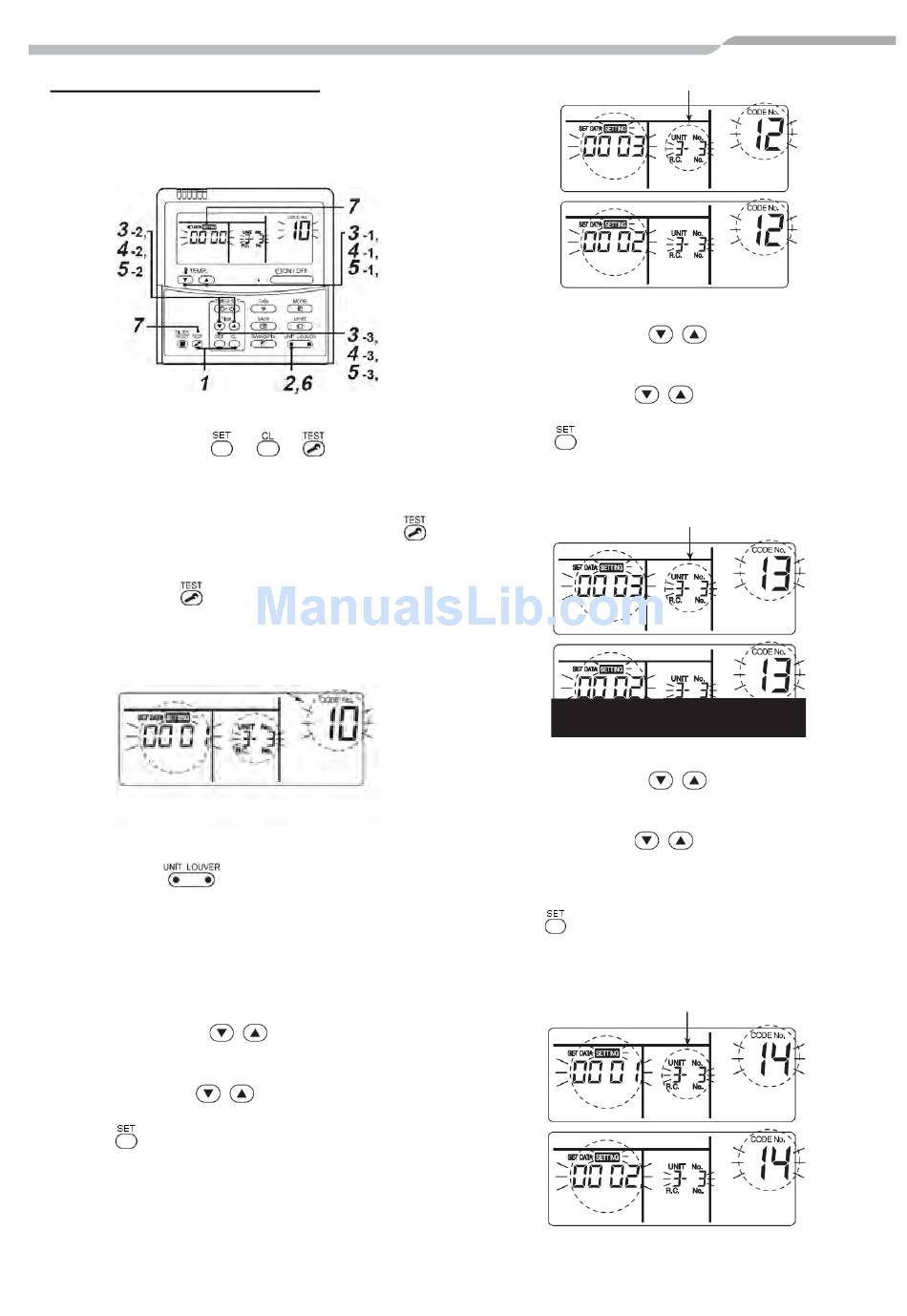

Group Control procedure example
Manual address setup procedure
While the operation stops, change the setup.
(Be sure to stop operation of the unit).
Procedure 1
Push simultaneously
seconds or more. After a while, the display part
flashes as shown below. Check the displayed CODE
No. is [10].
• When the CODE No. is other than [10], push
button to erase the display and repeat procedure
from the first step.
(After pushing
controller is not accepted for approx. 1 minute).
(For group control, No. of the first displayed indoor
unit becomes the header unit).
(* Display changes according to
the model No. of indoor unit.)
Procedure 2
Every pushing
the group control is displayed in order. Select the
indoor unit of which setup is changed.
In this time, the position of the indoor unit of which
setup is changed can be confirmed because fan of
the selected indoor unit operate.
Procedure 3
1. Using temp. setup
No. [12].
(CODE No. [12]: Line address).
2. Using timer time
address from [3] to [2].
3. Push button.
In this time, the setup finishes when the display
changes from flashing to lighting.
+ + buttons for 4
button, operation of the remote
button, the indoor unit No. in
buttons, specify CODE
buttons, change the line
Indoor unit No. before setup change is displayed.
Procedure 4
1. Using temp. setup
CODE No. [13].
(CODE No. [13]: Indoor address)
2. Using timer time
indoor address form [3] to [2].
3. Push button.
In this time, the setup finishes when the display
changes from flashing to lighting.
Indoor unit No. before setup change is displayed
Procedure 5
1. Using temp. setup
CODE No. [14].
(CODE No. [14]: Group address).
2. Using timer time
setup data from [0001] to [0002].
(Setup data [Header unit: 0001] [Follower unit:
0002])
3. Push button.
In this time, the setup finishes when display
changes from flashing to lighting.
Indoor unit No. before setup change is displayed
12
Installer
buttons, specify
buttons, change the
buttons, specify
buttons, change the
