For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1
09−07 Litho in U.S.A. (els)

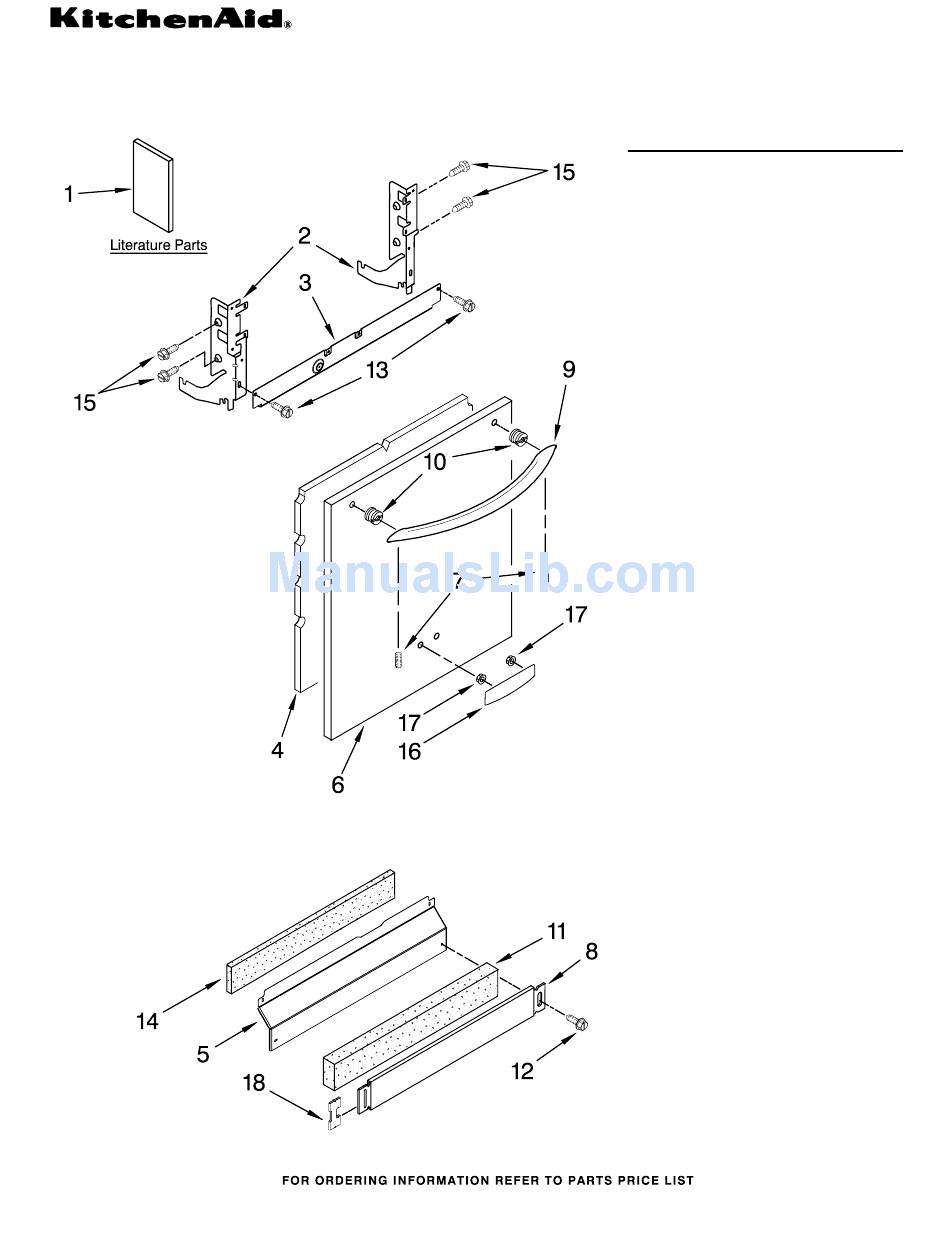

DOOR AND PANEL PARTS
(Black)
(White)
1
(Biscuit)
(Stainless)
Illus.
Part
No.
No.
1
W10078153 Instructions,
W10111124 Energy Guide
W10084169 D/W User
W10084091 D/W User
W10082651 Tech Sheet
2
8534854 Left
8534853 Right
3
8564886 Stiffener, Door
4
8542577 Insulation, Door
5
8558260 Black
8558261 White
8558262 Biscuit
6
W10078007 Black
W10078008 White
W10078009 Biscuit
W10137623 Stainless
7
8534008 Screw
8
8558252 Black
8558253 White
8558254 Biscuit
9
W10083936 Black
W10083937 White
W10083938 Biscuit
W10083935 Stainless
10
8564951 Stud, Mounting
11 W10073550 Insulation,
12
302868 Black
3400836 White
3400865 Biscuit
13
304392 Screw
14 W10073540 Insulation,
15
3400071 Screw
16
W10021860 Black
W10021870 White
W10021880 Biscuit
W10021850 Stainless
17
2004333 Nut
18
8269016 Clip, Grounding
Part No. W10161578 Rev. A
UNDERCOUNTER
DISHWASHER
DESCRIPTION
Literature Parts
Installation
Instructions,
Spanish
Instructions,
English/French
Arm, Hinge
Access Panel
(Includes Item 14)
Panel, Full Front
(Includes Items
4, 10, 16 & 17)
Toe Panel
(Includes
Items 11 & 18)
Handle Assy
Toe Panel
Screw
Access Panel
Nameplate
Advertisement
Related Manuals for KitchenAid KUDS03FTBL
Summary of Contents for KitchenAid KUDS03FTBL
- Page 1 For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 09−07 Litho in U.S.A. (els) DOOR AND PANEL PARTS (Black) (White) UNDERCOUNTER DISHWASHER (Biscuit) (Stainless) Illus. Part DESCRIPTION Literature Parts W10078153 Instructions, Installation W10111124 Energy Guide W10084169 D/W User Instructions, Spanish W10084091 D/W User...
-
Page 2: Control Panel Parts
CONTROL PANEL PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) Illus. Part W10084174 Black W10084175 White W10084176 Biscuit W10084177 Stainless 8546546 Clip, BI−Metal 661663 Bi−Metal 3369051 Screw 5 W10077360 Latch Assembly 6 W10084141 Control, 7 W10134019 Switch, Door (Biscuit) (Stainless) DESCRIPTION Console Assembly... - Page 3 DOOR AND LATCH PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 Illus. Part DESCRIPTION 3369051 Screw, Door 8281217 Screw 8530900 Inner Door Mastic Assembly (Also Order Item 6) 4 W10077883 Inlet, Air 8572611 Vent Assembly (Also Order Item 6) W10161578 (Black) (White) (Biscuit) Illus.
- Page 4 LOWER WASHARM AND STRAINER PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) Illus. Part 1 W10077965 Wash Arm Assembly 2 W10077899 Cap, Internal 8268340 Seal, Sprayarm 4 W10077898 Hub, Lower (White) (Biscuit) (Stainless) DESCRIPTION Rear Feed (Also Order Item 3) Sprayarm (Also Order Item 3)
-
Page 5: Heater Parts
For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 W10161578 HEATER PARTS (Black) (White) (Biscuit) Illus. Part DESCRIPTION 8537057 Heater Element Assembly (Also Includes Item 2) 717273 Washer, Heater Element 8268548 Nut, Heater Element 3400931 Retainer, Spring Grip NOTE: If heater element is removed, it must be replaced. - Page 6 FILL, DRAIN, AND OVERFILL PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) (Biscuit) (Stainless) Illus. Part 8268892 Lever, Overfill 8531412 Hose, Inlet 8531325 Water Inlet 8531323 Gasket 8531327 Nut, Inlet 371505 Clamp, Hose 8563405 Fill Valve 304392 Screw 8268909 Switch, Overfill 8545946 Standpipe, 8531743 Gasket, Flat 9741998 Nut, Standpipe...
- Page 7 TUB AND FRAME PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) (Biscuit) (Stainless) W10161578...
- Page 8 TUB AND FRAME PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) Illus. Part 1 W10053090 Tub Assembly 8574123 Barrier, Moisture 3 W10112096 Door Seal 4 W10082838 Plug Tub 8572661 Actuator Assembly 8559844 Motor, Wax 8269110 Seal, Cabinet 8573061 Strain Relief 8270021 Mount, Door 3367670 Screw 8269145 Bracket,...
- Page 9 PUMP AND MOTOR PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) (Biscuit) (Stainless) W10161578...
- Page 10 PUMP AND MOTOR PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) Illus. Part 8534952 Accumulator Assy 8283527 Shield, Motor 3400069 Screw 8572618 Sump With Seal 8268375 Check Valve, Sump 6 W10083957 Chopper Assembly 9741232 Screw 8531857 Protector, Inlet 8535760 Motor Assembly 3400217 Screw 8268391 Screen, Separation 14 W10084107 Sump &...
- Page 11 UPPER RACK AND TRACK PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) (Biscuit) (Stainless) W10161578...
- Page 12 UPPER RACK AND TRACK PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) Illus. Part 8539235 Dishrack, Upper 2 W10082839 Housing, Adjuster W10077838 Right Hand W10077839 Left Hand 8268653 Adjuster Assembly 8270138 Wheel 8268703 Axel, Adjuster 8281156 Screw 9744566 Tine Row 9 W10082853 Clip, Pivot 8539102 Positioner, Dual 11 W10082840 Cover, Adjuster...
- Page 13 UPPER WASH AND RINSE PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 W10161578 (Black) (White) (Biscuit) (Stainless) Illus. Part DESCRIPTION 1 W10077859 Feed Tube Assembly (Also Includes Item 3) 8533889 Screw 8557720 Sprayarm, 3rd Level 4 W10118464 Cover, Screw 5 W10082867 Mount 6 W10082949 Manifold 7 W10082832 Hanger 8268433 Seal, Sprayarm...
- Page 14 LOWER RACK PARTS For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 (Black) (White) (Biscuit) (Stainless) Illus. Part 8519680 Lower Rack 8519695 Left Side 8519663 Right Side 3 W10082868 Wheel & Transport 8562044 Basket, 5 W10078227 Pivot, Tine Row 8519682 Tine, Row 8519702 Basket, Utensil 8 W10078215 Retainer, Tine Row 8531314 Retainer, Tine Row 8562069 Holder, Knife...
- Page 15 OPTIONAL PARTS (NOT INCLUDED) For Models: KUDS03FTBL1, KUDS03FTWH1, KUDS03FTBT1, KUDS03FTSS1 Illus. Part DESCRIPTION ACCESSORIES Side Panel Kits 8171656 White 8171657 Black 8171658 Biscuit 8171659 Stainless Steel Custom Panel & Trim Kit 8212489 Black Towel Bar Handle Kit 8573938 Stainless Steel Drain Hose 3385556 12 Ft.
