BOARD SETUP
Install the boards in the computer.
There are three boards to be installed:
1. Video compression board (TARGA DV2000 board)
2. SCSI board
3. JOG board [AY-RP500 board (JOG board)]
Preparation
1. Have a computer with Windows NT installed ready.
Note: Windows NT must be installed on drive C:
(IDE hard disk) which has been formatted using
the NTFS file system.
Note: Before installing Windows NT, decide whether
to use the entire area on the IDE hard disk as
the system area or to partition the drive into two,
namely, the system drive and audio drive.
When the entire drive is to be used as the sys-
tem drive, format it using NTFS and then install
Windows NT.
When the entire drive is to be divided into two
logical drives, the MS-DOS FDISK command,
etc. must be used to partition the disk before
Windows NT is installed. Then proceed with the
Windows NT installation.
When the drive is to be partitioned, provide at
least 1 gigabyte of memory for the system drive
(where Windows NT will be installed).
2. Turn off the computer.
3. Open the case of the computer. For details on how
to do so, refer to the instruction manual that was pro-
vided with the computer.
4. Confirm which PCI slot (the white connector on the
motherboard) the video card is installed in. If the
video card is already in the PCI slot that is the far-
thest from the CPU, you do not need to move the
video card.
5. In all other cases, move the video card according to
the procedure described in steps 6 through 9 below.
9
6. Remove the screws that secure the cover for the PCI
slot that is farthest from the CPU, and then remove
that cover.
7. Remove the screws that secure the cover for the
video card, and then remove the video card.
8. Plug the video card into the PCI slot that is farthest
from the CPU, and secure the cover in place with the
screws.
9. Store the screws and cover that were removed in a
safe place.

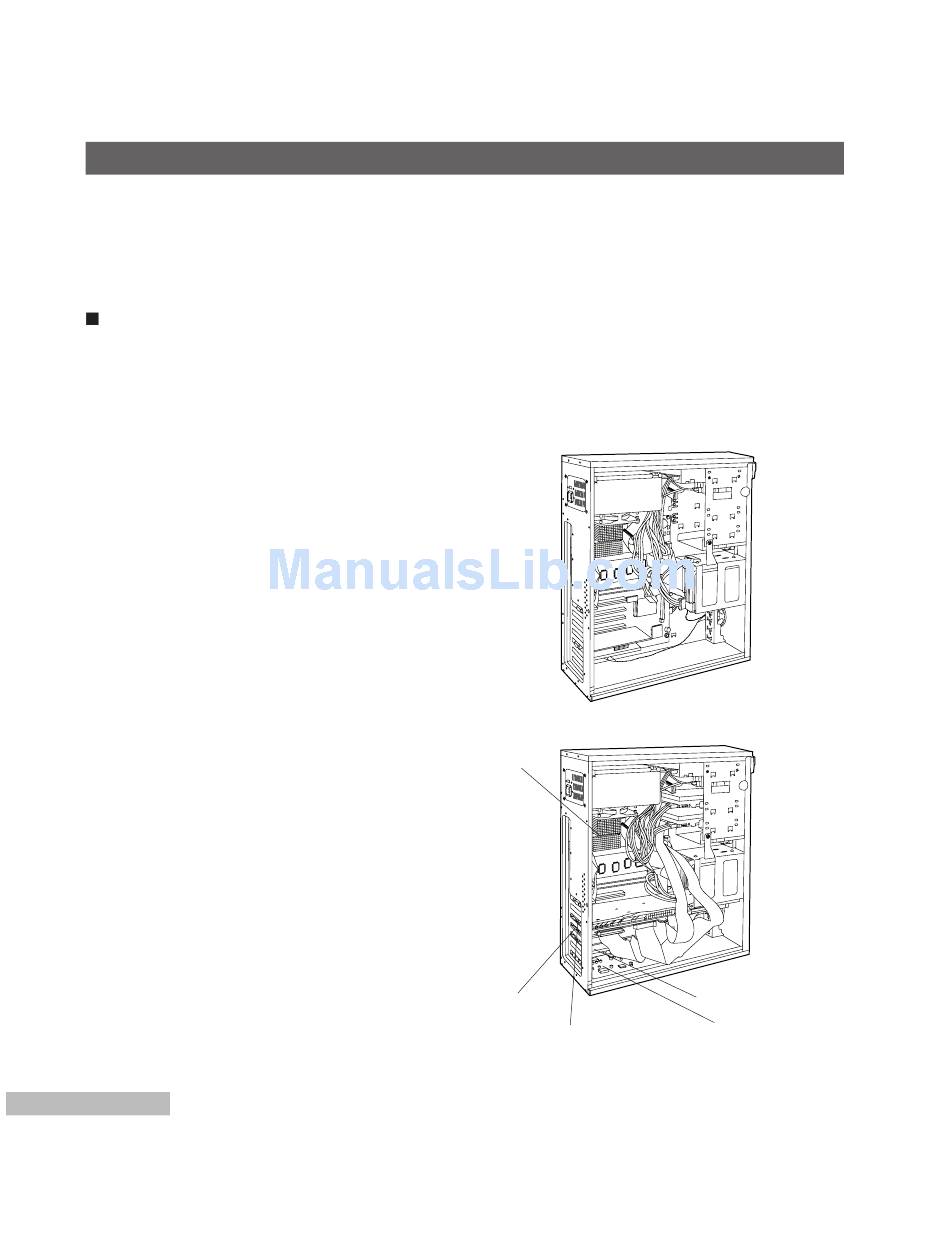

<View of computer with cover open>
<View of computer with all boards installed>
CPU
SCSI board
TARGA DV2000 board
Video card
AY-RP500 board
(JOG board)
