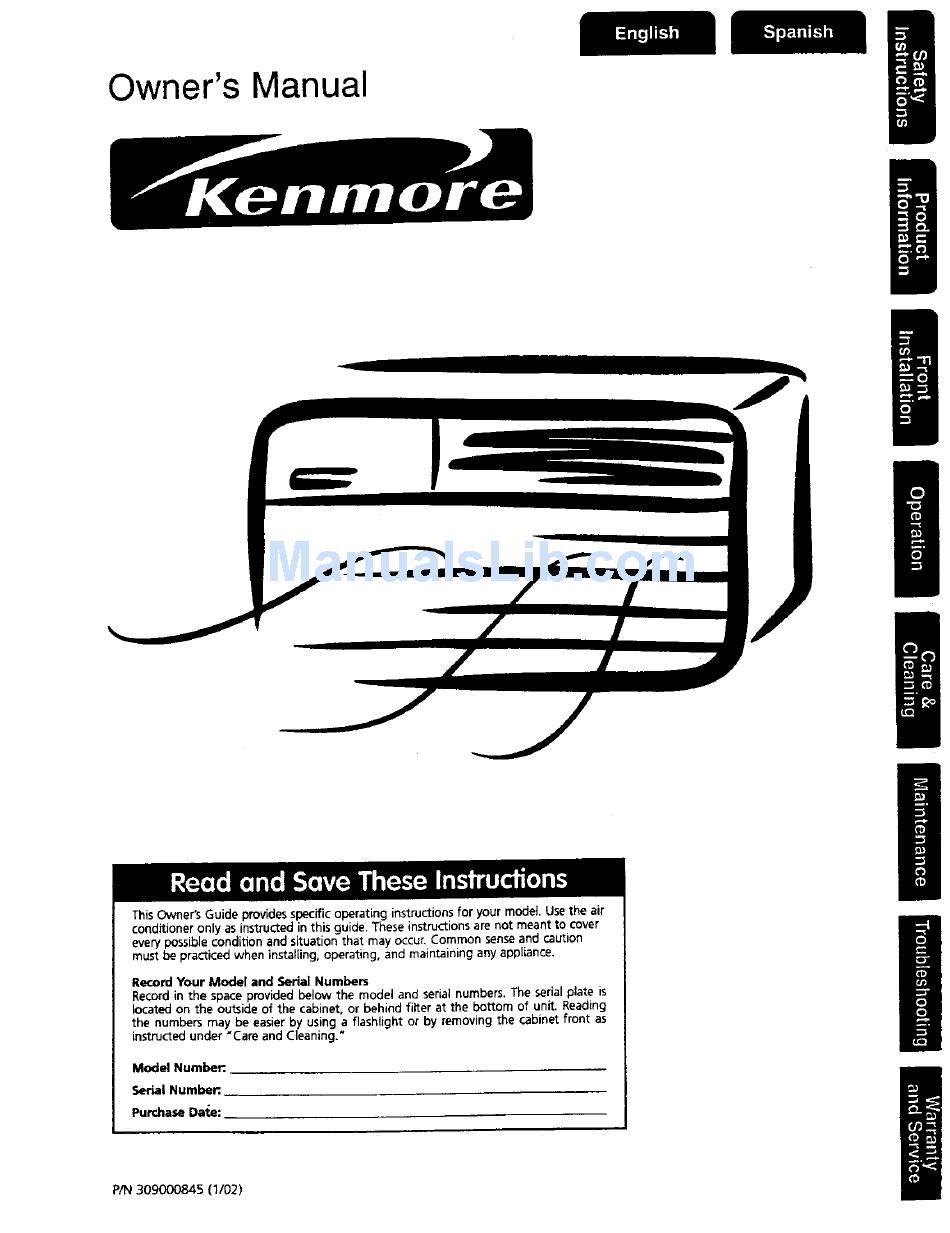

Owner's Manual
This Owner's Guide providesspecific operating instructionsfor your model. Usethe air
conditioneronly as instructed in this guide. Theseinstructions are not meant to cover
every possiblecondition and situation that may occur, Common senseand caution
must be practiced when installing, operating, and maintaining any appliance,
Record Your Model and Serial Numbers
Record in the space provided below the model and serial numbers. The sedal plate is
located on the outside of the cabinet, or behind fitter at the bottom of unit. Reading
the numbers may be easier by using a flashlight or by removing the cabinet front as
instructed under "Care and Cleaning."
Model Number.
Serial Number.
Purchase Dat.e:
P/N 309000845
(1/02)
i
/
/
/
g
/
n
0
I

Advertisement

Table of Contents
loading

Related Manuals for Kenmore 309000845

Summary of Contents for Kenmore 309000845

  • Page 1 Reading the numbers may be easier by using a flashlight or by removing the cabinet front as instructed under "Care and Cleaning." Model Number. Serial Number. Purchase Dat.e: P/N 309000845 (1/02)

  • Page 2: Energy Saving Ideas

    • Be sure the electrical service is adequate for the model you have chosen. • If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window is a triple-track type with a screen panel included, you may want to remove the screen completely before installation.

  • Page 3: Capacity And Running Time

    At times using the HI Fan setting to circulate the room air may make it comfortable even though you do not have the air conditioner set to cool the air. This will decrease your cost to use.

  • Page 4: Front Installation

    Installing the Front Frame Some models requireinstallation of the front panel of the air conditioner included in a decorativekit. To assemble,follow these steps. Before installation, remove the tilt panel from the frame. Grasping the panel from both sides, gently pull to release, then lift panel from pivot points at bottom of frame (Fig, I).

  • Page 5: Using Air Conditioner

    IMPORTANTSAFETYINSTRUCTIONS before operating this appliance. To begin operating the air conditioner, follow these steps: 1. Plug in the air conditioner. (Toprevent electricaIhazards, do not use an extension cord or an adapter plug.) 2. Set the exhaust vent to the CLOSEDposition.
  • Page 6 Air Conditioner Features (continued) STEP 1 -- TO TURN UNIT ON: STEP 2 -- TO CHANGE TEMPERATURE SETTING: Note: Tap or hold either up(A) or down(v) button until the desired temperature is seen in screen. This temperature will be automatically maintained anywhere between 60F (16C) and 90F (32C). If you want the display to read the actual room temperature, see step 5.
  • Page 7 Air Conditioner Features (continued) STEP 5 -- TO OPERATE ON FAN ONLY: Note: Use this function only when cooling is not desired, such as for room air circulation or to exhaust stale air.(remember to open the vent during this function, but keep it closed during cooling for maximum cooling efficiency.) You can choose any fan speed you prefer.

  • Page 8: Air Conditioner Features

    Air Conditioner Features (continued) STEP 8 w TIMER-DELAY START FEATURE: Note: To do this, the unit must be in the off position. When first set, the display will show .5. (one half hour),to increase the time up to 24 hours, go to step 9,...
  • Page 9 Air Conditioner Features (continued) STEP 11 -- CHECK FILTER FEATURE: Note: This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient operation and cooling. The LED(light) will illuminate after 25Q hours of operation, whether in cooling or fan only. To reset after deaning the filter, press the "Check Filter"...
  • Page 10 Fresh Air Vent Control The Fresh Air Vent allows the air conditioner to recirculate inside air (OFF), draw air into the room (FRESH AIR) or exhauststale air to the outside (VENT). See Figures 1, 2 & 3 for this operation.

  • Page 11: Care And Cleaning

    To adjust the air directional louvers side-to- side, use the center handle as you move it side-to-side. Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards.
  • Page 12 *HANDLE NOTE: If the air conditioner has a chassis handle, it is NOT intended for lifting the unit. it is for sliding the chassis WITHIN the cabinet shell only (to aid in cleaning,...
  • Page 13 _ THEAIR CONDITIONERWILL Check If ... Powersupplycord_ disc0nnectod. NO_e fuse hasblown or circuit b reaker t ril_ Pov_r Ls GFE Terrlperetu_setting• warmerthan morntemperature Unitwasturned OFFandON too quickly. TimershutunitOFF. CONDITIONER BLOWS Check If ... Housefuse hasblown or circuit breakertnpped. Toomany electrical devices are bein9 usedon the sameOrcuit. Unit isratedover 7.5 amps.

  • Page 14: Warranty

    Full Five-Year Warranty on Sealed For five years from the date of purchase, when this air conditioner is operated and maintained for normal room cooling according to instructions in this owner's manual, Searswill repair the sealed refrigeration system (consisting of refrigerant, connecting tubing, and compressor), free of charge, if defective in material or workmanship.
