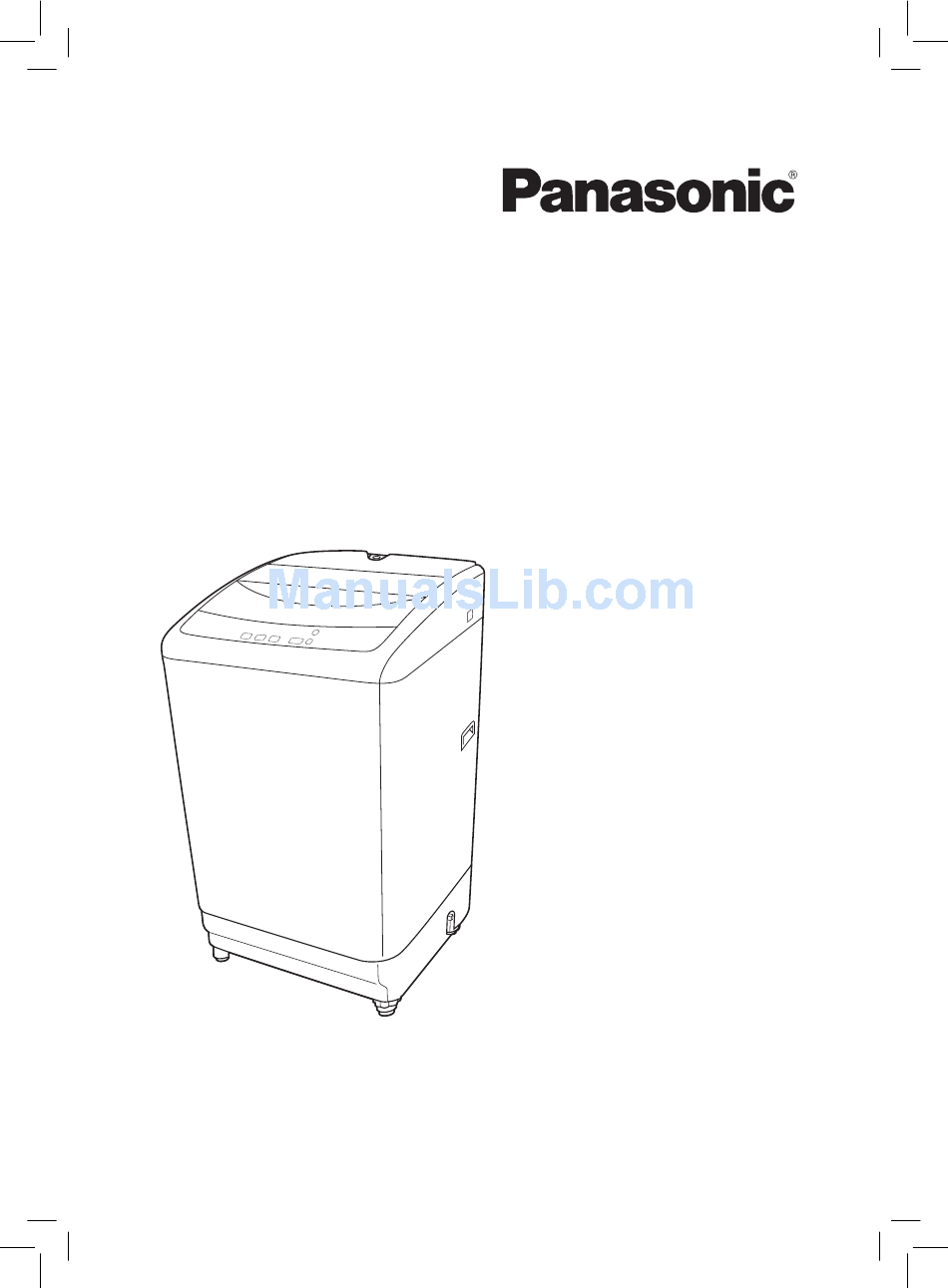

Fully Automatic Washing Machine
Thank you very much for purchasing Panasonic Washing Machine.
Before operating this washing machine, please read these instructions completely, paying
NA-F62-70B1-ENABPS.indd 1
NA-F62-70B1-ENABPS.indd 1
Operating Instructions
special attentions to Safety & General Precautions.
NA-F70B1
Model No.
NA-F62B1
Printed in Thailand
W9901-7ECA0
PHAT0802-0
5/8/08 9:16:19 AM
5/8/08 9:16:19 AM
Advertisement
Table of Contents
Related Manuals for Panasonic NA-F70B1
Summary of Contents for Panasonic NA-F70B1
-
Page 1: Operating Instructions
Fully Automatic Washing Machine Operating Instructions NA-F70B1 Model No. NA-F62B1 Thank you very much for purchasing Panasonic Washing Machine. Before operating this washing machine, please read these instructions completely, paying special attentions to Safety & General Precautions. W9901-7ECA0 PHAT0802-0 Printed in Thailand NA-F62-70B1-ENABPS.indd 1... -
Page 2: Table Of Contents
Contents ITEM PAGE Safety & General Precautions Name of parts Procedures before washing Determining load and detergent levels with the Quick Indication Laundry Detergent How to use liquid detergent How to use bleach How to use softener When putting the softener in or removal of the lint fi lter is diffi cult. How to use powdered synthetic detergents How to use powdered detergent “Economy’’... -
Page 3: Safety & General Precautions
Safety & General Precautions To prevent the risk of danger or material loss or damage to the user of others, make sure to follow the precautions described below. WARNING CAUTION May cause a serious injury or death. May cause physical injury or damage other items. WARNING Never disassemble, repair or remodel this When you are cleaning your washing... - Page 4 WARNING Do not damage the power cord and Remove any dust which may accumulate power plug. around the power cord. (Do not damage, modify, immoderately When dust has accumulated on and bend, twist, pull, or bundle the power cord, around the power plug, and the dust gets do not put the power cord and power plug damp or wet, the insulation plug become close to heating appliances, do not put...
-
Page 5: Name Of Parts
Name of parts Leveller Feeding Valve Lint Filter Softener Inlet Bleach / Liquid Pulsator Detergent Inlet Power Cord Power Plug Operation Panel Drain Hose Adjustable Leg Accessories Water Supply Hose (1) Water Tap Adaptor (1) Bottom Cover (1) Hose Hole Cover A (1) Length: 1.0 m Note: Water Tap Adaptor is set Screw (9) -
Page 6: Determining Load And Detergent Levels With The Quick Indication
(25ml per 30L of water) (40ml per 30L of water) Concentrated Concentrated Water level liquid Powder liquid One measuring scoop (Laundry volume) Powder (NA-F70B1) approx. 43ml approx. 68ml approx. 68g scoops (Approx. 7.0kg) (NA-F62B1) approx. 38ml approx. 60ml approx. 60g 1 scoop (Approx. -
Page 7: How To Use Liquid Detergent
• Cassette case can be removed by pulling the top toward inside. Cassette case Table of softener quantities (Normal) ....20 ml softener per 30L of water. (Concentrated) ... 6.6 ml softener per 30L of water. (NA-F70B1) (NA-F62B1) Water level Water level Approx. Approx. -
Page 8: How To Use Powdered Synthetic Detergents
How to use powdered synthetic detergents POWDERED SYNTHETIC DETERGENT [CONCENTRATED TYPE] Color transfer and color fading will occur if the detergent directly in contact with the laundry (for a long time). Please use white handkerchief, etc. to wrap the detergent before put it into the tub. How to use powdered detergent How to dissolve 1. -
Page 9: Operations Panel
NA-F62-70B1-ENABPS.indd 9 NA-F62-70B1-ENABPS.indd 9 5/8/08 9:16:34 AM 5/8/08 9:16:34 AM... -
Page 10: Normal Course
NORMAL Course Suitable for normal washing of casual laundry. Press the [POWER ON] button and put in the laundry. Press the [START/HOLD] button. • The light will indicate “NORMAL’’ Course automatically. • The machine will measure the load size without water (laundry sensing). -
Page 11: Delicate Course
DELICATE Course Suitable for washing soft laundry. Remark: Amount of laundry that can be washed at one time : 3.0 kg Press the [POWER ON] button and put in the laundry. Press the [PROGRAM] button twice for • The light will indicate “DELICATE’’ Course automatically. -
Page 12: Child Lock Program
CHILD LOCK program This is an emergency alarming mode with a continuous buzzer sounds when child open the lid during operation to prevent a child from drowning (condition where there is a water inside the tub) by falling into the tub which contains water. Close the lid to stop the buzzer. -
Page 13: Process Setting
Process settings You can select PROGRAM to wash your own laundry according to your preferences. (By pressing [PROCESS] button) WASH To reuse the wash water. • After washing, the wash water is left in the tub and the machine stop operation. SPIN To spin the separately washed laundry. -
Page 14: Maintenance: Tub Dry
Maintenance TUB DRY This process is to dry the tub during 30 minutes of spinning operation and prevents fungus from growing inside. Remark: Please be informed not to put laundry inside the tub during this program. Press the [POWER ON] button. Press the [PROGRAM] button fi... -
Page 15: Please Observe The Following Instructions
Please observe the following Instructions If the spinner tub does not stop within Do not spray anything or pour water 15 seconds after you open the lid over the lid. during spinning, immediately stop • Do not put water, pesticides, using the machine, and contact your hair products, deodorants, or dealer for repair. -
Page 16: How To Install
How to install Placement • Do not install the washing machine in any extremely damp place such as a bathroom, or in a place exposed to the weather. There is a danger of electric shock, fi re, machine trouble and deformation of machine. -
Page 17: Connect The Water Supply Hose
Connect the water supply hose That the appliance is to be connected to the water faucet using new water tap adaptor and water supply hose and that old one should not be reused. 1. Loosen the 4 screws on the water tap adaptor just enough to slip the adaptor over the mouth of the faucet. -
Page 18: Drain Hose Installation Instruction
2. Remove the screw fi xing the hose holder. of the base. For NA-F70B1 Hose Holder Screw 3. Remove the hose holder from the base. For NA-F62B1... -
Page 19: Troubleshooting
Troubleshooting The following symptoms are not trouble. Symptoms Causes Machine begins fi lling water in • When the laundry amount is large at the HIGH water level, the the middle of the wash. machine sometimes fi lls automatically. When level goes down, the machine fi... -
Page 20: Error Indication
• Please refer to “[CHILD LOCK] program’’ on page 12. • The buzzer does not sound. • Unplug the power cord and request for service. Specifi cation Model NA-F70B1 NA-F62B1 220 - 240 V ~ 220 - 240 V ~ Voltage...
