AIR PURIFIER
with Humidifying Function
OPERATION MANUAL
* The number in this technology mark indicates an
approximate number of ions supplied into air of 1 cm
which is measured around the center of a room with
the "high-density plasmacluser 7000" applicable floor
area (at 1.2 m height above the floor) at the medium
wind volume in humidifying & air purifying mode, or in
air purifying mode, when a humidifi er/air purifi er or an
air purifier using the high-density plasmacluster ion
evolving device is placed close to a wall. This product is
equipped with a device corresponding to this capacity.
3
,
11/26/12 10:28:49 AM
11/26/12 10:28:49 AM
Advertisement
Table of Contents
Related Manuals for Sharp KC-A60J
Summary of Contents for Sharp KC-A60J
-
Page 1: Operation Manual
Device of this mark is a trademark of Sharp Corporation. Plasmacluster is a registered trademark or a trademark of Sharp Corporation. * The number in this technology mark indicates an Free standing type approximate number of ions supplied into air of 1 cm which is measured around the center of a room with the “high-density plasmacluser 7000”... - Page 2 If the source of the odour still exists, the air purifi er may not completely remove the odour. HEPA Filter Deodorizing Filter Pre-Filter (Common illustration has used “KC-A60J”.) OM_KC-A60J_EN.indd 2 OM_KC-A60J_EN.indd 2 11/26/12 10:28:49 AM 11/26/12 10:28:49 AM...
-
Page 3: Table Of Contents
FOR CUSTOMER ASSISTANCE E-19 ..SPECIFICATIONS E-21 ........Thank you for purchasing this SHARP Air Purifi er. Please read this manual carefully before using the air purifi er. After reading, keep the manual in a convenient location for future reference. OM_KC-A60J_EN.indd Sec1:1 OM_KC-A60J_EN.indd Sec1:1... -
Page 4: Important Safety Instructions
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp authorized Service Centre or similarly qualifi ed person in order to avoid a hazard. • Only a Sharp Authorized Service Centre should service this air purifi er. Contact the nearest Service Centre for any problems, adjustments, or repairs. -
Page 5: Cautions Concerning Operation
CAUTIONS CONCERNING OPERATION • Do not block the intake and/or air outlet. • Do not use the unit near or on hot objects, such as stoves or heaters, or where it may come into contact with steam. • Always operate the unit in an upright position. •... -
Page 6: Part Names

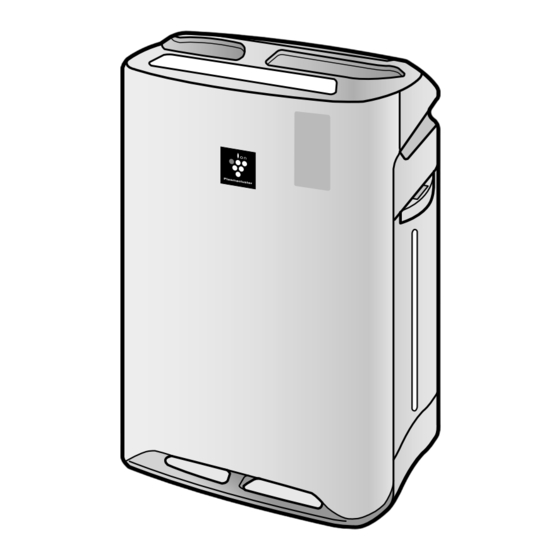

PART NAMES FRONT / BACK Main Unit Display (Ref.E-5) Front Monitor Main Unit (Shape of plug depends on country.) Air Outlet Float Handle Humidifying Tray (2 Locations) Sensor Caster (Internal) (4 Locations) •Dust Sensor HEPA Filter (white) •Temperture / Humidity Sensor Deodorizing Filter (black) •Odour Sensor... -
Page 7: Main Unit Display
MAIN UNIT DISPLAY POWER ON Button CLEAN AIR MODE Button / INDICATOR LIGHT (green) CLEAN AIR & HUMIDIFY MODE Button / INDICATOR LIGHT (green) CLEAN ION SHOWER MODE Button / INDICATOR LIGHT (green) LIGHT CONTROL Button CHILD-LOCK Button / INDICATOR LIGHT (green) Plasmacluster Ion ON / OFF Button / Plasmacluster Sign... -
Page 8: Preparation
PREPARATION Be sure to remove the power plug from the wall outlet. FILTER INSTALLATION Remove the Back Panel. Deodorizing fi lter (Black) HEPA fi lter (White) Remove the Filters from the plastic bag. Install the Filters in the correct order as shown. Deodorizing fi... -
Page 9: Refilling The Water Tank
REFILLING THE WATER TANK When using the Clean Air & Humidify Mode, or the Clean ION Shower Mode. Remove the Water Tank. Fill the Water Tank with tap Water. CAUTION • Check to see that there is no water leaking. •... -
Page 10: Operation
OPERATION CLEAN AIR & HUMIDIFY Using to quickly clean the air, reduce odours and to humidify. START • Select the desired fan speed. (Ref. E-9) • Unless the power cord has been unplugged, the operations starts in the previous mode it was operated in. NOTE •... -
Page 11: Clean Ion Shower
CLEAN ION SHOWER Releases high-density Plasmacluster ions and discharges strong air fl ow for 60 minutes. START NOTE • If the “Plasmacluster Ion ” is OFF, the plasmacluster ion will be not released. • When the operation fi nishes, the unit will return to the prior operation mode. -
Page 12: Useful Function
USEFUL FUNCTIONS LIGHT CONTROL Use this function to select the desired brightness. brighter darker turn off CHILD LOCK Operation of the unit display will be locked. It is the same method as starting operation. CANCELLATION more 3 sec. more 3 sec. SOUND INDICATOR SETTING The unit can be set to give an audible signal when the Water Tank is empty. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE Be sure to remove the power plug from the wall outlet. FILTER INDICATOR The Indicator Light will turn on after approximately 720 hours. (30days×24hours=720) Reminder to perform maintenance of parts below. After performing maintenance, reset the Filter Indicator. (Ref. E-12) more 3 sec. -
Page 14: Water Tank
CARE AND MAINTENANCE WATER TANK Rinse the inside with a small amount of water. CAUTION • Do not shake the Water Tank with holding the carrying handle. for stubborn dart... NOTE Clean inside of the water tank with a soft sponge and the tank cap with a cotton swab or a toothbrush. -
Page 15: Humidifying Tray And Cover
Be sure to remove the power plug from the wall outlet. HUMIDIFYING TRAY AND COVER 1. Remove the Humidifying Tray Cover. 2. Rinse the inside of the Humidifying Tray and the Humidifying Tray Cover with a tooth brush. Humidifying Tray Cover CAUTION •... - Page 16 CARE AND MAINTENANCE CARE AND MAINTENANCE DEODORIZIING FILTER HAND WASH ONLY! DO NOT DRY IN CLOTHES DRYER! Remove the dust on the DEODORIZING FILTER. Rinse the DEODORIZING FILTER with water. CAUTION • When washing the filter for the first time, the rinse water may be brown.
-
Page 17: Deodorizing Filter
1 unit Filter : 1 unit Filter : 1unit KC-A50J FZ-A50HFE FZ-A50DFE FZ-A60MFE KC-A60J FZ-A60HFE FZ-A60DFE NOTE Use the date label as a reminder for next replacement. Filter Frame (gray) Disposal of Filters Please dispose of used filters according to any local laws and regulations. -
Page 18: Troubleshooting
TROUBLESHOOTING Before calling for service, please review the Troubleshooting chart below, since the problem may not be a unit malfunction. SYMPTOM REMEDY (not a malfunction) Odours and smoke are not • Clean or replace the fi lters if they appear to be heavily soiled. (Ref. - Page 19 SYMPTOM REMEDY (not a malfunction) When the Roller / Float was removed. • Install the Roller / Float in order below. FLOAT ROLLER Fix the roller in the tray from side way. 1. Insert the fl oat under Float this tab. 2.
- Page 20 TROUBLESHOOTING ERROR DISPLAY If error occurs again, contact the Sharp Service Centre. DIGITAL LAMP INDICATION ERROR DETAILS REMEDY INDICATION Flashing of the Clean Air & Abnormal humidity fi lter. Verify if the Humidifying Filter, Humidifying Tray and Humidify Indicator Light.
- Page 21 Sharp. Please retain your sales documentation, as this should be produced to validate a warranty claim.
-
Page 22: For Customer Assistance
VISIT OUR WEBSITE AT www.sharp.net.au OR CALL SHARP CUSTOMER CARE 1300 135 022 (LOCAL CALL COST APPLY WITHIN AUSTRALIA) SHARP CORPORATION OF AUSTRALIA PTY LTD SHARP FOR LOCATION ENQUIRIES WITHIN NEW ZEALAND REGARDING YOUR LOCAL SHARP APPROVED SERVICE CENTRE VISIT OUR WEBSITE AT www.sharp.net.nz... -
