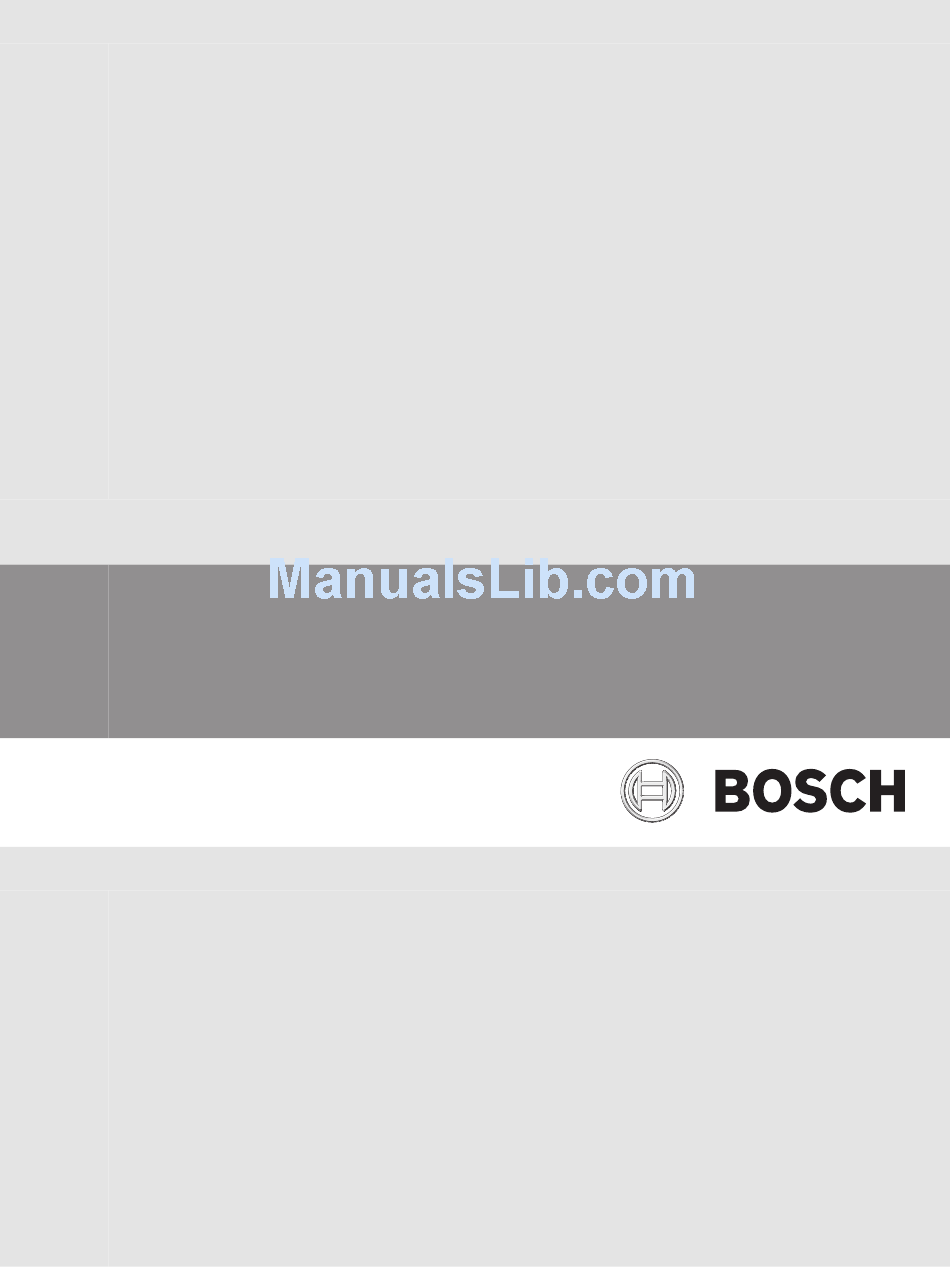

  • Page 1 Control Panels D9412GV4/D7412GV4 Owner's Manual...

  • Page 3: Table Of Contents

    Silence the alarm tone Entry delay tone and display Exit delay tone and display Keypress tones How the system reports events Alarm events Priority of events Fire alarms Gas alarms User and burglary alarms Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 4 14.1 All On menu 14.2 Part On menu 14.3 Off menu 14.4 Extend Closing 14.5 Bypass B94x/B93x Status menu 15.1 View Area Status 15.2 View Point Status 15.3 Send Status Report 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 5: Control Panels Table Of Contents | En

    Schedule (SKEDs) 18.4 Keypad B94x/B93x Shortcuts menu B94x/B93x Events menu 20.1 View Event Memory 20.2 Clear Event Memory 20.3 View Log B92x keypad operation overview 21.1 Keys overview 21.2 Display overview Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 6 Send Status Report B92x/B91x Actions menu 26.1 Reset 26.2 Outputs 26.3 Test 26.4 26.5 Go to Area 26.6 Firmware 26.7 Service Bypass 26.8 Access menu B92x/B91x Users menu 27.1 Change Passcode 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 7: Control Panels Table Of Contents | En

    30.2 Clear Event Memory 30.3 View Log Options 31.1 Two-man Rule 31.2 Early Ambush 31.3 Security system limitations 31.4 Cross points 31.5 Fire safety and evacuation 31.6 Multiple area systems Glossary Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 8: Introduction

    Your property is given its own English language description that appears in the display. Contact your security company should problems be encountered during testing of the system. Your alarm company is: Call before test: ______________________________________________________ 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 9: About Documentation

    Sections 15 through 22. Covers how to use B94x/ B93x keypads. – Sections 23 through 30. Covers how to use B92x/ B91x keypads. – Section 31. Explains optional features and security system recommendations and limitations. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 10 Text that appears in this manual in brackets [ ] instructs you to press the corresponding icon/key on your keypad. Copyright This document is the intellectual property of Bosch Security Systems, Inc. and is protected by copyright. All rights reserved. Trademarks...

  • Page 11: Keypads Overview

    Ready to turn on <Shortcuts Menu> PREV HELP NEXT PQRS WXYZ PQRS WXYZ B91x B92x A1 Lobby A1 Lobby Ready to turn on Ready to turn on PREV HELP NEXT PQRS WXYZ Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 12: Keypad Cleaning

    Use a soft cloth and non-abrasive cleaning solution to clean your keypad (for example, microfiber cloth and eyeglass cleaner). Spray the cleaner onto the cloth. Do not spray directly onto the keypad. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 13: Points

    Part points Part points often include the exterior doors and windows of the building (the perimeter). When you turn your system Part On, you only turn on (arm) the part points. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 14: 24-Hour Points

    Non-fire 24-hour points are always on (armed) and you cannot turn them off (disarm). Panic buttons, hold up buttons, low temperature sensors, and water sensors are examples of devices that are typically monitored by non-fire 24-hour points. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 15: Areas

    With each section being its own area in your security system, you can turn them on (arm) and off (disarm) individually, in groups (office and laboratory, for example), or all together. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 16: Warning Displays And Tones

    The audible alarm sounds for a specific period of time before it automatically shuts off. To silence the alarm before the time expires, simply enter your personal passcode and press [ENTER]. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 17: Entry Delay Tone And Display

    The tone pulsing rate increases during the last 10 sec of exit time. If you exit and re-enter before exit time expires, the exit delay timer restarts the countdown. The restart only applies once. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 18: Keypress Tones

    Invalid entry (error tone) The invalid entry tone follows the keypress tone when the keypress completes an invalid entry. Some entries require one keypress. Other entries require a series of two or more keypresses. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 19: How The System Reports Events

    (check with your security company). Consult with your installer to determine if your security system is configured with a communicator delay. A communicator delay aborts reports to your security Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 20 If you disable call waiting after your system has been configured for it, be sure to notify your security company. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 21: Alarm Events

    (━ ━ ━ ━ ━ ━ ━ ━ ━ ━ ━ ━), and the pulsating fire tone (━━━ ━━━ ━━━). The tone sounds for the duration set by your security company. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 22 Some fire points need to be reset. You cannot clear fire troubles from the display. When fire points return to normal, the security system automatically clears the fire troubles from the display. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 23: Gas Alarms

    (disarms the system). The system now shows Alarm Silenced, and then the number of points in alarm, and the name of all the points in alarm in the order of occurrence. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 24: User And Burglary Alarms

    Burglary alarms are the forth priority. When a burglary point activates while the system is on (armed), the keypad emits a steady burglary tone (━━━━━━━━━━━). 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 25 To silence user and burglary alarms before the time expires, simply enter your personal passcode and press [ENTER]. Notice! For silent alarms, such as hold up alarms, no audible alarm sounds. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 26: Trouble Events

    (three tones followed by a pause repeated). The system shows the number of gas points with troubles and the name for each point in trouble. 8.2.1 Silence gas troubles Press [ENTER] to silence the trouble tone. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 27: User And Burglary Trouble Events

    All system trouble displays begin with SERV or Service. The Service text clears only after the faulted condition is corrected. Press [ENTER] to silence the trouble tone. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 28: Cleared Events Are Not Lost

    (armed). Turning the system on (arming) clears event memory. – Select the View Log menu to view all events in your system’s event log. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 29: View Faulted Or Bypassed Points

    The keypad offers two ways of displaying faulted and bypassed point information. The first causes the faulted or bypassed point information to scroll automatically through the display. The second allows you to manually scroll through each individual point description. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 30: B94X Keypad Operation Overview

    | B94x Keypad operation overview Control Panels B94x Keypad operation overview 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 31 Presence sensor (lights a dim screen as you approach) Your security system provides quick access to functions through the keypad menus. My shortcuts are: ___________________________ ___________________________ ___________________________ ___________________________ Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 32: Main Display Area

    The Main icon serves as both an indicator of the arming state and alarms, and as an icon to press to change the arming state. The text above the icon provides instructions. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 33 For example, the [View Faulted] icon allows you to look at the list of faulted points. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 34 Yes to a keypad request. CMD (command). Press to initiate a select number of functions that require one or two additional keys. Backspace. Press to backspace to remove alphanumeric characters. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 35 Shift. Press to enter an uppercase letter or a special character on the numbers keyboard. Backspace. Press to backspace to remove alphanumeric characters. Enter. Press to save entered characters and return to the previous menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 36: Ribbon Bar Overview

    Description Number Home. Press to return to the home (main) display. Previous. Press to return to the previous screen or menu. Next. Press to advance to the next screen or menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 37 From there you can choose from emergency responses programmed by your security company.. Help. Press to open on-display instructions. Time and Date. View the time and date. You do not interact with this area. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 38: Status Indicators Overview

    – OFF. One or more areas are off. Trouble. The yellow caution lights when a trouble condition exists. – ON Steady. There is a system, device, or point trouble. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 39: Feature Key

    – OFF. There is no power to the control panel. 11.4 Feature key The Feature key performs a specific function programmed by your security company. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 40: B93X Keypad Operation Overview

    Area 1 A1 Lobby Ready to turn on <Shortcuts Menu> PREV HELP NEXT PQRS WXYZ PQRS WXYZ Callout Description Number Alphanumeric display (refer to Display overview, page 43) [HELP] key Softkeys 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 41 The keypad has a Shortcuts menu to quickly access functions you use most. Your security company programmed these Shortcuts for you. To access Shortcuts using a B93x, press [Shortcuts]. My shortcuts are: ___________________________ ___________________________ ___________________________ ___________________________ Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 42: Keys Overview

    [Shortcuts] softkeys. The Shortcuts menu is the quickest way to access the functions you use most. HELP Use the [HELP] key to open the keypad’s on-display Help. (Press [ESC] to exit help when you finish viewing.) 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 43: Display Overview

    The keypad has a bright two-line by 20-character liquid crystal display (LCD). When names are more than 18 characters, the text scrolls horizontally, similar to the way a stock ticker scrolls. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 44: Status Indicators Overview

    – OFF. One or more areas are off. Trouble. The yellow caution lights when a trouble condition exists. – ON Steady. There is a system, device, or point trouble. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 45 – Flashing. AC (mains) power to the control panel is not present and the control panel is operating from the battery. – OFF. There is no power to the control panel. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 46: B94X/B93X Menu Tree And Commands

    You can type the number for the desired menu, if you know it. The menu tree figure on the next page shows the Menu structure and the numbers associated for each menu (B93x only). 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 47 Control Panels B94x/B93x menu tree and commands | en Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 48 After you press [CMD], you can use /[PREV] or [NEXT] to move through the list of commands, and press [ENTER] when viewing the desired command. Review the available commands in the following table. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 49 Extend Close [CMD] 5 3 Delete User [CMD] 5 5 Change Passcode [CMD] 5 6 Add User [CMD] 5 9 Show Revision [CMD] 6 Watch Mode [CMD] 8 Open Main menu Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 50: B94X/B93X On/Off Menu

    When you enter a security system that is turned on (armed), there is an entry delay that gives you time to turn off (disarm) the system. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 51 6. Exit the area or enter your passcode again to stop the system from turning on. If you turn your system All On and don't exit, the system automatically switches to Part On. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 52 4. Press to [All On Instant] open the menu. 5. Enter your passcode and press [ENTER]. The keypad shows All On. 6. To turn off the security system, enter your passcode and press [ENTER]. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 53 4. Press [All On Select Area] to open the menu. 5. Enter your passcode and press [ENTER]. 6. Press either [On Delay] or [Instant]. The keypad responds based upon your selection. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 54: Part On Menu

    2. Press [On/Off] to open the menu. 3. Press [Part On] to open the menu. 4. Press [Part On Delay] to open the menu. 5. Enter your passcode and press [ENTER]. The keypad shows Part On Delay. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 55 2. Press [On/Off] to open the menu. 3. Press [Part On] to open the menu. 4. Press [Part On Instant] to open the menu. 5. Enter your passcode and press [ENTER]. The keypad shows Part On Instant. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 56 4. Press [Part On Select Area] to open the menu. 5. Enter your passcode and press [ENTER]. 6. Press either [On Delay] or [Instant]. The keypad responds based upon your selection. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 57: Off Menu

    Turning off the security system (disarm) with your passcode: 1. Enter your personal passcode. 2. Press [ENTER] within 8 sec of entering your passcode. The display returns to idle text. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 58 2. Press [On/Off] to open the menu. 3. Press [Off] to open the menu. 4. Press [Turn Off] to turn off. 5. Enter your passcode and press [ENTER]. The display returns to idle text. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 59 3. Press [Off] to open the menu. 4. Press [Turn Off Select Area] to open the menu. 5. Press either [Off Delay] or [Off Instant]. The keypad responds based upon your selection. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 60: Extend Closing

    If the alarm or trouble condition clears before the end of the close window Please Close Now returns to the keypad display. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 61 3. Press [Extend Close] to open the menu. 4. Enter your passcode and press [ENTER]. Notice! You cannot extend the window across the midnight boundary. The system cannot arm if points are off- normal. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 62: Bypass

    2. Press [On/Off] to open the menu. 3. Press [Bypass] to open the menu. 4. Press [Bypass Points] to open the menu. 5. Select a point to bypass. 6. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 63 2. Press [On/Off] to open the menu. 3. Press [Bypass] to open the menu. 4. Press [Unbypass Points] to open the menu. 5. Select a point to unbypass. 6. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 64: B94X/B93X Status Menu

    3. Press [View Area Status] to open the menu. 4. Enter your passcode and press [ENTER]. The display shows the status of each area. For example A-1: Off. 5. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 65: View Point Status

    5. The display shows the number of points in the system. Use /[PREV] or /[NEXT] to scroll through the list of points and each point’s status. 6. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 66: Send Status Report

    2. Press [Status] to open the menu. 3. Press [Send Status Report] to open the menu. 4. Enter your passcode and press [ENTER]. The control panel sends a report to your security company. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 67: B94X/B93X Actions Menu

    If you enter this function and the detector or sensor resets momentarily, but then returns to a faulted condition, the conditions causing the activation may still Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 68 Check to be certain that there is no smoke, fire, or other danger present. If you cannot reset the detector or sensor, contact your security company. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 69: Outputs

    4. Enter your passcode and press [ENTER]. 5. Use /[NEXT] to select the desired output value, or use the number keys to enter the value. 6. Press [Turn On] or [Turn Off]. 7. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 70: Test

    If the battery is determined to be very low, the system creates a missing battery event and ends the battery test immediately. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 71 8. Escape from the menu. Automatic termination The Walk Test automatically ends after 20 minutes of no test activity. The keypad sounds during the last 5 minutes of the test. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 72 3. Press [Test] to open the menu. 4. Press [Send Test Report] to open the menu. 5. Enter your passcode and press [ENTER]. The system sends a test report. 6. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 73 3. Press [Test] to open the menu. 4. Press [Revisions] to open the menu. 5. Enter your passcode and press [ENTER]. The current revision information shows on the display. 6. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 74: Rps

    3. Press [RPS] to open the menu. 4. Press [Answer] to open the menu. 5. Enter your passcode and press [ENTER]. The keypad shows RPS is connecting…. and then returns to idle text. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 75 5. To use the programmed port number, press [Configured Port]. The connection progress begins. 6. If you wish to change the port number before connecting, press [Change Port]. Press [ENTER]. The connection progress begins. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 76 2. Press [Actions] to open the menu. 3. Press [RPS] to open the menu. 4. Press [Call via Phone] to open the menu. 5. Enter your passcode, press [ENTER]. The connection progress begins. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 77: Go To Area

    3. Press [Got to Area] to open the menu. 4. Enter your passcode and press [ENTER]. 5. Use /[NEXT] to go to the area you wish to enter, and then press [Got to Area]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 78: Firmware

    Authorizing a firmware update: 1. Open the Main menu. 2. Press [Actions] to open the menu. 3. Press [Firmware] to open the menu. 4. Enter your passcode and press [ENTER]. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 79: Service Bypass

    Viewing points in Service Bypass: 1. Open the Main menu. 2. Press [Actions] to open the menu. 3. Press [Srv Bypass] to open the menu. The keypad shows any points in service bypass. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 80: Access Menu

    The door is unlocked (you do not need to activate a door request or present a valid credential). The door is secured (door cannot be opened when secured, even if you present a valid credential). 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 81 The door is in a failed state. Call your security company. 1 - 8 The door is locked (door can be opened by presenting a valid credential). This feature is: available on my system. unavailable on my system. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 82 6. Enter the number of the door you wish to cycle, then press [ENTER]. The door cycles and the display changes to show the door number as a C until the cycle completes. 7. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 83 [ENTER]. The door unlocks and door number is replaced by U in the display. You can return the door to a normal state by using the Lock Door menu option. 7. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 84 6. Enter the number of the door you wish to lock, then press [ENTER]. The door locks and the display changes to show the door’s number (1 – 8). 7. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 85 X. You can return the door to a normal state only by entering the door number in the Secure menu and pressing [ENTER]. 7. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 86: B94X/B93X Users Menu

    2 of an existing passcode. For example, if 1234 is an existing code, your security system does not let you change your code to 1232, 1233, 1234, 1235, or 1236. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 87 3. Enter your current passcode and press [ENTER]. 4. Enter your new passcode and press [ENTER]. 5. Enter your new passcode again and press [ENTER]. 6. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 88: Add User

    The area number identifies which parts of your security system the passcode can access. Contact your security company if you don’t know what user numbers, authority levels, or areas are available. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 89 1232, 1233, 1235, or 1236. – Choose an authority level for each area. Leaving the authority level for an area blank by pressing [ENTER] without making an entry, denies the passcode access to that area. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 90 [CMD] before you enter the letter. For caps lock, press [CMD][CMD]. To remove caps lock, press [CMD][CMD][CMD]. 3. Press [ENTER] to save the name. The keypad returns to the previous menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 91 Level configured and returns to the previous menu. 5. If your security system has more than one area, use [NEXT] and the previous two steps to set the levels for the additional areas. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 92 (for example, you accidentally added the wrong one), press [Replace] and then [Replace], and follow the previous step. 10. You can remove the added keyfob or transmitter by pressing [Remove]. 11. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 93 3. Present the card at the card reader. The keypad shows Present card. 4. If the reader identifies the card correctly, the keypad shows Card configured. 5. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 94: Edit User

    2. Press [ENTER] to continue. 3. Enter the user’s passcode and press [ENTER]. 4. Enter the passcode again and press [ENTER]. The keypad shows Passcode changed and then returns to the previous menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 95 Level configured and returns to the previous menu. 5. If your security system has more than one area, use [NEXT] and the previous two steps to set the levels for the additional areas. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 96 Inovonics Transmitter. 7. Press [ENTER] to continue. 8. Enter the RFID. 9. Press [Save] to save the RFID and return to the previous menu. Adding or replacing a card for the user: 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 97 3. Present the card at the card reader. The keypad shows Present card. 4. If the reader identifies the card correctly, the keypad shows Card configured. 5. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 98: Delete User

    6. Press [Continue]. 7. Press [Yes] to confirm you wish to delete the selected user. The keypad shows User ## deleted, and then returns to the previous menu. 8. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 99: B94X/B93X Settings Menu

    Use this function in residential systems to monitor entries or exits in your home. In commercial systems it can serve as a door chime to alert you when a customer or delivery person enters your business. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 100 3. Press [Watch Mode] to open the menu. 4. Enter your passcode and press [ENTER]. 5. Press [Turn On] or [Turn Off]. The keypad indicates that you enabled or disabled Watch Mode successfully. 6. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 101: Date/Time

    11. For B93x, press [AM] or [PM]. 12. Press [Save]/[ENTER] to save the change. The keypad shows Time change complete and then returns to the previous menu. 13. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 102: Schedule (Skeds)

    /[NEXT] to scroll through the list of SKEDs. The keypad indicates whether a SKED is enabled, disabled, or not yet programmed. 6. Continue to Enabling a disabled SKED or Disabling a enabled SKED. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 103 1. With the SKED you wish to disable showing, press [Disable the sked]. 2. Press [ENTER] to disable the SKED. The keypad display indicates that the SKED is disabled. 3. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 104: Keypad

    3. Press [Keypad] to open the menu. 4. Press [Brightness] to open the menu. 5. Use /[PREV] or /[NEXT] to adjust the brightness level. The changes apply immediately. 6. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 105 3. Press [Keypad] to open the menu . 4. Press [Volume] to open the menu. 5. Use /[PREV] or /[NEXT] to adjust the volume level. The changes apply immediately. 6. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 106 2. Press [Settings] to open the menu. 3. Press [Keypad] to open the menu. 4. Press [Keypress] to open the menu. 5. Press [Turn On] or [Turn Off]. 6. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 107 2. Press [Settings] to open the menu. 3. Press [Keypad] to open the menu. 4. Press [Nightlight] to open the menu. 5. Press [Turn On] or [Turn Off]. 6. Escape from the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 108 2. Press [Settings] to open the menu. 3. Press [Keypad] to open the menu. 4. Press [PIR] to open the menu. 5. Press [Turn On] or [Turn Off]. 6. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 109: B94X/B93X Shortcuts Menu

    /[Shortcuts]while viewing idle text. 2. Press the softkey for the desired Shortcut. If more than four Shortcuts are available, the [NEXT] key lights, and you can use the key to view additional Shortcuts. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 110: B94X/B93X Events Menu

    Viewing event memory: 1. Open the Main menu. 2. Press [Events] to open the menu. 3. Press [View Event Memory] to open the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 111: Clear Event Memory

    Clearing event memory: 1. Open the Main menu. 2. Press [Events] to open the menu. 3. Press [Clear Event Memory] to open the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 112: View Log

    [Go to last event] without entering a start date. The date and time of the newest event shows. Use [PREV] or /[NEXT] to move through the events. 4. Escape from the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 113 Control Panels -Notes- | en ￚNotesￚ Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 114: B92X Keypad Operation Overview

    B92x keypad operation overview A1 Lobby Ready to turn on Callout Description Number Alphanumeric display (refer to Display overview, page 119) [PREV] and [NEXT] keys [ENTER] key [ALL], [PART], and [BYPASS] keys 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 115 To exit a specific menu and return to the previous level, press [ESC]. To exit and return to idle text from any level of the menu structure, press and hold [ESC]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 116 The keypad has a Shortcuts menu to quickly access functions you use most. Your security company programmed these Shortcuts for you. To access Shortcuts, press [MENU], and then press [6]. My shortcuts are: ___________________________ ___________________________ ___________________________ ___________________________ 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 117: Keys Overview

    [BYPASS] key to access the menu to bypass points. ENTER Use the [ENTER] key to complete the entry of your passcode other numbers, or to answer Yes to a keypad request. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 118 118 en | B92x keypad operation overview Control Panels 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 119: Display Overview

    The keypad uses words, numbers, and symbols to show the status of the security system. When several events occur, the keypad shows each event in order of priority. The keypad has a bright two-line liquid crystal display (LCD). Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 120: Status Indicators Overview

    – OFF. One or more areas are off. Trouble. The yellow caution lights when a trouble condition exists. – ON Steady. There is a system, device, or point trouble. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 121 – Flashing. AC (mains) power to the control panel is not present and the control panel is operating from the battery. – OFF. There is no power to the control panel. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 122: B91X Keypad Operation Overview

    122 en | B91x Keypad operation overview Control Panels B91x Keypad operation overview A1 Lobby Ready to turn on PREV ENTER NEXT PQRS WXYZ 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 123 [ENTER] or press the corresponding number key, as indicated in the on- display instructions (for example, Press 2 for Status menu). To exit a specific menu and return to the Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 124: Keys Overview

    (short beep). 22.1.1 Keys descriptions ENTER Use the [ENTER] key to complete the entry of your passcode, to select a menu item, or to answer Yes to a keypad request. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 125: Display Overview

    The keypad has a bright two-line liquid crystal display (LCD). 22.3 Status indicators overview The Status indicators on keypads provide a quick visual reference for you to see how your system is operating. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 126 ON Steady. There is a system, device, or point trouble. – OFF. There are no system, device, or point troubles. All On status. – Green. Ready to turn All On. – Red. All On (all armed). 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 127: B92X/B91X Menu Tree

    [ENTER] when you see the desired menu option. The menu tree figure on the next page shows the menu structure and the numbers associated for each menu option. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 128 128 en | B92x/B91x menu tree Control Panels 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 129 After you press [CMD], you can use /[PREV] or [NEXT] to move through the list of commands, and press [ENTER] when viewing the desired command. Review the available commands in the following table. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 130 Extend Close [CMD] 5 3 Delete User [CMD] 5 5 Change Passcode [CMD] 5 6 Add User [CMD] 5 9 Show Revision [CMD] 6 Watch Mode [CMD] 8 Open Main menu 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 131: B92X/B91X On/Off Menu

    Use the All On menu to turn areas All On. Turning an area All On means to turn on (arm) all the points in that area, for example, all doors and all windows and all motion sensors. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 132 6. Exit the area or enter your passcode to stop the system from turning on. If you turn your system All On and don't exit, the system automatically switches to Part On. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 133 4. Use [NEXT] to go to the All On Instant option, and press [ENTER], or simply press [2]. The keypad shows All On. 5. To turn off the security system, enter your passcode and press [ENTER]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 134 4. Use [NEXT] to go to the All On Select menu, and press [ENTER], or simply press [3]. 5. Use [NEXT] and [ENTER] to select either the On Instant or On Delay option. The keypad responds based upon your selection. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 135: Part On Menu

    [ENTER], or simply press [2]. 4. Press [1] or [ENTER] to open the Part On Delay option. The keypad shows Part On Dly. 5. To turn off the system, enter your passcode and press [ENTER]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 136 4. Use [NEXT] to go to the Part On Instant option, and press [ENTER], or press [2]. 5. Enter your passcode and press [ENTER]. The keypad shows Part On Inst. 6. To turn off the system, enter your passcode and press [ENTER]. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 137 4. Use [NEXT] to go to the menu Part On Select menu, and press [ENTER], or press [3]. 5. Use [NEXT] and [ENTER]to select either the On Instant or On Delay option. The keypad responds based upon your selection. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 138: Off Menu

    Turning off the security system (disarm) with your passcode: 1. Enter your personal passcode. 2. Press [ENTER] within 8 sec of entering your passcode. The display returns to idle text. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 139 4. Use [NEXT] to go to the menu Turn Off Select menu, and press [ENTER], or simply press [2]. 5. Use [NEXT] and [ENTER] to select an area. 6. Press [ENTER] to turn off your selected area. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 140: Extend Closing

    If the alarm or trouble condition clears before the end of the close window Please Close Now returns to the keypad display. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 141 [ENTER], or simply press [4]. 4. Enter your passcode and press [ENTER]. Notice! You cannot extend the window across the midnight boundary. The system cannot arm if points are off- normal. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 142: Bypass Menu

    3. Use [NEXT] to go to the Bypass menu, and press [ENTER], or simply press [5]. 4. Press [1] or [ENTER] to open the Bypass Points menu. 5. Select a point to bypass. 6. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 143 4. Use [NEXT] to go to the Unbypass menu, and press [ENTER], or simply press [2]. 5. Enter your passcode and press [ENTER]. 6. Select a point to bypass. 7. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 144: B92X/B91X Status Menu

    3. Press [1] or [ENTER] to open the View Area Status menu. 4. Enter your passcode and press [ENTER]. The display shows the status of each area. For example A1: Off. 5. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 145: View Point Status

    4. The display shows the number of points in the system. Use [PREV] or [NEXT] to scroll through the list of points and each point’s status. 5. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 146: Send Status Report

    3. Use [NEXT] to go to the Send Status Report menu option, and press [ENTER], or simply press [3]. 4. Enter your passcode and press [ENTER]. The control panel sends a status report to your security company. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 147: B92X/B91X Actions Menu

    If you enter this function and the detector or sensor resets momentarily, but then returns to a faulted condition, the conditions causing the activation may still Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 148 Check to be certain that there is no smoke, fire, or other danger present. If you cannot reset the detector or sensor, contact your security company. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 149: Outputs

    6. Press [ENTER]. The current state of the output shows. 7. Use [ENTER] to toggle between Off and On. 8. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 150: Test

    If the battery is determined to be very low, the system creates a missing battery event and ends the battery test immediately. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 151 Service, or [4] for Invisible. 7. Press [ENTER] to view the points. 8. Use [NEXT] to toggle through your desired point and view the status of that point. 9. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 152 152 en | B92x/B91x Actions menu Control Panels Automatic termination The Walk Test automatically ends after 20 minutes of no test activity. The keypad sounds during the last 5 minutes of the test. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 153 4. Use [NEXT] to go to the Send Test Report menu option, and press [ENTER], or simply press [2]. 5. Enter your passcode and press [ENTER]. The system sends a test report. 6. Press [ESC] to exit the menu Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 154 4. Use [NEXT] to go to the Revisions menu option, and press [ENTER], or simply press [3]. The current control panel revision information shows on the display. 5. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 155 Control Panels B92x/B91x Actions menu | en 155 Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 156: Rps

    4. Press [1] or [ENTER] to reset the sensors with the Answer option. 5. Enter your passcode and press [ENTER]. The keypad shows RPS is connecting…. and then returns to idle text. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 157 [NEXT] and then [ENTER], or simply press [2]. The [ESC] key acts as a backspace key. Press [ESC] to delete the characters, and then enter the new characters. Press [ENTER]. The connection process begins. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 158 [ENTER], or simply press [4]. 4. Use [NEXT] to go to the Call Via Phone menu option, and press [ENTER], or simply press [3]. 5. Enter your passcode and press [ENTER]. The connection process begins. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 159: Go To Area

    3. Use [NEXT] to go to the Go to Area menu option, and press [ENTER], or simply press [5]. 4. Enter your passcode and press [ENTER]. 5. Use [NEXT] to go to the area you wish to enter, and then press [ENTER]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 160: Firmware

    2. Use [NEXT] to go to the Actions menu option, and press [ENTER], or simply press [3]. 3. Use [NEXT] to go to the Firmware menu option, and [ENTER], or simply press [6]. 4. Enter your passcode and press [ENTER]. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 161: Service Bypass

    3. Use [NEXT] to go to the Service Bypass menu option, and press [ENTER], or simply press [6]. 4. Enter your passcode and press [ENTER]. The keypad shows any points in service bypass. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 162: Access Menu

    The door is unlocked (you do not need to activate a door request or present a valid credential). The door is secured (door cannot be opened when secured, even if you present a valid credential). 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 163 The door is in a failed state. Call your security company. 1 - 8 The door is locked (door can be opened by presenting a valid credential). This feature is: available on my system. unavailable on my system. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 164 6. Enter the number of the door you wish to cycle, then press [ENTER]. The door cycles and the display changes to show the door number as a C until the cycle completes. 7. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 165 U in the display. You can return the door to a normal state by using the Lock Door menu option. 7. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 166 6. Enter the number of the door you wish to lock, then press [ENTER]. The door locks and the display changes to show the door’s number (1 – 8). 7. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 167 X . You can return the door to a normal state only by entering the door number in the Secure menu and pressing [ENTER]. 7. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 168: B92X/B91X Users Menu

    2 of an existing passcode. For example, if 1234 is an existing code, your security system does not let you change your code to 1232, 1233, 1234, 1235, or 1236. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 169 5. Enter your new passcode and press [ENTER]. 6. Enter your new passcode again and press [ENTER]. The keypad shows Passcode changed and then returns to the Change Passcode option. 7. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 170: Add User

    The area number identifies which parts of your security system the passcode can access. Contact your security company if you don’t know what user numbers, authority levels, or areas are available. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 171 1232, 1233, 1235, or 1236. – Choose an authority level for each area. Leaving the authority level for an area blank by pressing [ENTER] without making an entry, denies the passcode access to that area. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 172 2. Press [ENTER] to configure the user’s passcode. 3. Enter the user’s passcode and press [ENTER]. 4. Enter the passcode again and press [ENTER]. The keypad shows Passcode changed and then returns to the previous menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 173 Level configured and returns to the previous menu. 4. If your security system has more than one area, use [NEXT] and the previous two steps to set the levels for the additional areas. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 174 (for example, you accidentally added the wrong one), use [NEXT] to go to the Replace a Keyfob option, and press [ENTER],or simply press [3], and then follow the previous step. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 175 3. Present the card at the reader. 4. If the reader identifies the card, the keypad shows Card configured. 5. Press [ESC] to exit the menu. This feature is: available on my system. unavailable on my system. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 176: Edit User

    3. Enter the user’s passcode and press [ENTER]. 4. Enter the passcode again and press [ENTER]. The keypad shows Passcode changed and then returns to the previous menu. Configuring the user’s name: 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 177 Level configured and returns to the previous menu. 4. If your security system has more than one area, use [NEXT] and the previous two steps to set the levels for the additional areas. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 178 (for example, you accidentally added the wrong one), use [NEXT] to go to the Replace a Keyfob option, and press [ENTER],or simply press [3], and then follow the previous step. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 179 3. Present the card at the card reader. 4. If the reader identifies the card, the keypad shows Card configured. 5. Press [ESC] to exit the menu. This feature is: available on my system. unavailable on my system. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 180: Delete User

    7. Press [ENTER] to confirm you wish to delete the selected user. The keypad shows User ## deleted, and then returns to the previous menu. 8. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 181: B92X/B91X Settings Menu

    Use this function in residential systems to monitor entries or exits in your home. In commercial systems it can serve as a door chime to alert you when a customer or delivery person enters your business. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 182 5. Press [ENTER] to turn Watch Mode on if it is off, or off if it is on. The keypad display indicates that you enabled or disabled Watch Mode successfully. 6. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 183: Date/Time

    7. Press [ENTER]. The keypad shows Change complete and then returns to the previous menu. 8. Use [NEXT] to go to the option to change the time, and press [ENTER], or simply press [2]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 184 11. Press [ENTER] to select AM, or press [NEXT] and then [ENTER] to select PM. The keypad shows Change complete and then returns to the previous menu. 12. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 185: Schedule (Skeds)

    SKEDs. The keypad indicates whether a SKED is enabled, disabled, or not yet programmed. 6. With the SKED you wish to enable showing, press [ENTER]. 7. Continue to Enabling a disabled SKED or Disabling a enabled SKED. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 186 1. With the SKED you wish to enable showing, press [ENTER]. 2. Press [ENTER].to continue disable it. The keypad display indicates that the SKED is disabled. 3. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 187: Keypad

    [ENTER], or simply press [4]. 4. Press [1] or [ENTER] to adjust the brightness. 5. Press [PREV] or [NEXT] to adjust the brightness level. The changes apply immediately. 6. Press [ESC] to exit the menu. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 188 4. Use [NEXT] to go to the Volume menu option, and press [ENTER], or simply press [2]. 5. Press [PREV] or [NEXT] to adjust the volume level. The changes apply immediately. 6. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 189 2. Use [NEXT] to go to the Press 5 for Settings Menu option, or simply press [5]. 3. Use [NEXT] to go to the Press 4 for Keypad Config option, or simply press [4]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 190 5. Use [PREV] or [NEXT] to toggle between the Yes and No options. 6. Press [ENTER] while viewing the desired option to save the programming. 7. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 191: B92X/B91X Shortcuts Menu

    2. Use [NEXT] to go to the Shortcuts menu option, and press [ENTER], or simply press [6]. 3. Use [PREV] or [NEXT] to go to the Shortcut you wish to run, and then press [ENTER]. The shortcut runs. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 192: B92X/B91X Events Menu

    1. Open the Main menu. 2. Use [NEXT] to go to the Events menu option, and press [ENTER], or simply press [7]. 3. Press [1] or [ENTER] to open the view event memory. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 193: Clear Event Memory

    2. Use [NEXT] to go to the Events menu option, and press [ENTER], or simply press [7]. 3. Use [NEXT] to go to the Clear Event Memory menu option, and press [ENTER], or simply press [2]. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 194: View Log

    Use [PREV] or [NEXT] to move through the events. If an event description is longer than the display, the event description scrolls horizontally. 4. Press [ESC] to exit the menu. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 195: Options

    1. Enter the first passcode and press [ENTER]. The keypad shows a request for the second passcode. 2. Enter a second passcode and press [ENTER]. The second passcode must be different from the first passcode. The area turns off. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 196: Early Ambush

    You can enter the passcodes at the same keypad, or at different keypads (if keypads are assigned to the same area). Early Ambush is: enabled on my system. disabled on my system. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 197 3. Enter a second passcode and press [ENTER]. The keypad shows Code 2 Validated to confirm that the security system accepted the second passcode and stopped the Early Ambush time countdown. The system does not create a duress event. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 198: Security System Limitations

    They might not detect smoke or fire on a level of the building different from the one on which they are located. Smoke detectors might not be able to warn 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 199 Although having a security system might make you eligible for reduced insurance premiums, the security system is no substitute for insurance. Warning devices cannot compensate you for loss of life or property. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...

  • Page 200: Cross Points

    A second alarm on the first point does not create an alarm event, but rather an unverified event. Cross points are: enabled on my system. disabled on my system. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 201: Fire Safety And Evacuation

    – Practice using different ways out. – Teach children how to esape on their own in case you can’t help them. – Close doors behhind you as you leave. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 202 Never go back inside for people or pets. – If you have to escape through smoke, get low and go under the smoke to your way out. – Call the fire department from outside your home. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 203: Multiple Area Systems

    Example Your security system protects a business configured for three areas (the office, the warehouse, and shipping), and three users (1, 2, and 3). Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 204 What does this mean for the three users in the example? Specifically, which areas turn on when the user turns the system All On from each keypad? 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 205 None User’s authority is passcode- limited to the office protected area, which is not within functions? the warehouse keypad’s scope Result of turning the system All On? No area turns on. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 206 User’s authority is passcode- limited to the office protected area, which is not within functions? the warehouse or shipping keypad’s scope Result of turning the system All On? No area turns on. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 207 Perform Warehouse User’s authority passcode- includes the warehouse protected which is in the keypad’s functions? scope Result of turning the system All On? Only the warehouse area turns on. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 208 User’s authority level passcode- and the keypad’s scope protected shipping include both the functions? warehouse and shipping Result of turning the system All On? Only the warehouse and shipping areas turn on. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 209 Perform Warehouse User’s authority passcode- includes the warehouse protected which is in the keypad’s functions? scope Result of turning the system All On? Only the warehouse area turns on. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 210 User’s authority level passcode- and the keypad’s scope protected shipping include both the functions? warehouse and shipping Result of turning the system All On? Only the warehouse and shipping areas turn on. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.

  • Page 211: Glossary

    A programmed delay of system begins an alarm system alarm response response which may allowing an individual to include reports to the enter an armed area central station. Bosch Security Systems, Inc. 2014.04 | 05 | F.01U.287.176...
  • Page 212 Part On An arming command that arms only the perimeter points. 2014.04 | 05 | F.01U.287.176 Bosch Security Systems, Inc.
  • Page 214 Bosch Security Systems, Inc. 130 Perinton Parkway Fairport, NY 14450 www.boschsecurity.com © Bosch Security Systems, Inc., 2014...

This manual is also suitable for:

D7412gv4

Table of Contents
