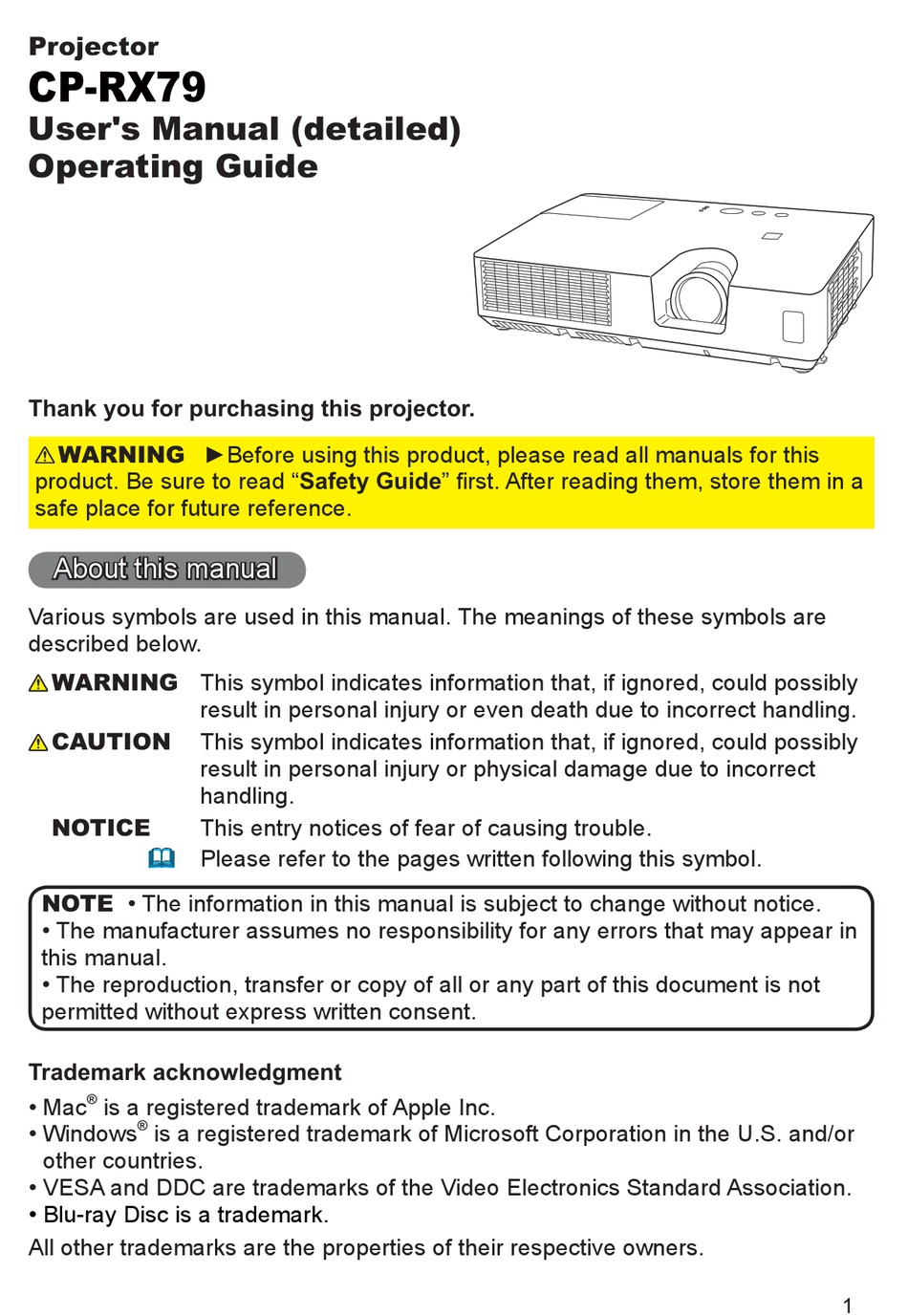

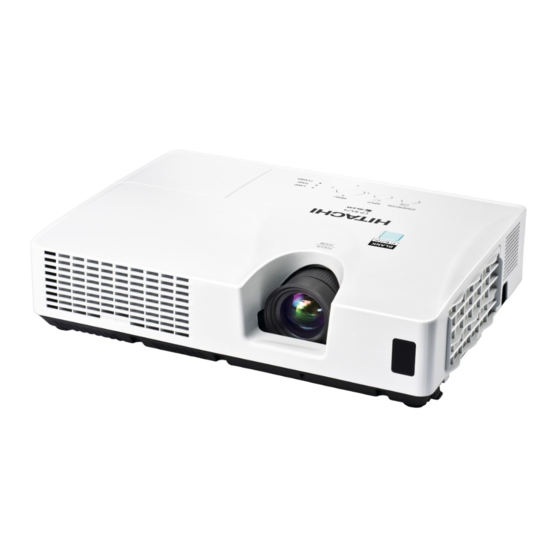

Projector
CP-RX79
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
product. Be sure to read "Safety Guide" rst. After reading them, store them in a
safe place for future reference.
About this manual
Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTICE
• The information in this manual is subject to change without notice.
NOTE
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
• Mac
®
is a registered trademark of Apple Inc.
• Windows
is a registered trademark of Microsoft Corporation in the U.S. and/or
®
other countries.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
• Blu-ray Disc is a trademark.
All other trademarks are the properties of their respective owners.
►Before using this product, please read all manuals for this
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
This entry notices of fear of causing trouble.
Please refer to the pages written following this symbol.
1

Advertisement

Table of Contents
loading

Related Manuals for Hitachi CP-RX79

Summary of Contents for Hitachi CP-RX79

  • Page 1 Projector CP-RX79 User's Manual (detailed) Operating Guide Thank you for purchasing this projector. ►Before using this product, please read all manuals for this WARNING product. Be sure to read “Safety Guide” rst. After reading them, store them in a safe place for future reference.
  • Page 2 Incorrect handling of this product could possibly result in personal injury or physical damage. The manufacturer assumes no responsibility for any damage caused by mishandling that is beyond normal usage defined in these manuals of this projector. • The information in this manual is subject to change without notice.

  • Page 3: Safety Precautions

    • Use the caster brakes placing the projector on a stand with casters. • Do not place the projector in the side up position, the lens up position or the lens down position. • In the case of a ceiling installation or the like, contact your dealer before installation.
  • Page 4 • Keep a space of 30 cm or more between the sides and other objects such as walls. • Do not place the projector on a metallic table or anything weak in heat. • Do not place anything about the lens, air fans and ventilation openings of the projector.
  • Page 5 If the power cord or cables is damaged (exposed or broken core wires, etc.), contact your dealer. • Do not place the projector or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.
  • Page 6 Do not attach anything other than specified things to the projector. Neglect could result in an injury or damage. • Some projector has a screw thread in a lens part. Do not attach anything other than specified options (such as conversion lens) to the screw thread.
  • Page 7 Incorrect care could have adverse influence such as discoloration, peeling paint, etc. • Use a soft cloth to clean the cabinet and control panel of the projector and the remote control. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth.
  • Page 8 Before turning on the power, make the projector cool down adequately. After turning the projector off, pushing the restart switch or interrupting of the power supply, make the projector cool down adequately. Operation in a high temperature state of the projector causes a damage of the electrode and un-lighting of the lamp.
  • Page 9 Lamp WARNING The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.
  • Page 10 Some cables have to be used with the core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

  • Page 11: Table Of Contents

    Part names ....4 Projector ..... . 4 Control panel .

  • Page 12: Introduction

    Features The projector provides you with the broad use by the following features. This projector realizes the large projection image, even if in a small space. This compact, lightweight projector uses a front exhaust system that keeps the user comfortable by directing hot air away from the user.

  • Page 13: Part Names

    ►Do not handle the elevator buttons without holding the projector, since the projector may drop down. ►Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it. ►Maintain normal ventilation to prevent the projector from CAUTION heating up.

  • Page 14: Control Panel

    Control panel (1) STANDBY/ON button ( 14, 21) (2) INPUT button ( (3) MENU button ( It consists of four cursor buttons. BLANK button (5) POWER indicator ( (6) TEMP indicator ( (7) LAMP indicator ( Rear panel (1) VIDEO port (2) COMPUTER IN port 11, 13, 56) Part names...

  • Page 15: Remote Control

    (22) ▲/▼/◄/► cursor buttons ( (23) ENTER button ( (24) ESC button ( (25) RESET button ( (26) Battery cover ( • Any button marked with “*” is not supported on this projector ( NOTE 14, 42) 17, 22) MY SOURCE/...

  • Page 16: Setting Up

    Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024 x 768 a Screen size (diagonal) c1 , c2 Screen height (±10%)
  • Page 17 • Do not place or attach anything that would block the lens or vent holes. • Keep a space of 30 cm or more between the sides of the projector and other objects such as walls.

  • Page 18: Connecting Your Devices

    Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
  • Page 19 And be sure to tighten the screws on connectors with screws. • When connecting a laptop PC to the projector, be sure to activate the PC’s external RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT display.) For details on how this is done, please refer to the...

  • Page 20: Connecting Power Supply

    WARNING incorrect or faulty connections may result in re and/or electrical shock. • Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. • Only plug the power cord into an outlet whose voltage is matched to the power cord.

  • Page 21: Remote Control

    If it is difcult to send the signal to the sensor directly, attempt to make the signal reect. • The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

  • Page 22: Power On/Off

    Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete ( Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on.

  • Page 23: Operating

    Operating Selecting an input signal Press INPUT button on the projector. Each time you press the button, the projector switches its input port from the current port as below. COMPUTER IN ● While ON is selected for AUTO SEARCH item in OPTION...

  • Page 24: Searching An Input Signal

    COMPUTER IN ● While ON is selected for AUTO SEARCH item in OPTION menu ( projector will keep checking the ports in above order repeatedly till an input signal is detected. Selecting an aspect ratio Press ASPECT button on the remote control.

  • Page 25: Adjusting The Projector's Elevator

    Operating Adjusting the projector's elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project...

  • Page 26: Using The Automatic Adjustment Feature

    Using the automatic adjustment feature Press AUTO button on the remote control. Pressing this button performs the following. For a computer signal The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature.

  • Page 27: Correcting The Keystone Distortions

    ● The adjustable range of this function will vary among inputs. For some input, this function may not work well. ● When the projector is inclined to near ±30 degree or over, this function may not work well. KEYSTONE button...

  • Page 28: Using The Magnify Feature

    MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

  • Page 29: Temporarily Freezing The Screen

    ● The projector automatically exits from the FREEZE mode when some control buttons are pressed. ● If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

  • Page 30: Using The Menu Function

    ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.
  • Page 31 Operating Using the menu function (continued) To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. ●...

  • Page 32: Easy Menu

    EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu ( Using the ◄/►...
  • Page 33 EASY MENU Item Using the ◄/► buttons changes the eco mode setting. ECO MODE See the ECO MODE item in SETUP menu ( Using the ◄/► buttons switches the mode for mirror status. MIRROR See the MIRROR item in SETUP menu ( Performing this item resets all of the EASY MENU items except the FILTER TIME and LANGUAGE.

  • Page 34: Picture Menu

    PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

  • Page 35: Color Temp , C

    PICTURE menu Item Using the ▲/▼ buttons switches the color temperature mode. 6 Hi-BRIGHT-3 5 CUSTOM To adjust CUSTOM Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.

  • Page 36: My Memory

    Item This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function. SAVE-1 LOAD-4 SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

  • Page 37: Image Menu

    IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 38 Item Using the ◄/► buttons adjusts the horizontal phase to eliminate icker. Right H PHASE • This item can be selected only for a computer signal or a component video signal. Using the ◄/► buttons adjusts the horizontal size. Small •...

  • Page 39: Input Menu

    INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

  • Page 40: Video Format , C Resolution

    G signal or component video signal from the COMPUTER IN port. To input component video signal to the projector, an RCA to D-sub cable or adapter is required. • In the AUTO mode, the picture may be distorted with certain input signals.
  • Page 41 INPUT menu Item The resolution for the COMPUTER IN input signals can be set on this projector. (1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.

  • Page 42: Setup Menu

    WIDE (wide-angle focus) whenever possible. Using the ▲/▼ • When ON is selected, the projector will always be set to Eco mode AUTO ECO at start-up regardless of the ECO MODE ( MODE message “AUTO ECO MODE”...

  • Page 43: Screen Menu

    SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 44 Item This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure. 1. Selecting this item displays a dialog titled “MyScreen”.
  • Page 45 SCREEN menu Item Using the ▲/▼ buttons turns on/off the MyScreen lock function. When the ON is selected, the item MyScreen is locked. Use this MyScreen Lock function for protecting the current MyScreen. • This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu ( Using the ▲/▼...
  • Page 46 Item Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.
  • Page 47 SCREEN menu Item Using the ▲/▼ buttons switches the mode for the template screen. Press the ► button to display the selected template, and press the ◄ button to close the displayed screen. The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed ( TEST PATTERN TEMPLATE...
  • Page 48 Item The C.C. is the function that displays a transcript or dialog of the audio portion of a video, les or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function.

  • Page 49: Option Menu

    When the ON is selected, detecting no signal automatically cycles AUTO SEARCH through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image. COMPUTER IN Using the ▲/▼...
  • Page 50 Long (max. 99 minutes) AUTO POWER When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off.
  • Page 51 OPTION menu Item You can use this item to assign one of the following functions to the BLANK button on the control panel ( buttons on the remote control ( (1) Choose a button to assign a function from BLANK, MY BUTTON-1 and MY BUTTON-2.
  • Page 52 • Please take care of the lter unit periodically, even if there is no message. If the air lter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector. • Please be careful with the operating environment of the projector and the condition of the lter unit.
  • Page 53 Item KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When ON is selected, the buttons on the projector except the STANDBY/ON button are locked. • Please use this function to prevent tampering or accidental operation. This function does not have any effect on the remote control.

  • Page 54: Security Menu

    • If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

  • Page 55: Myscreen Password

    PASSWORD box for about 30 seconds, please make note of the password during this time. Pressing the ENTER button on the remote control or ► button on the projector will return to MyScreen PASSWORD on/off menu. MyScreen When a password is set for MyScreen: PASSWORD •...
  • Page 56 PIN LOCK Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed.

  • Page 57: My Text Password

    Pressing the ENTER button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu. 2 Turning off the MY TEXT PASSWORD 2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off menu.

  • Page 58: My Text Writing

    Item (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY and press the ► button to display the MY TEXT DISPLAY on/off menu. (2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off. MY TEXT When it is set ON, the MY TEXT will be displayed DISPLAY...

  • Page 59: Maintenance

    (4) Point at the LAMP TIME using the ▼/▲ button, then press the ► button. A dialog will appear. (5) Press the ► button to select “OK” on the dialog. It performs resetting the lamp time. ►Do not touch any inner space of the projector, while the lamp CAUTION is taken out.

  • Page 60: Lamp Warning

    ne particles that come out the plug from the projector's vent holes, and not to get them into your eyes or mouth. from the • Before replacing the lamp, turn the projector off and unplug the power...
  • Page 61 NJ27422 When you replace the lamp, please replace the air lter. An air lter of specied type will come together with a replacement lamp for this projector. Turn the projector off, and unplug the power cord. Allow the projector to sufciently cool down.

  • Page 62: Cleaning And Replacing The Air Lter

    ►Use only the air lter of the specied type. Do not use the projector without the air lter or the lter cover. It could result in a re or malfunction to the projector. ►Clean the air lter periodically. If the air lter becomes clogged by dust or the like, internal temperatures rise and could cause a re, a burn or malfunction to...

  • Page 63: Other Care

    Maintenance Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is awed, soiled or fogged, it could cause deterioration of display quality.

  • Page 64: Troubleshooting

    After making sure that the smoke or odor has stopped, contact to your dealer or service company. Otherwise if a problem occurs with the projector, the following checks and measures are recommended before requesting repair.

  • Page 65: Regarding The Indicator Lamps

    The lamp does not light, and there is a possibility that interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufciently cooled down, please make conrmation of the following items, and then turn the power on again.

  • Page 66: Resetting All Settings

    There is a possibility that the interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufciently cooled down, please make conrmation of the following items, and then turn the power on again.

  • Page 67: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    xed. Please turn the power off and disconnect the power plug from the power outlet, and allow the projector to cool down at least 45 minutes. After the projector has sufciently cooled down, please make conrmation of the attachment state of the lamp and lamp cover, and then turn the power on again.
  • Page 68 The brightness is adjusted to an extremely low level. Adjust the BRIGHTNESS to a higher level using the menu function. No pictures are The computer cannot detect the projector as a plug displayed. and play monitor. Make sure that the computer can detect a plug and play monitor using another plug and play monitor.
  • Page 69 The lens is dirty or misty. Clean the lens referring to the section “Caring for the lens”. When the projector is operating in Eco mode, ickering may appear on screen. Set ECO MODE to NORMAL, and set AUTO ECO MODE to Some kind OFF, in the SETUP menu.

  • Page 70: Specifications

    Size Weight (mass) Ports Optional parts Specication Liquid crystal projector 786,432 pixels (1024 horizontal x 768 vertical) 200 W UHB AC 100-120 V/2.9 A, AC 220-240 V/1.4 A AC 100-120 V/290 W, AC 220-240 V/270 W 5 ~ 35 °C (Operating) 306 (W) x 77 (H) x 221 (D) mm * Not including protruding parts.
  • Page 71 Specifications Specications (continued) [unit: mm]...
  • Page 72 NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent. REMARQUE •...
  • Page 73 NOTE • In this manual, unless any comments are accompanied, “the manuals” means all the documents provided with this product, and “the product” means this projector and all the accessories came with the projector. Contents First of all ... 2 Entries and graphical symbols explanation ...2...

  • Page 74: First Of All

    - Remove all the attachments including the power cord and cables, from the projector when carrying the projector. ►Do not look into the lens and the openings on the projector, while the lamp is ►Do not approach the lamp cover and the exhaust vents, while the projection lamp is on.

  • Page 75: Regulatory Notices

    CP-RX79 Responsible Party Hitachi America, Ltd. Address 900 Hitachi way, Chula Vista, CA 91914-3556 U.S.A. Telephone Number +1 -800-225-1741 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has...

  • Page 76: About Waste Electrical And Electronic Equipment

    (3) Computer cable (4) User’s manuals (Book x1, CD x1) NOTE • Keep the original packing materials for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens. MY SOURCE/...

  • Page 77: Preparations

    Holding the hook part of the battery cover, remove it. Align and insert the two AA batteries HITACHI MAXELL, Part No.LR6 or R6P according to their plus and minus terminals as indicated in the remote control. Replace the battery cover in the direction of the arrow and snap it back into place.

  • Page 78: Arrangement

    ►Place the projector in a cool place, and ensure that there is sufcient ventilation. ►Do not place the projector anyplace where it may get wet. ►Do not place the projector where any oils, such as cooking or machine oil, are used. ► Use only the mounting accessories the manufacturer specied, and leave installing and removing the projector with the mounting accessories to the service personnel.

  • Page 79: Connecting Your Devices

    Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.

  • Page 80: Connecting Power Supply

    WARNING ►Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in re and/or electrical shock. • Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one.

  • Page 81: Adjusting The Projector's Elevator

    Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within degrees.

  • Page 82: Displaying The Picture

    Use the focus ring to focus the picture. CAUTION ►If you wish to have a blank screen while the projector's lamp is on, use the BLANK function. (See the "Operating Guide" in the CD.) Any other method of blocking the projection light, such as attaching something to the lens or placing something in front of the lens, may cause the damage to the projector.

  • Page 83: Turning Off The Power

    Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

  • Page 84: Replacing The Lamp

    (5) Press the button to select “OK” on the dialog. It performs resetting the lamp time. CAUTION ►Do not touch any inner space of the projector, while the lamp is taken out. NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.
  • Page 85 ne particles that come out from the from the projector's vent holes, and not to get them into your eyes or mouth. power • Before replacing the lamp, turn the projector off and unplug the power outlet cord, then wait at least 45 minutes for the lamp to cool sufficiently.

  • Page 86: Cleaning And Replacing The Air Lter

    ►Use only the air lter of the specied type. Do not use the projector without the air lter or the lter cover. It could result in a re or malfunction to the projector. ►Clean the air lter periodically. If the air lter becomes clogged by dust or the like, internal temperatures rise and could cause a re, a burn or malfunction to the projector.

  • Page 87: Using The Cd Manual

    (2) When “main.html” file is clicked, Web browser will start and Initial window will appear. 2. Click the model name of your projector first, and then click language you want from the displayed list. The User’s manual (detailed) will open.

  • Page 88: SpeciCations

    Specifications Item Product name Liquid crystal projector Liquid Crystal Panel 786,432 pixels (1024 horizontal x 768 vertical) 200 W UHB Lamp Power supply AC 100-120 V/2.9 A, AC 220-240 V/1.4 A Power consumption AC 100-120 V/290 W, AC 220-240 V/270 W Temperature range 5 ~ 35 °C (Operating)

  • Page 89: Troubleshooting - Warranty And After-Service

    If an abnormal operation (such as smoke, strange odor or excessive sound) should occur, stop using the projector immediately. Otherwise if a problem occurs with the projector, rst refer to the “Troubleshooting” of the “Operating Guide” in the CD and run through the suggested checks.
  • Page 90 • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above. • Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector’s panel resolution before being displayed.
  • Page 91 Initial set signals Initial set signals The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu. Back porch (B) Active video (C) Data...
  • Page 92 Connection to the ports NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed. COMPUTER IN D-sub 15pin mini shrink jack <Computer signal> • Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive) •...
  • Page 93 Connection to the ports (continued) VIDEO RCA jack • System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz) • 1.0±0.1Vp-p, 75Ω terminator...
  • Page 94 COMPONENT VIDEO OUT VCR/DVD/Blu-ray Disc player To input component video signal to the COMPUTER IN port of the projector, use a RCA to D-sub cable or adapter. For about the pin description of the required cable or adapter, refer to the...
  • Page 95 Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan MALAYSIA Tel: +60 -3-8926-4168 Fax: +60 -3-8926-3013 ► http://www.hitachiconsumer.com.my Hitachi Home Electronics Asia, (S) Pte Ltd. 438A Alexandra Road #01-01/02/03 Alexandra Technopark, 119967 SINGAPORE Tel: +65 -6536-2520 Fax: +65 -6536-2521 ► http://www.hitachiconsumer.com.sg Hitachi Sales Corp.

This manual is also suitable for:

Cp-rx78
