QuickSpecs
Overview

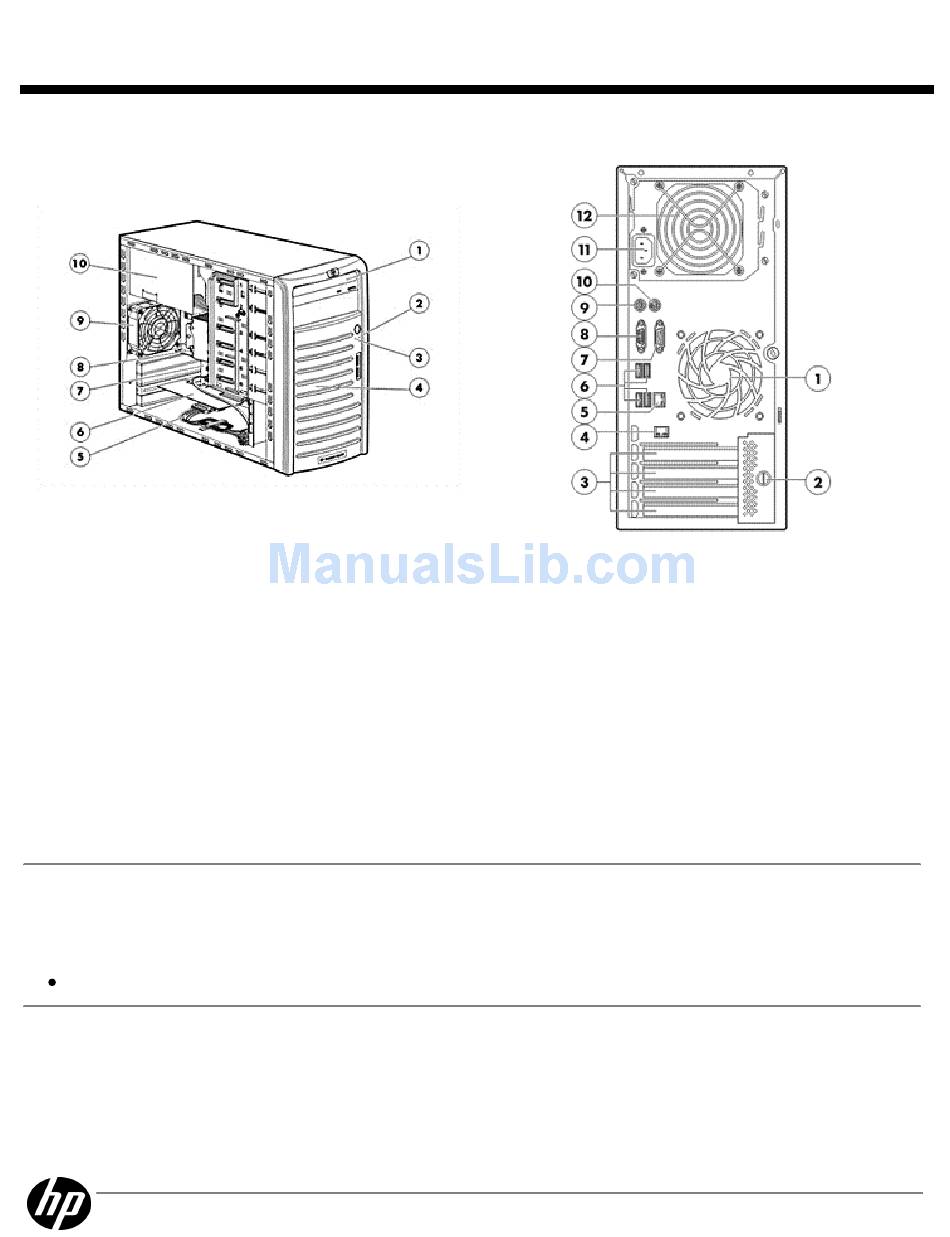

Front View:
Front View:
Front View:
Front View:
1.
DVD-ROM Drive
2.
Power LED
3.
Drive Activity LED
4.
Front Bezel
5.
SAS Cable (SAS model only)
6.
Hard Drive Controller Card (Optional)
7.
System Board
8.
HP ProLiant 100 G5 Lights-Out 100c Management Card
Port (Optional)
9.
System Fan
10.
365W Power Supply
What's New
What's New
What's New
What's New
The HP ProLiant ML110 G5 is now available with higher performance processors (quad-core up to 3.0GHz and dual-core up to
3.16GHz) resulting in better processing power and increased productivity for the growing businesses.
Support for SATA Non-Hot Plug Entry and Midline Hard Drives
DA - 12867
Worldwide — Version 30 — June 21, 2010
HP ProLiant ML110 Generation 5 (G5)
HP ProLiant ML110 Generation 5 (G5)
HP ProLiant ML110 Generation 5 (G5)
HP ProLiant ML110 Generation 5 (G5)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Rear System Fan
2.
PCI Slot Cover Retainer
3.
PCI Slot Covers
4.
HP ProLiant 100 G5 Lights-Out 100c Management Card
Port (Optional)
5.
LAN Port (RJ-45)
6.
Rear USB 2.0 Ports
7.
Serial Port
8.
VGA Port
9.
PS/2 Keyboard Port
10. PS/2 Mouse Port
11. Power Supply Outlet
12. Power Supply Unit (PSU) Fan
