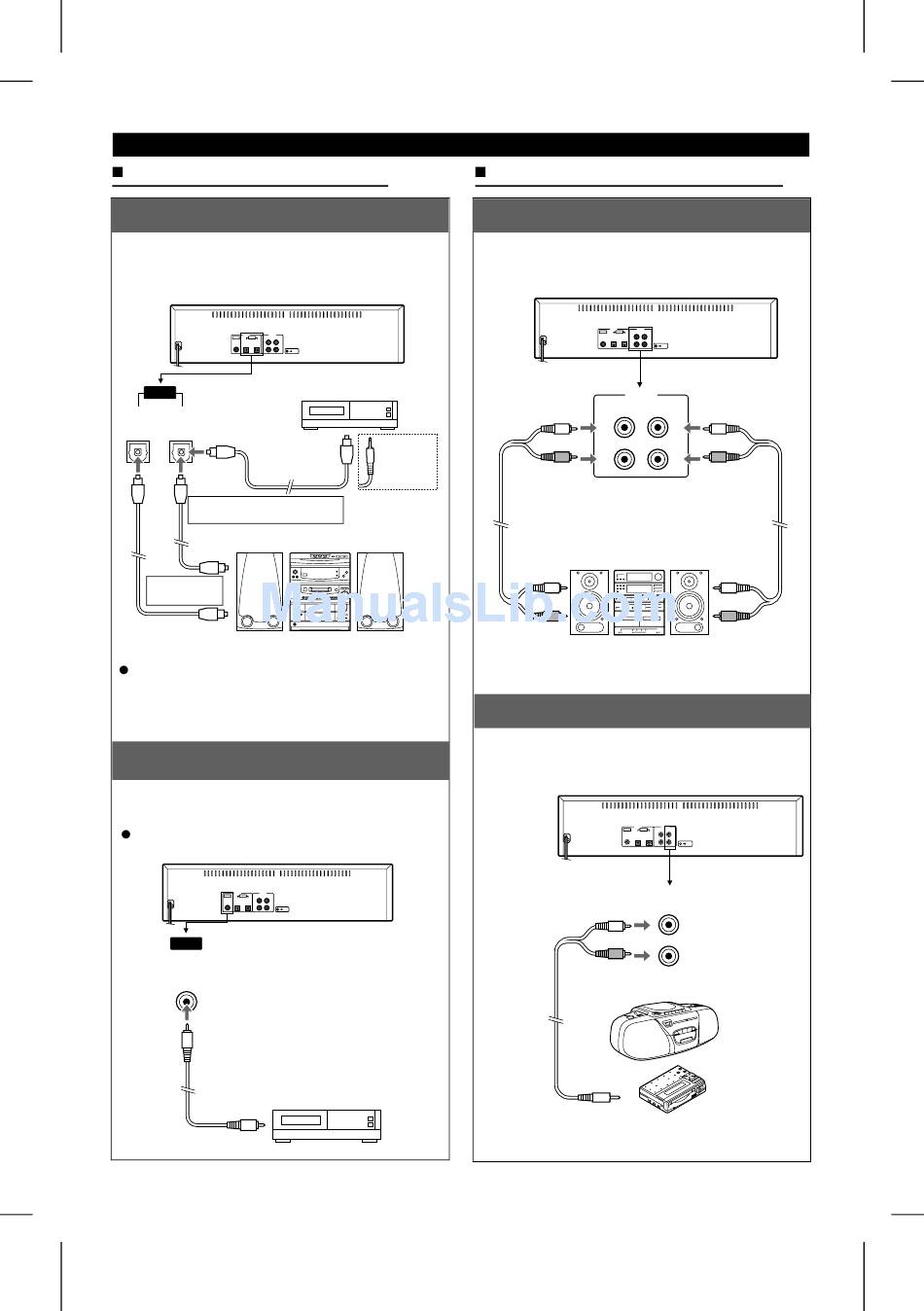

When making a digital connection
When connecting the unit to equipment
that has square/round optical sockets:
Connect the other equipment to the "OPTICAL
sockets" on the back of this main unit.
OPTICAL
OUT IN
To the optical
output socket
AD-M3DC
When connecting this unit to
other equipment for playback
To the optical
output socket
When connecting
this unit to a
recorder/player
To the optical
Stereo, DAT, MD recorder, etc.
input socket
with an optical input/output socket
If this unit is connected to a stereo, the digital audio
section of a CD (or other digital source) can be
recorded. When recording from a cassette tape, radio
broadcast, etc. an analogue connection is required.
When connecting this unit to equipment
that has a coaxial socket:
Connect the other equipment to the "COAXIAL
socket" on the back of this main unit.
The coaxial connection is only an input to this unit.
COAXIAL
IN
Commercially available
video coaxial cable
To the digital
output socket
MD/CD player, etc.
When it's
a round
optical
socket
AD-M1DC
E-6
MD-R3H
When making an analogue connection
When connecting the unit to equipment
that has line sockets:
Connect the other equipment to the "ANALOG
sockets" on the back of this main unit.
ANALOG
LINE OUT LINE IN
L
R
Connecting cable
included with this unit
To the line
input (left) socket
To the line
input (right) socket
Stereo, radio cassette
player, etc. with line
input/output sockets
When connecting this unit to equipment
that only has a headphone socket:
Connect the other equipment to the "LINE IN
sockets" on the back of this main unit.
Commercially
available audio
connecting cable
To the headphone
Headphone stereo, radio
socket
cassette player, CD player, etc.
L
R
Connecting cable
included with this unit
To the line
output (left) socket
To the line
output (right) socket
LINE IN
L
R
