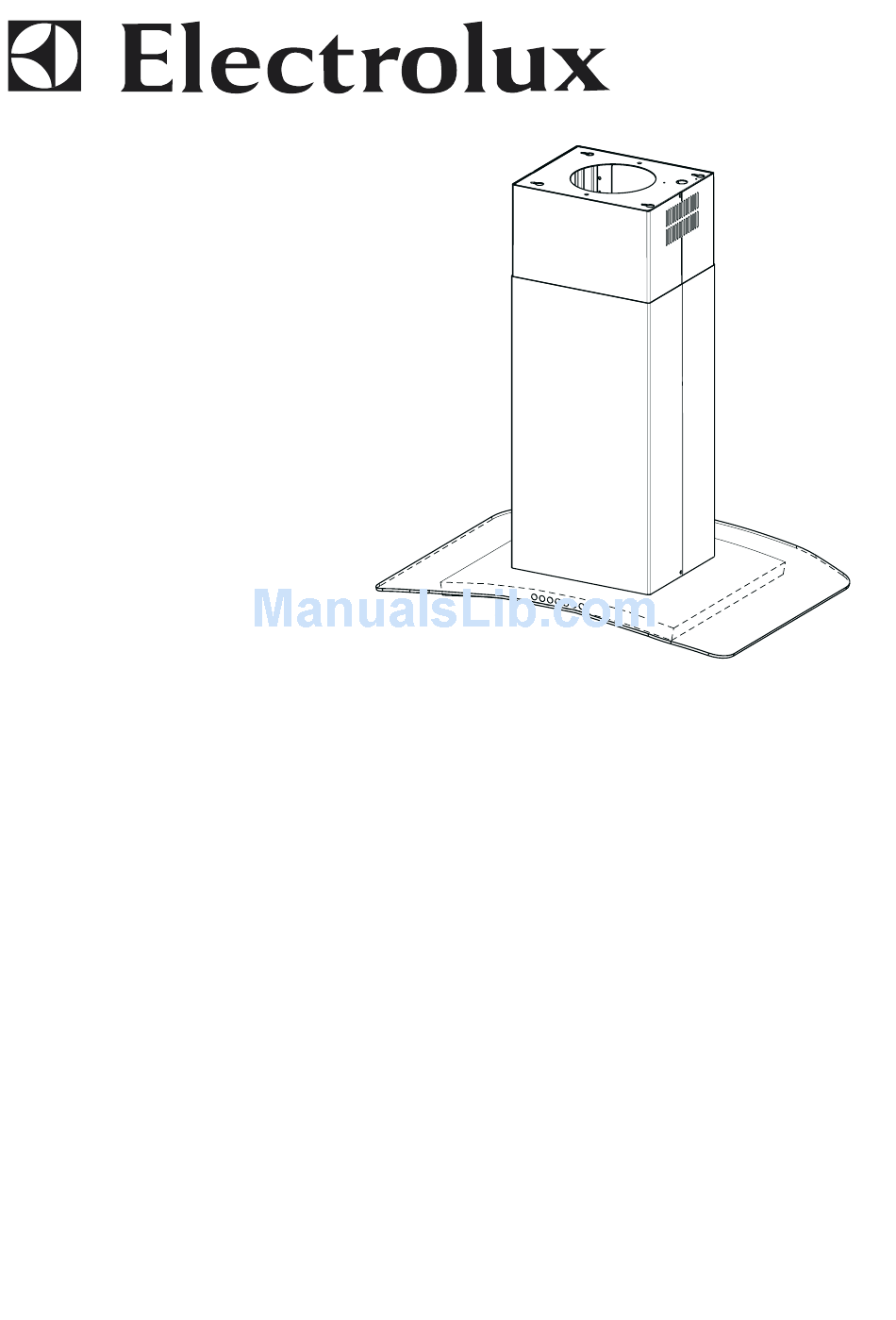

- Page 1 EFCI 90542 Instructions Manual Manual de instrucciones Manual de Instruções...
-
Page 2: Table Of Contents
Instructions Manual INDEX RECOMMENDATIONS AND SUGGESTIONS ........................5 CHARACTERISTICS................................6 INSTALLATION ..................................8 USE.......................................12 MAINTENANCE..................................14... - Page 3 Manual de instrucciones ÍNDICE CONSEJOS Y SUGERENCIAS ............................16 CARACTERÍSTICAS ................................17 INSTALACIÓN..................................19 USO ......................................23 MANTENIMIENTO................................25...
- Page 4 Manual de Instruções ÍNDICE CONSELHOS E SUGESTÕES ............................27 CARACTERÍSTICAS ................................28 INSTALAÇÃO ..................................30 UTILIZAÇÃO..................................34 MANUTENÇÃO ..................................36...
-
Page 5: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. • The minimum safety distance between the cooker top and the extrac- tor hood is 650 mm. • Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood. -
Page 6: Characteristics
CHARACTERISTICS Dimensions... - Page 7 Components Ref. Q.ty Product Components Hood Canopy complete with: Controls, Lights, Filters Telescopic chimney made up of: Upper chimney Lower chimney Telescopic frame complete with Suction fan, made up 7.1a Upper frame 7.1b Lower frame Reduction flange ø 150-120 mm Flange ø...
-
Page 8: Installation
INSTALLATION Drilling the Ceiling/shelf and fixing the frame DRILLING THE CEILING/SHELF • Use a plumb line to mark the centre of the hob on the ceiling/support shelf. • Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob. - Page 9 FIXING THE frame • Loosen the two screws fastening the lower chimney and re- move this from the lower frame. • Loosen the two screws fastening the upper chimney and re- move this from the upper frame. If you wish to adjust the height of the frame, proceed as follows: •...
- Page 10 Recirculation version air outlet • Fix the connection 15 to the frame using the 4 screws pro- vided. • Fix the flange 10 to the lower opening of the connection 15. • Connect the hood air outlet to the flange in the lower part of the junction using a rigid or flexible ø...
- Page 11 ELECTRICAL CONNECTION • Connect the Hood to the Mains power sup- ply, inserting a two-pole Switch with a con- tact aperture of at least 3 mm. • Remove the Metal grease filters (see par. on “Maintenance”) and make sure that the power supply Cable is properly inserted in the Suction fan socket.
-
Page 12: Use
The hood can be switched on pushing directly onto the requested speed without firstly hav- ing to select 0/1 button . Touch Basic functions Indicator lights control Dual Function Touch control unlit Lights off When briefly pressed it switches the lighting system on and off. - Page 13 Touch Basic functions Indicator lights control When pressed the motor is set to the intensive speed timed to 5 minutes. At the end of 5 minutes of intensi- ve speed the hood starts again at the speed it was set Touch control lit to previously.
-
Page 14: Maintenance
MAINTENANCE REMOTE CONTROL (OPTIONAL) The appliance can be controlled using a remote control powered by a 1.5 V carbon-zinc alkaline batteries of the standard LR03-AAA type. • Do not place the remote control near to heat sources. • Used batteries must be disposed of in the proper manner. - Page 15 Odour filter (Recirculation Version) This filter cannot be washed or regenerated, and must be replaced when the F touch control starts to flash, or at least once every 4 months. The alarm is only triggered when the motor is on. Enabling/Disabling the alarm signal •...
