Summary of Contents for Electrolux EFC 9461

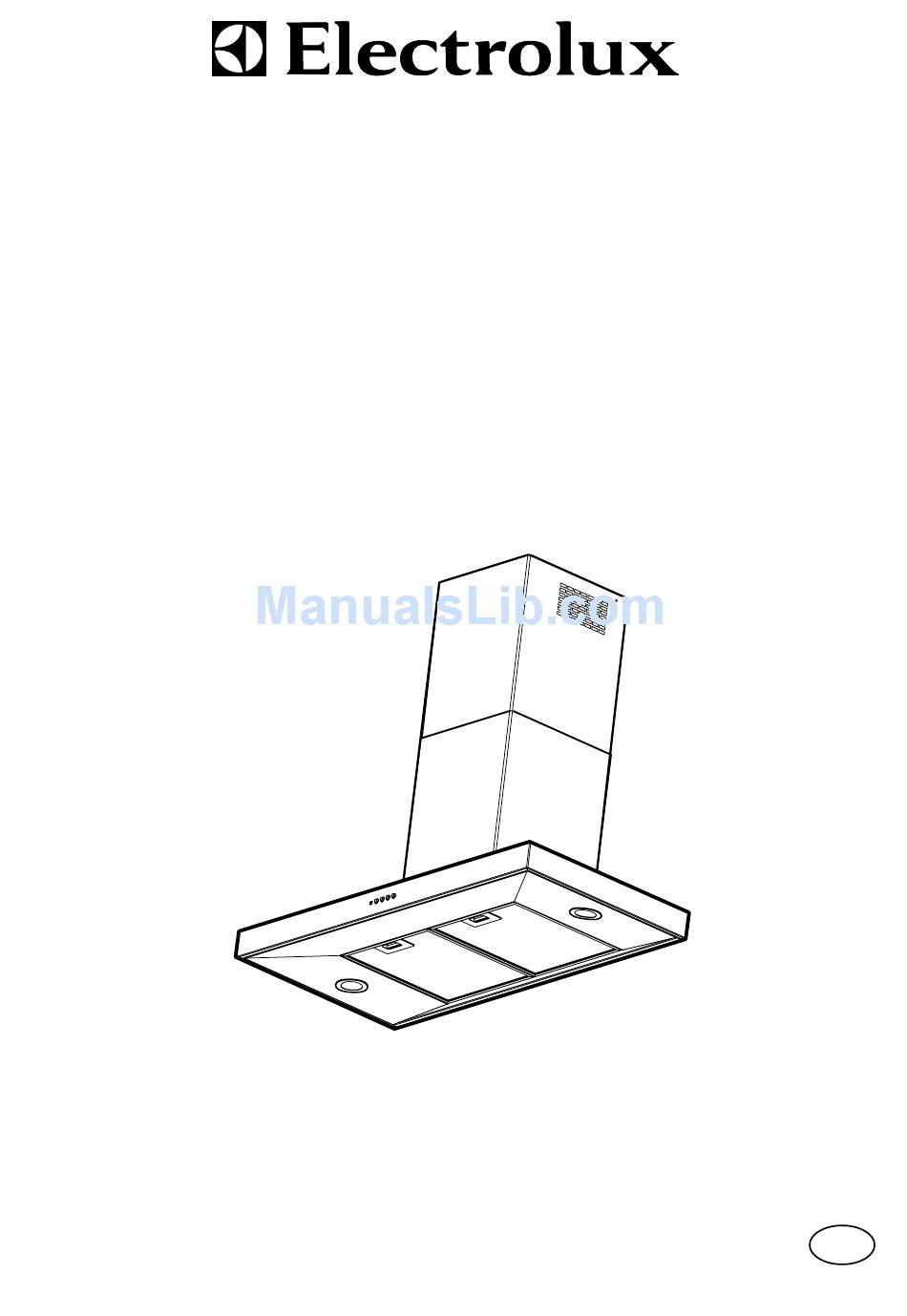

- Page 1 User manual EFC 9461...
-
Page 2: Table Of Contents
Contents Safety warnings for the installer for the user Introduction Extractor version Filter Version Control Panel Correct ventilation Maintenance and care Cleaning Metal grease filter Open the metal grease filter Charcoal filter Changing the light bulb Technical Specifications Special accessories Installation Unpacking Placement... -
Page 3: Safety Warnings
Safety warnings for the installer aforementioned measures. • When used as an extractor unit, the hood must • When the hood is used in its extractor function, be fitted with a 150mm diameter hose. the following rules must be followed to obtain •... -
Page 4: Introduction
• The air is filtered through an charcoal filter and returned to the kitchen through the top grill of the outlet pipe. • You will need an original ELECTROLUX KF20 charcoal filter for the filtering Fig. 2 function. (See Special Accessories). -
Page 5: Maintenance And Care
Maintenance and care The hood must always be disconnected from the electricity supply before beginning any maintenance work. Warning Cleaning • Failure to observe the instructions on cleaning • Warning: always disconnect the hood from the the unit and changing the filters will cause a mains power supply before cleaning it. -
Page 6: Charcoal Filter
• The charcoal filter should only be used if you want to use the hood in its filtering function. • To do this you will need an original ELECTROLUX charcoal filter (see special accessories). • Cleaning/replacing the charcoal filter Unlike other charcoal filters, the LONGLIFE charcoal filter can be cleaned and reactivated. -
Page 7: Technical Specifications
Technical Specifications Dimensions (in cm) Height 72-114 Width 89,8 Depth Maximum absorbed power 200 W Motor absorption: 170 W Lighting: 2 x 20 W Lenght of the cable: 150 cm We reserve the right to generate constructive and chromatic modifications as required by technological growth. Special accessories Charcoal filter KL20 E-Nr. -
Page 8: Mounting Accessories Included
Installation Mounting accessories included 1 deflector 1 chimney support (3 pieces to assemble) 4 metal screws 4 x 8 (to assemble the chimney support) 4 metal screws 3,5 x 9,5 (to affix the deflector to the support) 1 reduction flange Ø 125-120 mm 1 support bracket 6 wood-screws 5 x 45 mm (for wall mounting) 6 wall plugs Ø... - Page 12 LI1Z3B Ed.10/02...
