Summary of Contents for Bosch K2200 Series

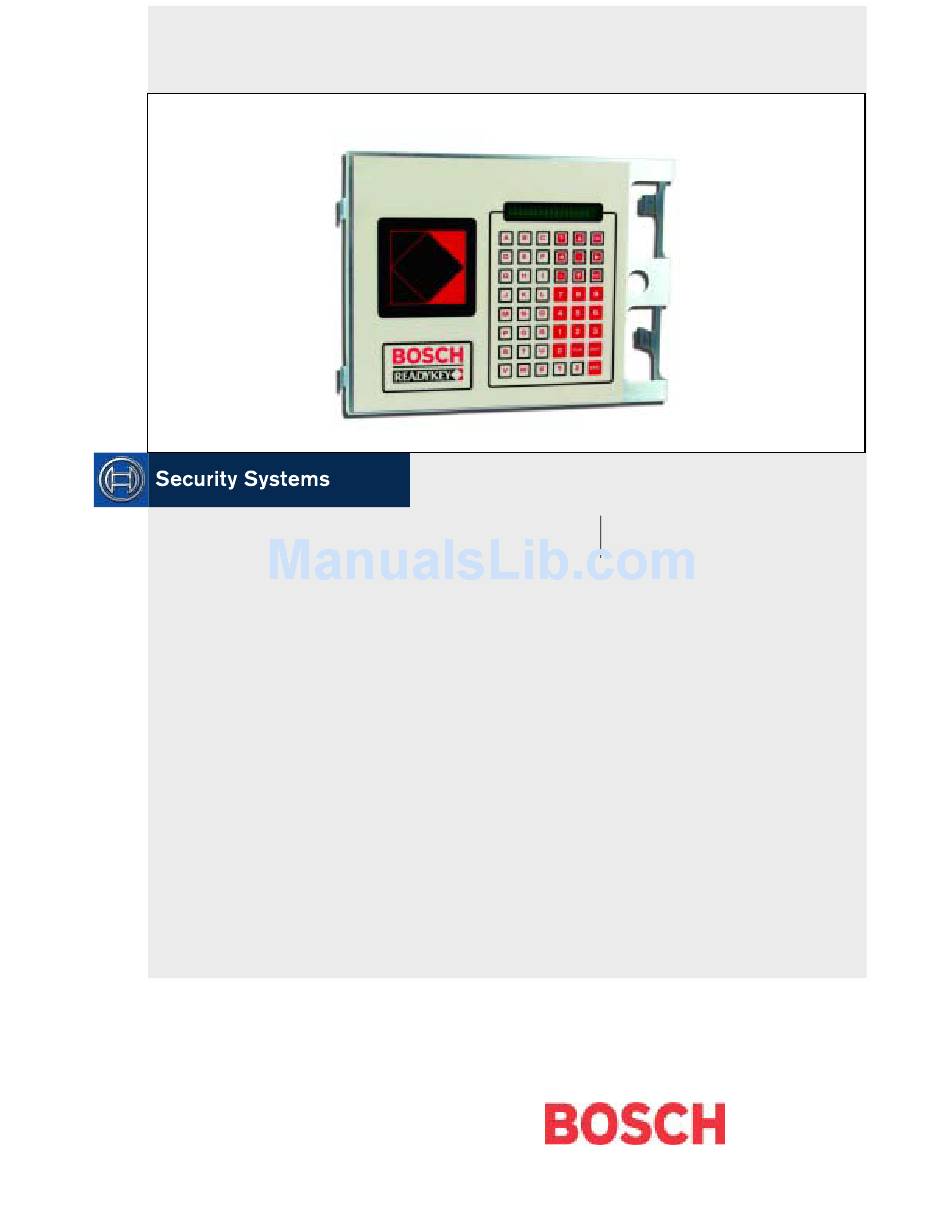

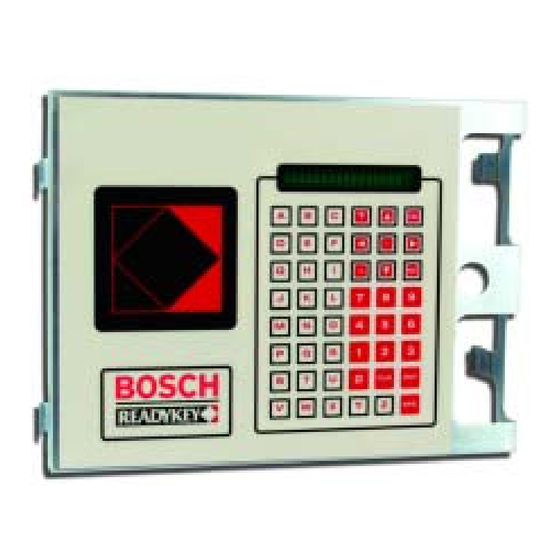

- Page 1 K2200 Series User Guide Readykey Controllers...
-
Page 2: Table Of Contents
List of Transactions ........55 4.3.2 Examples ............25 High Priority Transactions ......58 4.3.3 The PR Command ........26 Index 59 4.3.4 Creating a Time Profile – The T Command ................ 26 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 3 Time Period Examples ......26 Table 14: : Display Key ......... 31 Table 15: Print Report Commands ...... 33 Table 16: System Status – Doors and Alarm Zones ..............37 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
-
Page 4: 1.0 Introduction
1.3.1 Type Styles Used in this Manual To help identify important items in the text, the following type styles are used: Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 5: Abbreviations Used
Pass Back Controller Personnel Computer Personal Identity Number PINTP PIN Reader Time Profile Reader Request To Exit Request To Send Receive Signal TAMP Tamper Time Profile Transmit Valid Code Accepted Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 6: Listings And Approval
A normally-closed break-glass or manual pull (B) in the lock supply wiring. So that in an emergency the fail-safe lock can be immediately powered down. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 7: 2.0 System Overview
(on reader, alarm module and door controller), door override, zone, PIN reader duress. Warning Door left open Printer Output Continuous printing of system events. 9 different reports available on demand. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 8: How The System Works
Decide whether a person has access at a particular door and at a particular time. Provide power to operate the lock. Monitor doors for unauthorized access or left open conditions. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 9: Administration Software
For further details, refer to the Readykey for Windows Manual for further details. Note: At least one faceplate is required for each system Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 10: 3.0 Administering The System
The be assigned an editor level is obtained. Some typical exception to this is the master programming key. examples are given. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 11: Table 5: Editor Level Assignments
Up to 32 editor keys can be assigned. Editor keys are maintained by modifying a database using the I command. Before adding each key, you should first determine the editor level that key will be assigned, see Editor Keys. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 12: Using Editor Mode
Press the [ENT] key. Press [ESC] to return to the CMD prompt. 10. Enter the editor level to be assigned to the key, (see Editor Keys for editor level values). Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 13: Entering Editor Mode
CMD prompt or the prompt at which you recognized as an editor key. pressed the key. You should press [?] at any time if you are not sure what is required. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 14: Editor Example
Use the keys shown to move the 'window' around the database. Use the FastFind button ( ) to go directly to a particular record. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 15: Table 9: Display Altering Keys
You may use any of the alphanumeric characters (A-Z, 0-9) including SPC (space.) 1. Once you have selected a field to change, use the alphanumeric keys to enter a new value. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 16 If you do not, when you move to the next field or press [ESC], your entry will be lost. Options These are special fields that allow various options to be set, such as days of the week, etc. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
-
Page 17: Key Administration/Access Control
For this reason, you are not advised to attempt to 0121, 0122 and so on. control individual access using holiday profiles. However, they may be used to cover periods such as a temporary factory closure. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 18: Adding Keys - The A Command
Present the key to be added to the faceplate reader. If the key is valid, the addition of this key is complete and you will move directly to a prompt for the Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 19: Editing Keys - The E Command
6. Whatever method you use to find a key, you will 9. At the CONFIRM VOID prompt, be presented with the ID number and access CONFIRM VOID code. ID 27 AC 7 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 20: Pin Codes - The N Command
When the time profile is active, the PIN reader operates like a conventional key reader, requiring no PIN. When the time profile is inactive, a key plus the PIN is required to gain access. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 21: Access Code Overview
This arrangement equally to residential systems. therefore requires at least two groups of staff who would be given different access codes. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 22: How To Create Access Codes
The example shows an access level (number 17) that allows keyholders through doors 1, 2, 7, 8, 13 and 14 8. Select another access level to change or press [ESC] to return to the CMD prompt. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 23: Time Profiles
3. You will now see the CMD prompt. want to apply to the primary access level. If you 4. Type [A][C] and press [ENT]. want no time restriction, enter 0. Press [ENT]. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 24: Holidays - The Hr And Hp Commands
Time profiles are a powerful tool that have several 12/25/00 and duration 1 day. functions within the access control system: 1. Present an editor key to the faceplate reader. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 25: How Time Profiles Work
The examples given here are typical of the types of applications for which a time profile is used. All the example time profiles are set up by using the following time periods Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 26: The Pr Command
PER 2 5. Use the up and down arrow keys or FastFind (*) Press [NXT] to go to the next field. to select the time period you want to change. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 27: System Administration
ENTER TIME 16-01 Note: The cursor moves over the separator character (-) to the next digit. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 28: Displays, Alarms, And Printing
A valid key being presented to a reader. A Request to Exit button being pressed. The door being automatically open due to a time profile. The door being opened by a Manual Unlock command. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 29: Figure 7: Unauthorized Access/Anit-Tamper Alarms
A PIN Reader Duress alarm. A key holder has gained entry using a PIN reader, but has entered their duress code (normal PIN +1). DURESS 02 ALARM Printer Shown below is the alarm and acceptance report. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 30: Figure 10: Duress Alarm
Shown below is the alarm, alarm cleared and acceptance report. Figure 12: Alarm Module Tamper Alarm 11/11/93 14:16 Alarm Module 01 Anti-tamper Alarm 11/11/93 14:16 Alarm Module 01 Alarm Cleared 11/11/93 14:16 Alarm Module MASTER KEY Local Alarm Accepted Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 31: Uncleared Alarms
Comms Error 3 Switch off the printer when it is left unattended D/C 2 ERROR-3 for a long time, for instance overnight or Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 32: On-Line Transaction Printing
1 and 4000 for personnel, 1 and 128 for time profiles. Where a range is required, you start the printout with the FastFind button ( ). 1. Present an editor key to the faceplate reader. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 33: Table 15: Print Report Commands
7. Printing - If the printer is connected, a scrolling display will appear indicating that the report is being printed. *PRINTING PERSON Press [ESC] at any time to abort the printout. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 34: Figure 13: Sample P1 - Personnel Printout
0006 TAYLOR TB 8C25D403 1524 0007 ROYLE TS 6903F4F4 9099 0008 LEE SA 230314F3 9030 0009 LIDDY BP C824942B 2941 0010 BORRELL LA 4E02C491 5435 0011 WALKER STM 74665451 6736 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 35: Figure 14: Sample P2 - Personnel Printout
DEVELOPMENT 1------- STORES 1------- HAZARDS 1------- CANTEEN 1------- SIDE DR IN 1------- SALES MNGR 1------- SALES CORR 1------- SIDE DR OUT -------- DOOR -------- DOOR -------- DOOR -------- DOOR -------- Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 36: Figure 15: Sample P3 - Access Data Printout
P4 – System Status This report shows the state of doors and alarm zones within the system. The doors and alarm zones are shown for each door controller in turn. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 37: Figure 16: Sample P4 - System Status Printout
The printout will give all the high priority transactions that have occurred in the date range first, followed by the rest of the transactions. This may result in a pause between the two parts of the report. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 38: Figure 17: Sample P5 - Transaction Printout
Controller (DC) and Editors (I) commands. This report contains sensitive information, such as passwords, etc. Take care not to leave it in view or where it can found by unauthorized persons. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 39: Figure 18: Sample P6 - System Set Up Printout
TIME: 13:44 REQUESTED BY MASTER KEY PAGE 1 ZONE RESPONSE ACTIVE PROFILE RELAYS P8 – Time Profiles Each time profile is printed along with the its Status and the time periods assigned. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 40: Header - The He Command
Press [NXT] to go to the next field. 1. Present an editor key to the faceplate reader. 8. Enable Header in On-Line Transactions 2. Enter the password and press [ENT], if required. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 41 Type [Y] for on-line transactions to start a new page and print the header. Press [ENT]. Type [N] for continuous transaction printing, without break. Press [ENT]. Press [ESC] to go back to CMD prompt. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
-
Page 42: 6.0 Installer Commands
The fitting of a door monitoring switch is described zones, etc. in Readykey K2200 Series Controllers Installation Guide Automatic Lock and Automatic Unlock (Bosch P/N: 46513, PAC P/N: 17375). transactions are generated on each occasion. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 43 Override/Free Exit Set: Emergency Override/Free Exit The operation of this option is described in detail in the Readykey K2200 Series Controllers Installation Guide (Bosch P/N: 46513, PAC P/N: 17375). When unset the DR1 inputs operate normally: the door contact switch, if fitted, monitors the door position...
-
Page 44: Door Name
If a time profile of 0 is used, a valid key plus PIN will always be required. An example may be a door that only requires a key during normal office hours but requires a key plus PIN at any other time. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 45: Using The D Command
Not Used, leave Unset [ENT]. DR 1 PINTP Press [ENT] when all required options are set. Press [ESC] to return to the CMD prompt. Press [NXT] to go to the next field. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 46: Alarm Event Manager And Relay Outputs
Alarm Module 11 * Alarm Module 12 * Door Controller 4 Alarm Module 13 Alarm Module 14 Alarm Module 15 * Alarm Module 16 * * Not available on Readykey K1200 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 47: Alarm Module Relays
There are three stages to programming an alarm Use the MR command to define alarm module module. responses. These responses can then be assigned to individual inputs using the MS command (see Alarm Module Sensors). Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 48 Enter [0] for no relay activation. Press [ENT]. MODULE RELAY Press [NXT] to go to the next field. Press [ESC] when you have finished. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
-
Page 49: Relay Programming
When the time profile is active, the relay will be set. Examples are the use of external lighting, switching heating or ventilation systems, etc. Using the RE Command There are 16 relay records, one for each alarm module. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 50 5. For RLY4 SYS enter a value of 7 and press [ENT]. If door 2 is left open relay 2 will activate and stay activated until the door is closed. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
-
Page 51: 7.0 Troubleshooting
If the key is valid for that door at that time, the LED will turn green and the lock will operate. The LED will stay green while the lock is released. Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 52: Figure 24: Standalone System
Key locked out - no System allows access. passback - see System access through any Door not opening due to Supervisor door - see System hardware fault -, call Supervisor Installer Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 53: No Access To Editor
Key not an Editor or does not have privileges to access Editor - see Fault with Editor - contact T displayed? System Administrator Installer Fault with Editor - contact Faulty key Installer Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 54: Cannot Add/Delete Keys
Press A to add a key (or V to delete a key) and press Invalid Ed Level Add (Delete) Key displayed? Editor Key does not have privileges to Add keys This is for caption text Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... -
Page 55: Appendix A: Transactions
K2200 Series | User Guide | Appendix A: Transactions EN | 55 Appendix A: Transactions This appendix shows all the transactions generated An example of the printed report is also given. Each by the door controllers. Each transaction described transaction is preceded by an audit number [in shows: brackets], the date and time. - Page 56 K2200 Series | User Guide | Appendix A: Transactions EN | 56 Table 25: Transactions Transaction Description Priority Editor On An operator has entered the Editor at the faceplate. (Panel) [1218] 02/12/93 15:02 MASTER KEY Editor On (Panel) Emergency Using a special lock mode option, the request to exit input can be used to monitor an Override Off emergency break-glass (manual pull station.) This transaction occurs when the switch is...
- Page 57 K2200 Series | User Guide | Appendix A: Transactions EN | 57 Table 25: Transactions Transaction Description Priority Manual An operator has manually unlocked a door (see above.) Unlock [1342] 02/12/93 16:14 DOOR NAME MASTER KEY Manual Unlock No Access: A key has been presented, but a holiday period has been assigned to this keyholder’s time...
-
Page 58: High Priority Transactions
K2200 Series | User Guide | Appendix A: Transactions EN | 58 Table 25: Transactions Transaction Description Priority Unauthorized A door has been opened without a key being presented or the Request to Exit being high Access pressed. [1258] 02/12/93... -
Page 59: Index
Lock Release Time ............42 Commands Door Left Open ..............42 A Command ..............18 Door Monitoring ..............42 AC Command Door Name................. 44 Access Codes .............23 Door Open Time ..............42 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C... - Page 60 CLR Key ................15 4-Digit Number ............17 Down Arrow..............14 Token Code ..............17 Fast Find.................14 Left Arrow Key ..............15 Find Key's PIN Minus................14 N Command .............. 20 Navigation Keys .............14 PIN Codes Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
- Page 61 Update Progress ..............31 P8 - Time Profiles............39 Using Editor Mode............. 12 P9 - Holiday Profiles ............40 Request to Exit Switch............8 Response Number ...............48 V Command ............... 18 Voiding Keys ..............18 Bosch Security Systems | 7/03 | 17376 v1.1 / 47491C...
- Page 62 Bosch Security Systems 130 Perinton Parkway Fairport, NY 14450-9199 Customer Service: (800) 289-0096 Technical Support: (888) 886-6189 © 2003 Bosch Security Systems 17376 v1.1 / 47491C...
