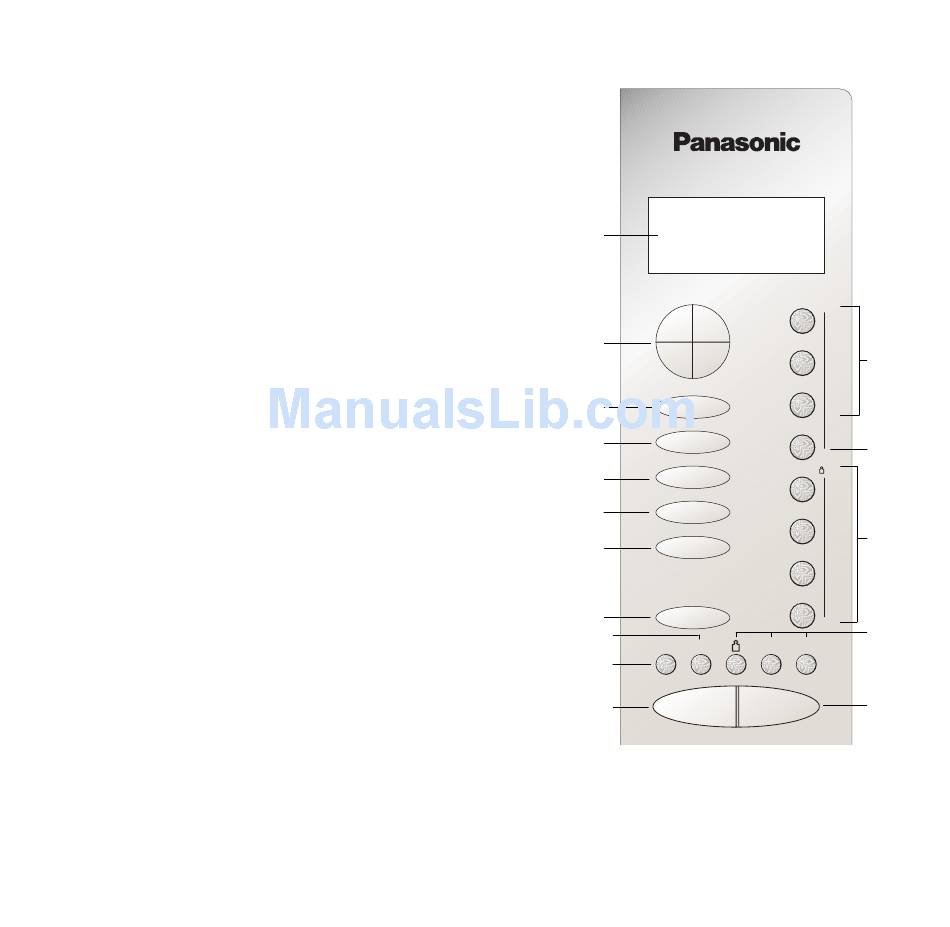

Feature Diagram - Control Panel - Panasonic A883 Operating Manual

Dimension 4 the genius microwave/convection oven

page of 109

/ 109
Contents
Table of Contents
Bookmarks

Table of Contents

(1)

Display Window

(2)

Time Pads

(3)

Micro Power pad

( page 15)

(4)

Grill pad

( page 18)

(5)

Convection pad

( page 19)

(6)

Convection Grill Pad

( page 21)

(7)

Combination pad

( page 22)

(8)

Turbo Defrost pad

( page 16)

(9)

More/Less/Weight Selection Control Pads

(10) Clock pad

( page 14)

(11) Timer pad

( page 35)

(12) Auto Sensor Microwave Program Pads

( page 29)

(13) Auto Sensor Combination Program Pads

( page 29 - 31)

(14) Auto Weight Combination Program Pads

( page 32 - 34)

(15) Start pad

One tap allows oven to begin functioning. If door is opened or

STOP/CANCEL pad is tapped once during oven operation, START

pad must again be pressed to restart oven.

(16) Stop/Cancel pad

Before cooking:

During cooking:

Another tap cancels all your instructions and time of day appears

in display window.

Prompters:

When a pad is pressed, a beep sound is heard and the corresponding letter or

word(s) appear and roll across the screen. If a pad is pressed and no beep is heard,

the unit does not or cannot accept the instruction. As each pad is pressed the

corresponding word(s) roll across the screen. Words will automatically appear to

prompt user to perform the next step. It is not necessary to wait for the words to

appear before pressing pads for the next step. A two beep sound is heard between

stages. At the end of any complete program, the oven will beep five times.
