Setting a MAC ID Number and a Network
Baud Rate

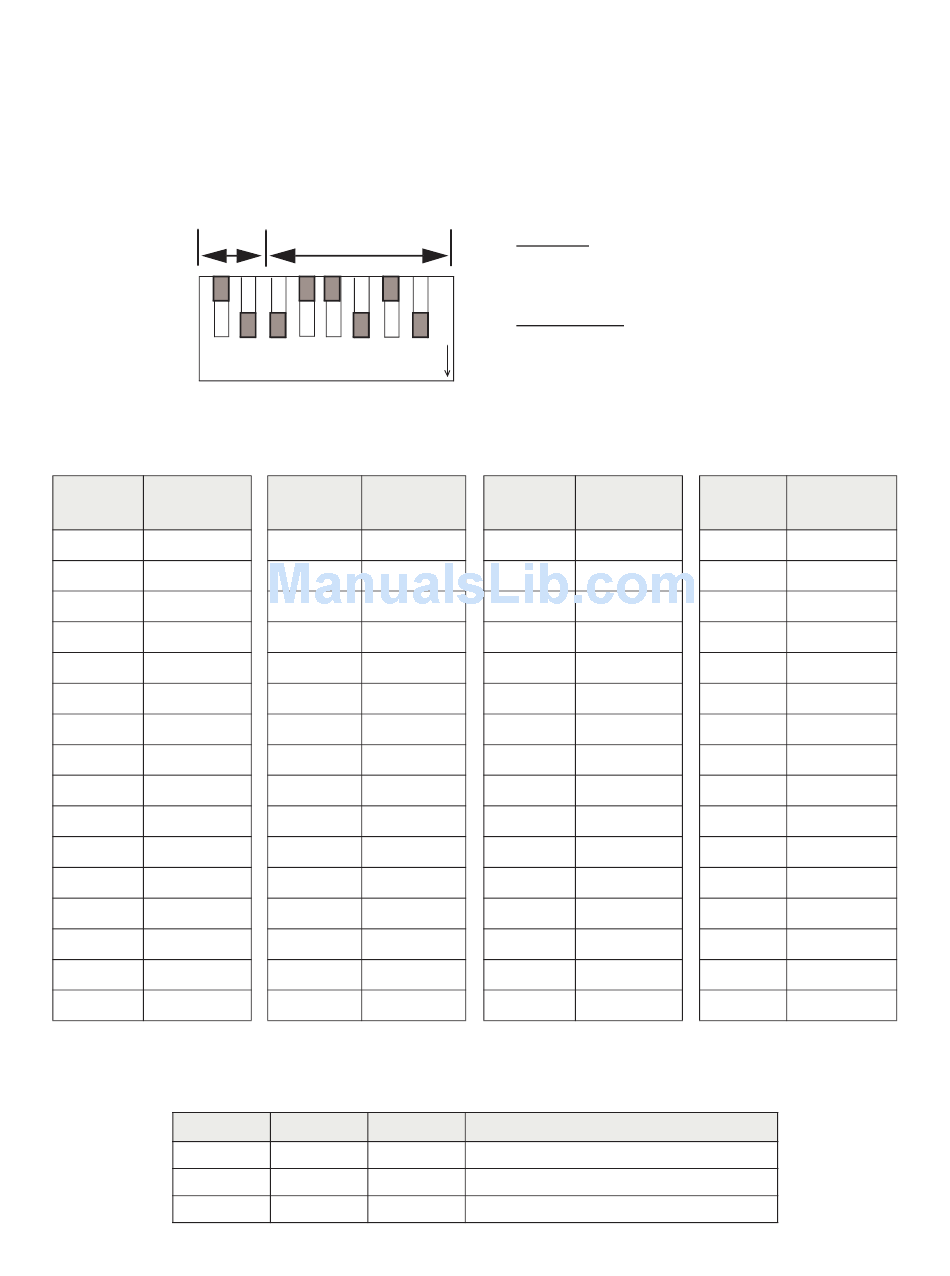

Configure the MAC ID and network baud rate by setting the dip switch on the DeviceNet option card.
Baud
Rate
1
Following are the MAC ID Switch settings for MAC addresses 0 – 63. Each MAC ID on a DeviceNet
network must be unique. Duplicate ID's on the same network will result in possible buss contention.
Node Switches
Address
34 5678
0 00 0000
1 00 0001
2 00 0010
3 00 0011
4 00 0100
5 00 0101
6 00 0110
7 00 0111
8 00 1000
9 00 1001
10 00 1010
11 00 1011
12 00 1100
13 00 1101
14 00 1110
15 00 1111
Note: 0 = Off, 1 = On
Baud rate
125 kbps
250 kbps
500 kbps
DeviceNet Module Installation and Operation Manual
MAC ID
2 3 4 5 6 7 8
ON
Node Switches
Address
34 5678
16 01 0000
17 01 0001
18 01 0010
19 01 0011
20 01 0100
21 01 0101
22 01 0110
23 01 0111
24 01 1000
25 01 1001
26 01 1010
27 01 1011
28 01 1100
29 01 1101
30 01 1110
31 01 1111
Table 2. Baud Rate Configuration Switch Settings.
SW 1 SW 2
0 0
0 1
1 0
Example:
Baud Rate = 250 kbps (BIN = 01)
MAC ID = 37 (BIN = 100101)
Default values:
Baud Rate = 125 kbps
MAC ID = 1
Node Switches
Address
34 5678
32 10 0000
33 10 0001
34 10 0010
35 10 0011
36 10 0100
37 10 0101
38 10 0110
39 10 0111
40 10 1000
41 10 1001
42 10 1010
43 10 1011
44 10 1100
45 10 1101
46 10 1110
47 10 1111
Maximum length of main line
1640 ft.(500 m)
820 ft.(250 m)
328 ft.(100 m)
Node Switches
Address
34 5678
48 11 0000
49 11 0001
50 11 0010
51 11 0011
52 11 0100
53 11 0101
54 11 0110
55 11 0111
56 11 1000
57 11 1001
58 11 1010
59 11 1011
60 11 1100
61 11 1101
62 11 1110
63 11 1111
