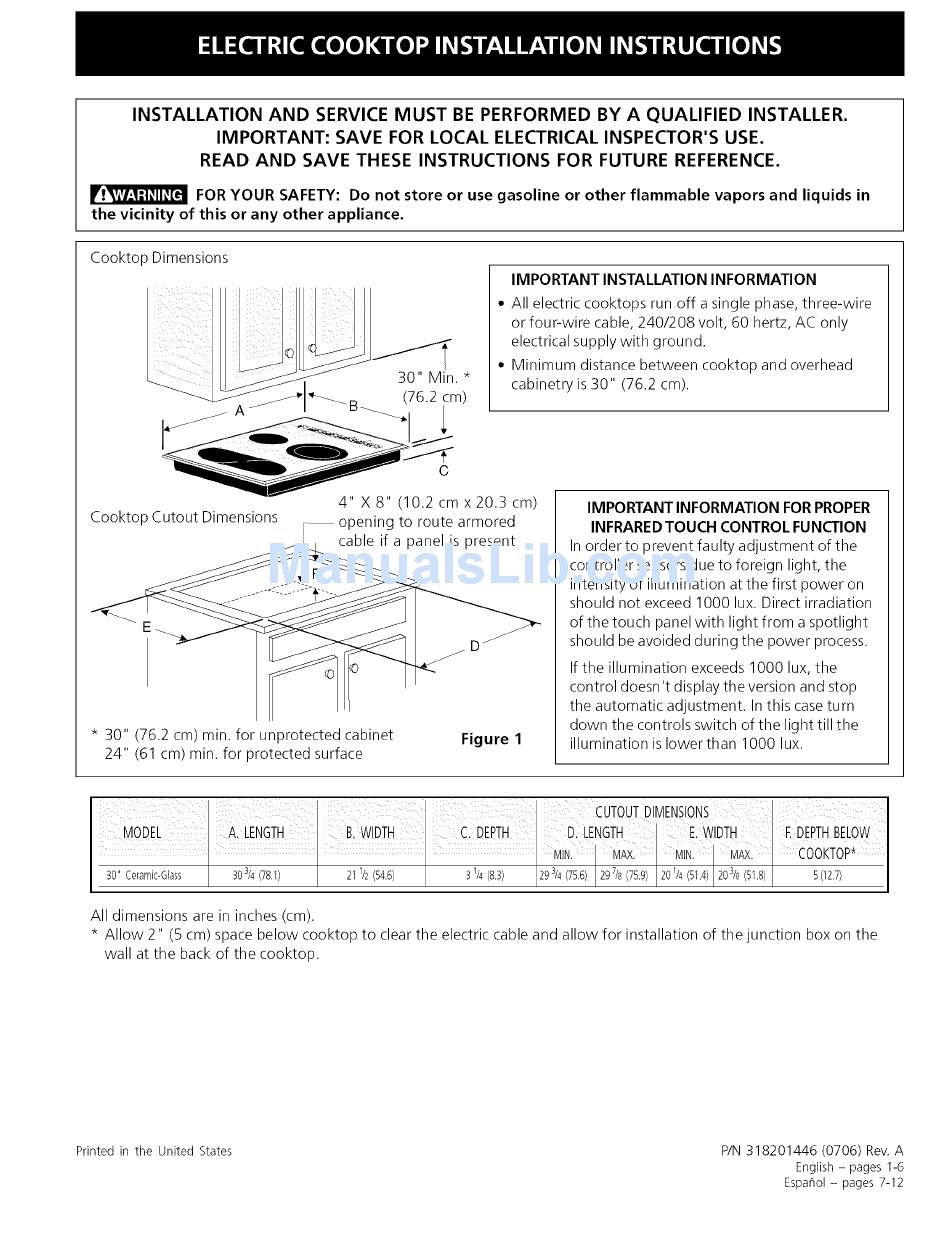

INSTALLATION
AND SERVICE MUST BE PERFORMED BY A QUALIFIED
INSTALLER.
IMPORTANT:
SAVE FOR LOCAL ELECTRICAL INSPECTOR'S USE.
READ AND SAVE THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
FOR YOUR SAFETY: Do not store or use gasoline or other flammable
vapors and liquids in
the vicinity
of this or any other appliance.
Cooktop Dimensions
30" Min. *
(76.2 cm)
IMPORTANT INSTALLATION INFORMATION
• All electric cooktops run off a single phase, three-wire
or four-wire cable, 240/208 volt, 60 hertz, AC only
electrical supply with ground.
• Minimum distance between cooktop and overhead
cabinetry is 30" (76.2 cm).
Cooktop Cutout Dimensions
C
4" X 8" (10.2 cm x 20.3 cm)
! to route armored
cable if a panel
is present
* 30" (76.2 cm) min. for unprotected cabinet
24" (61 cm) min. for protected surface
Figure 1
IMPORTANT INFORMATION FORPROPER
INFRAREDTOUCH CONTROL FUNCTION
In order to prevent faulty adjustment of the
controller sensors due to foreign light, the
intensity of illumination at the first power on
should not exceed 1000 lux. Direct irradiation
of the touch panel with light from a spotlight
should be avoided during the power process.
If the illumination exceeds 1000 lux, the
control doesn't display the version and stop
the automatic adjustment. In this case turn
down the controls switch of the light till the
illumination is lower than 1000 lux.
E DEPTH B ELOW
C00KTOP*
s(12.7)
All dimensions are in inches (cm).
* Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for installation of the junction box on the
wall at the back of the cooktop.
Printed in the United States
P/N 318201446
(0706)
Rev. A
English - pages 1-6
Espaf_ol-
pages 7-12
Advertisement
Table of Contents
Related Manuals for Kenmore 318201446
Summary of Contents for Kenmore 318201446
- Page 1 * Allow 2" (5 cm) space below cooktop to clear the electric cable and allow for installation of the junction box on the wall at the back of the cooktop. Printed in the United States P/N 318201446 (0706) Rev. A...
- Page 2 Overhead Cabinet Should N otExceed a Maximum D epth o f 13"(33cm) 30"(76.2 cm)Min.._111__ Clearance Betweenthe-- i&,, Top of the Cooking .._,,,_ Platform and the D_t_B_ween Bottom of an ..Unprotected Wood Kear _age OT 10" or Metal Cabinet Combustible Surfac_ 25.4...
-
Page 3: Important Notes To The Installer
Important Notes to the Installer Electrical Requirements Read all instructions contained in these installation Observe all governing codes and local ordinances. instructions before installing the cooktop. A 3-wire or 4-wire single phase 120/240 or 120/208 Remove all packing material before connecting the Volt, 60 Hz AC only electrical supply is required on a electrical supply to the cooktop. - Page 4 1. If connecting to a 3-wire supply cable: Unpacking Instructions Connect the green (or bare copper) wire from the appliance cable and the supply cable (green or bare) wire to the ground screw inside the junction box (see Figure 4). Connect the remaining wires inside the junction box from the power supply cable to the matching colors of the appliance cable wires.
-
Page 5: Cooktop Installation
2. If connecting to a 4-wire supply cable (also Cooktop Installation mobile homes): The white neutral wire from the 1. Visually inspect the cooktop for damage. Also make power supply cable must not be connected to the sure all cooktop screws are tight (see Figure 6). junction box. -
Page 6: Model And Serial Number
The retainer brackets MUST be installed, to meet Checking Operation local codes or, in their absence, with the National Refer to the Use and Care Guide for operation. Electrical Code ANSI/NFPA No. 70--latest edition, or with CSA Standard C22.1, Canadian Electrical Code, Do not touch cooktop glass or elements. - Page 7 * Deje 2" (5 cm) de hueco debajo de la estufa para espacio para el cable electrico y la instalaci6n de la caja de empalmes en la pared detrcis de la estufa. P/N 318201446 (0706) Rev. A Imprimido en los Estados Unidos English - pages 1-6 Espaflol - p_iginas 7-12...
- Page 8 El a rmario superior nodebe s obrepasar profundidad maxima de13"(33 cm) 30"(76.2 c m) r ain. de espacio entre laparte superior del f ogOn yla recomendada entre el parte inferior deun borde t rasero del c orte "--------'- armario demadera o metal sin protecciOn.
- Page 9 Notas importantes para el instalador Requisitos electricos Lea todas las instrucciones contenidas en este manual Cumpla con todos los c6digos en vigor y todos los antes de instalar la estufa. reglamentos locales. Para el suministro electrico solamente se necesita Saque todo el material usado en el embalaje de la estufa antes de conectar el suministro electrico a la corriente con frecuencia de 60 Hz AC y fase 0nica de estufa.
-
Page 10: Conexion Electrica
Si se conecta a un cable de suministro de tres Instrucciones de desembalaje alambres: Conecte el alambre verde (o el alambre de cobre sin forro) y alambre blanco del cable del electrodomOstico al cable de puesta a tierra (blanco o sin forro) dentro de la caja de empalmes (Figura 4). - Page 11 Si se conecta a un cable de suministro de cuatro Instalacion de la estufa alambres (tambien en las casas m6viles): el alambre 1.Visualrnente inspecciones la estufa para daflos. blanco neutro del cable de suministro electrico no debe Verifique ademas que todos los tornillos de la estufa set conectado a la caja de empalmes.
- Page 12 Las m_nsulas de sostenimiento TIENEN QUE RevisiOn de operation instalarse, a satisfacci6n de los c6digos locales o, Consulte el Manual del Usuario para las instrucciones en su ausencia, con el C6digo El_ctrico Nacional de funcionamiento. ANSI/NFPA No. 70--ultima edici6n, o con la Norma CSA C22.1, C6digo El_ctrico Canadiense, Parte 1 No toque elcristaloloselementosdelaestufa.
