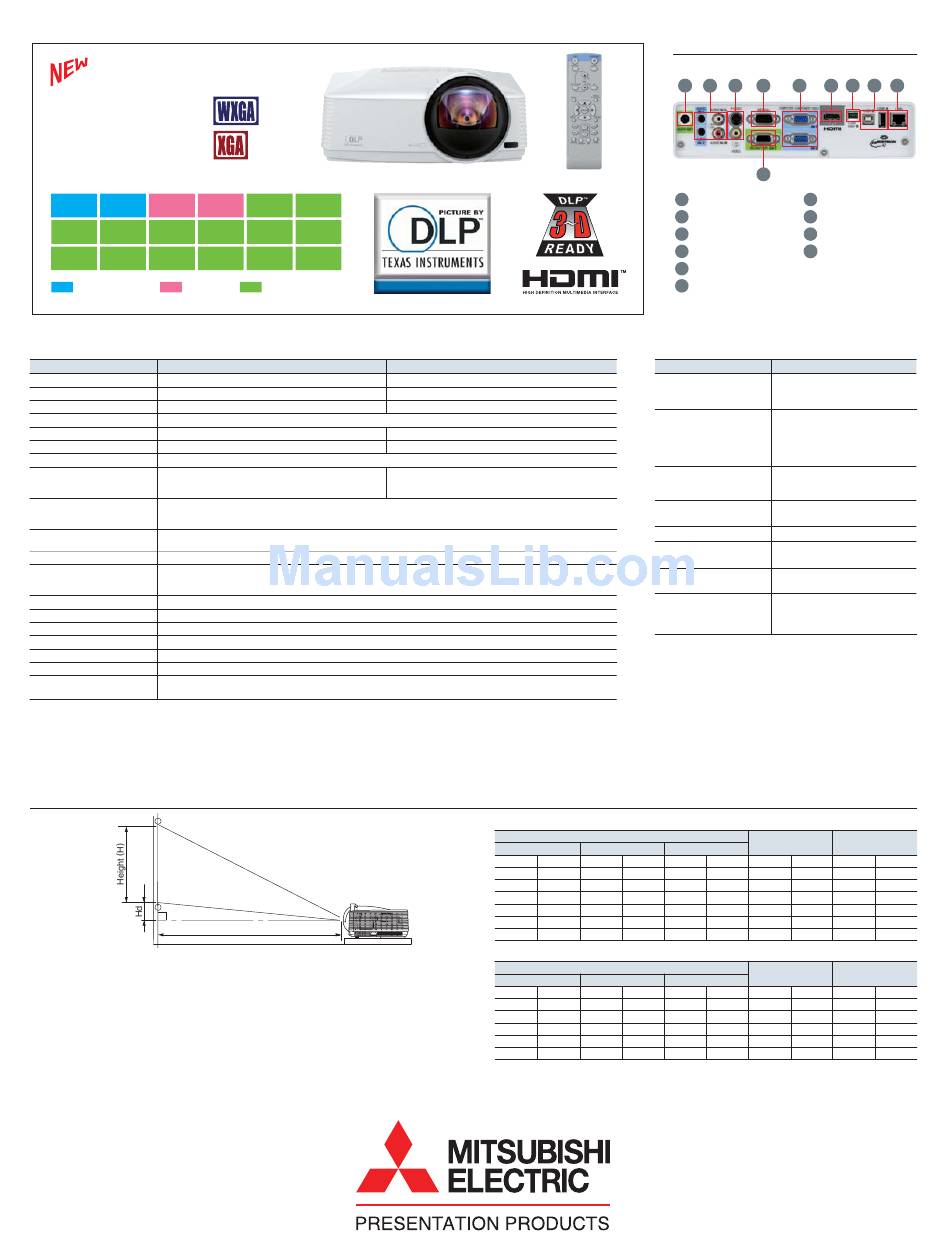

Mitsubishi Electric WD385U-EST Specifications

WD385U-EST
XD365U-EST
Ultrashort-
Brilliant Interactive
throw
Color TM Function Speaker
Projection
Stand-by
PC less
Audio Mix Visual PA
Audio
Presentation
Low
Top Loading LAN
Stand-by HDMI
Lamp (RJ-45)
Power
Picture Performance Presentation

Specifications

Model WD385U-EST
Display technology 0.65" 1-chip DMD
Resolution 1280 × 800 (Total 1,024,000 pixels)
Brightness 2800lm
Contrast ratio 3000 : 1
Picture size 70" – 180" (1280 × 800)
Throw ratio 0.375
Source lamp Normal mode: 230W ( Shut-off Time: 3000hr ) , Low mode: 190W ( Shut-off Time: 6000hr )
Computer compatibility 640 × 480 (Expanded) – 1280 × 800 (Real) –
1600 × 1200 (Compressed), 1080p (Compressed)
Sync on Green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
component video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i/p (1125i/p 60Hz)
1080i/p (1125i/p 50Hz)
Input terminals RGB: mini D-sub 15pin × 2 Audio: stereo mini jack ( 3.5mm ) × 2 ( one for PC1, the other for PC2 )
Video: RCA × 1 + S-VIDEO × 1 Digital: HDMI × 1 Video audio: RCA jack ( L/R ) × 1
Output terminals
RGB; mini D-sub 15pin × 1
Communication terminals SERIAL: mini D-sub 9pin × 1 ( RS232C )
USB type-A: wireless display, Computer-free presentation ( PC less presentation )
USB type-B: USB display
Audio speaker 10W mono
Dimensions ( W x H x D )
12.7" x 4.4" x 10.2"
Weight 9.0 lbs
Power requirements 100 - 240VAC, 50/60Hz
Optional accessories Replacement lamp (VLT-XD560LP), Ceiling mount (PROJ-EST), Hard shell case (DKT1-ATAC)
Included accessories
Remote control, Power cable, VGA(D-sub) cable, User-Manual (CD-ROM), Safety manual, Lens Cap
3-Years of Parts/Labor, 3-Years of Express Replacement Assistance (ERA),
Warranty
1-year or 500 hours lamp warranty (whichever comes first)
• Compliant with ISO21118-2005
• Additional EST models are available with the Qwizdom Wizteach software solution: XD365U-EST Qwizdom & WD385U-EST Qwizdom
Varies depending on conditions:
• Lamp life specification is an estimate based on verification under proper conditions and is not the duration of the warranty. Lamp will shut-off automatically when usage reaches the specified estimated maximum lamp hours.
Service life may vary widely depending on usage and operating environment and conditions, as well as users' adherence to the maintenance and cleaning procedures provided in the user manual.
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

Screen Size and Projection Distance

Side view
Projection distance ( L )
The above numbers are approximate, and may be slightly different from the actual measurements.
MITSUBISHI ELECTRIC
VISUAL SOLUTIONS AMERICA
Professional Product Sales
Phone: 888.307.0349
www.mitsubishi-presentations.com
10W USB / LAN Remote
Display
Desktop
Long-life
Direct
Lamp
Power Off
Closed Low
Caption Fan Noise
User-friendly
Audio: stereo mini jack ( 3.5mm ) × 1
LAN ( RJ-45 ) : × 1 ( projector control, LAN display )
WD385U-EST
XD365U-EST
XD365U-EST
0.55" 1-chip DMD
1024 × 768 ( Total 786,432 pixels )
2500lm
60" – 150" (1024 × 768)
0.469
640 × 480 (Expanded) – 1024 × 768 (Real) –
1600 × 1200 (Compressed), 1080p (Compressed)
Sync on Green available
Screen size chart ( WD385U-EST )
Diagonal size
inch cm
70 178
80 203
100 254
120 305
150 381
180 457
Screen size chart ( XD365U-EST )
Diagonal size
inch cm
60 152
80 203
100 254
120 305
150 381
Input and Output Terminals
(WD385U-EST/ XD365U-EST)
1 2 3 4
5
Audio output
1
Audio input
2
3 S-Video/Video
4 Serial RS-232C

Monitor output

5
6 PC/Component
video input

Interactive pen

Type
Battery
Button
LED
RF
Power consumption
Weight
Dimensions
(Length × Width × Height)
Accessories
All contents are subject to change without notice.
The above figures are approximate and may be slightly different from
the actual measurements.
Screen ( 16 : 10 )
from screen ( L )
Width ( W ) Height ( H )
inch cm inch cm inch
59 151 37 94 22
68 172 42 108 25
85 215 53 135 32
102 258 64 162 39
127 323 79 202 49
153 388 95 242 60
Screen ( 4 : 3 )
from screen ( L )
Width ( W ) Height ( H )
inch cm inch cm inch
48 122 36 91 22
64 163 48 122 30
80 203 60 152 38
96 244 72 183 46
120 305 90 229 58
MITSUBISHI ELECTRIC SALES
CANADA, INC.
Display & Imaging Solutions Division
Phone: 905.475.7728
www.mitsubishielectric.ca
10
6 7 8 9
HDMI
7
Mini-USB
8
9 USB (type-A/B)
10 LAN (RJ-45)
Interactive pen
Non-rechargeble
AAA batteries
(R03 or LR03) x 2
4-key: Left button,
Right button,
Pairing button,
Power switch +
Penpoint button (Left button)
2 LED (Red/Green):
battery indicator,
link indicator
CC2500: 2.4GHz
(2400-2483.5MHz)
P-ON: 120mW
48g
70g (with battery)
201mm × 22.5mm × 22mm
(not including protrusions)
USB cable
User manual
AAA batteries (R03 or LR03) × 2
Strap
Distance Height of projected
image ( Hd )
m inch cm
0.56 4.6 12
0.64 5.3 13
0.82 6.6 17
0.99 7.9 20
1.25 9.9 25
1.51 11.9 30
Distance Height of projected
image ( Hd )
m inch cm
0.56 5.4 14
0.77 7.2 18
0.97 9.0 23
1.18 10.8 27
1.49 13.5 34
