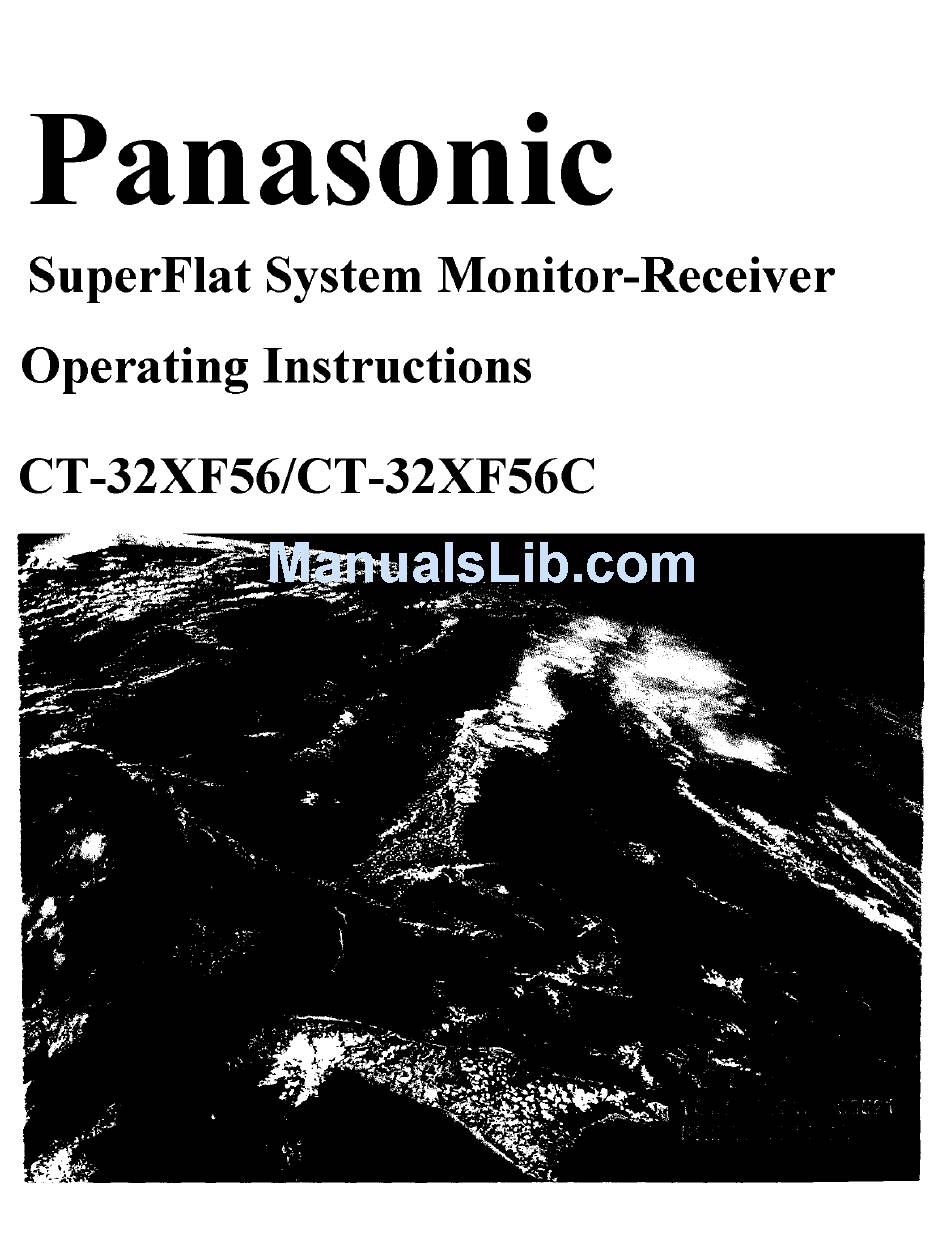

- Page 1 Panasonic SuperFlat System Monitor-Receiver Operating Instructions CT-32XF56/CT-32XF56C...
- Page 2 Spatializer U.S. Patents am: 4,308,423; 4,355,203 and 5,412,73 L Panasontc Canada Inc. Panasontc Consumer Electronics Company, Division of Matsushlta 5770 Ambler Drive Electric Corporation of America Mississauga, Ontario Canada L4W 2T3 One Panasonic Way Secaucus, New Jersey 07094 T_I.: (905) 624-5010 www.penasonic.com www.parlasonic,ca (800) 222-4213...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Fable of Contents Congratulations ............Customer Record ..............Care and Cleaning ..............Specifications ................... Installation ..............Television Location ..............Optional Cable Connections ............. AC Power Supply Cord ............Cable / Antenna Connection ............ Optional Equipment Connections ..........Amplifier Connection (To Audio Amp) ........ -
Page 4: Congratulations
This television is also DTV (Digital TV) compatible. When connected to a Panasonic digital TV set-top box, this TV can display the standard definition (SDTV) 480p/480i format. -
Page 5: Installation
INSTALLATION Installation Television Location This unit can be used as part of an entertainment center. Consult your dealer available options. Avoid excessive sunlight or bright lights, including reflections. Keep away from excessive heat or moisture. Inadequate ventilation may cause internal component failure. -
Page 6: Optional Equipment Connections
INSTALLATION Optional Equipment Connections VCR Connection Follow this diagram when connecting your television to a VCR only. Note: The S-VIDEO connection provides higherquality picture. It overridesother VIDEO connections. Use INPUT 1 or2 AUDIO R and L with S-VIDEO connection. CABLES NOT SUPPLIED |w_o_ Note: The remote control must be programmed with supplied codes to operate the VCR. - Page 7 INSTALLATION Optional Equipment Connections (Conto) Open door on the TV front panel to use the connections for your optional equipment. Press the TV/VIDEO button to select VIDEO 4 input mode. CONNECTIONS ON FRONT OF "IV v,o0o ;,ooo;) J ,..o.4 e •...
- Page 8 INSTALLATION Optional Equipment Connections (Cont.) VCR and Cable Box Connection Follow this diagram when connecting your television to both a VCR and a cable box. Note: The S-VIDEO connection provides higher quality picture. It overrides other VIDEO connections. Use INPUT I or 2 AUDIO R and L with S-VIDEO connection. )OUT "1 TERMINALS ON BACK OF "IV...
-
Page 9: Amplifier Connection (To Audio Amp)
INSTALLATION Optional Equipment Connections (Cont.) Amplifier Connection (TO AUDIO AMP) Connect to an external audio amplifier input for listening through a stereo system. Note: TO AUDIO AMP terminals cannot be connected directly to external speakers. Audio Adjustments Select SPEAKERS ON located in the onscreen AUDIO menu. -
Page 10: Home Theater Connection
INSTALLATION Home Theater Connection Your TV can be configured to use the "IV speakers as center channel speakers in Dolby* surround sound transmission. Connect a Dolby surround amplifier to CENTER CHANNEL INPUT on the back of the "IV as shown. DOLBY CENTER MODE &... -
Page 11: Picture In Picture (Pip) Operation
(PIP) PICTURE IN PICTURE OPERATION Picture In Picture (PIP) Operation This television includes a two tuner Picture In Picture (PIP) feature. This allows watching two (2) live broadcasts at the same time with, or without an external video source (VCR). Basic PIP Operation Procedure Press the PIP button on the remote control to display the PIP frame onscreen. -
Page 12: Roller Guide Menu Tm
ROLLER GUIDE MENU Roller Guide Menu ROLLER GUIDE MENU SELECTIONS LOCK Basic Navigation Procedure Press the ACTION button in the middle of the large blue button on the remote control to display the Roller Guide Menu Note: Be careful to press the ACTION button in the middle of the button. If you do not press in the middle of the button, the channel or volume keys may be activated. -
Page 13: Roller Guide Menu Chart
ROLLER GUIDE MENU CHART Roller Guide Menu Chart s .., Select English, Spanish or French menu. MODE - Select Cable or TV (Antenna). See Installation section in Manual. ANTENNA - Select ANT 1 or ANT 2. See Installation section in Manual. AUTO PROGRAM - Automatically program channels having a signal into memory. - Page 14 ROLLER GUIDE MENU CHART Roller Guide Menu Chart (Cont.) £3 AI SOUND - Equalize overall volume levels G'I'HERN_I. across all programs, (AI sound is not available in VIDEO mode). (Adjustments) £3 SUB WOOFER - Will amplify sounds in the broadcast. £3 ON - TV speakers operate normally.
- Page 15 ROLLER GUIDE MENU CHART Roller Guide Menu Chart (Cont.) PICTURE COLOR - Adjust desired color intensity. TINT- Adjust natural flesh tones, {:3 BRIGHTNESS- detail. VIDEO ADJ. PICTURE - Adjust white areas of picture, (Adjustments) SHARPNESS - Adjust clarity of outlin detail.
-
Page 16: Special Features
SPECIAL FEATURES Special Features SET UP Menu Languages In SET UP Menu, select IDIOMA / LANGUE to change menu language to ENGLISH, ESPAKIOL (Spanish) or FRAN_AIS (French). MODE ENGLISH Prog Chan (Program Channels) In SET UP menu under PROG CHAN select: MODE to select TV (antenna) or CABLE mode depending on the signal source. -
Page 17: Closed Caption
SPECIAL FEA TUllES (Closed Caption) This television contains a built-in decoder that displays I_ (Closed Caption) text across the screen (white or colored letters on black background). It allows the viewer to read the dialogue of a television program or other information. The program viewed must include Close Captioning for the feature to work. -
Page 18: Other Adjustments
SPECIAL FEATURES Other Adj. (Adjustments) DTV AUTO ON - to receive digital TV broadcasts using a Panasonic Set-top Box. ASPECT - select between: • 4:3 - Standard picture size displayed across the entire viewing screen a full screen height. •... -
Page 19: Sleep Timer
SPECIAL FEATURES TIMER Sleep In TIMER menu, select SLEEP to turn TV off in 30, 60 or 90 minutes. Select NO to turn off timer. HOW LONG? Timer I and Timer 2 In TIMER menu, select one or both timers to turn the television on and off at selected times, on selected channels, and on selected days. -
Page 20: Picture Adjustments
SPECIAL FEATURES PICTURE Other Adjustments In Picture menu under OTHER ADJ. select: COLOR TEMP to increase and decrease WARM (red) and COOL (blue) colors to suit personal preferences. AUTO COLOR ON to maintain consistent color and tint. AI PICTURE to optimize contrast of the picture from scene to scene. 3D Y/C FILTER to minimize noise and cross color in the picture. -
Page 21: Favorite Channels & Captions
SPECIAL FEATURES CHANNELS Favorites In CHANNELS menu under FAVORITES select: CHANNEL SCAN FAV to enter up to 16 favorite channels. CHANNEL SCAN ALL to scan all channels when using the CH up/down buttons, CHANNEL SCAN ENTER CHANNEL FAVORITE CHANNELS Caption In CHANNELS menu under CAPTION select:... -
Page 22: Lock
SPECIAL FEATURES LOCK Mode To use LOCK options: £3 ENTER CODE FIRST - Use the numeric keypad to enter a four-digit secret code. After entering your secret code for the first time, the onscreen display will change to "CHANGE CODE". Note: Use a code that is easy to remember or record it in a safe place. -
Page 23: Digital Tv Set-Top Box (Dtv-Stb) Connection
TV - SET-TOP CONNECTION Digital TV - Set-Top Box (DTV-STB) Connection Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the back of your TV. DTV TERMINALS ON BACK OF DTV-STB DTV TERMINALS ON BACK OF TV... -
Page 24: Glossary
SDTV signal formats are 480i and 480p. SDTV-Compatible (480p/480i) SDTV-compatible "IV models process and display the standard definition output with the use of a Panasonic DTV-STB at 480 lines, interlaced or progressive scan. When DTV programming is available, you can view it in the standard format, either 4:3 aspect ratio or 16:9 aspect ratio. - Page 25 FREQUENTLY ASKED QUESTIONS ABOUT DIGITAL Frequently Asked Questions About Digital TV What is digital TV (DTV)? In April, 1997, the FCC (Federal Communications Commission) announced that, by 2006, all television broadcasting will be digital. Digital TV broadcasting delivers crystal-clear pictures, approaching the quality of 35mm movies and CD (compact disc) sound.
-
Page 26: Troubleshooting Chart
TROUBLESHOOTING CHART Troubleshooting Chart Before calling for service, determine the symptoms and follow suggested solutions. Adjust Antenna Location and Connection Snowy Video Noisy Audio Adjust Antenna Location and Connection Check Antenna Lead-in Wire Noisy Audio Multiple Image MoveTV from Electrical A ppliances,Lights, Vehicles, a nd MedicalEquipment Noisy Aucho Interference...
