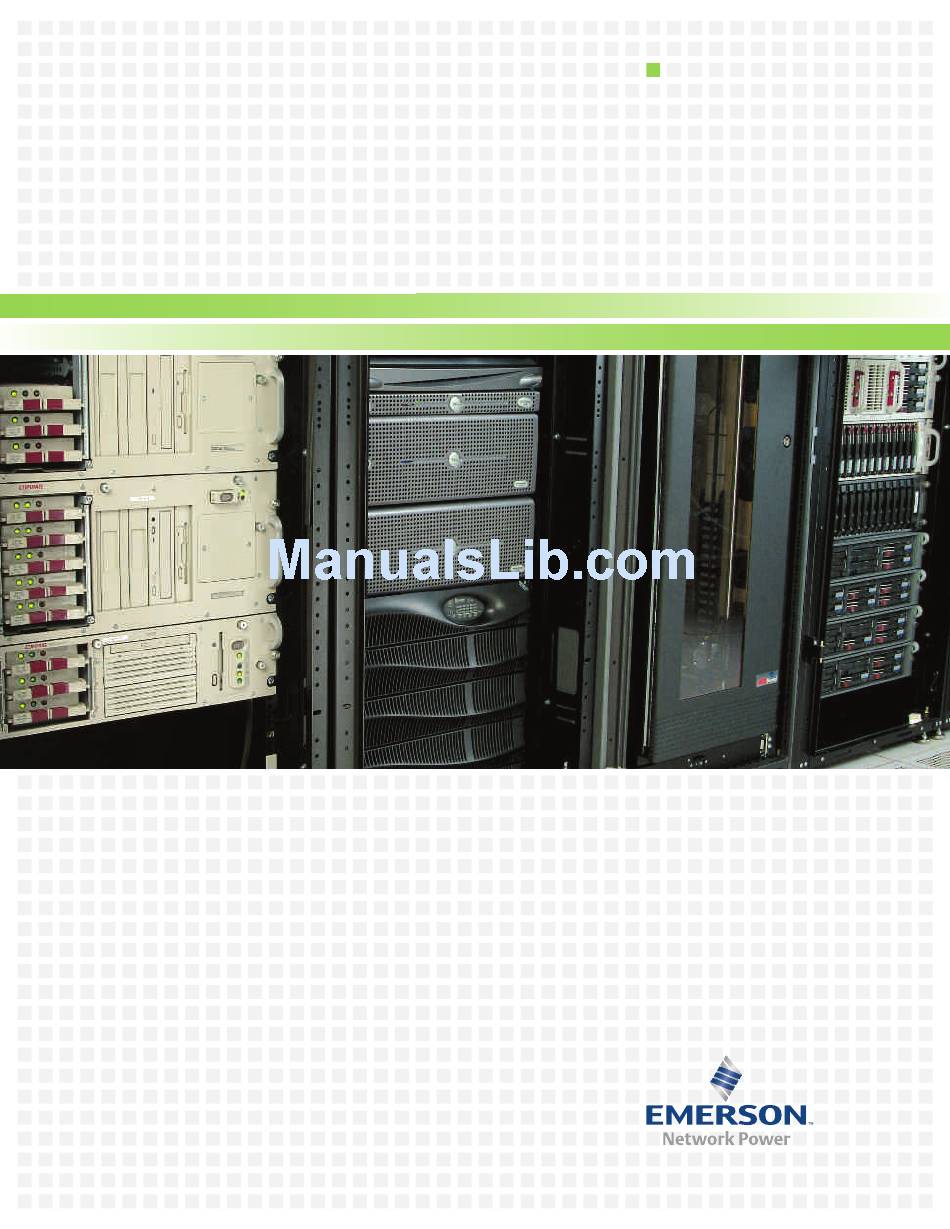

- Page 1 Liebert ® GXT2 ™ 6 kVA & 10 kVA UPS Rack/Tower Configurable UPS For Network Protection AC Power For Business-Critical Continuity ™...
- Page 2 Compact UPS Systems For High Power Network Rack Applications Liebert GXT2 10 kVA...
- Page 3 220/110, or 200/100 VAC provide 6 kVA model at 120/208V output in the flexibility to adapt to multiple 4U size, or the 10 kVA unit 120/208V load requirements without the need output in a 6U package. to add additional transformers that take up extra space and add weight.
- Page 4 Liebert Delivers 6 kVA Of True On-Line Power In A Compact 4U Package Liebert GXT2 6 kVA is the first true on-line UPS that combines 6 kVA of power capacity, internal batteries and dual output voltage in a single 4U size cabinet. This makes it an ideal fit in applications where the power requirements are demanding—but rack space is limited.
- Page 5 Other Product Features Of The New Liebert GXT2 6 kVA Include: Flexibility: Reliability Rack/tower configuration — ■ ■ A single part number installs in either configuration. Automatic frequency detection — ■ The Liebert GXT2 6 kVA detects and matches line input frequencies of either 60 or 50 Hz.
- Page 6 6 kVA Power Output Distribution Options A standard removable power distribution box provides flexibility when installing the UPS. Optional power distribution boxes are available with a built-in maintenance bypass switch that allows hot-swapping of the entire UPS. PD-HDWR Input: hardwire Output: hardwire PD-002 Includes bypass...
- Page 7 PD-001 Includes bypass Input: L14-30 Output: (4) 5-15/20 (1) L6-30 (1) L14-30 PD-004 Includes bypass Input: L14-30 Output: (4) C19 PD-007 Includes bypass Input: L14-30 Output: (4) L6-20R International Voltage Models Liebert GXT2 4.5 kVA and 6 kVA 230V Models Designed for international deployment, Liebert GXT2 4.5 kVA and 6 kVA 230V models offer true on-line double conversion operation with sinewave output.
- Page 8 This Liebert GXT2 10 kVA unit is a flexible solution for protecting rack-mount equipment, including VoIP and PoE. Especially designed for use with the new generation of high power switches, this compact UPS packs 10 kVA (8 kW) of power into a 6U rack/tower package with flexible output voltage and optional output distribution. The UPS includes built-in, user-replaceable batteries for up to five minutes of runtime at full load.
- Page 9 Other Product Features Of The Liebert GXT2 10 kVA Include: Flexibility Rack/tower configuration — ■ A single part number installs in either configuration. Automatic frequency detection — ■ The Liebert GXT2 10 kVA detects and matches line input frequencies of either 60 or 50 Hz.
- Page 10 Liebert GXT2 10 kVA UPS. The Parallel POD enables paralleling of two Liebert GXT2 10 kVA UPS modules to double capacity to 20 kVA. A third unit may be added to configure the system for N+1 redundancy, raising system reliability.
- Page 11 10 kVA UPS Power Output Distribution Options The standard 10 kVA model includes terminal blocks for hardwired connections of both input and output. Optional panels are available to add output receptacles to the rear panel of the unit. PD-101 Output: (8) 5-20R,...
- Page 12 Communications For Power Monitoring And Control The Liebert GXT2 6 kVA and 10 kVA systems offer a variety of communications options to provide the monitoring and control capabilities demanded by today's network computing systems. Operation can be monitored using: Liebert MultiLink™...
- Page 13 This all-inclusive package offers you complete peace-of-mind for five years including: UPS — A compact, high quality on-line Liebert GXT2 6 kVA or 10 kVA UPS. ■ ■ Start-Up — Onsite system start-up by a certified Service Division of Emerson Network Power Customer Engineer, scheduled anytime, 24 x 7.
-
Page 14: Specifications
50,000 ft. (15,000m) maximum UL 1778, c-UL Listed (Suitable for computer room applications) FCC Part 15, Subpart B, Class A ISTA Procedure 1A LIEBERT GXT2 10 KVA GXT2-10000RT208 8000W/8660VA at 127/220 (120 or 240 degrees) 8000W/8660VA at 120/208 (120 or 240 degrees) -
Page 15: Battery Cabinets
GXT2-288RTBKIT 10kVA / 10kVA 20kVA / - 20kVA / 10kVA * Required Paralleling Components Liebert GXT2 10 kVA 208V Liebert GXT2 10 kVA 230V International Model Input Power Connection Output Power Connection Hardwire Terminals Hardwire Terminals Hardwire Terminals Hardwire Terminals... - Page 16 Embedded Computing Connectivity Embedded Power DC Power Monitoring Business-Critical Continuity, Emerson Network Power and the Emerson Network Power logo are trademarks and service marks of Emerson Electric Co. ©2008 Emerson Electric Co. Liebert Corporation 1050 Dearborn Drive P.O. Box 29186 Columbus, Ohio 43229 800 877 9222 Phone (U.S.
