Chapter 1

Processor Module Form Factors

Different form factors of Pentium II and Pentium III processor modules exist, as
shown in Figure 1-1. The form factor in this kit lacks the two processor module
release latches present in the alternate form factor.
For HP NetServer E 60 or LPr, the form factor is unimportant.
For HP NetServer LC 3 or LH 3/3r, the form factor in this kit requires a
processor retaining latch, which is described in Chapter 3, "Installation in
LC 3 and LH 3/3r."
Form Factor in This Kit

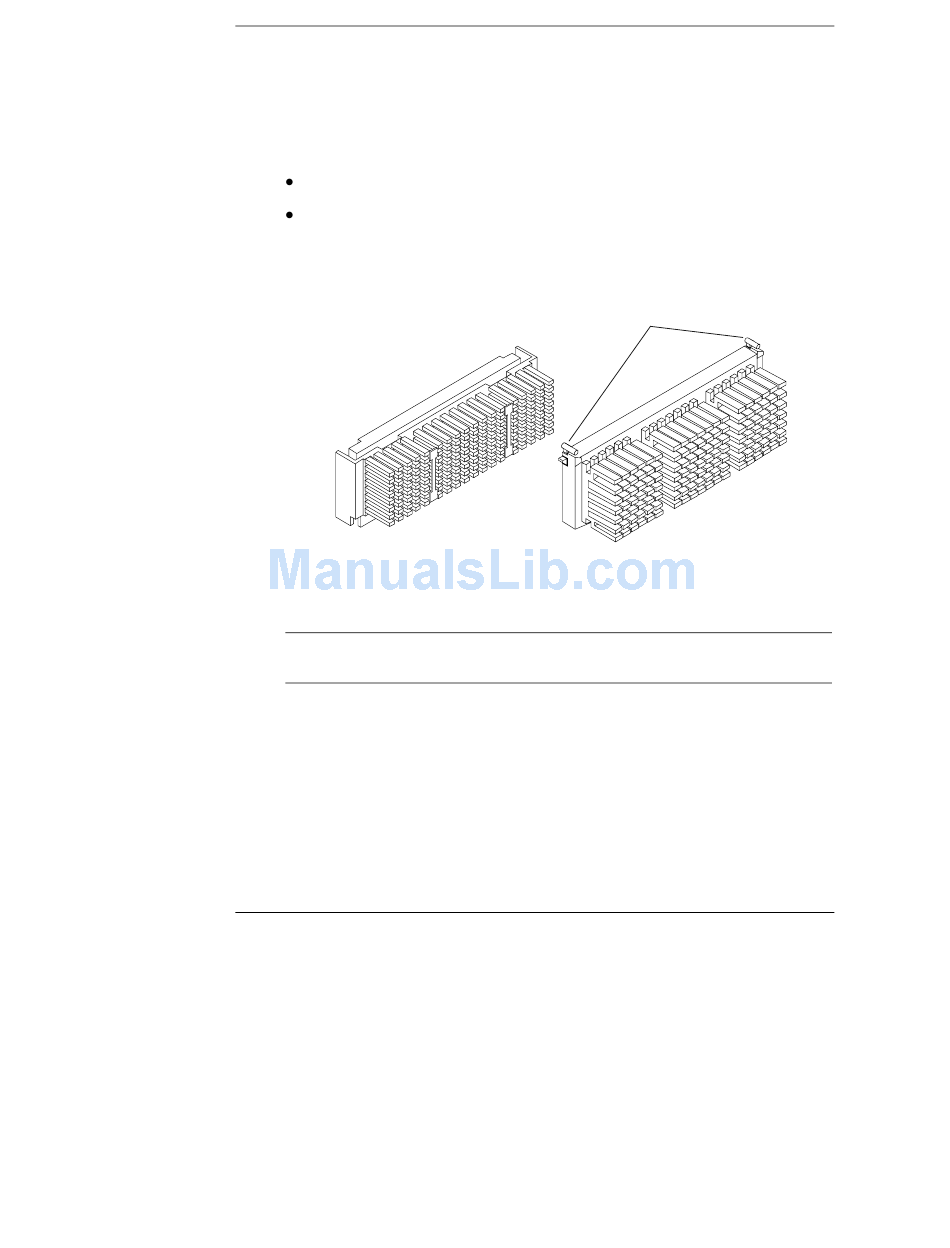

Figure 1-1. Processor Module Form Factors
NOTE In a dual-processor configuration, you can mix processor
modules with different form factors.
4
Introduction
Processor Module
Release Latches
Alternate Form Factor
