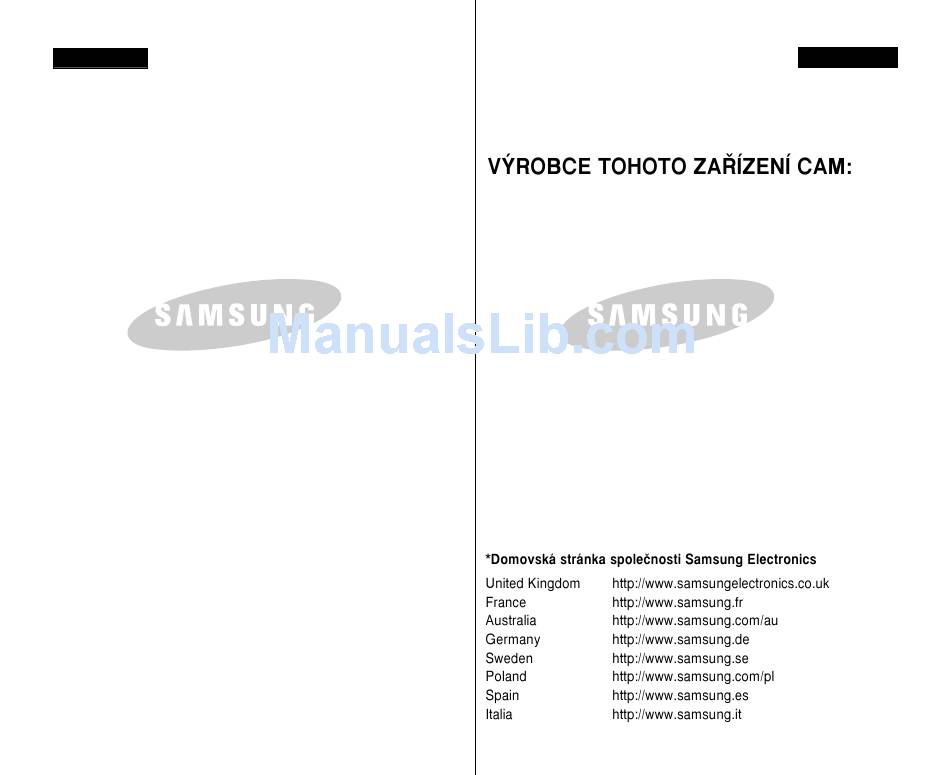

ENGLISH CZECH THE CAM IS MANUFACTURED BY: ELECTRONICS ELECTRONICS *Samsung Electronics’ Internet Home Page United Kingdom http://www.samsungelectronics.co.uk France http://www.samsung.fr Australia http://www.samsung.com/au Germany http://www.samsung.de Sweden http://www.samsung.se Poland http://www.samsung.com/pl Italia http://www.samsung.it Spain http://www.samsung.es...
Page 2
ENGLISH CZECH Digital Camcorder VP-M102/M105/M110 VP-M102/M105/M110 Auto Focus Charge Coupled Device Liquid Crystal Display Owner’s Instruction Book Before operating the unit, please read this Instruction Book thoroughly, and retain it for future reference. ELECTRONICS This product meets the intent of Directive 89/336 CEE, 73/23 CEE, 93/68 CEE.
ENGLISH CZECH Contents Precautions on the CAM Care ................8 ..............8 Notes Regarding COPYRIGHT................9 ..............9 ..............9 Notes Regarding Moisture Condensation............9 ..................9 Notes Regarding the CAM ..................9 ....................10 Notes Regarding the Battery Pack ..............10 ..............10 Notes Regarding a Trademark ................10 ..................11 Notes Regarding the Lens ................11 ...................11 Notes Regarding the LCD Display ..............11 ..................11...
Page 4
ENGLISH CZECH Contents The Colour of the LED ..................24 ....................24 Using Hardware Reset Function ...............24 ..............24 Before You Start Operating the CAM ...............25 ................25 Using the Function Button.................26 ................26 Using the Display Button ...................27 < > ..............27 Adjusting the LCD Monitor ................28 ..................28 Structure of the Folders and Files ..............29 ................29...
Page 5
ENGLISH ENGLISH CZECH Contents Contents Setting the BLC (Backlight Compensation)..........50 ............50 Setting the Effect...................51 ...................51 Setting the Digital Zoom ................52 ................52 Capturing......................54 .......................54 Capturing Images..................54 ....................54 Zooming In and Out..................55 ................55 Viewing .........................56 ......................56 Viewing Photo files on the LCD Monitor ............56 ........56 Selecting File Options ..................57 ..................57...
Page 6
ENGLISH CZECH Contents Setting Repeat Play ..................72 ............72 Selecting File Options ..................73 ..................73 Deleting Music files..................73 ..............73 Locking Music files..................74 ..............74 Copying Music files..................75 ..............75 Recording......................76 ......................76 Recording Voice....................76 ....................76 Playing........................77 ......................77 Playing Voice files..................77 ..............77 Selecting File Options ..................78 ..................78 Deleting Voice files ..................78 ..............78...
Page 7
ENGLISH CZECH Contents Setting the System....................92 ....................92 Setting the Auto Shut off................92 ..............92 Setting the Demo Function................93 ................93 Setting Start-up Mode...................94 ................94 Setting the File No. Function ................95 ............95 Setting the Beep Sound................96 ............96 Viewing Version Information ................97 ................97 Setting Memory ....................98 ....................98 Selecting the Storage Type ................98 ..................98...
Page 8
ENGLISH CZECH Contents Cleaning and Maintaining the CAM ..............117 .................117 After using the CAM..................117 ................117 Cleaning the Body ..................118 ....................118 Using the Built-in Rechargeable Battery ............118 ............118 Using the CAM Abroad ................119 ............119 Self Diagnosis Display ..................120 ................120...
ENGLISH CZECH Notices and Safety Precautions Notes Regarding the Lens Notes Regarding the LCD Display Precautions Regarding Service Precautions Regarding Replacement Parts...
ENGLISH CZECH Getting to Know Your CAM Accessories Supplied with the CAM . Lithium Polymer . AC Power Adapter . Video/Audio Cable Battery pack . USB Cable . Cradle Earphones . Hand Strap . Carrying Case . Instruction Book/ Quick Guide .
ENGLISH CZECH Name of Each Part: LCD Display OSD (On Screen Display in Video Record Mode / Video Play Mode) Video Record SF / 720 00:16 / 24:32 STBY Sepia Video Play 100-0056 Video Play 100-0056 00:16 / 10:50...
ENGLISH CZECH Name of Each Part: LCD Display OSD (On Screen Display in Photo Capture Mode / Photo View Mode) Photo Capture Sepia Photo View 100-0025 2 Copies...
Page 19
ENGLISH CZECH Name of Each Part: LCD Display OSD (On Screen Display in MP3 Play Mode / Voice Record / Play Mode) MP3 Play 2. I belive I can fly.mp3 3.6 Mbytes Stereo 44.1KHz 128Kbps 00:34 / 03:46 Voice Record 2 2004/01/01 12:51:04 AM Stereo 8KHz 128Kbps 00:00:12 / 00:05:12...
ENGLISH CZECH How to Use the Battery Pack Maintain the Battery Pack ° ° ° ° ° ° ° ° ° ° ° ° ° ° ° ° ° ° ° °...
Page 22
ENGLISH CZECH How to Use the Battery Pack Continuous recording time based on battery type Continuous Recording Time Time Battery LCD ON Backlight OFF SB-P90A (900mAh) Approx. 60 min. Approx. 80 min. SB-P180A (1800mAh) (option) Approx. 120 min. Approx. 160 min.
Page 23
ENGLISH CZECH How to Use the Battery Pack Battery Level Display Battery Level Indicator Message State Fully charged 40~60% used 60~80% used 80~95% used Exhausted(flickers) The device will soon turn off. Change the Battery Pack as soon as possible. (flickers) “Battery The device will be forced to turn Low”...
ENGLISH CZECH Getting Started The Colour of the LED When the AC Adapter is plugged in Charging state Power LED Colour Voice / Video Record Green Charging Orange Fully charged Green Error Orange Blink When the AC Adapter is unplugged LED Colour Power Charging state...
ENGLISH CZECH Getting Started Using the Function Button The Use of Various Function button Nahrávání / Recording / Button Playing/Viewing Selecting Fotografování Picture taking Select up RPS ( Zoom out ( ) FPS ( Zoom in ( ) Select down Multi-Play screen Multi-Play screen Return to previous menu...
Page 28
ENGLISH CZECH Getting Started Using the Display button < > < > < > < > If you press the [Display] button < > Record/Capture Help Select Mode Help Record/Capture Help Select Mode Zoom Out Select Back Play Mode Play Last <...
ENGLISH CZECH Getting Started Adjusting the LCD Monitor Mode Selection Voice Recorder File Browser System Settings System Settings Back System Settings <Nastavení systému> System Settings Display Date / Time System Memory < > < > Back Settings: Display < > < >...
ENGLISH CZECH Getting Started Recording Time and Capacity Video Record Time Super Fine Fine Normal < > < > < > Capacity Media 256MB(VP-M102) approx. 10min. approx. 5min. approx. 16min. approx. 8min. approx. 32min. approx. 16min. 256MB(VP-M102) Internal 512MB(VP-M105) approx. 21min. approx.
Page 32
ENGLISH CZECH Getting Started Number of Photo Capture Quality Media Capacity 800 600 640 480 800 600 640 480 256MB approx. 4129 approx. 2509 256MB 512MB approx. 5019 approx. 8258 Internal Memory 512MB approx. 9803 approx. 16129 32MB approx. 516 approx.
ENGLISH CZECH Getting Started Selecting the Memory Type Mode Selection Voice Recorder File Browser System Settings Back System Settings Display Date / Time System Memory Back System Settings Settings: Memory System Settings <Nastavení systému> Storage Type Internal Format Internal Memory Space 000MB/000MB <...
ENGLISH CZECH Getting Started Using the Memory Stick Inserting a Memory Stick < > Video Record SF / 720 < > ‘ ’ < > ‘ ’ External memory inserted. Do you want to change memory to external? Cancel Ejecting a Memory Stick 00:16 / 24:32 Terminals Write-protect...
ENGLISH CZECH Video Mode: Recording Recording Video Record SF / 720 < > < > 00:00 / 10:57 STBY Video Record SF / 720 < > 00:16 / 10:50 < > Video Record SF / 720 Video Record 00:16 / 10:41 STBY <...
ENGLISH CZECH Video Mode: Recording Zooming In and Out < > Video Record SF / 720 < > 00:16 / 10:50 Video Record SF / 720 00:16 / 10:50 Video Record SF / 720 00:16 / 10:50...
ENGLISH CZECH Video Mode: Playing Playing on the LCD Monitor Video Record SF / 720 < > < > 00:16 / 10:41 STBY Video Record SF / 720 Record < > < > Play Settings Back 00:16 / 10:41 STBY Video Play 100-0056 Video Play 100-0056 00:01 / 00:16...
ENGLISH CZECH Video Mode: Playing The button and switch you use when playing the video file < > < > < > Adjusting the Sound Video Play 100-0056 00:01 / 00:16 Video Play 100-0056 00:01 / 00:16...
ENGLISH CZECH Video Mode: Selecting File Options Deleting Video files < > Video Record SF / 720 < > Record Play Settings Back < > < > STBY 00:00 / 10:57 Video Play 100-0056 Record < > Play File Options Back <...
ENGLISH CZECH Video Mode: Selecting File Options Locking Video files Video Record SF / 720 Record Play < > Settings < > Back STBY 00:00 / 10:57 < > < > Video Play 100-0056 Record Play File Options Back < >...
ENGLISH CZECH Video Mode: Selecting File Options Copying Video files Video Record SF / 720 Record < > Play < > Settings Back STBY 00:00 / 10:57 Video Play 100-0056 < > < > Record Play File Options Back < >...
ENGLISH CZECH Video Mode: Selecting File Options Setting the PB Option Video Record SF / 720 Record Play < > Settings < Back > STBY 00:00 / 10:57 < > < > Video Play 100-0056 Record Play File Options < >...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the Video file Size Video Record SF / 720 Record Play < > Settings < > Back 00:00 / 10:57 STBY Video Settings Size < > < > Quality Quality Super Fine Super Fine Focus Focus...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the Video file Quality Video Record SF / 720 Record Play < > Settings < > Back 00:00 / 10:57 STBY < > Video Settings < > Size Size Quality Super Fine <...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the Focus Video Record SF / 720 Record < Play > Settings < > Back 00:00 / 10:57 STBY < > Video Settings < > Size Size < > < > Quality Quality Super Fine Super Fine...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the EIS (Electronic Image Stabilizer) Video Record SF / 720 Record Play Settings Back 00:00 / 10:57 STBY Video Settings Size Size Quality Quality Super Fine Super Fine < > Focus Focus <...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the White Balance < > Video Record SF / 720 Record Play < > Settings < > Back 00:00 / 10:57 STBY < > < > Video Settings White Balance Auto < >...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the Program AE (Programmed Auto Exposure) Video Record SF / 720 Record Play < > Settings < > Back 00:00 / 10:57 STBY < > < > Video Settings Video Settings < >...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the BLC (Backlight Compensation) Video Record SF / 720 Record Play Settings Back < > 00:00 / 10:57 STBY < > Video Settings Video Settings White Balance Auto White Balance Auto Program AE Program AE Auto Auto...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the Effect Video Record SF / 720 Record Play < > Settings < > Back 00:00 / 10:57 STBY < > Video Settings Video Settings < > White Balance Auto White Balance Auto <...
ENGLISH CZECH Video Mode: Setting Various Functions Setting the Digital Zoom Video Record SF / 720 Record Play Settings Back < > < > 00:00 / 10:57 STBY Video Settings Video Settings White Balance Auto White Balance Auto Program AE Program AE Auto Auto...
ENGLISH CZECH Photo Mode: Setting Various Functions Setting the Photo file Size Photo Capture Capture View Settings Back < > Photo Settings Photo Settings Photo Size Photo <Fotografování> Light Light Auto Auto Focus Focus < > White Balance Auto White Balance Auto <...
ENGLISH CZECH Photo Mode: Setting Various Functions Setting the BLC (Backlight Compensation) Photo Capture Capture View Settings Back < > Photo Settings Photo Settings Photo Photo <Fotografování> Focus Focus White Balance White Balance Auto Auto < > Program AE Program AE Auto Auto <...
ENGLISH CZECH MP3 Mode: Playing Playing Music files Mode Selection Video Photo Voice Recorder < File Browser > MP3 Play 1 hey jude.mp3 2 I believe I can fly.mp3 3 black or white.mp3 4 Let it be.mp3 5 What a wonderful world.mp3 The use of switch MP3 Play...
ENGLISH CZECH MP3 Mode: Selecting Play Options Setting Repeat Play MP3 Play 1 hey jude.mp3 2 I believe I can fly.mp3 3 black or white.mp3 4 Let it be.mp3 5 What a wonderful world.mp3 < > MP3 Play 1 hey jude.mp3 Play Options 2 I belive i can fly.mp3 File Options...
ENGLISH CZECH MP3 Mode: Selecting File Options Deleting Music files MP3 Play 1 hey jude.mp3 2 I believe I can fly.mp3 3 black or white.mp3 < > 4 Let it be.mp3 5 What a wonderful world.mp3 MP3 Play 1 hey jude.mp3 Play Options 2 I belive i can fly.mp3 File Options...
ENGLISH CZECH MP3 Mode: Selecting File Options Locking Music files MP3 Play 1 hey jude.mp3 2 I believe I can fly.mp3 3 black or white.mp3 < > 4 Let it be.mp3 5 What a wonderful world.mp3 MP3 Play 1 hey jude.mp3 Play Options 2 I belive i can fly.mp3 File Options...
ENGLISH CZECH MP3 Mode: Selecting File Options Copying Music files MP3 Play 1 hey jude.mp3 2 I believe I can fly.mp3 < > 3 black or white.mp3 4 Let it be.mp3 5 What a wonderful world.mp3 MP3 Play < > < >...
Setting the CAM: ENGLISH CZECH Adjusting the LCD Monitor Adjusting the LCD Brightness Mode Selection Voice Recorder File Browser < > System Settings System Settings Back System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory <...
ENGLISH Setting the CAM: CZECH Adjusting the LCD Monitor Adjusting the LCD Colour Mode Selection Voice Recorder File Browser < > System Settings System Back Settings System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory <...
ENGLISH Setting the CAM: CZECH Adjusting Date/Time Setting Time Mode Selection Voice Recorder File Browser < > System Settings System Settings Back System Settings <Nastavení systému> System Settings Display < > < > Date/Time System Memory Back < > < >...
ENGLISH Setting the CAM: CZECH Adjusting Date/Time Setting Date Mode Selection Voice Recorder File Browser < > System Settings System Settings Back System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory Back < > < >...
Setting the CAM: ENGLISH CZECH Adjusting Date/Time Setting Date Format Mode Selection Voice Recorder < > File Browser System System Settings Settings Back System Settings <Nastavení systému> System Settings Display < > < > Date/Time System Memory < > < >...
Setting the CAM: ENGLISH CZECH Adjusting Date/Time Setting Time Format Mode Selection Voice Recorder File Browser < > System Settings System Settings Back System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory Back < > < >...
ENGLISH CZECH Setting the CAM: Setting the System Setting the Auto Shut off < > Mode Selection Voice Recorder < > System Settings File Browser System Settings System Settings <Nastavení systému> Back System Settings < > < > Display Date/Time <...
ENGLISH CZECH Setting the CAM: Setting the System Setting the Demo Function < > < > Mode Selection Voice Recorder < > File Browser System Settings System Settings Back System Settings <Nastavení systému> System Settings Display < > < > Date/Time System <...
ENGLISH CZECH Setting the CAM: Setting the System Setting Start-up Mode Mode Selection Voice Recorder File Browser < > System Settings System Back Settings System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory < > < >...
ENGLISH CZECH Setting the CAM: Setting the System Setting the File No. Function Mode Selection Voice Recorder < > File Browser System Settings System Settings System Settings <Nastavení systému> Back System Settings < > < > Display < > < >...
ENGLISH CZECH Setting the CAM: Setting the System Setting the Beep Sound Mode Selection Voice Recorder File Browser < > System Settings System Settings Back System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory < >...
Settings: System Demo Start-up Video Mode File No. Series Beep Sound Version Info Settings: System Demo Samsung Elec. Co. LTD Spider 0.13 Language English Sep 07 2004 Tue 18:41:08 Start-up Previous Mode Modecon 1.02 Sep 08 2004 00:32:48 Sys. Sound High <...
ENGLISH CZECH Setting the CAM: Setting Memory Selecting the Storage Type < > Mode Selection Voice Recorder System < > File Browser Settings System Settings System Settings <Nastavení systému> Back ’ System Settings < > < > ‘ ’ Display <...
ENGLISH CZECH Setting the CAM: Setting Memory Formatting the Memory System Settings Display Date/Time System < > System Settings Memory System Settings <Nastavení systému> Back Settings: Memory < > < > Storage Type Internal < > < > ’ Format Internal ‘...
ENGLISH CZECH Setting the CAM: Setting Memory Viewing Memory Space Mode Selection Voice Recorder System File Browser Settings System Settings Back System Settings <Nastavení systému> System Settings Display Date/Time < > < > System Memory Back < > < > Settings: Memory Storage Type Internal...
ENGLISH CZECH Setting the CAM: Using USB Mode Storing Files to the External Memory < > < > USB Mode USB 2.0 MassStorage USB 1.1 MassStorage PC-Cam Back PictBridge < > < >...
ENGLISH CZECH Setting the CAM: Using USB Mode Using PC Cam USB Mode USB 2.0 MassStorage USB 1.1 MassStorage PC-Cam Back PictBridge USB Mode USB 2.0 MassStorage < > < > USB 1.1 MassStorage PC-Cam Back PictBridge ‘ ’ < >...
ENGLISH CZECH Setting the CAM: Using USB Mode Connecting the CAM to a Printer USB Mode USB 2.0 MassStorage USB 1.1 MassStorage PC-Cam Back PictBridge USB Mode USB 2.0 MassStorage USB 1.1 MassStorage PC-Cam Back PictBridge < > < > < >...
