DSL-502G ADSL Router User's Guide
Update Firmware
Use the Update Firmware feature to load the latest firmware for the device. You can obtain the latest version of
the DSL-502G firmware by logging onto the D-Link web site at www.dlink.com. Access the D-Link web site by
clicking on the D-Link logo in the upper left corner of the browser window. Save the latest firmware version to a
file on the Manager PC or accessible server.

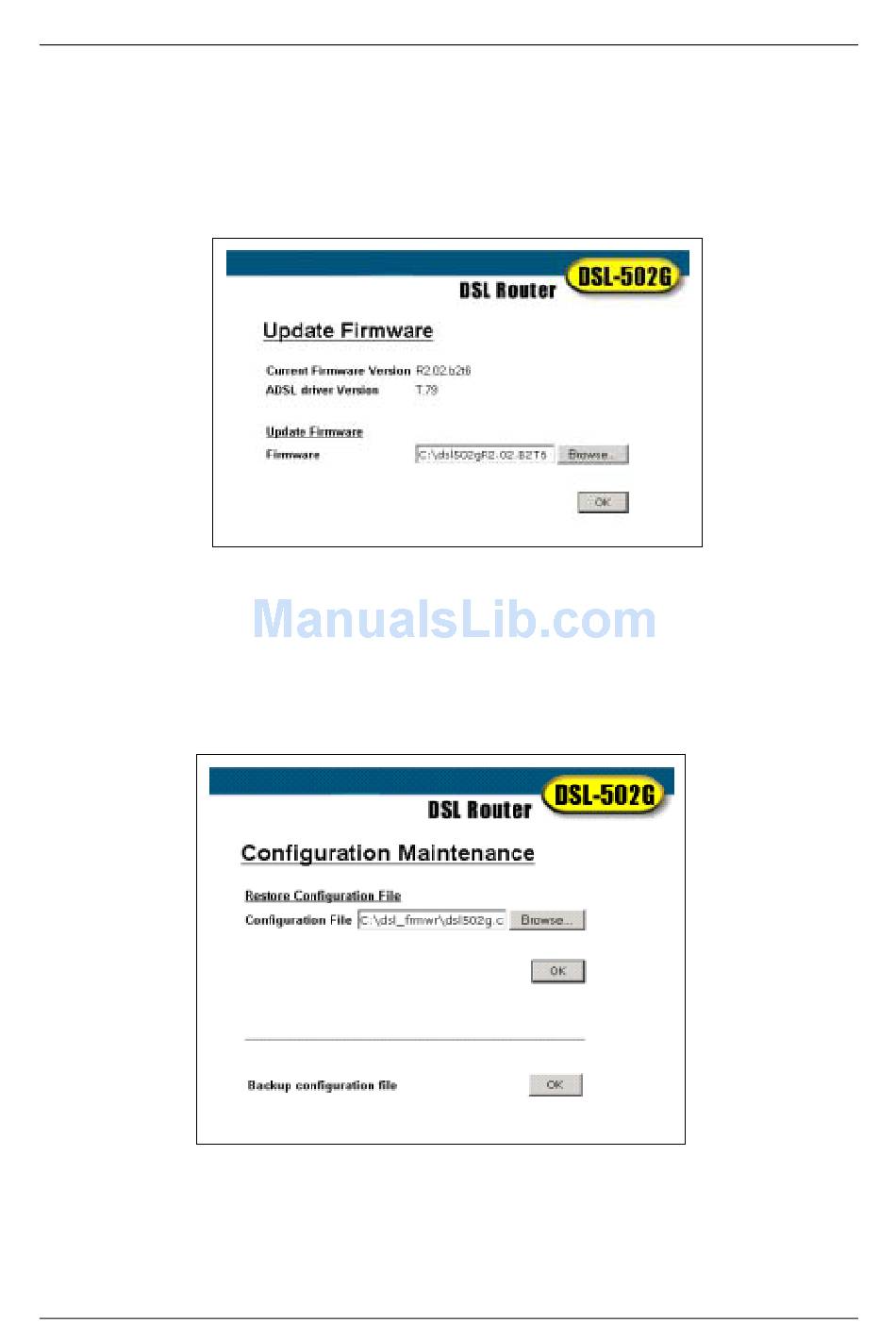

Figure 36. Update Firmware Screen
To upgrade firmware, type in the name and path of the file or click on the Browse button to search for the file.
Click the OK button to begin copying the file. The file will load and restart automatically.
Configuration File Maintenance
Use the Configuration File Maintenance store current settings to a file on the Manager PC or to load previously
saved configuration files on the device.
Figure 37. Configuration Maintenance Screen
To save the current settings to a configuration file on the PC, click on the lower OK button, after the Backup
configuration file option. The file will be saved as dslRouter.cfg or you can specify another file name.
To load a saved configuration file form the PC, type in the full name and path in the Configuration File space or
click on the Browse button to search for the file.
53
