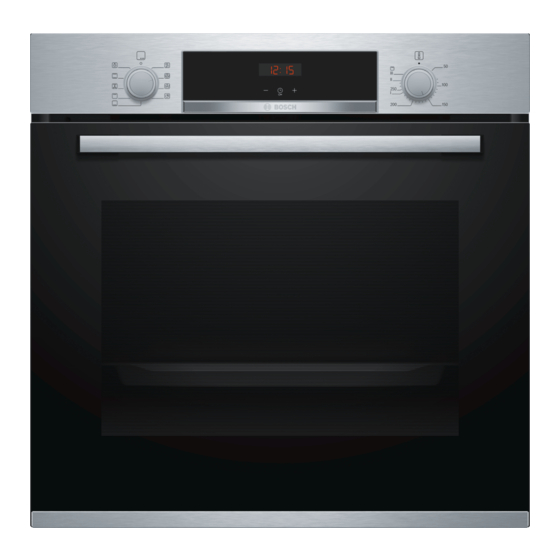

- Page 1 Oven HBA534E.0A User manual and installation instructions [en]...
-
Page 2: Table Of Contents
en Safety Further information and explanations are available online: Table of contents 1.2 Intended use This appliance is designed only to be built INFORMATION FOR USE into kitchen units. Read the special installation instructions. Safety .............. 2 Only a licensed professional may connect ap- Preventing material damage ...... 4 pliances without plugs. -
Page 3: Safety
Safety en Loose food remnants, fat and meat juices If there is water in the cooking compartment may catch fire. when it is hot, this may create hot steam. ▶ Before using the appliance, remove the ▶ Never pour water into the cooking compart- worst of the food residues and remnants ment when the cooking compartment is from the cooking compartment, heating ele-... - Page 4 en Preventing material damage An ingress of moisture can cause an electric Children may breathe in or swallow small shock. parts, causing them to suffocate. ▶ Do not use steam- or high-pressure clean- ▶ Keep small parts away from children. ers to clean the appliance. ▶...
-
Page 5: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en Using oven cleaner in a hot cooking compartment Sitting or placing objects on the appliance door may damages the enamel. damage it. Never use oven cleaner in the cooking compartment Do not place, hang or support objects on the appli- ▶... -
Page 6: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance Familiarising yourself with your appliance 4 Familiarising yourself with your appliance 4.1 Controls Buttons and display The buttons are touch-sensitive surfaces. To se- You can use the control panel to configure all functions lect a function, simply press lightly on the relev- of your appliance and to obtain information about the ant field. - Page 7 Familiarising yourself with your appliance en Symbol Type of heating What it's used for/how it works Gentle hot air Cook selected dishes gently on one level without preheating. The fan distributes the heat from the ring-shaped heating element in the back wall evenly around the cooking compartment.
- Page 8 en Accessories Shelf supports When the appliance is in operation, the self-cleaning surfaces absorb splashes from roasting or grilling and The shelf supports in the cooking compartment enable break them down. you to place accessories at different heights. If the self-cleaning surfaces no longer clean themselves → "Accessories", Page 8 adequately during operation, heat up the cooking com- Your appliance has five shelf positions.
- Page 9 You will find a comprehensive range of products for pull-out rails and pull out the pull-out rails. your appliance in our brochures and online: www.bosch-home.com Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance.
- Page 10 en Basic operation Press the button. Set the type of heating and temperature. → "Basic operation", Page 10 a The time that is set appears on the display. Type of heat- 3D hot air 6.2 Cleaning the appliance before using it for the first time Temperature Maximum Clean the cooking compartment and accessories be-...
- Page 11 Time-setting options en 9.3 Setting the cooking time Time-setting option You can set a cooking time for operation of up to 23 Timer The timer can be set independently hours 59 minutes. of the appliance when it is in opera- Requirement: The type of heating and temperature or tion.
- Page 12 en Childproof lock Reset the end time to the current time plus the set a After a few seconds, the appliance applies the set- ▶ cooking time using the button. ting and the display shows the set end time. a After a few seconds, the appliance applies the a Once the calculated start time has been reached, change and starts heating up.
-
Page 13: Appliance Door
Cleaning and servicing en Suitable cleaning agents Only use cleaning products that are suitable for the dif- Follow the instructions on cleaning the appliance. ferent surfaces on your appliance. → "Cleaning the appliance", Page 14 Appliance front Surface Suitable cleaning agents Information Stainless steel ¡... - Page 14 en Cleaning assistance Area Suitable cleaning agents Information Pull-out system ¡ Hot soapy water Use a brush to remove very heavy soiling. Clean the pull-out rails while they are pushed in so that you do not remove the lubricant. Do not clean in the dishwasher. Tip: Detach the pull-out system for cleaning.
- Page 15 Shelf supports en Requirement: The cooking compartment has cooled 12.2 Recleaning the cooking compartment down completely. ATTENTION! Remove the accessories from the cooking compart- The prolonged presence of moisture in the cooking ment. compartment leads to corrosion. Mix 0.4 litres water with a drop of washing-up liquid After using the cleaning assistance, wipe the cook- ▶...
- Page 16 en Appliance door 14.1 Detaching the appliance door 14.2 Attaching the appliance door WARNING ‒ Risk of injury! WARNING ‒ Risk of injury! Components inside the appliance door may have sharp The hinges on the appliance door move when the door edges. is opened and closed, which could trap your fingers. Wear protective gloves.
- Page 17 Appliance door en Remove the door cover . WARNING ‒ Risk of injury! Scratched glass in the appliance door may develop into a crack. Do not use any harsh or abrasive cleaners or ▶ sharp metal scrapers to clean the glass on the oven door, as they may scratch the surface.
-
Page 18: Troubleshooting
en Troubleshooting Push the intermediate pane upwards until it is in the Push the inner pane upwards until it is in the left- left- and right-hand retainers . and right-hand retainers . Slide the inner pane into the left- and right-hand re- Put the door cover in position ... - Page 19 Troubleshooting en Fault Cause and troubleshooting The appliance is not Electronics fault working. Briefly disconnect the appliance from the power supply by switching off the fuse. Reset the basic settings to the factory settings. The appliance does At the end of a cooking time, the appliance stops heating up. The oven light and cooling fan not switch off fully at do not switch off.
- Page 20 en Disposal Disposal 16 Disposal 16.1 Disposing of old appliance This appliance is labelled in accord- ance with European Directive Valuable raw materials can be reused by recycling. 2012/19/EU concerning used elec- Unplug the appliance from the mains. trical and electronic appliances Cut through the power cord.
-
Page 21: How It Works
How it works en ¡ Keep the appliance door closed when using the 18.3 Notes on roasting and grilling grill. The setting values are based on the assumption that Never grill with the appliance door open. unstuffed, chilled, ready-to-roast poultry, meat or fish is ¡... - Page 22 en How it works Food Accessories/cookware Shelf pos- Type of Temperature Cooking ition heating in °C/grill time in mins setting (White) bread Loaf tin (1 x 900 g or 2 190-210 25-40 x 450 g) Scones Baking sheet on wire 190-200 10-15 rack Biscuits Baking sheet on wire 140-160 10-20 rack...
- Page 23 How it works en Recommended settings for yoghurt Food Accessories/cookware Shelf position Type of Temperature in Cooking heating °C time in mins Yoghurt Individual moulds Cooking compartment 1. 100 1. - floor 2. - 2. 8–9 hrs Preheat the appliance for 15 minutes. 18.6 Test dishes Shelf positions Shelf positions for baking on two levels:...
-
Page 24: Installation Instructions
en Installation instructions Recommended settings for grilling Food Accessories/cookware Shelf pos- Type of Temperature in Cook- ition heating °C/grill setting ing time in mins Toasting bread Wire rack 0.5–1.5 Preheat the appliance for five minutes. Do not use the rapid heating function. Installation instructions 19 ... - Page 25 Installation instructions en ¡ To ventilate the appliance, the intermediate floors 19.2 Appliance dimensions must have a ventilation cut-out. You will find the dimensions of the appliance here ¡ If the tall unit has another back panel in addition to the element back panels, this must be removed. ¡...
- Page 26 en Installation instructions An isolating switch must be integrated into the perman- 19.6 Corner installation ent electrical installation according to the installation Observe the installation dimensions and the installation regulations. instructions when installing in a corner. Identify the phase and neutral conductors in the socket.
- Page 27 Installation instructions en For handleless kitchens with vertical bar handle strips: Attach a suitable filling piece in order to cover ‒ any sharp edges and to guarantee a safe install- ation. Pre-drill aluminium profiles to establish a screw ‒ connection . Secure the appliance using a suitable screw ...
- Page 28 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
