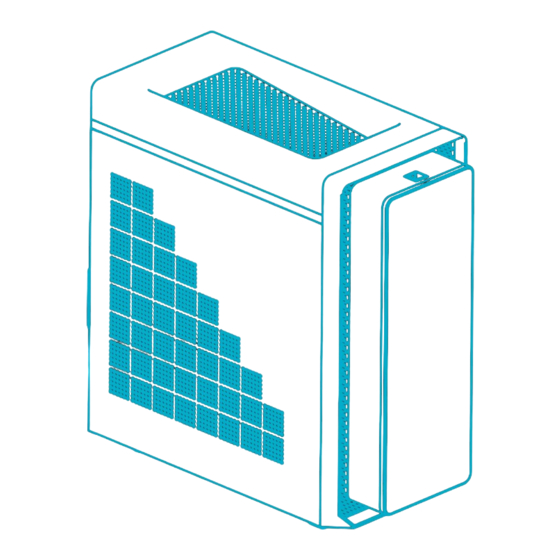

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Acer Predator Orion 3000 PO3-650 i7-13700F / 16GB / 1TB / RTX 4060 Ti (DG.E3FET.01C) o cerca il tuo prodotto tra le migliori offerte di PC Desktop e Workstation PREDATOR ORION 3000 USER’S MANUAL...
- Page 2 System version. Images provided herein are for reference only and may contain information or features that do not apply to your computer. Acer Group shall not be liable for technical or editorial errors or omissions contained in this manual. Register your Predator product...
-
Page 3: Table Of Contents
Table of Contents Installation precautions ......... 1 Graphic board ............ 13 ESD precautions .......... 1 Removing the Graphics board ....13 Required tools ..........1 Installing the Graphics board ....15 M.2 SSD modules ........... 17 Pre-installation instructions ....2 Removing the M.2 SSD2 module .. - Page 4 0 - UPGRADING YOUR COMPUTER Upgrading your Computer In this section, you will find: Instructions on how to replace a hardware • component...
-
Page 5: Installation Precautions
UPGRADING YOUR COMPUTER - 1 UPGRADING YOUR COMPUTER Installation precautions Before you install any computer component, we recommend that you read the following sections. These sections contain important precautions along with pre-installation and post- installation instructions. ESD precautions Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other components. -
Page 6: Pre-Installation Instructions
2 - UPGRADING YOUR COMPUTER Pre-installation instructions Always observe the following before you install any component: Make sure that the ODD and card reader slot is empty. Turn off the power to the computer and all peripherals. Unplug the power cord from the computer. Unplug the network cable and all connected peripheral devices from the computer. -
Page 7: System Cover
UPGRADING YOUR COMPUTER - 3 System Cover Removing the left side system cover Before you proceed, make sure that you have turned off your computer and all peripherals connected to it. Read the Pre-installation instructions on page 2. Remove the two screws that secure the left side system cover to the computer (1). -
Page 8: Installing The Left Side System Cover
4 - UPGRADING YOUR COMPUTER Installing the left side system cover Align the cover to the sides of the computer and slide the cover toward the front of the computer (1). Secure the cover with two screws (2). Observe the Post-installation instructions on page... -
Page 9: Hard Drives
UPGRADING YOUR COMPUTER - 5 Hard drives The computer supports installation of two 3.5- inch SATA hard drives in the internal HDD cage. Removing the 3.5-inch hard drives Perform the Pre-installation instructions on page Disconnect the power and data cables from the hard drives. - Page 10 6 - UPGRADING YOUR COMPUTER Pull both sides of the HDD carrier (1) then remove the hard drive (2).
-
Page 11: Installing The 3.5-Inch Hard Drives
UPGRADING YOUR COMPUTER - 7 Installing the 3.5-inch hard drives Remove hard drive from their packaging. Place the hard drive into the carrier (1) and reinsert the retaining screws into the hard drive (2). Insert the hard drives into the hard disk cage. - Page 12 8 - UPGRADING YOUR COMPUTER Connect the power and data cables to the hard drives. Observe the Post-installation instructions on page...
-
Page 13: Memory
Memory The computer has four DDR5 U-DIMM slots that support up to 64 GB maximum system memory. Memory configuration guidelines To ensure data integrity, use only Acer- • approved DDR5 4800 MHz type memory modules. According to Intel’s specs, when DIMM3 or •... - Page 14 10 - UPGRADING YOUR COMPUTER When installing memory modules, populate • the DIMM slots according to the table below: Size DIMM1 DIMM2 DIMM3 DIMM4 16GB 32GB 16GB 16GB 32GB 16GB 16GB 64GB 16GB 16GB 16GB 16GB...
-
Page 15: Removing A Memory Module
UPGRADING YOUR COMPUTER - 11 Removing a memory module Perform the Pre-installation instructions on page Remove the graphics board. See Removing the graphics board on page Press outward the holding clip on the left side of the DIMM slot outward to release the memory module (1). -
Page 16: Installing A Memory Module
12 - UPGRADING YOUR COMPUTER Installing a memory module Note DIMM slots on the mainboard must be installed only in certain configurations. Numbers next to DIMM slots correspond to installation sequence. Be sure to install the memory module in DIMM1 slot followed by DIMM2 slot. Select an empty DIMM slot. -
Page 17: Graphic Board
UPGRADING YOUR COMPUTER - 13 Graphic board The computer contains one or two Graphic boards installed PCIE slots. detail configuration will be differed by different models. Removing the Graphics board Perform the Pre-installation instructions on page Disconnect power cables from graphics board. - Page 18 14 - UPGRADING YOUR COMPUTER Unlatch the metal clip that secure the graphics board to the chassis. Release the latch that secures the graphics board to the mainboard (1). Detach the graphics board from the PCIE x16 slot (2).
-
Page 19: Installing The Graphics Board
UPGRADING YOUR COMPUTER - 15 Installing the Graphics board Remove the new graphics board from its packaging. Insert the graphics boards into the PCIE x16 slot and press it down until it latches into place. Note To replace/upgrade graphic board, please check the specification of graphic board &... - Page 20 16 - UPGRADING YOUR COMPUTER Secure the graphics board to the chassis using three screws. Connect the power cables to the graphics board. Observe the Post-installation instructions on page...
-
Page 21: M.2 Ssd Modules
UPGRADING YOUR COMPUTER - 17 M.2 SSD modules The computer contains two M.2 SSD modules installed in the M.2 PCIE slots. Removing the M.2 SSD2 module Perform the Pre-installation instructions on page Remove the graphics board. See Removing the graphics board on page Remove the screw that secures the M.2 SSD2 module from the mainboard. - Page 22 18 - UPGRADING YOUR COMPUTER Remove the thermal pad from the SSD module.
-
Page 23: Installing The M.2 Ssd2 Module
UPGRADING YOUR COMPUTER - 19 Installing the M.2 SSD2 module Remove the new M.2 SSD module from its packaging. Place a thermal pad into the SSD module. Insert the M.2 SSD2 module into its slot in the mainboard. - Page 24 20 - UPGRADING YOUR COMPUTER Secure SSD2 module mainboard using one screw. Replace the graphics board. See Installing the graphics board on page Observe the Post-installation instructions on page...
-
Page 25: Removing The M.2 Ssd1 Module
UPGRADING YOUR COMPUTER - 21 Removing the M.2 SSD1 module Perform the Pre-installation instructions on page Remove the graphics board. See Removing the graphics board on page Remove the screw that secures the M.2 SSD1 module from the mainboard. Detach SSD1 module from... - Page 26 22 - UPGRADING YOUR COMPUTER Remove the thermal pad from the SSD module.
-
Page 27: Installing The M.2 Ssd1 Module
UPGRADING YOUR COMPUTER - 23 Installing the M.2 SSD1 module Remove the new M.2 SSD module from its packaging. Place a thermal pad into the SSD module. Insert the M.2 SSD1 module into its slot in the mainboard. - Page 28 24 - UPGRADING YOUR COMPUTER Secure the M.2 SSD1 module to the mainboard using one screw. Replace the graphics board. See Installing the graphics board on page Observe the Post-installation instructions on page...
- Page 29 PREDATOR SENSE - PredatorSense In this section, you will find: Information on how to use the Predator Sense software...
-
Page 30: Predatorsense Features
- PREDATOR SENSE PREDATOR SENSE PredatorSense (DT) V3.0 is an Acer proprietary utility that can be used to enhance the user experience of Gaming products on Microsoft Windows 11. The central idea of this utility is to provide a user... -
Page 31: Pulsar Lighting
PREDATOR SENSE - Pulsar Lighting Select the Pulsar Lighting tab to configure the system’s lighting options. Category Description Shows the current lighting profile used by Lighting Profile the system. Load a previously saved lighting profile by choosing from the drop down list. Add or remove a user’s custom lighting Profile Manager profile. -
Page 32: Fan Control
- PREDATOR SENSE Fan Control Select the Fan Control tab to adjust the fan speed. Category Description Allows system control speed Auto according to actual system usage. Gaming Configure fan speed for gaming use. Manually adjust fan speed to desired Custom RPM. -
Page 33: Monitoring
PREDATOR SENSE - Monitoring Select the Monitoring tab to view CPU/System and GPU performance. Category Description Displays CPU and System temperature and CPU/System loading. Also displays RAM, Wi-Fi and LAN usage. Displays GPU System temperature and loading.
