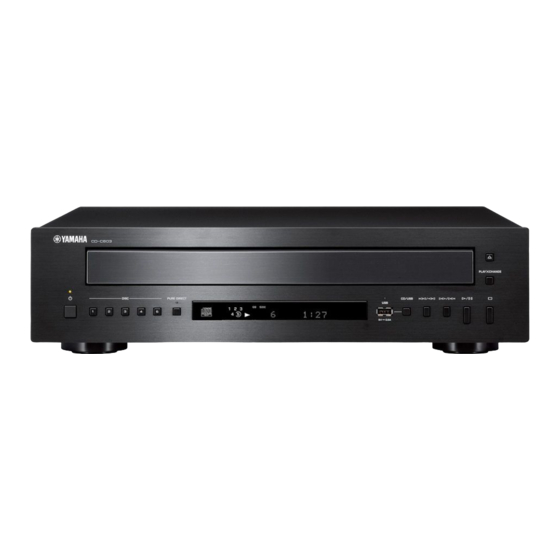

Yamaha CD-C603 Owner's Manual
  1. Manuals
  2. Brands
  3. Yamaha Manuals
  4. CD Player
  5. CD-C603
  6. Owner's manual
Yamaha CD-C603 Owner's Manual

Yamaha CD-C603 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CD Changer
CD Changeur
EN
Owner's Manual
FR
Mode d'emploi
English
Français

Advertisement

Table of Contents
loading

Related Manuals for Yamaha CD-C603

Summary of Contents for Yamaha CD-C603

  • Page 1 English Français CD Changer CD Changeur Owner’s Manual Mode d’emploi...
  • Page 2 FCC requirements. Modifications not expressly approved by retain this manual as a permanent record of your Yamaha may void your authority, granted by the FCC, to use the product. purchase to aid identification in the event of theft.
  • Page 3 • Yamaha cannot be held responsible for injury - Foreign material or water gets into the interior on it. Failure to observe this may cause a fire or to you or damage of the products caused by of the unit.
  • Page 4 Do not disassemble Battery use CAUTION • Do not disassemble or modify this unit. Failure • Do not disassemble a battery. If the contents of to observe this may cause a fire, electric the battery get on your hands or in your eyes, it This content indicates “risk of injury.”...
  • Page 5 • Do not install the unit in places where it may Handling caution • Keep batteries away from children. A child come into contact with corrosive gases or salt could accidentally swallow a battery. Failure to • Do not insert your hand or fingers into the air or places that have excessive smoke or observe this may also cause inflammation due openings of this unit.
  • Page 6 Notice Handling CAUTION—Use of controls or adjustments or performance of procedures other than those • Do not place vinyl, plastic, or rubber products Indicates points that you must observe in specified herein may result in hazardous on this unit. Failure to observe this may cause order to prevent product failure, damage or radiation exposure.

  • Page 7: Table Of Contents

    CONTENTS BEFORE USING THE UNIT APPENDIX FEATURES ............8 Part names .

  • Page 8: Features

    BEFORE USING THE UNIT FEATURES About this manual • 5-Disc Carousel Auto-changer • This manual explains operations performed primarily on the supplied remote control. • PLAYXCHANGE function (page 17) • All illustrations in this manual are provided for the purpose of operational instruction. •...

  • Page 9: Accessories

    Accessories • Remote control • Power cord • RCA stereo cable • Batteries (AA, R6, UM-3) (x2) • Owner's Manual (this manual) Inserting batteries into the remote control Insert the batteries in the proper orientation. Batteries (AA, R6, UM-3) Remote control operating range Point the remote control toward the remote control sensor on...

  • Page 10: Connecting To An Amplifier

    • If you connect the REMOTE IN/OUT jacks to an infrared transmitter/receiver or the IN/OUT jacks for remote signals on another audio device, you can transmit remote control signals to or from this product or the other audio device. To do so, use monaural mini-plug cables. You can connect up to six Yamaha devices including this product.

  • Page 11: Connecting The Power Cord

    Connecting the power cord Turning on the power To turn on the power to the unit, press A (Power) on the front panel. After all the connections between audio devices are complete, connect the supplied power cord to the AC IN connector on this unit, and then plug the other end into an AC outlet.

  • Page 12: Playing Cds

    PLAYING AUDIO OPEN CLOSE Playing CDs This unit enables you to play data CDs as well as audio CDs. For Note information on the type of CDs that can be played on this unit, • You can also press (Open/Close) on the front panel repeatedly to please refer to “Supported file formats/discs/USB flash drives”...
  • Page 13 Press (Play). Use the following remote control keys to navigate the operation. indicator appears on the information display and Available keys Function playback starts. indicator appears on the information Note (Play) display and playback starts. • The disc slot indicator for the currently-playing or selected CD lights up as follows: indicator appears on the information display and playback pauses.

  • Page 14: Playing Music Files Stored On Your Usb Flash Drive

    Playing music files stored on your USB flash drive You can play music files (stored on your USB flash drive) on this Use the following remote control keys to control operation. unit. For information on supported USB flash drives, please refer to Available keys Function “Supported file formats/discs/USB flash drives”...

  • Page 15: Advanced Functions

    Advanced functions PURE DIRECT Random-sequence playback Enjoying high-quality sound playback (PURE DIRECT) Press RANDOM to play tracks in random order. Pressing RANDOM RANDOM repeatedly will change the Random-sequence playback setting as If the PURE DIRECT function is turned on, digital audio will not be REPEAT follows: output.

  • Page 16: Playing Tracks In The Specified Order (Program Playback)

    Playing tracks in the specified order • Do one of the following to clear all programmed tracks: – Press CLEAR while Program playback is stopped. (Program playback) – Turn off the power to the unit or set the unit in Standby mode. –...

  • Page 17: Replacing Discs During Cd Playback (Playxchange)

    Replacing discs during CD playback Locating a CD to listen to (DISC SCAN) (PLAYXCHANGE) This function enables you to play a 10-second section of each loaded CD to help you find a CD that you want to listen to. You can replace discs during CD playback. Press DISC SCAN while playback is stopped.

  • Page 18: Switching Information On The Display

    Switching information on the display Changing the display brightness Pressing DISPLAY repeatedly during playback will switch the Press DIMMER repeatedly to switch between four stages of display information on the display as follows: brightness. Note Playback media Information on the display •...

  • Page 19: Part Names

    APPENDIX Part names Front panel A (Power) (page 11) Display Power indicator (page 11) Remote control sensor (page 9) DISC 1-5 (page 13) USB jack (page 14) PURE DIRECT (page 15) USB indicator (page 14) PURE DIRECT indicator (page 15) CD/USB (pages 12, 14) Disc tray (page 12) (Skip backward/Search backward) (pages 13, 14)

  • Page 20: Display

    Display MP3 WMA AAC WAV FLAC RESUM RDY TRACK TOTAL REMAIN PROG RNDM REP FOLDER ALL A - B Disc slot indicators REP (REPEAT) indicator (page 15) Playback media indicator (pages 13, 14) FOLDER indicator (page 15) Advanced setting indicator (page 22) ALL indicator (page 15) Time indicator (page 18) A-B Indicator (page 16)

  • Page 21: Remote Control

    Remote control STANDBY/ON (page 11) Remote control signal transmitter (page 9) CD/USB (pages 12, 14) PROGRAM (page 16) DIMMER (page 18) Numeric keys (pages 13, 14, 16) (Search backward), (Search forward) (pages 13, 14) (Pause) (pages 13, 14) (Skip backward), (Skip forward) (pages 13, 14) (Play) (pages 13, 14, 16, 17) (Stop) (pages 13, 14, 16)

  • Page 22: Advanced Settings

    Advanced settings This section explains how to configure various advanced functions. You can configure Playback Mode Memory (PLAY MEM) these settings from the front panel. With this function enabled, the unit retains the Repeat playback and Random-sequence This unit (front panel) playback settings.

  • Page 23: Supported File Formats/Discs/Usb Flash Drives

    Supported file formats/discs/USB flash drives ❑ ❑ Supported file formats Supported discs Please use discs with the following logos. Number of File Sampling frequency (kHz) Bit depth (bit) Bitrate (kbps) Compact discs (audio CDs) channels 32/44.1/48 — 32-320 32/44.1/48 — 48-192 CD-R and CD-RW discs 32/44.1/48...

  • Page 24: Moving This Product

    • USB flash drives with encryption cannot be used. • Yamaha and its dealers are not responsible for the loss of any data stored on a USB flash drive that is connected to this unit. We recommend that you keep backup data in case of loss of data.

  • Page 25: Specifications

    Other jacks * The contents of this manual apply to the latest specifications as of the publishing date. To obtain the latest manual, access the Yamaha website then download the manual file. • Analog audio x 1 (RCA Unbalanced) • USB × 1 (USB2.0) •...

  • Page 26: Troubleshooting

    Refer to the table below if the unit fails to function properly. If the problem is not listed below, or if the symptoms persist after you follow the instructions below, turn off the power to the unit by pressing A (Power) on the front panel, disconnect the power cord, and contact your nearest authorized Yamaha dealer or service center.
  • Page 27 Problem Cause Solution Page The unit is affected by vibration or impact. Change the location of the unit. — The sound skips. The disc is dirty or scratched. Wipe off the dirt from the disc surface, or use an unscratched disc. Connect the RCA stereo cable firmly.
  • Page 28 Software licenses This product uses the following software. Licences de logiciel Ce produit utilise le logiciel suivant. FLAC Copyright © 2000–2009 Josh Coalson Copyright © 2011–2023 Xiph.Org Foundation Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  • Page 29 Yamaha Global Site https://www.yamaha.com/ Yamaha Downloads https://download.yamaha.com/ © 2023 Yamaha Corporation Published 09/2023 IPEM-A0 VGD8430 10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650 Japan...
  • Page 30 Download the firmware. Check the version number of the latest firmware uploaded on the product pages of Yamaha website. Download the firmware to update only if it is newer than that of the unit. Save the firmware data file to the USB flash drive.
  • Page 31 Updating the firmware Troubleshooting Operate the unit to update the firmware. If the “UPGRADE USB” stays on the information Press CD/USB to switch to USB mode. display for one minute or longer Connect the USB flash drive to the USB jack on the front panel. The update process might have failed.
