Cisco Aironet Dual-band Dipole Antenna
(AIR-ANT2524DB-R,
AIR-ANT2524DG-R, AIR-ANT2524DW-R,
and AIR-ANT2524DW-RS)
Last Updated: March 10, 2020
Note: The documentation set for this product strives to use bias-free language. For purposes of this documentation set,
bias-free is defined as language that does not imply discrimination based on age, disability, gender, racial identity, ethnic
identity, sexual orientation, socioeconomic status, and intersectionality. Exceptions may be present in the documentation
due to language that is hardcoded in the user interfaces of the product software, language used based on RFP
documentation, or language that is used by a referenced third-party product.

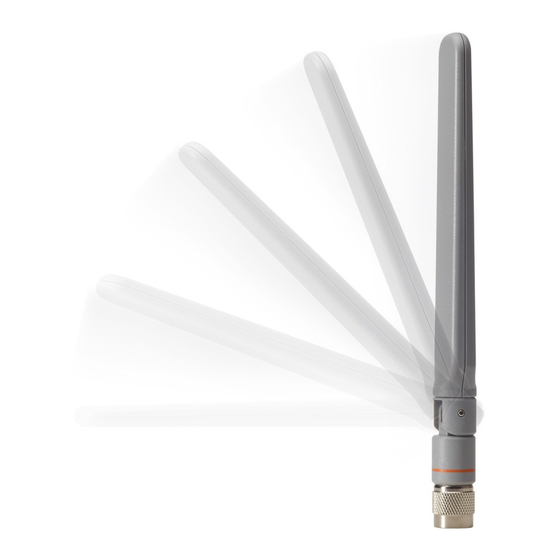

This describes the Cisco Aironet high-performance, dual-band dipole antenna, and provides specifications and
mounting instructions. The antenna operates in both the 2.4 GHz and 5 GHz frequency bands, and is designed for use
with Cisco Aironet 2.4 GHz and 5 GHz radio products with dual-band reverse-polarity TNC (RP-TNC) antenna ports. The
antenna has a nominal gain of 2 dBi in the 2.4 GHz frequency band and 4 dBi in the 5 GHz frequency band. The
AIR-ANT2524Dx-R antennas covered in this document are electrically the same but differ physically by the color of the
radome, which is specified by the product part number shown in
includes self-identifying circuitry.
Table 1
Antenna Radome Colors
Antenna Part Numbers
AIR-ANT2524DB-R
AIR-ANT2524DG-R
AIR-ANT2524DW-R
AIR-ANT2524DW-RS
These topics are discussed:
Technical Specifications, page 2
System Requirements, page 3
Features, page 3
Installing the Antenna, page 3
Communications, Services, and Additional Information, page 3
Radome Color
Black
Gray
White
White, self-identifying
Cisco Systems, Inc.
www.cisco.com
1
Table 1 on page
1. The AIR-ANT2524DW-RS antenna
