SERVICE MANUAL
Ver. 1.0 2012.11
9-893-614-01
Sony Corporation
2012K33-1
©
2012.11
Published by Sony Techno Create Corporation

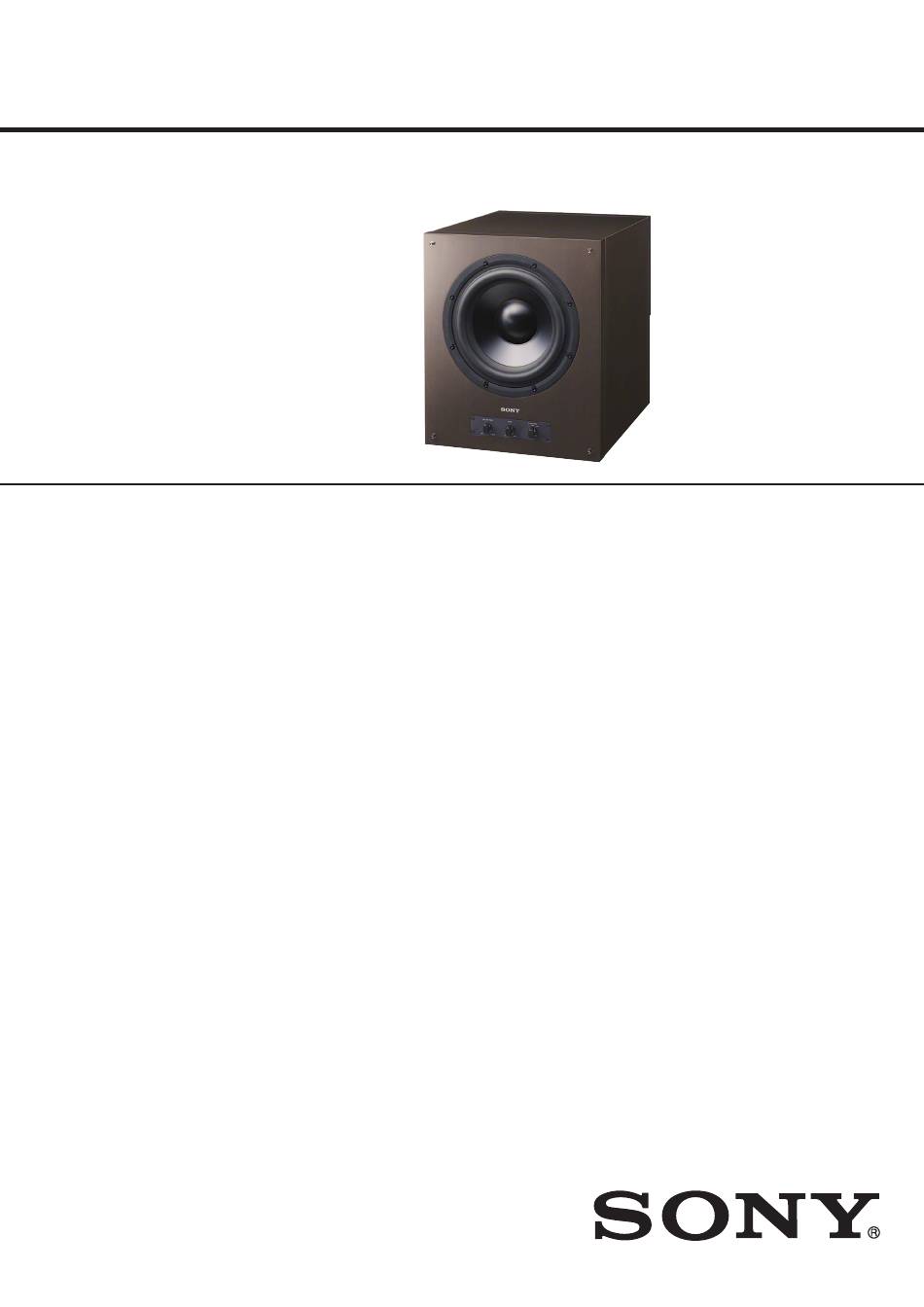

SA-NA9ES
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
For the U.S.A. model
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 4 ohm loads, from 20 – 200 Hz; rated 500 watts minimum
RMS power, with no more than 10 % total harmonic distortion
from 100 milliwatts to rated output.
System
Type
Active Subwoofer System
Speaker unit
Woofer : 250 mm (10 in), cone type
× 2
Continuous RMS output
500 W (4 ohms, 60 Hz, 10% THD)
Reproduction frequency range
20 Hz – 200 Hz (ENCLOSURE
TYPE: CLOSED)
High frequency cut-off frequency
40 Hz – 200 Hz
Phase selector
NORMAL, REVERSE
ENCLOSURE TYPE
CLOSED, Q-CONTROLLED
PASSIVE RADIATOR
Auto Power ON/OFF selector
ON/OFF
Inputs
Input jacks
LINE IN: input pin jack
SPEAKER IN: input terminals
Output jacks
LINE OUT: output pin jack
General
Power requirements
North American models: 120 V AC, 60 Hz
European models:
220 – 240 V AC, 50/60 Hz
Other models:
220 – 240 V AC, 50/60 Hz
Power consumption
100 W
Standby: 0.5 W (in power-saving
mode)
Dimensions
Approx. 375 × 450 × 495 mm (14
7/8 × 17 3/4 × 19 1/2 in) (w/h/d)
Mass
Approx. 36 kg (79 lb 6 oz)
Supplied a ccessories
AC power cord (1)
Cleaning cloth (1)
Design and specifications are subject to change without notice.
Canadian Model
ACTIVE SUBWOOFER SYSTEM
US Model
AEP Model
UK Model

Advertisement

Table of Contents
loading

Summary of Contents for Sony SA-NA9ES

  • Page 1 Approx. 36 kg (79 lb 6 oz) Supplied a ccessories AC power cord (1) Cleaning cloth (1) Design and specifications are subject to change without notice. ACTIVE SUBWOOFER SYSTEM 9-893-614-01 Sony Corporation 2012K33-1 © 2012.11 Published by Sony Techno Create Corporation...
  • Page 2: Section 1 Servicing Notes

    LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY.
  • Page 3: Section 2 Disassembly

    SA-NA9ES SECTION 2 DISASSEMBLY • This set can be disassembled in the order shown below. 2-1. DISASSEMBLY FLOW 2-2. GRILLE FRAME (FRONT) ASSY 2-5. GRILLE FRAME (REAR) ASSY (Page 3) (Page 5) 2-3. LOUDSPEAKER (25 cm) 2-4. FRONT BOARD 2-6. LOUDSPEAKER (25 cm) 2-7.
  • Page 4 SA-NA9ES 2-3. LOUDSPEAKER (25 cm) (WOOFER) (FRONT) (SP1) Note 1: When exchanging the loudspeaker (25 cm) (woofer) (front) (SP1), refer to “NOTE THE SPEAKER UNITS REPLACING” on page 2. Note 5: Check that the caulking portion of a terminal is outside suitable.
  • Page 5: Front Board

    SA-NA9ES 2-4. FRONT BOARD Note 2: When installing the FRONT board, check that each wire does not cross. 3 connector (CN404) 4 connector (CN409) 1 four screws 5 connector (3.5 (CN403) 2 Pull out the FRONT board. Note 1: When installing screws (3.5 × 20), follow the installing 6 FRONT board procedure in the numerical order given.
  • Page 6 SA-NA9ES 2-6. LOUDSPEAKER (25 cm) (WOOFER) (REAR) (SP2) Note 1: When exchanging the loudspeaker (25 cm) (woofer) (rear) (SP2), refer to “NOTE THE SPEAKER UNITS REPLACING” on page 2. Note 5: Check that the caulking portion of a terminal is outside suitable.
  • Page 7: Rear Board

    SA-NA9ES 2-7. REAR BOARD Note 6: When installing the nut, turn a flange (notched) side to a rear side, and install it. tightening torque : lug wire REAR board flange (notched) side rear side 9 nut 0 lug wire 7 connector...
  • Page 8: Main Board

    SA-NA9ES 2-8. MAIN BOARD 2 Remove the rubber bushing from the front side hole of speaker cabinet. 5 two clamp filters (ferrite core) front side clamp filter (ferrite core) Roll a wire – – once. Note 1: When installing the...
  • Page 9 SA-NA9ES 2-9. RETORQUING OF SCREWS Retorquing all the screws of loudspeaker (25 cm) (woofer) (front/rear) (SP1, SP2) part, FRONT board and REAR board. Tightening torque • Loudspeaker (25 cm) (woofer) (front/rear) (SP1, SP2) part (16 places): 3.5 ± 0.1 N•m •...
  • Page 10: Section 3 Exploded Views

    SA-NA9ES SECTION 3 EXPLODED VIEWS Note: • -XX and -X mean standardized parts, so • The mechanical parts with no reference they may have some difference from the number in the exploded views are not sup- original one. plied. • Items marked “*” are not stocked since •...
  • Page 11: Rear Section

    SA-NA9ES 3-2. REAR SECTION • Rear side view not supplied supplied not supplied MAIN board FRONT board not supplied REAR board Note: When exchanging the loudspeaker (25 cm) (woofer) (rear) (SP2), refer to “NOTE THE SPEAKER UNITS REPLACING” on page 2.
  • Page 12: Section 4 Accessories

    SA-NA9ES SECTION 4 ACCESSORIES Ref. No. Part No. Description Remark 1-837-633-12 POWER-SUPPLY CORD (US, Canadian) 1-839-699-12 CORD, POWER (AEP) 1-839-700-12 CORD, POWER (UK) 2-597-467-02 CLEANING CLOTH 4-289-035-11 INSTRUCTION MANUAL (ENGLISH, FRENCH) 4-289-035-21 INSTRUCTION MANUAL (SPANISH, GERMAN, DUTCH) (AEP) 4-289-035-31 INSTRUCTION MANUAL (ITALIAN, POLISH) (AEP)
  • Page 13 SA-NA9ES MEMO...
  • Page 14: Revision History

    SA-NA9ES REVISION HISTORY Ver. Date Description of Revision 2012.11...
