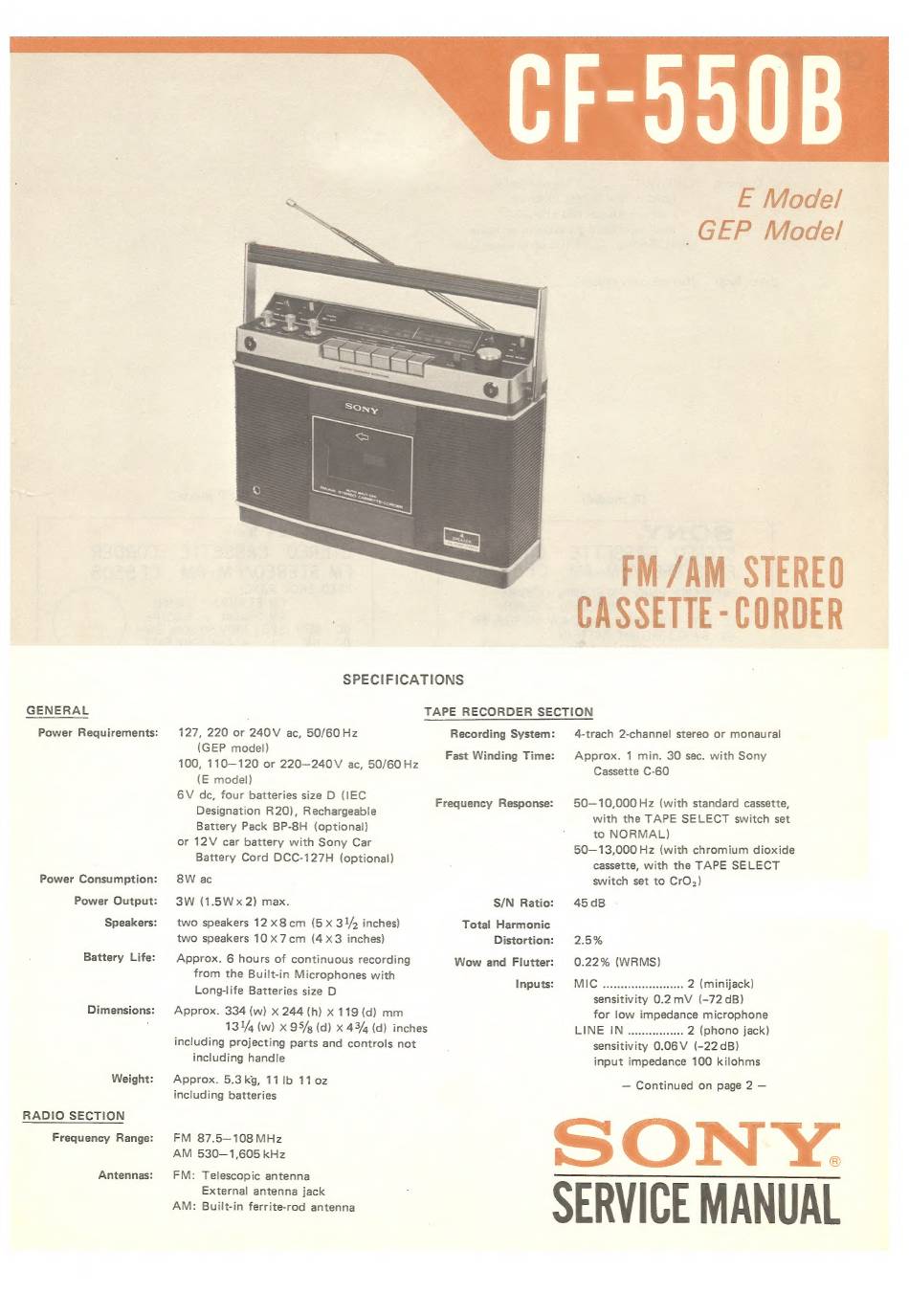

Sony CF-550B Service Manual

CF-900B
GENERAL
Power Requirements:
Power Consumption:
Power Output:
Speakers:
Battery Life:
Dimensions:
Weight:
RADIO SECTION
Frequency Range:
Antennas:
E Model
_GEP Model
FM/AM STEREO
CASSETTE -CORDER
SPECIFICATIONS
TAPE RECORDER SECTION
127, 220 or 240V ac, 50/60 Hz
(GEP model)
100, 110—120 or 220—240V ac, 50/60 Hz
(E model)
6V dc, four batteries size D (IEC
Designation R20), Rechargeable
Battery Pack BP-8H (optional)
or 12V car battery with Sony Car
Battery Cord DCC-127H (optional)
8W ac
3W (1.5W x 2) max.
two speakers 12 X8cm (5 X 31/5 inches)
two speakers 10 X7cm (4 X3 inches)
Approx. 6 hours of continuous recording
from the Built-in Microphones with
Long-life Batteries size D
Approx. 334 (w) X 244 (h) xX 119 (d) mm
1344 (w) x 95/g (d) x 43/4 (d) inches
including projecting parts and controls not
including handle
Approx. 5.3 kg, 11 Ib 11 0z
including batteries
FM 87.5—108 MHz
AM 530—1,605 kHz
FM: Telescopic antenna
External antenna jack
AM: Built-in ferrite-rod antenna
Recording System:
Fast Winding Time:
Frequency Response:
4-trach 2-channel stereo or monaural
Approx. 1 min. 30 sec. with Sony
Cassette C-60
50—10,000 Hz (with standard cassette,
with the TAPE SELECT switch set
to NORMAL)
50—13,000 Hz (with chromium dioxide
cassette, with the TAPE SELECT
switch set to CrO,)
S/N Ratio: 45dB -
Total Harmonic
Distortion: 2.5%
Wow and Flutter: 0.22% (WRMS)
inputs: (MGs nascent 2 (minijack)
sensitivity 0.2 mV (-72 dB)
for low impedance microphone
LINEAIN Geena 2 (phono jack)
sensitivity 0.06V (-22dB)
input impedance 100 kilohms
— Continued on page 2 —
SONY.
SERVICE MANUAL
