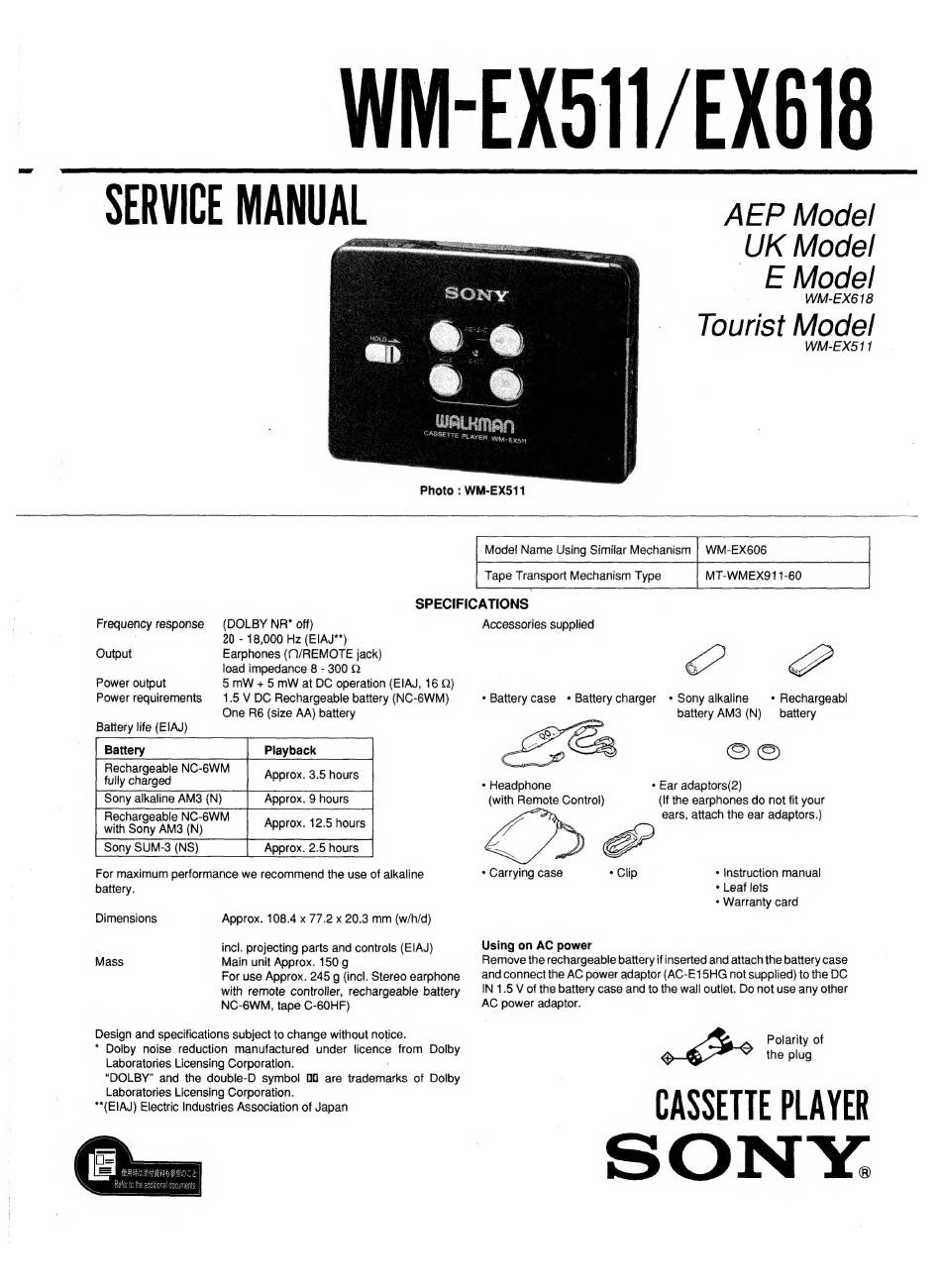

Sony Walkman WM-EX511 Service Manual

WM-EXoTl/EX618
SERVICE MANUAL AEP Model
UK Model!
| E Model
WM-EX618
Tourist Model
Mode! Name Using Similar Mechanism | WM-EX606
Tape Transport Mechanism Type MT-WMEX91 1-60
SPECIFICATIONS
Frequency response (DOLBY NR%* off) Accessories supplied
20 - 18,000 Hz (EIAJ**)
Output Earphones ( /REMOTE jack)
load impedance 8 - 300 2
Power output 5 mW + 5 mW at DC operation (EIAJ, 16 Q)
Power requirements 1.5 V DC Rechargeable battery (NC-6WM) * Battery case + Battery charger + Sony alkaline § » * Rechargeabl
One R6 (size AA) battery battery AM3 (N) _ battery
Battery life (EJAJ) SS P
Battery Playback oa
Rechargeable NC-6WM Approx. 3.5 hours
fully charged * Headphone + Ear adaptors(2)
Sony alkaline AM3 (N) Approx. 9 hours (with Remote Control) (if the earphones do not fit your
Rechargeable NC-6WM ears, attach the ear adaptors.)
with Sony AM3 (N) Approx. 12.5 hours
Sony SUM-3 (NS) Approx. 2.5 hours
For maximum performance we recommend the use of alkaline * Carrying case * Clip * Instruction manual
battery. + Leaf lets
* Warranty card
Dimensions Approx. 108.4 x 77.2 x 20.3 mm (w/h/d)
incl. projecting parts and controls (ElAd) Using on AC power
Mass Main unit Approx. 150 g Remove the rechargeable battery ifinserted and attach the battery case
For use Approx. 245 g (incl. Stereo earphone and connect the AC power adaptor (AC-E15HG not supplied) to the DC
with remote controller, rechargeable battery _'N 1.5 V of the battery case and to the wall outlet. Do not use any other
NC-6WM, tape C-60HF) AC power adaptor.
Design and specifications subject to change without notice. Polarity of
* Dolby noise reduction manufactured under licence from Dolby the plug
Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol! 00 are trademarks of Dolby
Laboratories Licensing Corporation.
**(EIAJ) Electric Industries Association of Japan C ASSETTE Pi AYER
