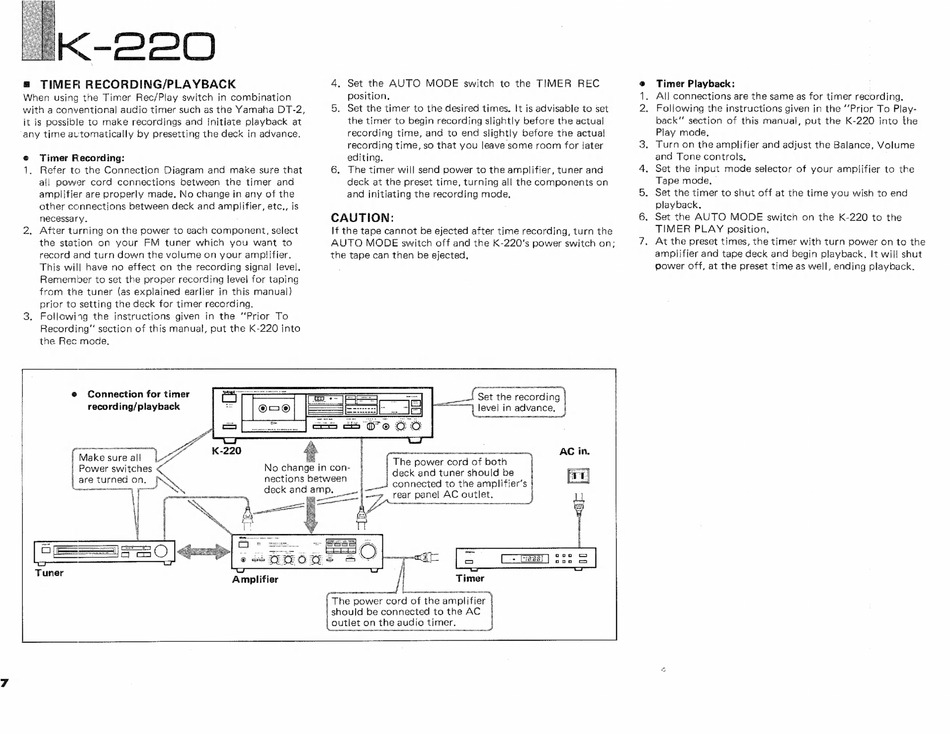

K-220
#
TIMER
RECORDING/PLAYBACK
A, Set the AUTO
MODE
switch
to the TIMER
REC
When
using the Timer Rec/Play switch in combination
position,
with a conventional audio timer such as the Yamaha DT-2,
5. Set the timer to the desired times. It is advisable to set
the timer to begin recording slightly before the actual
recording time, and to end slightly before the actual
recording time, so that you leave some roam for later
editing.
The timer will send power to the amplifier, tuner and
deck at the preset time, turning all the components
on
and initiating the recording mode,
CAUTION:
If the tape cannot be ejected after time recording, turn the
AUTO MODE switch off and the K-220's power switch on;
the tape can then be ejected,
it is possible to make
recordings and
initiate playback
at
'any time automatically by presetting the deck in advance.
è
Timer Recording:
1.
Refer to the Connection
Diagram
and make
sure that
6.
all power
cord
connections
between
the timer
and
amplifier are properly made, No change in any of the
other connections between deck and amplifier, ete., is
necessary.
.
2.
After turning on the power to each component, select
the station
on
your
FM
tuner
which
you
want
to
record and turn down the volume on your amplifier.
This will have no effect on the recording signal level.
Remember to set the proper recording level for taping
from the tuner (as explained earlier in this manual)
prior to setting the deck for timer recording.
3. Following the instructions given in the "Prior To
Recording" section of this manual, put the K-220 into
the Rec mode.
Set the bet
|
e
Connection for timer
recording/playback
FED ERO org amar PDO
Make sure all
Power switches
are turned on,
Sees Werte
aaaea
| The power cord of both
' deck and tuner should be
4 connected to the amplifier's |
rear panel AC outlet,
No change in con-
nections between
Amplifier
The power cord of the amplifier
should be connected to the AC
outlet on the audio timer.
annuarnonmarr?
— a
Timer Playback:
AIl connections are the same as for timer recording.
Following the instructions given in the "Prior To Play-
back" section of this manual, put the K-220 into the
Play mode,
Turn on the amplifier and adjust the Balance, Volume
and Tone controls,
Set the input mode selector of your amplifier to the
Tape mode,
Set the timer to shut off at the time you wish to end
playback.
Set the AUTO
MODE
switch on the K-220 to the
TIMER PLAY position,
At the preset times, the timer with turn power on to the
amplifier and tape deck and begin playback, It will shut
power off, at the preset time as well, ending playback.
