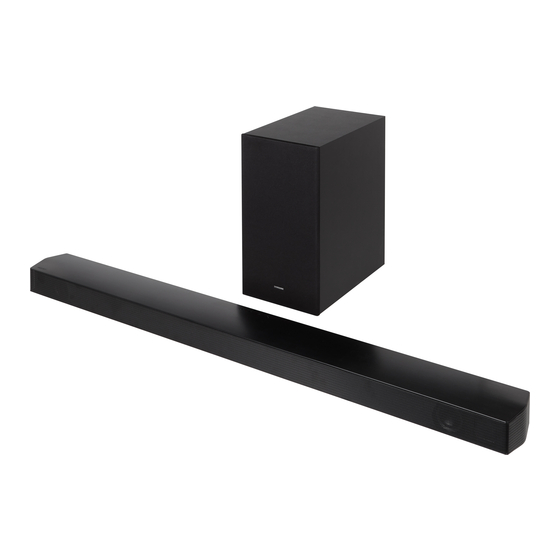

FULL MANUAL HW-B650 Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Para evitar cualquier avería o daños, lea detalladamente este manual de instrucciones antes de conectar y utilizar este...
Page 10
• This apparatus shall always be connected to a Refer to the table below for an explanation of AC outlet with a protective grounding symbols which may be on your Samsung product. connection. • To disconnect the apparatus from the mains,...
Page 11
PRECAUTIONS 5. The battery used with this product contains chemicals that are harmful to the environment. Do not dispose of the battery 1. Ensure that the AC power supply in your in the general household trash. Do not house complies with the power expose the battery to excess heat, direct requirements listed on the identification sunlight, or fire.
Connecting the Soundbar Connecting Electrical Power ------------------------- Connecting the Soundbar to the Subwoofer ------------------------- Connecting the Samsung Wireless Rear Kit to your Soundbar ------------------------- Using a wired connection to the TV Method 1. Connecting a TV using an HDMI Cable ------------------------- Method 2.
Page 13
Connecting an External Device Method 1. Connecting using an HDMI Cable ------------------------- Method 2. Connecting using an Optical Cable ------------------------- Connecting a USB Storage Device Connecting a Mobile Device Connecting via Bluetooth ------------------------- Installing the Wall Mount Installation Precautions ------------------------- Wallmount Components ------------------------- Software Update...
• For more information about the power supply and power consumption, refer to the label attached to the product. (Label: Bottom of the Soundbar Main Unit) • To purchase additional components or optional cables, contact a Samsung Service Center or Samsung Customer Care.
02 PRODUCT OVERVIEW Front Panel / Top Panel of the Soundbar Top Panel Display Displays the product’s status and current mode. (Power) Button Turns the power on and off. • Auto Power Down Function The unit turns off automatically in the following situations: –...
Bottom Panel of the Soundbar DIGITAL AUDIO IN HDMI (OPTICAL) DIGITAL AUDIO IN HDMI (OPTICAL) HDMI IN DIGITAL AUDIO IN HDMI IN HDMI (OPTICAL) HDMI IN USB (5V 0.5A) USB (5V 0.5A) HDMI TO TV (ARC) HDMI TO TV (ARC) USB (5V 0.5A) HDMI OUT HDMI TO TV...
03 USING THE REMOTE CONTROL Inserting Batteries before using the Remote Control (AAA batteries X 2) Slide the back cover in the direction of the arrow until it is completely removed. Insert 2 AAA batteries (1.5V) oriented so that their polarity is correct.
Page 18
WOOFER By pressing the button, you can adjust the volume of the each speaker. TONE CH LEVEL • Press the button to select CENTER LEVEL and then adjust the volume between -6~+6 SOUND CONTROL MODE by using the Up/Down buttons. CH LEVEL •...
Page 19
Press the indicated areas to select Up/Down/Left/Right. Up/Down/ PAIR Left/Right Press Up/Down/Left/Right on the button to select or set functions. SOUND MODE • Repeat To use the Repeat function in “USB” mode, press the Up button. • Music Skip WOOFER Press the Right button to select the next music file.
Page 20
By pressing the button, you can select the desired sound mode. SOUND SURROUND SOUND BASS BOOST GAME ADAPTIVE DTS VIRTUAL:X MODE STANDARD SOUND MODE – SURROUND SOUND Provides a wider sound field than standard. – BASS BOOST WOOFER Sound field mode with emphasis on bass sound.
2.0 ch 2.1 ch 2.1 ch WOOFER STANDARD 5.1 ch 3.1 ch 5.1 ch • The Samsung Wireless Rear Speaker Kit can be purchased separately. To purchase a Kit, contact the vendor you purchased the Soundbar from. ENG - 13...
• Set the TV speaker to External Speaker to use this function. • Manufacturers supporting this function: Samsung, VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, Hisense, RCA 1. Turn Off the Soundbar. 2. Push up and hold the WOOFER button for 5 seconds.
04 CONNECTING THE SOUNDBAR Connecting Electrical Power Use the power components to connect the Subwoofer and Soundbar to an electrical outlet in the following order: 1. Connect the power cord to the Subwoofer. 2. Connect the power output cable to the power adapter, and then to the Soundbar. 3.
Soundbar unit is connected properly. Connect again. See the Connection failed instructions for manual connection on page 17. Red and blue See the contact information Blinking Malfunction for the Samsung Service Center in this manual. ENG - 16...
Page 25
• The Soundbar will automatically power on when ID SET is complete. ID SET SAMSUNG logo is on the top 5 Sec 3. Check if the LINK LED is solid blue (connection complete). The LINK LED indicator stops blinking and...
Wireless Receiver Module (sold separately) is clear of any obstructions. Connecting the Samsung Wireless Rear Kit to your Soundbar Expand to true wireless surround sound by connecting the Samsung Wireless Rear Speaker Kit (SWA-9100S or SWA-9200S sold separately) to your Soundbar.
05 USING A WIRED CONNECTION TO THE TV Hear TV sound from your Soundbar through wired or wireless connections. • When the Soundbar is connected to selected Samsung TVs, the Soundbar can be controlled using the TV’s remote control. – This feature is supported by 2017 and later Samsung Smart TVs that support Bluetooth when you connect the Soundbar to the TV using an optical cable.
Page 28
• If TV sound is inaudible, press the (Source) button on the remote control or on the top of the Soundbar to switch to “D.IN” mode. The screen displays “D.IN” and “TV ARC” in sequence, and TV sound is played. •...
Method 2. Connecting using an Optical Cable Pre-connection Checklist • When both the HDMI cable and optical cable are connected, the HDMI signal is received first. • When you use an optical cable and the terminals have covers, be sure to remove the covers. Optical Cable Bottom of the Soundbar (not supplied)
06 USING A WIRELESS CONNECTION TO THE TV Connecting a TV via Bluetooth When a TV is connected using Bluetooth, you can hear stereo sound without the hassle of cabling. • Only one TV can be connected at a time. The initial connection 1.
Page 31
Disconnecting the Soundbar from the TV Press the (Source) button on the top panel or on the remote control and switch to any mode but “BT”. • Disconnecting takes time because the TV must receive a response from the Soundbar. (The time required may differ, depending on the TV model.) •...
07 CONNECTING AN EXTERNAL DEVICE Connect to an external device via a wired connection or Bluetooth connection to play the external device’s sound through the Soundbar. Method 1. Connecting using an HDMI Cable Top of the Soundbar HDMI External Device HDMI HDMI Cable HDMI OUT...
Method 2. Connecting using an Optical Cable BD / DVD player / Optical Cable Bottom of the Soundbar Set-top box / (not supplied) Game console DIGITAL AUDIO IN (OPTICAL) OPTICAL OUT Top of the Soundbar D.IN 1. Connect DIGITAL AUDIO IN (OPTICAL) on the main unit to the OPTICAL OUT port of the Source Device using a digital optical cable (not supplied).
08 CONNECTING A USB STORAGE DEVICE You can play music files located on USB storage devices through the Soundbar. USB port DIGITAL AUDIO IN (OPTICAL) HDMI USB (5V 0.5A) HDMI TO TV (ARC) DC 24V DIGITAL AUDIO IN (OPTICAL) USB (5V 0.5A) 1.
(Source) button on the top panel of the Soundbar for more than 5 seconds to display “BT PAIRING”. 2. On your device, select “[AV] Samsung Soundbar B6-Series” from the list that appears. • When the Soundbar is connected to the Bluetooth device, [Bluetooth Device Name] → “BT”...
Page 36
• You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function. • Once you have paired the Soundbar to a Bluetooth device, selecting “[AV] Samsung Soundbar B6-Series” from the device’s scanned devices list will automatically change the Soundbar to “BT”...
Page 37
Disconnecting the Bluetooth device from a Soundbar You can disconnect a Bluetooth device from the Soundbar. For instructions, see the Bluetooth device’s user manual. • The Soundbar will be disconnected. • When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display “BT DISCONNECTED”...
Page 38
Soundbar at the same time. NOTES • Only 1 Samsung TV, or 2 Bluetooth devices can be connected to the Soundbar at one time. • The Soundbar will be disconnected from Bluetooth devices when it receives a connection request from a Samsung TV.
10 INSTALLING THE Wallmount Components WALL MOUNT Wall Mount Guide Installation Precautions • Install on a vertical wall only. (M4 x L10) • Do not install in a place with high temperature or humidity. Holder-Screw Screw • Verify whether the wall is strong enough to support the product’s weight.
Page 40
2. Align the Wall Mount Guide’s Center Line 5. Push a screw (not supplied) through each with the center of your TV (if you are Holder-Screw, and then screw each screw mounting the Soundbar below your TV), and firmly into a support screw hole. then fix the Wall Mount Guide to the wall using tape.
(bottom) part of the Bracket-Wall your Soundbar. For more information about how Mounts, and then slide the Bracket-Wall to download update files, go to the Samsung Mounts down so that the Bracket-Wall Electronics website at Mounts rest securely on the www.samsung.comSupport.
USB thumb drive. This may cause if audio files supported by the Soundbar are the firmware update to fail. stored in the USB storage device. 2. Go to (samsung.com) select Enter Model • Do not disconnect the power or remove the Number and enter the model of your USB device while updates are being applied.
; The cable connection to the Soundbar may ; HDMI-CEC may not be activated on the TV. not be loose. Remove the cable and Turn on the CEC on the TV menu. (Samsung connect again. TV: Home ( ) → Menu → Settings ( ) →...
Page 44
Change the TV’s audio output to Bluetooth moves too far away from the PCM or Dolby Digital. Soundbar, it may cause the sound to drop (For a Samsung TV: Home ( ) → Menu → out. Move the device closer to the Settings ( ) →...
The Bluetooth® word mark and logos are ENERGY STAR qualified model only (The other registered trademarks owned by Bluetooth SIG, models) Inc. and any use of such marks by Samsung – As an ENERGY STAR Partner, Samsung has Electronics Co., Ltd. is under license. Other determined that this product or product...
14 OPEN SOURCE LICENSE NOTICE To send inquiries and requests for questions regarding open sources, contact Samsung Open Source (http://opensource.samsung.com) 15 IMPORTANT NOTES ABOUT SERVICE Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Dimensions (W x H x D) 184.0 x 346.0 x 295.0 mm AMPLIFIER 250W Rated Output power NOTES • Samsung Electronics Co., Ltd reserves the right to change the specifications without notice. • Weight and dimensions are approximate. ENG - 39...
Page 48
SECA will repair or replace the product at its option. All warranty repairs must be performed by a SECA Authorized Service Center. (The name and address of the location nearest you can be obtained by calling toll free: 1- 800- SAMSUNG) LABOR...
