Clearance; Tools & Safety Gear Required; Appearance And Dimensions; System Clearance - LG BLGRESU10HP Installation Manual

3.1.5

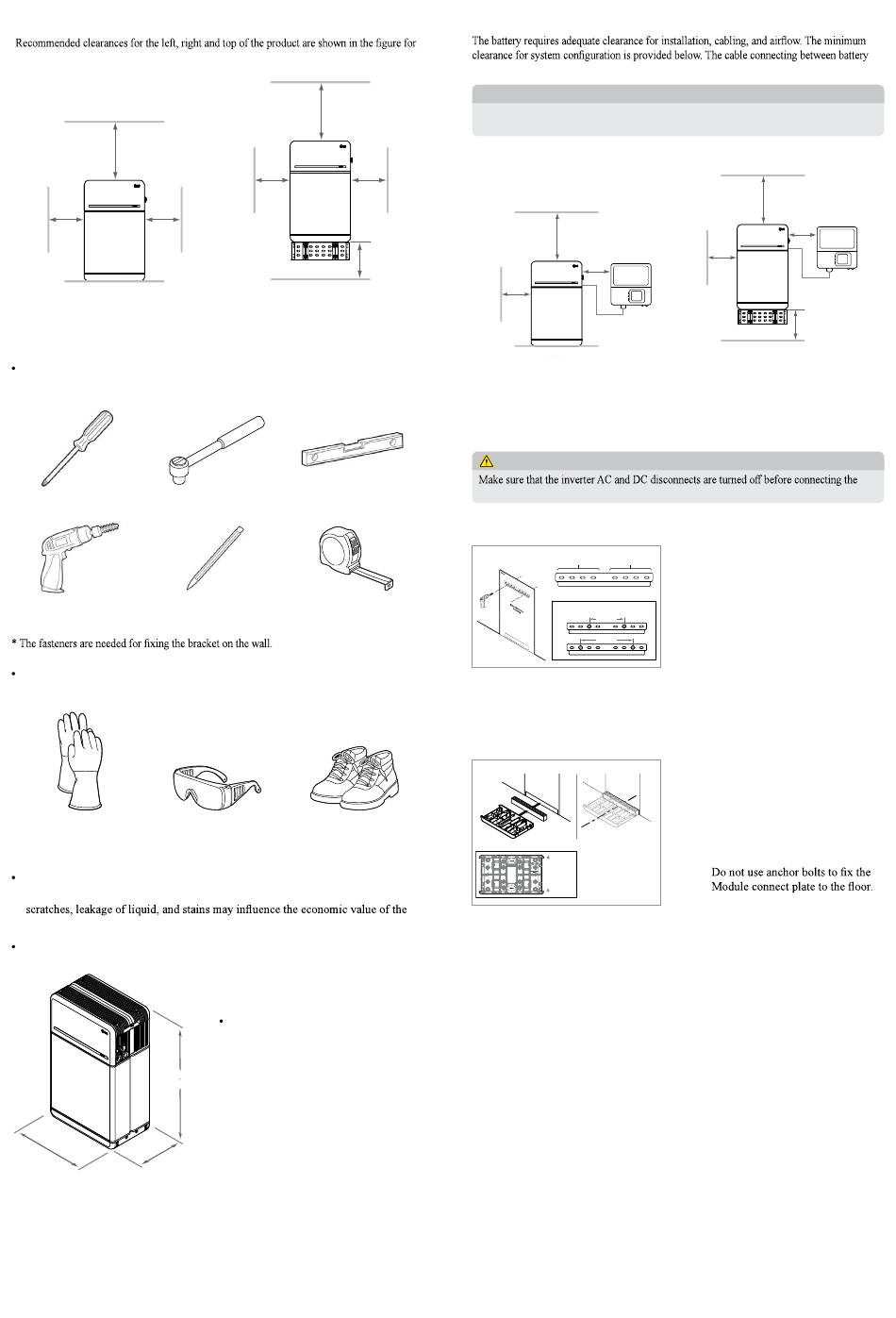

Clearance

the proper ventilation and installer convenience.
Ceiling
500 mm
(20")
300 mm 300 mm
(12") (12")
Floor
<Standing type>
3.1.6 Tools & Safety Gear Required
Tools
The following tools are required to install the battery pack :
Precision screwdriver M5 torque wrench
Drill
(min. diameter 10 mm, 0.4")
Safety Gear for Personal Protection
It is required to wear the following safety gears when handling the battery pack.
Insulated gloves
3.1.7

Appearance and Dimensions

Appearance
Proper handling and care are recommended as disassembly, change of color,
battery pack.
Pack appearance and dimensions
817 mm
(32.2")
504 mm 295 mm
(19.8") (11.6")
7
Ceiling
500 mm
(20")
300 mm
(12")
Floor
<Wall Mounting type>
Inclinometer
Pencil or marker Tape measure
Safety goggles Safety shoes
Color and materials
- Battery Module front/rear case:
metallic gray, steel
- Battery Control Unit cover &
Module Connect Plate: metallic gray,
aluminum
- LED cover: black, plastic
3.1.8

System Clearance

pack and inverter should be in accordance with the installation guide manual of the inverter.
NOTE
An external DC isolator may be installed within the clearance zone. Minimum clearances
may be greater according to local regulations.
300 mm
(12")
500mm
300 mm
(12")
300mm
(12")
<Standing type>
3.1.9

Installing the Battery Pack

3.1.9.1 Standing Type
CAUTION
power cable to the battery pack.
Install the battery pack through the following steps:
Wall
Ceiling
(20")
300mm
(12")
Inverter
Floor
1. Place the Drill template to the wall
Area1 Area2
Ex) If min. clearance is 200 mm,
203 mm
Ok
305 mm
Ok
2. Place a spacer to the position marked
Front
Wall
direction
Ceiling
500mm
(20")
300mm
(12")
Inverter
300mm
(12")
300mm
(12")
Floor
<Wall Mounting type>
where the battery pack will be
installed. After that, drill holes on the
position marked on the Drill template.
* Recommended fastener count:
1(Area1)/1(Area2)
* Recommended fastener diameter/
length: 10mm/40mm Min.
* Fastener separation should observe
the regional building code.
* Check "BLG RESU10HP
Standing" on the middle side of
Drill Template before drilling.
on the Drill template. After that, place
the Module connect plate in contact
with the Spacer and align center lines.
* Pay attention to the direction of
the Spacer. Refer to left image for
correct orientation.
*
* Be careful not to damage the
aluminum foil attached on the
bottom of Module connect plate
during handling.
