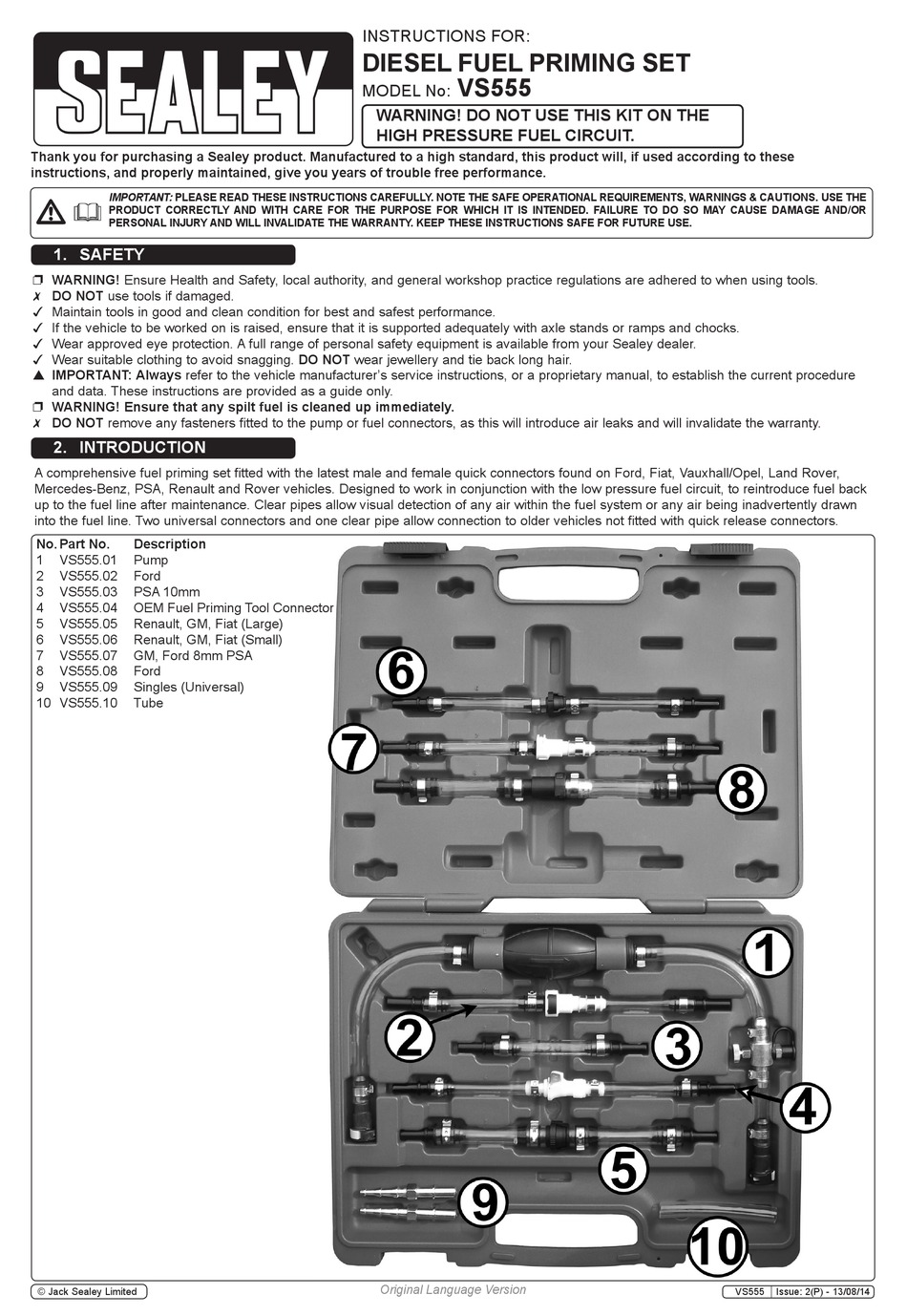

Sealey VS555 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
p WARNING! Ensure Health and Safety, local authority, and general workshop practice regulations are adhered to when using tools.
7 DO NOT use tools if damaged.
3 Maintain tools in good and clean condition for best and safest performance.
3 If the vehicle to be worked on is raised, ensure that it is supported adequately with axle stands or ramps and chocks.
3 Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
3 Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
s IMPORTANT: Always refer to the vehicle manufacturer's service instructions, or a proprietary manual, to establish the current procedure
and data. These instructions are provided as a guide only.
p WARNING! Ensure that any spilt fuel is cleaned up immediately.
7 DO NOT remove any fasteners fitted to the pump or fuel connectors, as this will introduce air leaks and will invalidate the warranty.
2. INTRODUCTION

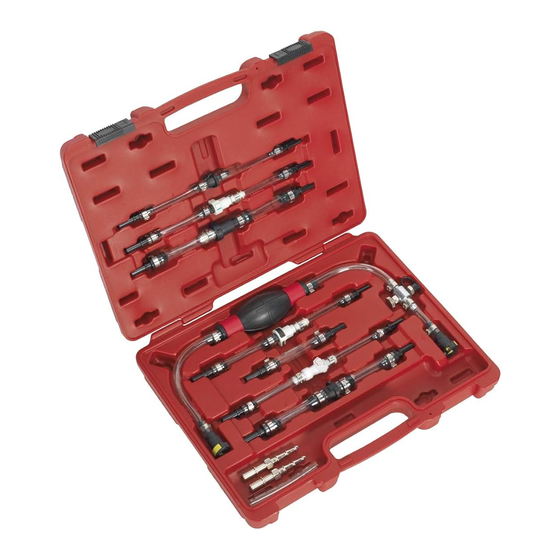

A comprehensive fuel priming set fitted with the latest male and female quick connectors found on Ford, Fiat, Vauxhall/Opel, Land Rover,
Mercedes-Benz, PSA, Renault and Rover vehicles. Designed to work in conjunction with the low pressure fuel circuit, to reintroduce fuel back
up to the fuel line after maintenance. Clear pipes allow visual detection of any air within the fuel system or any air being inadvertently drawn
into the fuel line. Two universal connectors and one clear pipe allow connection to older vehicles not fitted with quick release connectors.
No. Part No. Description
1 VS555.01 Pump
2 VS555.02 Ford
3 VS555.03 PSA 10mm
4 VS555.04 OEM Fuel Priming Tool Connector
5 VS555.05 Renault, GM, Fiat (Large)
6 VS555.06 Renault, GM, Fiat (Small)
7 VS555.07 GM, Ford 8mm PSA
8 VS555.08 Ford
9 VS555.09 Singles (Universal)
10 VS555.10 Tube
© Jack Sealey Limited
INSTRUCTIONS FOR:
DIESEL FUEL PRIMING SET
VS555
MODEL No:
WARNING! DO NOT USE THIS KIT ON THE
HIGH PRESSURE FUEL CIRCUIT.
Original Language Version
VS555 Issue: 2(P) - 13/08/14
