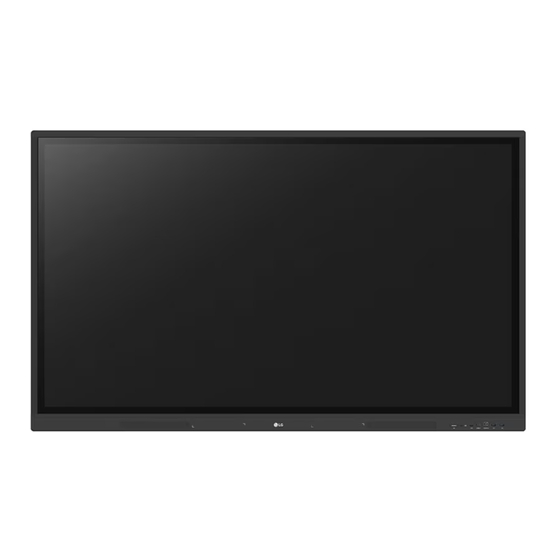

LG 75TR3DK-B Owner's Manual
Hide thumbs
Also See for 75TR3DK-B:
- User manual (153 pages) ,
- Owner's manual (27 pages) ,
- Quick setup manual (4 pages)
Table of Contents
Advertisement
Quick Links
OWNER'S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
Please read this manual carefully before operating your set and retain it for future
reference.
55TR3DK-B
65TR3DK-B
75TR3DK-B
86TR3DK-B
55TR3DK-I
65TR3DK-I
75TR3DK-I
86TR3DK-I
55TR3DK-E
65TR3DK-E
75TR3DK-E
86TR3DK-E
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Related Manuals for LG 75TR3DK-B
Summary of Contents for LG 75TR3DK-B
- Page 1 LG Digital Signage (MONITOR SIGNAGE) Please read this manual carefully before operating your set and retain it for future reference. 55TR3DK-B 55TR3DK-I 55TR3DK-E 65TR3DK-B 65TR3DK-I 65TR3DK-E 75TR3DK-B 75TR3DK-I 75TR3DK-E 86TR3DK-B 86TR3DK-I 86TR3DK-E www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS BASIC ..........3 - Checking the Accessories ..........3 - Learning the Buttons ............4 GETTING READY ......5 - Precaution When Using the Touch Pen ....5 CHECKING BEFORE INSTALLATION ......6 - Installation Orientation ..........6 - Installation Location ............7 - Wall Mount Holder ............8 PRECAUTIONS FOR USE ....9 - Dust ..................9 - Afterimage ................9... -
Page 3: Basic
Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. BASIC NOTE • The accessories provided with your product may vary depending on the model or region. • Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions. -
Page 4: Learning The Buttons
Learning the Buttons The image may be different according to the model. Power Turns the power on or off. -
Page 5: Getting Ready
GETTING READY CAUTION • Always use genuine components to ensure safety and product performance. • The product warranty will not cover damage or injury caused by the use of counterfeit components. NOTE • The accessories provided with your product may vary depending on the model or region. •... -
Page 6: Checking Before Installation
CHECKING BEFORE INSTALLATION We are not responsible for product damage caused by failure to follow the guide. Installation Orientation Tilt Angle 15˚ 40 mm Ceiling, Floor Orientation... -
Page 7: Installation Location
Installation Location We are not responsible for product damage caused by failure to follow the guide. Indoor Installing on a Wall A: 100 mm or more • The warranty will not cover any damage caused by using the product in direct sunlight on the front panel. -
Page 8: Wall Mount Holder
(A x B) (mm) Dimensions (mm) 55TR3DK-B 55TR3DK-I 400 x 200 55TR3DK-E 65TR3DK-B 65TR3DK-I 600 x 400 65TR3DK-E 75TR3DK-B 75TR3DK-I 800 x 400 75TR3DK-E 86TR3DK-B 86TR3DK-I 800 x 600 86TR3DK-E CAUTION • Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock. -
Page 9: Precautions For Use
PRECAUTIONS FOR USE Dust The warranty will not cover any damage caused by using the product in an excessively dusty environment. Afterimage • After-image appears when the product is turned off. - Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen- saver function. - Page 10 • Recommended Usage Condition Change the background colour and text colour at equal intervals. - Afterimages occur less when the colours to be changed are complementary to one another. ITO or MoTi Pixel Layer Switch the screen at equal time intervals. - Take caution, and ensure that text or images from before the screen change are not left in the same location after the screen change.
-
Page 11: Product Specifications
PRODUCT SPECIFICATIONS The product specifications below may be changed without prior notice due to upgrade of product functions. “ ” refers to alternating current (AC), and “ ” refers to direct current (DC). Input/ Output ports Embedded battery Applied Recommended Resolution VGA: 1920 x 1080 @ 60 Hz HDMI1/ HDMI2/ HDMI3: 3840 x 2160 @ 60 Hz Resolution... - Page 12 On Mode: 420 W (Max) Power Consumption Standby Mode: ≤ 0.5 W Dimensions (Width x Height x Thickness) / 1488 mm x 897 mm x 88 mm / 34.95 kg Weight 75TR3DK-B 75TR3DK-I 75TR3DK-E Power Voltage 100-240 V~ 50/60 Hz 4.0 A Power...
- Page 13 VGA (PC) Support mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 720 x 400 / 70 Hz 31.788 640 x 480 / 60 Hz 31.469 59.94 800 x 600 / 56 Hz 35.156 56.25 800 x 600 / 60 Hz 37.879 60.317 1024 x 768 / 60 Hz...
- Page 14 USB Type-C Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 640 x 480 / 60 Hz 31.469 59.94 800 x 600 / 56 Hz 35.156 56.25 800 x 600 / 60 Hz 37.879 60.317 1024 x 768 / 60 Hz 48.363 60.004 1280 x 768 / 60 Hz (RB)
- Page 15 Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 1920 x 1080P / 50 Hz 16:9 56.25 1920 x 1080P / 23 Hz 16:9 26.973 23.976 1920 x 1080P / 24 Hz 16:9 1920 x 1080P / 25 Hz 16:9 28.125 1920 x 1080P / 29 Hz 16:9 33.716 29.97...
- Page 16 HDMI / OPS Support Mode Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 640 x 480 / 60 Hz 31.469 59.94 800 x 600 / 60 Hz 37.879 60.317 1024 x 768 / 60 Hz 48.363 60.004 1280 x 768 / 60 Hz (RB) 47.396 59.995 1280 x 768 / 60 Hz...
- Page 17 Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark 3840 x 2160 / 60 Hz 3840 x 2160 / 50 Hz 112.5 3840 x 2160 / 30 Hz 67.5 29.97 3840 x 2160 / 25 Hz 56.25 3840 x 2160 / 24 Hz 23.982 NOTE •...
-
Page 18: Licenses
LICENSES Supported licenses may differ by model. For more information of the licenses, visit www.lg.com. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. - Page 19 This product qualifies for ENERGY STAR®. Changing the factory default configuration and settings or enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® certification. Refer to ENERGYSTAR.gov for more information on the ENERGY STAR®...
