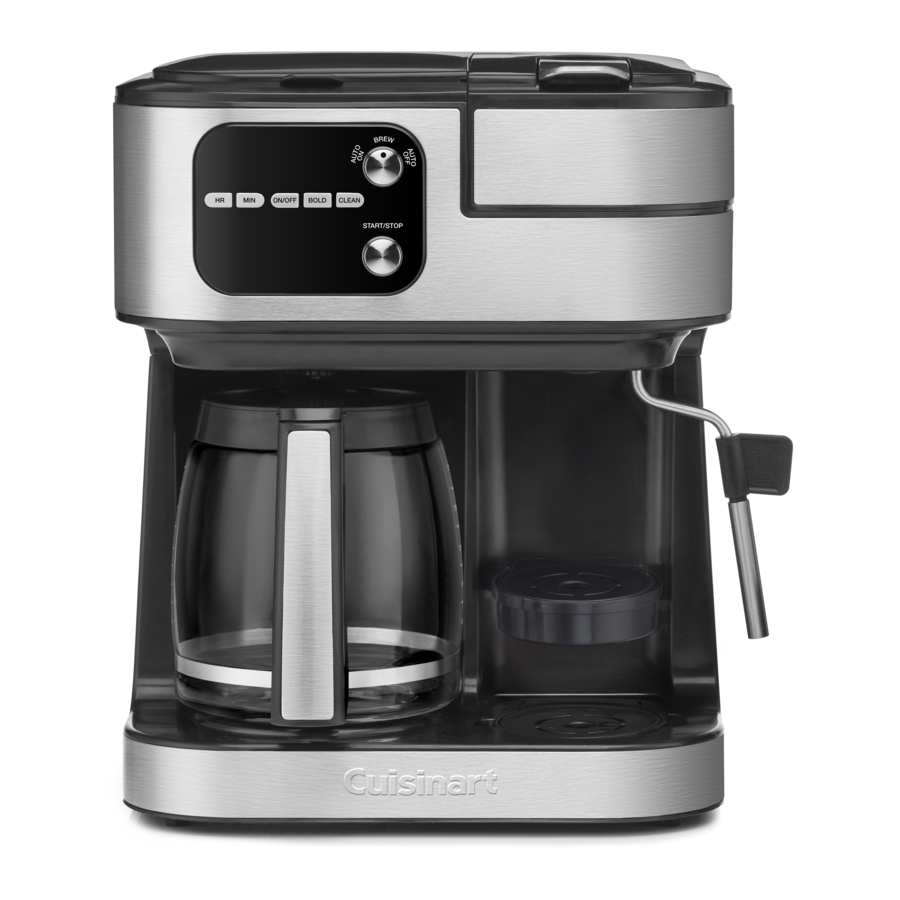

Cuisinart SS-4N1 Series - Coffee Center Barista Bar 4-in-1 Coffeemaker Manual

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be taken to reduce the risk of fire, electric shock and/or injury to persons, including the following:

1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles and knobs.
3. To protect against electric shock, do not place cord, plug, or base unit in water or other liquids.
4. This appliance should not be used by or near children or individuals with certain disabilities.
5. Unplug from outlet when either the appliance or display clock is not in use, and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been dropped or damaged in any manner. Return appliance to the nearest Cuisinart Repair Center for examination, repair, and electrical or mechanical adjustment.
7. The use of accessory attachments not recommended by Cuisinart may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always fill water reservoir first, then plug cord into the wall outlet. To disconnect, turn any control to "off" position, remove plug from wall outlet.
12. Do not use appliance for other than its intended use.
13. Snap lid securely onto carafe before serving any beverages.
14. Scalding may occur if the lid is removed during the brewing cycle.
15. The glass carafe is designed for use with this appliance only. It must never be used on the range top.
16. Do not set a hot carafe on a wet or cold surface.
17. Do not use a cracked carafe or a carafe having a loose or weakened handle.
18. Do not lift handle to open the lid of the
    Coffeemaker while brewing is in progress.
19. Do not overfill the water reservoir with water. Use ONLY WATER in this appliance! Do not put any other liquids or foods in the water reservoir except as instructed in the cleaning instructions in this guide.
20. Do not clean carafe, heating plate or single serve drip tray with harsh cleansers, steel wool pads, or other abrasive materials.
21.
    TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT REMOVE THE BASE PANEL. NO USERSERVICEABLE PARTS ARE INSIDE. REPAIR SHOULD BE DONE ONLY BY AUTHORIZED PERSONNEL.
22. Do not place cloth or otherwise restrict airflow beneath Coffeemaker.
23. Use only the Cuisinart^® Gold-Tone Commercial-Style Filter or standard coneshaped paper filter with this unit. OTHER GOLD TONE PERMANENT FILTERS MAY CAUSE THE COFFEEMAKER TO OVERFLOW.
24. Do not operate your appliance in an appliance garage or under a wall cabinet. When storing in an appliance garage always unplug the unit from the electrical outlet. Not doing so could create a risk of fire, especially if the appliance touches the walls of the garage or the door touches the unit as it closes.
25. Use only capsules intended for this appliance. If the capsule does not fit, do not force the capsule into the appliance.
26.
    To avoid the risk of injury, do not open the brew chamber during the brew process.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

RISK OF FIRE OR ELECTRIC SHOCK

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of dangerous uninsulated voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of fire or electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

RISK OF FIRE OR ELECTRIC SHOCK
DO NOT OPEN

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REPAIR SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY

SPECIAL CORD SET INSTRUCTIONS

A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

Longer extension cords may be used if care is exercised.

If a long extension cord is used, the marked electrical rating of the extension cord must be at least as great as the electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the countertop or tabletop, where it can be pulled on by children or tripped over.

NOTICE

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug will fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not modify the plug in any way.

OPERATING NOTICE

Clogging and backing up of water and/or coffee in the filter basket can occur under any or a combination of any of the following conditions: the use of too finely ground coffee; using two or more paper filters; using the gold tone filter in conjunction with a paper filter; not properly cleaning coffee grounds from the gold tone filter, or allowing coffee grounds to spill over the filter.

Never open the filter basket during the brewing cycle, even if no water is draining from the filter basket, since extremely hot water/coffee can spill out from the filter basket and cause injury. If water/coffee is not draining from the filter basket during the brewing cycle, unplug the unit and wait 10 minutes before opening and checking the filter basket.

UNPACKING INSTRUCTIONS

1. Place the box on a large, sturdy, flat surface.
2. Remove the instruction book and any other literature.
3. Turn the box so that the back side of the Coffeemaker is down and slide the Coffeemaker from the box.
4. After the Coffeemaker has been removed, place the box out of the way and lift off the packing material.
5. Grasp the carafe by its handle, remove it from the heating plate, and remove the polybag.
6. Remove the polybag covering the Coffeemaker.

Save all packing materials in case you have to ship the machine in the future.

KEEP ALL PLASTIC BAGS AWAY FROM CHILDREN.

THE QUEST FOR THE PERFECT CUP OF COFFEE

ELEMENT 1: WATER

Hot beverages are made up primarily of water. If water doesn't taste good from the tap, it won't taste good in your drink. Cuisinart includes charcoal water filters in its water reservoirs to remove chlorine, bad tastes and odors, for the purest flavors every time you brew.

ELEMENT 2: COFFEE

The flavor of your beverage comes from the coffee, tea, cocoa – or whatever you're brewing. To achieve the best taste, always use the best ingredients. Select fresh, high-quality beans or ground coffee, and only the best single-serve capsules.

ELEMENT 3: GRIND

The grind of coffee, or the refinement of tea leaves, is critical for proper flavor extraction. Pre-ground ingredients in top-quality single-serve capsules ensure excellent, flavorful results. When using beans or pre-ground coffee to brew into the carafe, the grind is just as critical. If it's too fine, over-extraction will result in bitterness and may clog the filter. If too coarse, maximum flavor is not extracted. We recommend a medium-fine grind.

ELEMENT 4: PROPORTION

Coffee that is too strong or too weak is always a disappointment. Follow the recommended portions of ground coffee in the instructions under Brewing Coffee for the drip side or under Brewing with a Reusable Filter Cup for the single serve side. You can later adjust the amount to suit your taste.

12-CUP COFFEEMAKER FEATURES AND BENEFITS

1. Coffeemaker Reservoir Cover
   Flips back for easy filling.
2. Coffeemaker Water Reservoir (not shown)
   With water level indicator window.
3. Showerhead (not shown)
   Distributes water evenly over coffee, reducing temperature loss as water passes through grounds.
4. Coffeemaker Control Panel
5. Brew Pause^TM
   Stops flow of coffee from basket when carafe is removed from the heater plate, so a cup can be poured mid-brew.
6. Carafe
   The easy-pour, no-drip, 12-cup carafe has an ergonomic handle and brewed coffee markings.
7. Charcoal Water Filter Holder
   Holds filter firmly in place.
8. Charcoal Water Filter
   Eliminates chlorine, bad tastes and odors from tap water.
9. Heater Plate
   Keeps brewed coffee at perfect temperature in Keep Warm mode.
   Scratch resistant with nonstick coating.
10. Filter Basket (not shown)
    Holds a #4 paper filter or a permanent filter.
11. Filter Basket Holder (not shown)
12. Ready Tone (not shown)
    Signals the end of the brew cycle with five beeps.
13. Power Loss Back-Up System (not shown)
    One-minute protection if a breaker trips, unit is unplugged, or power fails. Holds all programmed information, including time of day, Auto On time and Auto Off time.

*All materials that come in contact with coffee or water are BPA free.

SINGLE-SERVE COFFEEMAKER FEATURES AND BENEFITS

14. Brewer Handle
15. Brew Head
16. Brewing Chamber

• Single Serve Coffee
  Holds Removable Pod Capsule Holder.
• Espresso
  Holds Removable Espresso Capsule Holder.

17. Control Panel
18. Steam & Hot Water Wand Steams milk or dispenses hot water.
19. Adjustable Shelf
    Add removable drip tray as flip-down shelf to accommodate smaller brews.
    1. Removable Drip Tray Plate
    2. Removable Drip Tray
20. Reservoir Lid
21. 72-Ounce Removable Water Reservoir
22. Charcoal Water Filter Holder
23. Charcoal Water Filter
24. Removable Pod Capsule Holder
25. Removable Espresso Capsule Holder
26. Power Cord (not shown)
27. Energy-Saving Mode (not shown)
    Unit lights will dim after 30 minutes of being idle. To reactivate, turn function knob or press any button. To turn off completely, unplug the unit.

*All materials that come in contact with coffee or water are BPA free.

GETTING TO KNOW YOUR CONTROL PANEL

12-CUP COFFEEMAKER CONTROLS

1. Clock Display
   Displays time of day, Auto On, and Auto Off times.
2. Hour and Minute Buttons
   Use to set hours and minutes for time of day, Auto On, and Auto Off times.
3. ON/OFF Button
   Turns Coffeemaker on and off.
   Activates and Deactivates AUTO ON feature.
4. BOLD Strength Setting with Indicator
   Lets you choose bold or regular coffee strength; indicator appears in Clock Display when bold is selected.
5. Clean Button
   Indicator appears in Clock Display when it is time to decalcify your coffeemaker.
6. WARM Indicator
   WARM appears in Clock Display when brew cycle is complete. When in Keep Warm mode, single-serve functions can be used.
7. Function Knob
   1. AUTO ON with Indicator
      Select to automatically start brewing coffee at the time you've programmed.
   2. AUTO OFF with IndicatorSelect to program your Coffeemaker to automatically shut off Keep Warm mode up to 4 hours after brewing.
   3. BREW with Indicator
      Select BREW when you are ready to begin brew cycle. BREW indicator will appear. Press ON/OFF button to begin or stop the brew cycle.

SINGLE-SERVE COFFEEMAKER CONTROLS

1. START/STOP Knob
   Turn to toggle through and select start, or stop for single serve, espresso, hot water and steam functions.
2. ESPRESSO Indicator
   Single or double sizes.
3. POD Indicator
   6 oz., 8 oz., or 10 oz. sizes.
4. ADD WATER Indicator
   Indicates the need to add water to removable water reservoir for use of single serve, espresso, or hot water functions.
5. CLEAN Indicator
   Indicator appears in Display when it is time to decalcify single-serve side.
6. STEAM Indicator
   Manual steam for frothing when making beverages like cappuccinos or lattes.
7. HOT WATER Indicator
   Dispenses hot water for tea, soup, oatmeal and more.
8. ON
   When illuminated, the single-serve coffee, espresso or hot water/steam function is in process.

CHARCOAL WATER FILTER

INSERTING THE WATER FILTER

1. Remove the filter from the polybag and soak, fully immersed, in cold tap water for 15 minutes.
2. Lift the water filter holder out of the water reservoir on the 12-Cup Coffeemaker side.
3. Press down on the filter compartment and pull toward you to open.
4. Place filter into the holder and snap closed. Be careful – improper placement can tear the filter skin.


5. Flush filter by running cold tap water through holes in bottom of compartment for 10 seconds.
6. Allow the filter to drain completely.
7. Slide the water filter holder back into the channel in the water reservoir, pushing down to the base of the unit.


NOTE:
Repeat steps 1-7 above on the Single-Serve side.

NOTE:
We recommend changing the water filter every 60 days or after 60 uses, and more often if you have hard water.

Replacement filters can be purchased in stores, by calling Cuisinart Consumer Service, or at www.cuisinart.com

SETTING UP YOUR 12-CUP COFFEEMAKER

INITIAL CLEANING

Perform an initial cleaning before making your first beverage. Follow these instructions, without adding coffee.

1. Insert charcoal water filter as shown on left (if you haven't already).
2. Fill water reservoir.

3. Make sure carafe is in place.
4. If you haven't already, plug the power cord into an independent outlet.
5. Turn Function knob to BREW.
6. Press the ON/OFF button and allow brew cycle to run. The one-time cleaning process is complete. Discard hot water. Your Coffeemaker is ready to use.

PROGRAMMING YOUR 12-CUP COFFEEMAKER

SETTING THE CLOCK

When the Coffeemaker is plugged in, 12:00 will flash.

Turn the Function knob to BREW Press Hour or Minute buttons to select the desired time. Hold buttons down to scroll through the digits, or press and release to advance one digit at a time. When scrolling, the numbers will advance slowly and then speed up. When the number displayed approaches the desired time, press and release to advance one digit at a time. Be sure the PM indicator is on if a PM time is desired.

To finish setting the clock, turn the Function knob to any other setting or simply wait until the numbers stop flashing.

SETTING THE AUTO-ON TIME

When you turn the Function knob to AUTO ON, the previously selected Auto-On time, or the default time (12:00) will flash.

1. Turn the Function knob to AUTO ON.
   AUTO ON indicator will flash to begin programming. Use the Hour and Minute buttons as above to program your start-brew time.
2. Press the ON/OFF button to activate the program.
   When you press ON/OFF, the AUTO ON indicator will illuminate, indicating the AUTO ON function has been activated. Clock Display will show the current time.
3. AUTO ON brew cycle begins.
   The BREW indicator will flash slowly when the brew cycle begins at the time you have selected. When the brew cycle ends, WARM will illuminate indicating Keep Warm cycle. Lights will turn off when the Keep Warm cycle ends and BREW will come back on indicating the coffeemaker is ready for the next brew.
   NOTE: To start brew time at the same time the next day, simply make sure the Function knob is at AUTO ON and press and release ON/OFF button once more. The AUTO ON indicator will turn on.

SETTING THE AUTO-OFF TIME

Turn the Function knob to AUTO OFF
Use the Hour and Minute buttons as above to program your Coffeemaker to shut off from 0 to 4 hours after brew cycle is finished.

BREWING COFFEE

Follow instructions in Setting Up Your 12-Cup Coffeemaker.

1. Insert charcoal water filter
   Follow directions for the preparation and insertion of the filter.
2. Fill the water reservoir
   Open the Coffeemaker reservoir cover by lifting it up. Pour in the desired amount of water, using the water level indicator located at the side of the Coffeemaker.
3. Before brewing
   Make sure the glass carafe is in position on the heater plate and the top cover is closed. Plug the cord into an electrical outlet.
4. Set preferences
   Push the BOLD button if you would like a stronger brew. BOLD indicator will illuminate.
5. Add the ground coffee
   Remove the filter basket by grasping the handle and lifting straight up. Insert a #4 paper filter or permanent filter. Be sure that a paper filter is completely open and fully inserted in the basket. It may help to fold and flatten the seams of a paper filter beforehand. Add 1 level scoop of ground coffee per cup. Adjust the amount according to taste.
   NOTE: The maximum capacity for ground coffee is 15 tablespoons for this Coffeemaker. Exceeding this amount may cause overflow if the coffee is too finely ground.
   Replace the filter basket in the filter basket holder and press firmly on cover to be sure it closes securely.
6. Brewing coffee
   Turn the Function knob to BREW, press the ON/OFF button, and the BREW indicator light will flash slowly. Or, set the AUTO ON function (this page) and the AUTO ON indicator will be illuminated.
7. After brewing
   When the brewing cycle has been completed, coffee will continue to stream from the filter for several seconds. When streaming completely stops, five beeps will sound and you can now enjoy your coffee.
   NOTE: Reservoir cover may be hot during and directly after brewing. Wait at least 10 minutes before opening.

BREW PAUSE™ FEATURE

This feature interrupts the flow of coffee from the basket to let you pour that first cup mid-brew. Because the flavor profile of coffee brewed at the start of a cycle differs from that brewed toward the end, be aware that using this feature will weaken the flavor strength of the finished pot.

NOTE: Removing carafe for more than 20 seconds may cause filter basket to overflow.

12-CUP COFFEEMAKER CLEANING AND MAINTENANCE

Always make sure the unit is off by removing the plug from the electrical outlet before cleaning.

Lift up the Coffeemaker reservoir cover. Remove and discard the paper filter and ground coffee. The filter basket can be washed in warm, soapy water and rinsed thoroughly, or cleaned in the upper rack of the dishwasher. Dry all parts after use.

Do not put any water in the unit once the filter basket has been removed. Wipe the area under the filter basket with a damp cloth.

Remove the carafe from the heating plate. Discard any remaining coffee. The carafe and lid can be washed in warm, soapy water and rinsed thoroughly, or placed in a dishwasher. The carafe and carafe lid should be placed on the upper rack only.

Do not use any scouring agents or harsh cleansers on any part of the Coffeemaker.

Never immerse base unit in water or other liquids. To clean base, simply wipe with a clean, damp cloth and dry before storing. Fingerprints and other blemishes on the housing can be washed off with soap and water or a nonabrasive cleaning solution. Wipe heater plate with a clean, damp cloth. Never use rough, abrasive materials or cleansers to clean the heater plate. Do not dry the inside of the water reservoir with a cloth, as lint may remain.

DESCALING

Descaling refers to the removal of calcium deposits that form over time on the metal parts of the Coffeemaker.

To Descale Your Coffeemaker
Depending on the mineral content of water in your area, calcium deposits (scale) may build up in your Coffeemaker. Though scale is not toxic, it can affect performance. Descaling the Coffeemaker when the indicator signals it is time to do so will help protect the heating element and other parts that come into contact with water.

For optimal performance, descale Coffeemaker every 3 to 6 months. If calcium deposits build up faster, the CLEAN light will illuminate, indicating 12-cup Coffeemaker should be descaled.

To clean:

1. Fill the water reservoir to capacity with a mixture of 1⁄₃ white vinegar and 2⁄₃ water.
2. Press and hold the CLEAN button. When the CLEAN LED indicator flashes, the coffeemaker is in Clean mode. Release the button.
3. When the cycle is completed, 5 beeps will sound and the coffeemaker will shut off.
4. If the CLEAN indicator illuminates once more, repeat the cleaning procedure with a fresh solution of vinegar and water.
   NOTE: One cleaning cycle is usually sufficient.
5. While the CLEAN indicator remains off, run one cycle with a full reservoir of fresh, cold water to rinse the unit.
6. Return the charcoal water filter to the holder inside the water reservoir and your coffeemaker is ready to brew!

MAINTENANCE

Any other servicing should be performed by an authorized service representative.

SETTING UP YOUR SINGLE-SERVE COFFEEMAKER

INITIAL CLEANING FOR USE WITH PODS

Perform an initial cleaning before making your first beverage. Follow these instructions, without inserting a pod or espresso capsule.

1. Insert charcoal water filter if you haven't already.
2. Remove water reservoir from the unit.

3. Fill the reservoir in sink and put back on unit.
4. If you haven't already, plug the power cord into an independent outlet. The coffeemaker will turn on and be ready for use.
5. Open and close the brew head. Do not add a pod.

6. Place mug on the drip tray.
7. Using the START/STOP knob, select the 6 oz. cup POD size and press the START/STOP knob. POD indicator will flash slowly and the hot water will start to dispense momentarily.
8. beep will sound when the one-time cleaning process is complete. Discard hot water. Your brewer is ready to use.

INITIAL CLEANING FOR ESPRESSO CAPSULES

1. Repeat steps 1 to 4 in INITIAL CLEANING WITH PODS.
2. Open and close the brew head. Do not add an espresso capsule.
3. Move drip tray to adjustable tray position to avoid any splashing and place espresso cup on tray.

4. Using the START/STOP knob, select the Single espresso size and press the START/STOP knob. Light will flash slowly and the hot water will start to dispense momentarily.

5. beep will sound when the one-time cleaning process is complete. Discard hot water. Your brewer is ready to use.

USING THE SINGLE-SERVE COFFEEMAKER

MAKING COFFEE WITH PODS

Complete the initial cleaning steps before brewing. Follow instructions in Setting Up Your Single-Serve Coffeemaker.

BREWING

1. Remove single-serve water reservoir.

2. Fill reservoir to desired level, then replace on unit.
3. Place mug on the drip tray. The drip tray can be removed to accommodate travel mugs.
4. Select a pod.
   NOTE: Do not remove the foil lid or puncture the capsule.
5. Turn the START/STOP knob clockwise to enter POD setting mode. The POD indicator will illuminate.

6. Open the brew head. The POD indicator will turn off while brew chamber is open. Place a pod in the brewing chamber and close brew head. The POD indicator will turn back on.


   There are two sharp needles in the brewing chamber that puncture the pod, one above and one below. To avoid risk of injury, do not put your fingers in the single-serve brewing chamber.
7. Turn the START/STOP knob clockwise to choose your desired brew POD size of 6, 8, or 10 oz. and press knob for selected size. The ON indicator will illuminate and the selected brew size will flash slowly while brewing.

   NOTE: To cancel brewing, simply press the START/STOP knob once again and the brewing process will be stopped.

   There is very hot water in the capsule chamber during the brewing process. To avoid risk of injury, do not lift the handle or open the capsule chamber during the brewing process.
8. Once fully dispensed, one short beep will sound. The POD indicator and the brew size chosen will illuminate again. The ON indicator will turn off signifying the brew is complete.
9. Lift the handle, then remove and dispose of the used pod. Close the brew head.

   Pod will be hot.

10. Enjoy your cup of coffee! Your brewer is ready to use again.
    NOTE: When ADD WATER indicator is on, no brewing can be done. Once you refill the reservoir, your unit is ready to brew.

ADD WATER

The Add Water light will illuminate when water is below 10.5 ounces. Simply fill the reservoir with water and continue to brew as usual.

BREWING WITH THE HOMEBARISTA^TM REUSABLE FILTER CUP

The Single-Serve Coffeemaker can be used with a reusable coffee pod, which allows you to use your own ground coffee.

The HomeBarista™ Reusable Filter Cup is not included, but is for sale at most retailers with Cuisinart^® products.

1. Fill the filter basket within the reusable pod with ground coffee, making sure not to fill past the max indicator. Adjust the amount to your personal preference. Do not tamp the grounds. Make sure there are no grounds remaining on the upper rim of the filter basket. Close lid.
   NOTE: Max fill: 2.5 scoops or 15 grams.
2. Remove the pod capsule holder from the brewing chamber by pulling toward you.
   1. Drop the reusable coffee pod into the brewing chamber. There is no need to snap it into place.
   2. Follow brewing instructions.

NOTE: To cancel brewing, simply press the START/STOP knob once again and the brewing process will be stopped.

There are two sharp needles in the brewing chamber that puncture the pod, one above and one below. To avoid risk of injury, do not put your fingers in the brewing chamber.

3. After brewing, raise the handle and remove the reusable coffee pod. Use caution as the reusable coffee pod will be hot.
4. Replace the pod capsule holder, ensuring that the arrow on pod capsule rim aligns with the arrow on the brewing chamber. Gently push the pod capsule holder to snap into place.
   NOTE: This Coffeemaker is compatible with most reusable coffee pods.

MAKING ESPRESSO

Complete the initial cleaning steps before brewing. Follow instructions in Setting Up Your Single-Serve Coffeemaker.

This machine is compatible with Nespresso^® OriginalLine style capsules.

1. If ADD WATER indicator is on, remove reservoir and fill.
2. Move drip tray to adjustable tray position to avoid any splashing and more accurate dispensing of espresso.

3. Place an espresso cup on the drip tray and select your desired espresso capsule.
4. Turn the START/STOP knob clockwise to enter ESPRESSO setting mode.
   The ESPRESSO indicator will illuminate.

5. Open the brew head. The ESPRESSO indicator will go off while Brew chamber is open. Remove the espresso capsule holder from the brew chamber and place the espresso capsule in the holder.

   There are sharp needles on the brewing chamber lid that puncture the capsule. To avoid risk of injury, do not put your fingers on the needles in upper chamber lid.

6. Place the espresso capsule holder back into brew chamber and close brew head. The espresso indicator will turn back on.

7. Turn the START/STOP knob clockwise to choose your desired ESPRESSO Single (1.4 oz) or Double (3.2 oz.) size and press knob for selected size. The ON indicator will illuminate and selected espresso size will flash slowly. The espresso will start to dispense momentarily.

   NOTE: To cancel brewing, simply press the START/STOP knob once again and the brewing process will be stopped.

   There is very hot water in the capsule chamber during the brewing process. To avoid risk of injury, do not lift the handle or open the capsule chamber during the brewing process.
8. Once fully dispensed, one short beep will sound. The ESPRESSO indicator will illuminate, and the ON indicator will go off.
9. Lift the brew head handle and take out the espresso capsule holder. Push the espresso capsule out of the holder and place capsule holder back into brew chamber. Close the brew head.

   Espresso capsule will be hot. Please wait a few minutes to remove if possible.

10. Enjoy your espresso! Your brewer is ready to use again.
    NOTE: For optimal results, we recommend using the double espresso button with a lungo or more bold espresso capsule. Using this setting with lighter or less bold varieties will alter the taste.

USING STEAM WAND FOR FROTHING MILK

Milk frothing is the steaming of milk. The steam does two things: It heats milk and it mixes in air to form a foamy texture. As with anything, perfecting the art of milk texturing takes practice, but the results are well worth it! For best results use cold, refrigerated milk.

MILK	FROTHING LEVELS
Whole Milk
Low-Fat Milk
Fat-Free Milk
Non-Dairy Milk

NOTE: Frothing levels depend on the amount of milk being used.

1. Turn the START/STOP knob clockwise to choose STEAM setting. STEAM indicator will illuminate.


2. Fill a mug or frothing pitcher with milk of your choice. For best results, use a range of 4–8 ounces for your drink recipe to avoid overflow when frothing.
   TIP: Keep in mind that the volume of milk will increase during the texturing.
3. Purge the steam wand of any water: with the steam wand positioned over the drip tray, activate the steam function by pressing START/STOP knob to start steam process. The ON indictor will illuminate. Once any water has been purged, stop the steam by pressing the START/STOP knob. The ON indictor will turn off.

4. Swing the steam wand back to the side of the unit. Place the mug or frothing pitcher under the HOT WATER/STEAM wand. Place the steam want in the milk so that the nozzle is just below the surface of the milk.

   NOTE: Pitcher not included.
5. Press the START/STOP knob.
   The STEAM indicator will flash slowly, then begin steaming. The ON indicator will illuminate signifying steam process has started.
   NOTE: To cancel steaming, simply press the START/STOP knob once again and the steaming process will be stopped.

6. Keeping the pitcher at an angle, insert the steam wand and rest it against the pitcher, keeping the nozzle just below the surface of the milk.
   This will start to create a whirlpool action in the milk.

   NOTE: If the steam spurts unevenly, it will create aerated froth/large bubbles. If this is happening, raise the pitcher so that the steam nozzle is lowered farther into the milk.
7. As the steam heats and textures the milk, the level of the milk in the pitcher will begin to rise. As this happens, follow the level of the milk by lowering the pitcher, always keeping the tip of the steam nozzle just below the surface.

8. Once the foam is created, raise the mug or pitcher until the steam nozzle is in the center of the milk to keep heating it without creating more foam.
   TIP: The amount of foam required will vary depending on the drinks being made; for example, a cappuccino requires more foam than a latte.
9. Stop the steam immediately when the milk is heated by pressing the START/STOP knob. The steam indicator will illuminate, and the ON indicator will turn off signifying steaming has stopped.

   Do not boil the milk. The ideal temperature for steaming milk is 140–150°F.
10. Remove the pitcher, immediately wipe the steam nozzle and wand with a clean damp cloth and purge a small amount of steam over the drip tray as in step 3. Cleaning the wand after every use is recommended to avoid milk buildup.

USING THE STEAM WAND FOR HOT WATER

1. If ADD WATER indicator is on, remove reservoir and fill.
2. Place a cup or container under the HOT WATER/STEAM wand.
3. Turn the START/STOP knob clockwise to choose HOT WATER setting. Indicator will illuminate.

4. Press the START/STOP knob. The HOT WATER indicator will flash slowly, then begin dispensing water. The ON indicator will illuminate to signify hot water function is in process.

5. When the desired amount of water is dispensed, press the START/STOP knob to stop the HOT WATER function. The HOT WATER indicator will remain illuminated and the ON indicator will turn off.
6. Remove the cup or container and swing the steam/hot water wand over the drip tray to catch any drips of water.


SINGLE-SERVE COFFEEMAKER CLEANING AND MAINTENANCE

CLEANING EXTERNAL PARTS

We recommend regular cleaning of the Coffeemaker's external components.

1. Never immerse the Coffeemaker in water or other liquids. The housing and other external components may be cleaned with a soapy, damp, nonabrasive cloth.
2. To remove the drip tray, lift it up from finger slots on the side, keeping it level at all times in order to prevent spills. The drip tray and drip tray plate are dishwasher safe. Do not clean drip tray with cleansers, steel wool pads or other abrasive materials.

CLEANING THE CAPSULE HOLDERS

There are sharp needles that puncture the capsules above and below. To avoid risk of injury, do not put your fingers in the capsule brewing chamber.

1. The capsule holders are top-shelf dishwasher safe (use low temperature cycle). To remove, lift the handle to open the brewing chamber. Grasp the top of the capsule holder and pull up.
2. Cleaning the Funnel
   To remove funnel from pod capsule holder, hold funnel in left hand, twist bottom away from you slightly and pull away from pod capsule holder to remove. The funnel is top-rack dishwasher safe.
   NOTE: The funnel may be tight the first few times you go to remove it; this is normal and will loosen with continued use.

3. Cleaning the Exit Needle
   The exit needle is located on the inside bottom of the pod capsule holder assembly. Should a clog arise because of coffee grounds, it can be cleaned using a paper clip or similar tool. Remove pod capsule holder from unit, then remove funnel from pod capsule holder and insert the paper clip into exit needle to loosen the clog and push it out.

   Replace funnel in pod capsule holder by lining up tabs in funnel with notches on pod capsule holder, and twist toward you until it locks into place. After cleaning, replace pod capsule holder, being sure to align the arrow on the pod capsule holder rim with arrow on the brewing chamber.
4. Cleaning the Piercing Needle
   The piercing needle is located on the inside of the brewing chamber. Should a clog occur because of coffee grounds, it can be cleaned using a paper clip or similar tool. Insert paper clip to loosen the clog and push it out.

5. Espresso Capsule Holder
   The capsule holder is top-shelf dishwasher safe (use low temperature cycle).

CLEANING THE HOMEBARISTA^TM REUSABLE FILTER CUP

Simply dispose of coffee grounds, then hand-wash both the filter cup and filter, or clean on top rack of dishwasher.

CLEANING THE WATER RESERVOIR

It is normal over time for discoloration, spotting or staining to appear in the water reservoir. Results will vary depending on the mineral content of the water used, but will not affect the operation of the brewer. However, be sure to clean the water reservoir regularly to minimize buildup.

Clean inside the water reservoir with a damp, lint-free cloth as necessary.

Descaling Your Single-Serve Brewer and Steam Wand
Mineral content in water varies from place to place. Depending on the mineral content of the water in your area, calcium deposits or scale may build up in your Coffeemaker. Though scale is nontoxic, it can hinder Coffeemaker performance. Descaling your Coffeemaker will help maintain the heating element and other parts that come in contact with water.

For optimal performance, descale your Coffeemaker every 3 to 6 months. It is possible for calcium deposits to build up faster, making it necessary to descale more often. The CLEAN indicator will turn on when the unit needs to be descaled.

NOTE: Before descaling your Coffeemaker, remember to remove the charcoal water filter from the water filter holder located in the water reservoir.

To begin, you will need the following:

• 13 oz. of distilled white vinegar
• 26 oz. of water
• 16 oz. ceramic mug or container (do not use paper cup)
• Access to a sink

Step 1: First Vinegar Rinse

1. Fill the single-serve water reservoir with 13 oz. of white vinegar and 26 oz. of water.
2. Place the ceramic mug or container on the drip tray and under the Steam and Hot Water Wand.
3. Rotate START/STOP knob to CLEAN and press the START/STOP knob to begin descale. The CLEAN indicator will flash.
4. When the single serve descale is complete, the STEAM and HOT WATER indicators will go on. Press START/STOP knob again, the STEAM and HOT WATER wand descale cycle will begin.
5. Discard contents of mug into the sink.
6. Repeat until ADD WATER indicator comes on.
7. When descaling is complete, the CLEAN indicator will turn off and 5 beeps will sound.
8. Discard any remaining diluted vinegar into sink.

Step 2: Fresh Water Rinse

1. Repeat Step 1 three times, using fresh water in place of vinegar.
2. This will clean the Coffeemaker plumbing and remove any residual vinegar taste.

CLEANING THE STEAM WAND

• The steam wand should always be cleaned after steaming milk. Wipe the steam wand with a damp cloth after use.
• Fill a cup or mug with water and run the steaming function as if you are frothing milk. This will release any remaining milk from inside the steam wand.
• The stainless steel steaming wand can be twisted off and removed for further cleaning and rinsed off. The steaming tube that is underneath the wand can be wiped with a damp, clean cloth.
• If the steam tube remains blocked, use a paper clip or similar tool to clear the opening. Move the steam wand over drip tray and purge the steam wand by activating STEAM function.

MAINTENANCE

Any other servicing should be performed by an authorized service representative.

TROUBLESHOOTING

PROBLEM	SOLUTION
Machine will not brew.	Turn off and unplug the machine for 1 minute or more.
	Make sure there is water in the reservoir.
	Make sure the removable reservoir is properly installed.
	Make sure brew head is completely closed.
Machine turned off by itself.	The machine's energy-save mode puts unit to sleep after 30 minutes of nonuse. Simply turn the START/STOP knob, function knob or press any button to "wake up" the unit.
E0 is flashing on screen and unit will not brew.	Unplug and plug in the machine. Perform an initial clean cycle for pods and espresso brewing. Follow the instructions, without inserting a pod or espresso capsule.
Coffee basket is overflowing.	If coffee ground basket is overflowing this could be caused by overfilling with coffee grounds or using a coffee grind that is too fine. See "The Quest for the Perfect Cup of Coffee" for suggestions on how to find the right grind and portion.
	Make sure paper filter is not used with gold tone filter. Either one or the other should be used at a time, not both.
The Single-Serve functions are not working while brewing coffee in the carafe.	The Pod, Espresso, Steam and Hot Water functions cannot be used while the 12-Cup Coffeemaker is brewing coffee. Once the brew is complete and in WARM mode, the Single-Serve functions can be used.
Pod brewer has a slow stream of water, makes a short cup OR it sputters as it brews.	The piercing or exit needle may be clogged with coffee. Remove pod capsule holder from your unit and then twist off the funnel that makes up the bottom portion on the holder. Use a paper clip to loosen the clog and push it out.
Milk does not froth.	Try removing the stainless steam wand tube from the frothing mechanism by twisting it off. Rinse the tube, dry off and replace on unit.
	If milk still does not froth, clean the steam/frothing wand further by following instructions.
The CLEAN indicator is still on after decalcifying.	Be sure the decalcification process was properly done by following the instructions for 12-Cup Coffeemaker side and Single-Serve side. Run the decalcification process until the clean indicators no longer appear.

Documents / Resources

References

• Cuisinart's Kitchen Appliances for Professional and Home Chefs

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Cuisinart SS-4N1 Series - Coffee Center Barista Bar 4-in-1 Coffeemaker Manual
