Summary of Contents for Bosch CSG7361 1 Series

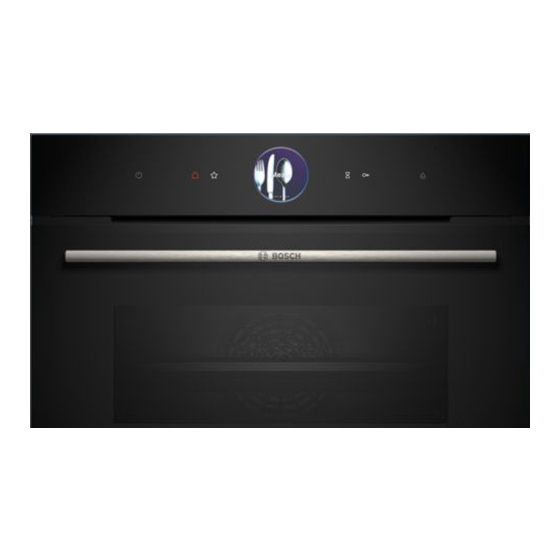

- Page 1 Combi steam oven CSG7361.1 User manual and installation instructions [en]...
-
Page 2: Table Of Contents
en Safety Further information and explanations are available online: Table of contents INSTALLATION INSTRUCTIONS ...... 45 29.1 General installation instructions...... 45 INFORMATION FOR USE Safety .............. 2 Preventing material damage ...... 4 1 Safety Environmental protection and saving en- ergy .............. 5 Observe the following safety instructions. Familiarising yourself with your appliance .. 6 1.1 General information Operating modes .......... 8... -
Page 3: Safety
Safety en Keep children under the age of 8 years away WARNING ‒ Risk of scalding! from the appliance and power cable. The accessible parts of the appliance become hot during operation. 1.4 Safe use ▶ Never touch these hot parts. Always place accessories in the cooking com- ▶... -
Page 4: Preventing Material Damage
en Preventing material damage An ingress of moisture can cause an electric 1.5 Steam shock. Follow these instructions when using a steam ▶ Do not use steam- or high-pressure clean- function. ers to clean the appliance. WARNING ‒ Risk of scalding! If the appliance or the power cord is dam- The water in the water tank may become very aged, this is dangerous. -
Page 5: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en Take care not to trap anything in the appliance Using cookware with rust spots may cause corrosion in ▶ door. the cooking compartment. Even the smallest spots of Fruit juice dripping from the baking tray leaves stains rust can cause corrosion. - Page 6 en Familiarising yourself with your appliance If the cooking time is relatively long, you can switch Allow frozen food to defrost before cooking. the appliance off 10 minutes before the cooking time ¡ This saves the energy that would otherwise be re- ends.
- Page 7 Familiarising yourself with your appliance en You can remove the shelf supports, e.g. for cleaning. Symbol Meaning → "Rails", Page 32 WiFi signal strength for Home Connect. The more lines of the symbol are filled, the better the signal. If the symbol is struck through , there is no WiFi signal.
- Page 8 en Operating modes The water tank is behind the control panel. Tank cover → "Filling the water tank", Page 16 Opening for filling and emptying Handle for removing and inserting 5 Operating modes This is where you can find an overview of your appli- Operating ance's operating modes and main functions.
-
Page 9: Operating Modes
Operating modes en Symbol Type of heating Temperature What it's used for and how it works range Gentle hot air 125 - 250 °C Cook selected dishes gently on one level without preheating. The fan distributes the heat from the ring-shaped heating element in the back wall evenly around the cooking compartment. -
Page 10: Accessories
en Accessories Note: Due to thermal inertia, the temperature that is 5.2 Temperature displayed may differ slightly from the actual temperat- With most types of heating , you can read the current ure inside the cooking compartment. temperature in the cooking compartment from ap- prox. 30 °C and the set temperature side-by-side on Residual heat indicator the display during heating, e.g. 120|210 °C. - Page 11 You will find a comprehensive range of products for your appliance in our brochures and online: www.bosch-home.com Accessories vary from one appliance to another. When purchasing accessories, always quote the exact product number (E no.) of your appliance.
-
Page 12: Before Using For The First Time
en Before using for the first time ¡ If your tap water is very hard, we recommend that Notes ¡ If you are using mineral water, set the water hard- you use softened water. If you are using only ness range to "very hard". If you are using mineral softened water, set the "softened"... - Page 13 Basic operation en Dry the appliance. To adjust the appliance to a new installation location after moving house, reset the basic settings to the fact- → "After using steam operation", Page 18 ory settings. Restart the calibration process. Note: Following a power cut, the calibrated settings are retained.
-
Page 14: Rapid Heating
en Rapid heating Set the required operating mode. 8.7 Displaying information → "Setting the operating mode", Page 13 In most cases, you can call up information about the → "Setting the type of heating and the temperature", function that you have just started. The appliance auto- Page 13 matically displays certain information, e.g. - Page 15 Time-setting options en Press to start the operation. 10.1 Setting the cooking time a The display shows the time remaining until the oper- You can set the cooking time for the operation up to ation starts. The appliance is in standby mode. 24 hours.
- Page 16 en Steam Change the timer using the setting ring. If the timer is running in the background, use Press to confirm. select the timer beforehand. Press . Cancelling the timer Reset the timer using . You can cancel the timer at any time. Press to confirm.
- Page 17 Steam en Press the required type of steam heating. Steaming Press the temperature in °C. During steaming , the food is enveloped by hot Use the setting ring to set the temperature. steam, which helps to retain the nutrients. This cooking Press on the display to confirm the set temperat- method also helps to retain the shape, colour and typ-...
- Page 18 en Steam When the water is heated up, press "Steam jet" 11.4 Setting added steam again. Requirements Note: If rapid heating is activated, the steam jet ¡ Observe the information about the respective operat- can only be triggered once rapid heating is com- ing mode.
- Page 19 Dishes en Drying the condensation tray WARNING ‒ Risk of burns! The appliance becomes hot during operation. Allow the appliance to cool down before cleaning. ▶ Requirement: The cooking compartment has cooled down. Open the appliance door. Note: The condensation tray is underneath the cooking compartment.
- Page 20 en Favourites Category Food Category Food Bread, Bread Preserving, Preserving food bread rolls Bread rolls extracting Extracting juice juice, steril- Bottles, sterilise Pizza, sa- Pizza ising voury cakes Savoury cakes, quiche Reheating, Baked items Bakes, Bake, savoury, fresh, cooked ingredi- crisping up Side dishes soufflés ents...
- Page 21 Childproof lock en To change the setting values on the appliance, 13.2 Selecting favourites press "Favourites" in the menu. If you have saved favourites, you can use these to set Or select the favourites directly using the but- ‒ the operation. ton. Press "Favourites"...
-
Page 22: Steam
en Basic settings Tone Selection Personalisa- Selection tion Button tone ¡ On ¡ Off Regional ¡ All dishes ¡ European dishes Signal tone ¡ Very short duration (once) ¡ British dishes ¡ Short duration (ap- prox. 5 seconds) Dishes ¡ All ¡ Medium duration ¡... -
Page 23: Home Connect
Home Connect en 16 Home Connect This appliance is network-capable. Connecting your ap- 16.1 Setting up Home Connect pliance to a mobile device lets you control its functions Requirements via the Home Connect app, adjust its basic settings ¡ The appliance is connected to the power supply and and monitor its operating status. - Page 24 en Cleaning and servicing stalling it via the Home Connect app if you are in your 16.3 Operating the appliance with the WLAN home network (Wi-Fi). The Home Connect app Home Connect app will inform you once installation is successful. You can use the Home Connect app to set and start Notes the appliance remotely.
-
Page 25: Cleaning And Servicing
Cleaning and servicing en Using oven cleaner in a hot cooking compartment If different cleaning agents are mixed together, there damages the enamel. may be a chemical reaction between these. Never use oven cleaner in the cooking compartment Do not mix cleaning agents. ▶... - Page 26 en Cleaning and servicing Area Suitable cleaning agents Information Shelf supports ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool. Note: To clean thoroughly, detach the shelf supports. → "Rails", Page 32 Accessories ¡ Hot soapy water Soak any heavily soiled areas and use a brush or steel wool.
-
Page 27: Cleaning Aid
Cleaning aid en 18 Cleaning aid The cleaning aid is a quick alternative for occasion- Confirm the message. ally cleaning the cooking compartment. The cleaning a The cleaning aid starts and the duration counts aid softens dirt by evaporating the soapy water. It is down. -
Page 28: Drying
en Drying Press " Descaling". To rinse the appliance, for each rinse cycle: The duration cannot be changed. Open the control panel and remove the water ‒ Press . tank. Thoroughly rinse the water tank and fill it with a A notification stating that you should carry out the ‒... - Page 29 Appliance door en Press on the right-hand pressure surface until WARNING ‒ Risk of injury! the hook is released. When the hinges are not secured, they can snap shut with great force. Make sure that the locking levers are always ▶ either fully closed or (when detaching the oven door) fully open.
- Page 30 en Appliance door Push the condensate tray until the hooks on the Close the appliance door fully . right, left and bottom click into place. a The condensate tray is installed horizontally. 21.2 Attaching the appliance door WARNING ‒ Risk of injury! The hinges on the appliance door move when the door is opened and closed, which could trap your fingers.
- Page 31 Appliance door en If necessary, you can remove the condensate Slide the intermediate pane into the left- and right- trough for cleaning. hand retainers . Open the appliance door. ‒ Tilt the condensate trough upwards and remove ‒ Push the intermediate pane upwards until it is in the left- and right-hand retainers ...
- Page 32 en Rails Push the inner pane upwards until it is in the left- Close the locking levers on the left- and right-hand and right-hand retainers . hinges . Put the door cover into position and push down a The locking levers are closed. The appliance door is on it until you hear it click into place.
-
Page 33: Troubleshooting
Troubleshooting en 23 Troubleshooting You can rectify minor faults on your appliance yourself. WARNING ‒ Risk of electric shock! Read the troubleshooting information before contacting Improper repairs are dangerous. after-sales service. This will avoid unnecessary costs. Repairs to the appliance should only be carried out ▶... - Page 34 en Troubleshooting Fault Cause and troubleshooting The control panel Malfunction cannot be opened. Call the after-sales service. → "Customer Service", Page 35 If there is water in the water tank, empty the water tank: Open the appliance door. ‒ Grip on the right and left below the control panel. ‒...
-
Page 35: Disposal
Next time, set lower or higher values. ▶ Tip: A lot of other information about the food preparation and corresponding adjustment values can be found in the Home Connect app or on our website www.bosch-home.com. 24 Disposal 24.1 Disposing of old appliance This appliance is labelled in accord- ance with European Directive Valuable raw materials can be reused by recycling. -
Page 36: Source Software
Directive 2014/53/EU. A detailed Declaration of Conformity can be found on- A detailed RED Declaration of Conformity can be found line at www.bosch-home.co.uk among the additional online at www.bosch-home.com among the additional documents on the product page for your appliance. - Page 37 How it works en ¡ If you are cooking bakes directly in the universal General information about roasting in cookware pan, place the universal pan into the cooking com- ¡ Use heat-resistant, ovenproof cookware. partment at level 1. ¡ Place the cookware on the wire rack. ¡...
- Page 38 en How it works ¡ You do not need to turn the food. Rice or cereal products ¡ Add water or liquid in the specified ratio. ¡ To obtain a slightly different flavour, you can sear the meat, poultry or fish before steaming. Reduce For example, 1:1.5 means add 150 ml liquid for the cooking time.
- Page 39 How it works en Food Accessory/cook- Height Heating Temperature in Steam Cooking time ware function °C/grill setting level in mins Bread, 1500 g Universal pan 200-210 35-45 Loaf tin Flatbread Universal pan 220-230 20-30 Bread rolls, fresh Baking tray 200-220 20-30 Pizza, fresh Baking tray 200-220 20-30...
- Page 40 en How it works Food Accessory/cook- Height Heating Temperature in Steam Cooking time ware function °C/grill setting level in mins Fish, grilled, whole, Wire rack 170-190 20-30 300 g, e.g. trout Fish, baked, whole, Universal pan 1. 170-180 1. 15-20 300 g, e.g. trout 2.
- Page 41 How it works en ¡ Place the food with the longest cooking time into the cooking compartment first. Add the rest of the food at the appropriate time. This means that all the food will be ready at the same time. ¡...
- Page 42 en How it works Recommended settings for slow cooking Food Accessory/ Height Searing Heating Temperat- Steam Cooking time cookware time in function ure in °C level in mins mins Duck breast, medium Uncovered 45-60 rare, 300 g each cookware Fillet of pork, whole Uncovered 45-70 cookware...
- Page 43 How it works en Recommended settings for hygiene Food Accessory/cook- Height Type of Temperature in Steam in- Cooking time ware heating °C tensity in mins → Page 8 Sterilise clean cookware Perforated steam- 15-20 ing tray Proving dough Use the recommended settings when configuring the appliance settings.
- Page 44 en How it works 28.8 Test dishes The information in this section is provided for test institutes to facilitate testing of the appliance in accordance with EN 60350‑1. Baking ¡ The setting values apply to food that is placed into a ¡ Shelf positions when baking on 2 levels: cold cooking compartment.
-
Page 45: Installation Instructions
Installation instructions en Recommended settings for steaming Food Accessory/cook- Height Type of Temperature in Steam in- Cooking time ware heating °C tensity in mins → Page 8 Peas, frozen, two con- 3+2+1 tainers Steam containers, XL size Universal pan Broccoli, fresh, 300 g Steam containers, XL size Broccoli, fresh, one con- Steam containers,... - Page 46 en Installation instructions 29.2 Appliance dimensions You will find the dimensions of the appliance here ¡ For appliances that have a hinged switch panel, make sure that the switch panel does not hit adjacent kitchen units when you open it. 29.3 Installation below a worktop ¡...
- Page 47 Installation instructions en 29.4 Installation underneath a hob If the appliance is installed under a hob, the following The minimum worktop thickness a is based on the minimum dimensions must be adhered to (including required minimum clearance . substructure, if applicable). Hob type a raised in mm a flush in mm...
- Page 48 en Installation instructions ¡ Ensure that air exchange is guaranteed in accord- ¡ Contact protection must be guaranteed by the in- ance with the diagram. stallation. ¡ If the display on the appliance remains dark, it has not been connected correctly. Disconnect the appli- ance from the mains and check the connection.
- Page 49 Installation instructions en Screw the appliance into place. Secure the appliance using a suitable screw. Note: The gap between the worktop and the appliance must not be closed by additional battens. 29.11 Removing the appliance Thermal insulation strips must not be fitted to the side Disconnect the appliance from the power supply.
- Page 52 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
