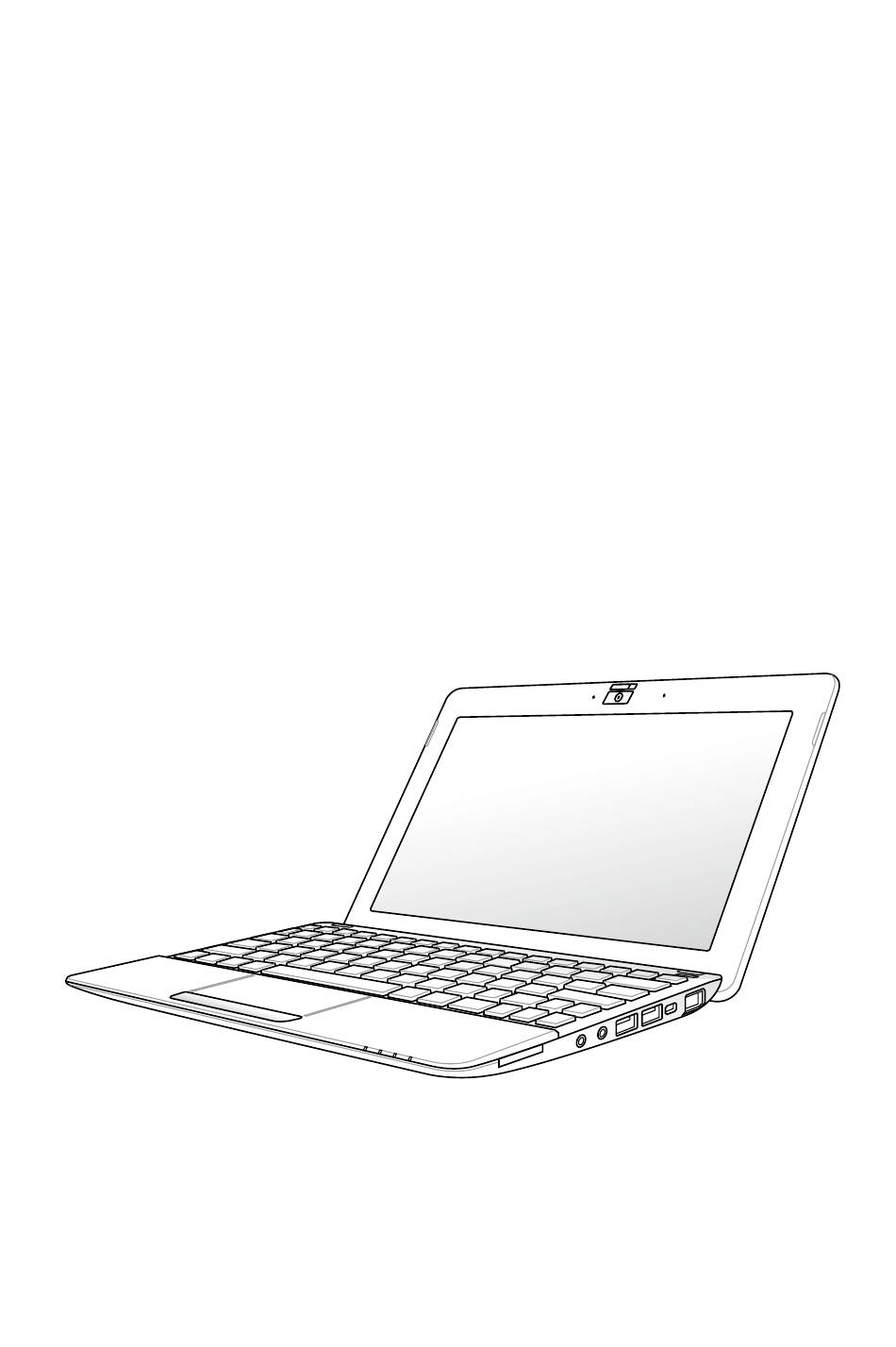

- Page 1 E5450 Eee PC User Manual ® Windows 7 Edition Eee PC 1015 Series 15G06Q248000...
-
Page 2: Table Of Contents
Local Area Network ....................2-7 Browsing web pages ...................2-10 Chapter 3: Using the Eee PC ASUS Update ...........................3-2 Updating the BIOS through the Internet ............3-2 Updating the BIOS through a BIOS file ............3-3 Bluetooth Connection (on selected models) ..............3-4 Table of Contents... - Page 3 Boingo (on selected models) ....................3-9 ® Microsoft Office Trial (on selected models) ..............3-10 Chapter 4: System Recovery System Recovery........................4-2 Boot Booster..........................4-3 Appendix Declarations and Safety Statements ................A-2 Copyright Information ......................A-12 Limitation of Liability ......................A-13 Service and Support ......................A-13 ASUS Eee PC...
-
Page 4: Table Of Contents
About This User’s Manual You are reading the Eee PC User’s Manual. This User’s Manual provides information regarding the various components in the Eee PC and how to use them. The following are major sections of this User’s Manual: Knowing the Parts Provides information on the Eee PC’s components. -
Page 5: Safety Precautions
Battery safety warning: DO on your lap or any part NOT throw the battery in of the body to prevent fire. DO NOT short circuit the discomfort or injury from contacts. DO NOT disassemble heat exposure. the battery. ASUS Eee PC... -
Page 6: Transportation Precautions
SAFE TEMP: This Eee PC INPUT RATING: Refer to the should only be used rating label on the bottom in environments with of the Eee PC and be sure ambient temperatures that your power adapter between 5°C (41°F) and complies with the rating. 35°C (95°F). -
Page 7: Charging Your Batteries
You can send your Eee PC and diskettes through airport X-ray machines. However, it is recommended that you do not send your Eee PC or diskettes through airport magnetic detectors or expose them to magnetic wands. ASUS Eee PC... - Page 8 viii Table of Contents...
-
Page 9: Chapter 1: Knowing The Parts
Top Side Bottom Side Front Side Right Side Left Side Keyboard Usage Touchpad Usage Chapter 1: Knowing the Parts... -
Page 10: Top Side
Top Side Refer to the diagram below to identify the components on this side of the Eee PC. The top side may vary in appearance depending on models. The keyboard differs for each territory. Chapter 1: Knowing the Parts... - Page 11 Express Gate Button / Super Hybrid Power button When the Eee PC is turned off, pressing this button will launch Express Gate. Express Gate is an ASUS exclusive OS that provides you with quick access to the Internet and key applications without entering the Windows®...
- Page 12 Keyboard The keyboard differs depending on models. Touchpad and Buttons Status Indicators Power Indicator The power indicator lights when the Eee PC is turned ON and blinks slowly when the Eee PC is in the Save-to-RAM (Suspend) mode. This indicator is OFF when the Eee PC is turned OFF.
-
Page 13: Bottom Side
DO NOT USE ON SOFT SURFACES SUCH AS SOFAS OR BEDS, WHICH MAY BLOCK THE vENTS. DO NOT PUT THE Eee PC ON YOUR LAP OR OTHER PARTS OF THE BODY TO AvOID INJURY FROM THE HEAT. ASUS Eee PC... -
Page 14: Front Side
Battery Pack Battery time varies by usage and by the specifications for this Eee PC. The battery pack cannot be disassembled and must be purchased as a single unit. Battery Lock The battery lock secures the battery pack. When the battery pack is properly installed, it automatically locks in place. -
Page 15: Right Side
Eee PC to be removed from a fixed object. LAN Port The eight-pin RJ-45 LAN port supports a standard Ethernet cable for connection to a local network. ASUS Eee PC... -
Page 16: Left Side
Left Side Refer to the diagram below to identify the components on this side of the Eee PC. Power (DC) Input The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the Eee PC and charges the internal battery pack. -
Page 17: Keyboard Usage
LCD/Monitor Icons (F8): Toggles between the Eee PC’s LCD display and an external monitor. Task Manager Icon (F9): Initiates the Task Manager to view the application process or terminates applications. Crossed Speaker Icon (F10): Mutes the speaker. ASUS Eee PC... - Page 18 volume Down Icon (F11): Decreases speaker volume. volume Up Icon (F12): Increases the speaker volume. Super Hybrid Engine (Fn+Space Bar): Toggles among various power saving modes. The selected mode is shown on the display. Num Lk (Insert): Toggles the numeric keypad (number lock) ON and OFF.
-
Page 19: Touchpad Usage
If the interval between the clicks or taps is too long, the operation will not be executed. The following 2 illustrations produce the same results. ASUS Eee PC 1-11... - Page 20 Dragging - Dragging means to pick up an item and place it anywhere on the screen you wish. You can move the pointer over the item you select, and while keeping the left button depressed, moving the pointer to the desired location, then release the button.
-
Page 21: Chapter 2: Getting Started
Powering on your Eee PC First-time Startup Desktop Network Connection Chapter 2: Getting Started... -
Page 22: Powering On Your Eee Pc
Powering on your Eee PC These are only quick instructions for using your Eee PC. Install the battery pack Connect the AC power adapter 1 1 0 V -2 2 Turn ON the Eee PC Damage may occur if you use a different adapter to power the Eee PC. -
Page 23: First-Time Startup
Click Next to continue. Type your user account name Set a password for your user and your computer’s name, account if you want. Click then click Next to continue. Next to continue. ASUS Eee PC... - Page 24 Read the end user license Click Use recommended settings to get the latest agreement and check the two boxs before I accept the important updates. license terms. Click Next to continue. Connect to a wireless Specify the time zone you network and click Next to are in and the local date and continue, or click Skip to set...
-
Page 25: Desktop
There are several shortcuts on the desktop. Double-click them to launch the corresponding applications and enter the specified folders. Some applications would form minimized icons in the Notification area. The actual Desktop screen may vary according to different models. ASUS Eee PC... -
Page 26: Network Connection
Network Connection Configuring a wireless network connection Click the wireless network icon with an orange star in the Windows® Notification area. If the wireless network icon with an orange star does not show in the Notification area, activate the wireless LAN function by pressing (<Fn>... -
Page 27: Local Area Network
Click the network icon with a yellow warning triangle in the Windows® Notification area and select Open Network and Sharing Center. Click Change adapter settings in the left blue pane. Right-click Local Area Connection and select Properties. ASUS Eee PC... - Page 28 Click Internet Protocol Click Obtain an IP address version 4(TCP/IPv4) and automatically and click OK. click Properties. (Continue the following steps if using PPPoE) Return to the Network and Sharing Center and then click Set up a new connection or network. Chapter 2: Getting Started...
- Page 29 Enter your User name and, Password, and Connection configuration. name. Click Connect. 12. Enter your user name and 11. Click the network icon in password. Click Connect to the taskbar and click the connect to the Internet. connection you just created. ASUS Eee PC...
-
Page 30: Browsing Web Pages
Browsing web pages After you finish the network setup, click Internet Explorer on the desktop and start enjoying net surfing. Visit our Eee PC homepage (http://eeepc.asus.com) to obtain the latest information and register at http://vip.asus.com for full service of your Eee PC. -
Page 31: Chapter 3: Using The Eee Pc
ASUS Update Bluetooth Connection Super Hybrid Engine Eee Docking Boingo Microsoft® Office Trial Chapter 3: Using the Eee PC... -
Page 32: Asus Update
ASUS Update The ASUS Update is a utility that allows you to manage, save, and update the Eee PC BIOS in Windows® environment. The ASUS Update utility allows you to: • Save the current BIOS file • Download the latest BIOS file from the Internet •... -
Page 33: Updating The Bios Through A Bios File
BIOS version and click Next. Follow the screen instructions to complete the update process. The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features. Updating the BIOS through a BIOS file... -
Page 34: Bluetooth Connection (On Selected Models)
Bluetooth Connection (on selected models) This device contains FCC ID: QDS-BRCM1043 and IC ID: 4324A-BRCM1043. Bluetooth technology eliminates the need for cables for connecting Bluetooth-enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs. To connect to a Bluetooth-enabled device: Press <Fn>... - Page 35 Click Add a device to look for Select a Bluetooth-enabled new devices. device from the list and click Next. The paired relationship is Enter the Bluetooth security successfully built. Click Close code into your device and start pairing. to finish the setting. ASUS Eee PC...
-
Page 36: Super Hybrid Engine
Super Hybrid Engine Super Hybrid Engine offers different power modes. The assigned instant key toggles power savings between various power saving modes. The power saving modes control many aspects of your Eee PC to maximize performance versus battery time. Applying or removing the power adapter will automatically switch the system between AC mode and battery mode. -
Page 37: Eee Docking
The names of the applications in Eee Docking are subject to change without notice. Eee Amuse ASUS @vibe ASUS @Vibe allows you to enjoy online entertainment contents including Radio, Live TV and Games, etc. The ASUS @Vibe service contents differ for each territory. Game Park Game Park includes multiple interesting games. -
Page 38: Eee Sharing
Eee PC users can enjoy free online space. With Internet connection, you can access and share any files whenever you want and wherever you are. The ASUS WebStorage help file is accessible only when your Eee PC connects to the Internet. -
Page 39: Eee Tools
Boingo (on selected models) Boingo gives you easy access to global Wi-Fi services with a special price via the Boingo utility. Use one account at more than 100,000 hotspots around the world, including airports, hotels, cafes and restaurants. ASUS Eee PC... -
Page 40: Microsoft ® Office Trial (On Selected Models)
® Microsoft Office Trial (on selected models) Microsoft® Office Starter is installed on some models instead of Microsoft® Office Trial. Eee PC users can enjoy Microsoft Office Suite free trial for 60 days. Do the following instructions to start the free trial. Ensure that your Eee PC is connected to the Internet and double- click Microsoft Office 60 Day Trial - Online on the desktop. -
Page 41: Chapter 4: System Recovery
System Recovery Boot Booster Chapter 4: System Recovery... - Page 42 System Recovery Disable Boot Booster in BIOS setup before you perform system recovery from USB flash disk, external optical drive or hidden partition. Refer to the end of this chapter for details. Using Recovery Partition (F9 Recovery) About the Recovery Partition The Recovery Partition is a space reserved on your hard disk drive used to restore the operating system, drivers, and utilities installed on your Eee PC at the factory.
-
Page 43: Boot Booster
Enter Go to Sub Screen General Help Save and Exit Exit v02.58 (C)Copyright 1985-2005, American Megatrends, Inc. Press <F10> to save the configuration and restart Eee PC. Remember to enable Boot Booster after you complete hardware change or system recovery. ASUS Eee PC... - Page 44 Chapter 4: Support DVD & System Recovery...
-
Page 45: Appendix
Declarations and Safety Statements Copyright Information Limitation of Liability Service and Support Appendix... -
Page 46: Declarations And Safety Statements
Declarations and Safety Statements Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. - Page 47 To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. End users must follow the specific operating instructions for satisfying RF exposure compliance. Eee PC 1015 Series AR5B95(AW-NE785H) Max. SAR Measurement (1g) 0.049 W/kg RT3090(AW-NE762H) Max.
- Page 48 Declaration of Conformity (R&TTE directive 1999/5/EC) The following items were completed and are considered relevant and sufficient: • Essential requirements as in [Article 3] • Protection requirements for health and safety as in [Article 3.1a] • Testing for electric safety according to [EN 60950] •...
- Page 49 Eee PC 1015 Series Max. SAR Measurement (1g) AR5B95(AW-NE785H)/AW-GE112H 802. 11b: 0.056 W/kg 802. 11g: 0.061 W/kg 802. 11n (20M): 0.06 W/kg 802. 11n (40M): 0.048 W/kg RT3090(AW-NE762H) Max. SAR Measurement (1g) 0.073 W/kg This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
- Page 50 CE Mark Warning This is a Class B product, in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. CE marking for devices without wireless LAN/Bluetooth The shipped version of this device complies with the requirements of the EEC directives 2004/108/EC “Electromagnetic compatibility”...
- Page 51 26 Drôme 32 Gers 36 Indre 37 Indre et Loire 41 Loir et Cher 45 Loiret 50 Manche 55 Meuse 58 Nièvre 59 Nord 60 Oise 61 Orne 63 Puy du Dôme 64 Pyrénées Atlantique 66 Pyrénées Orientales ASUS Eee PC...
- Page 52 67 Bas Rhin 68 Haut Rhin 70 Haute Saône 71 Saône et Loire 75 Paris 82 Tarn et Garonne 84 Vaucluse 88 Vosges 89 Yonne 90 Territoire de Belfort 94 Val de Marne This requirement is likely to change over time, allowing you to use your wireless LAN card in more areas within France.
- Page 53 3Kg must use approved power cords greater than or equal to: H05VV-F, 3G, 0.75mm or H05VV-F, 2G, 0.75mm REACH Notice Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http:// green.asus.com/english/REACH.htm. ASUS Eee PC...
- Page 54 Nordic Lithium Cautions (for lithium-ion batteries) CAUTION! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. (English) ATTENZIONE! Rischio di esplosione della batteria se sostituita in modo errato.
- Page 55 Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. (Norwegian) (Japanese) ВНИМАНИЕ! При замене аккумулятора на аккумулятор иного типа возможно его возгорание. Утилизируйте аккумулятор в соответствии с инструкциями производителя. (Russian) ASUS Eee PC A-11...
-
Page 56: Copyright Information
KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL,... -
Page 57: Limitation Of Liability
Warranty Statement. This limit also applies to ASUS’ suppliers and its reseller. It is the maximum for which ASUS, its suppliers, and your reseller are collectively responsible. UNDER NO CIRCUMSTANCES IS ASUS LIABLE FOR ANY OF THE FOLLOWING: (1) THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES;... - Page 58 Manufacturer ASUSTek COMPUTER INC. Address, City No. 150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN R.O.C Country TAIWAN Authorized Representative ASUS COMPUTER GmbH in Europe Address, City HARKORT STR. 21-23, 40880 RATINGEN Country GERMANY A-14 Appendix...
