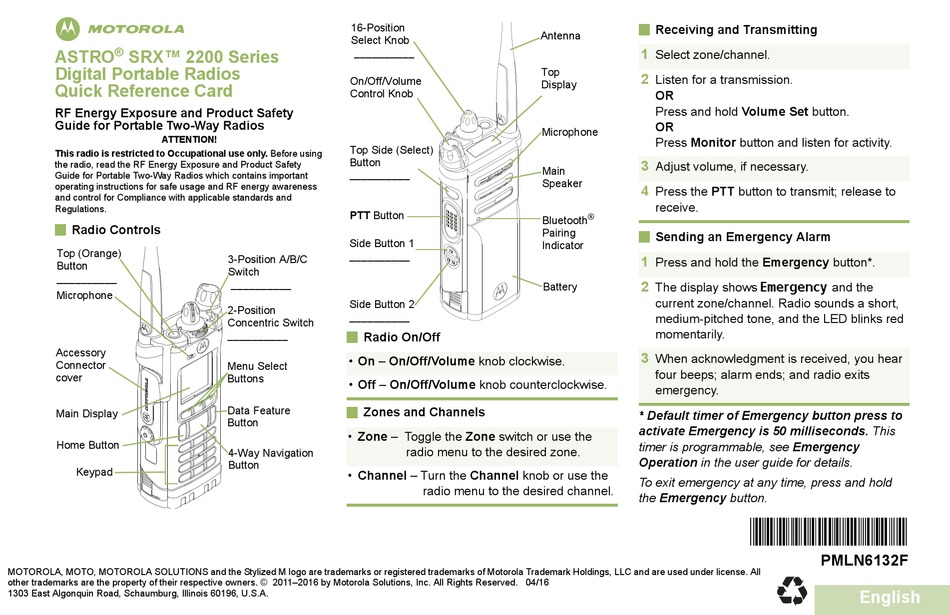

Motorola ASTRO SRX 2200 Series Quick Reference Card

m
®

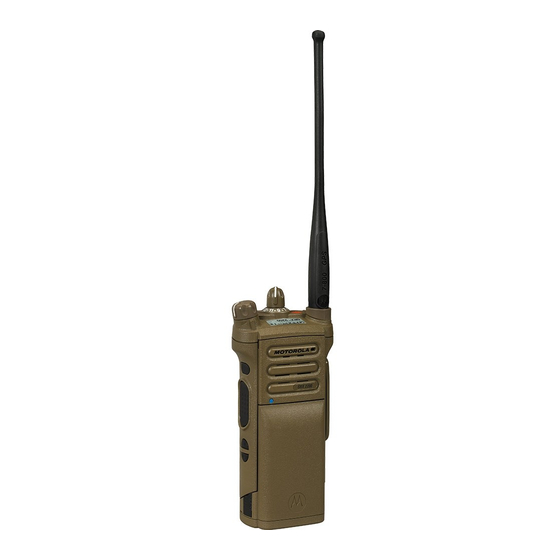

ASTRO SRX™ 2200 Series
Digital Portable Radios
Quick Reference Card
RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios
ATTENTION!
This radio is restricted to Occupational use only. Before using
the radio, read the RF Energy Exposure and Product Safety
Guide for Portable Two-Way Radios which contains important
operating instructions for safe usage and RF energy awareness
and control for Compliance with applicable standards and
Regulations.
Radio Controls
Top (Orange)
Button
__________
Microphone
Accessory
Connector
cover
Main Display
Home Button
Keypad
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All
other trademarks are the property of their respective owners. © 2011–2016 by Motorola Solutions, Inc. All Rights Reserved. 04/16
1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.
16-Position
Select Knob
__________
On/Off/Volume
Control Knob
Top Side (Select)
Button
__________
PTT Button
Side Button 1
__________
3-Position A/B/C
Switch
__________
Side Button 2
2-Position
__________
Concentric Switch
__________
Radio On/Off
• On – On/Off/Volume knob clockwise.
Menu Select
Buttons
• Off – On/Off/Volume knob counterclockwise.
Data Feature
Zones and Channels
Button
• Zone – Toggle the Zone switch or use the
radio menu to the desired zone.
4-Way Navigation
Button
• Channel – Turn the Channel knob or use the
Antenna
Top
Display
Microphone
Main
Speaker
®
Bluetooth
Pairing
Indicator
Battery
radio menu to the desired channel.
Receiving and Transmitting
1
Select zone/channel.
2
Listen for a transmission.
OR
Press and hold Volume Set button.
OR
Press Monitor button and listen for activity.
3
Adjust volume, if necessary.
4
Press the PTT button to transmit; release to
receive.
Sending an Emergency Alarm
1
Press and hold the Emergency button*.
2
The display shows Emergency and the
current zone/channel. Radio sounds a short,
medium-pitched tone, and the LED blinks red
momentarily.
3
When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
* Default timer of Emergency button press to
activate Emergency is 50 milliseconds. This
timer is programmable, see Emergency
Operation in the user guide for details.
To exit emergency at any time, press and hold
the Emergency button.
*PMLN6132F*
PMLN6132F
English
