Connecting and mounting the reader module

1.
2.
3.
4.
–
Bosch Security Systems B.V.

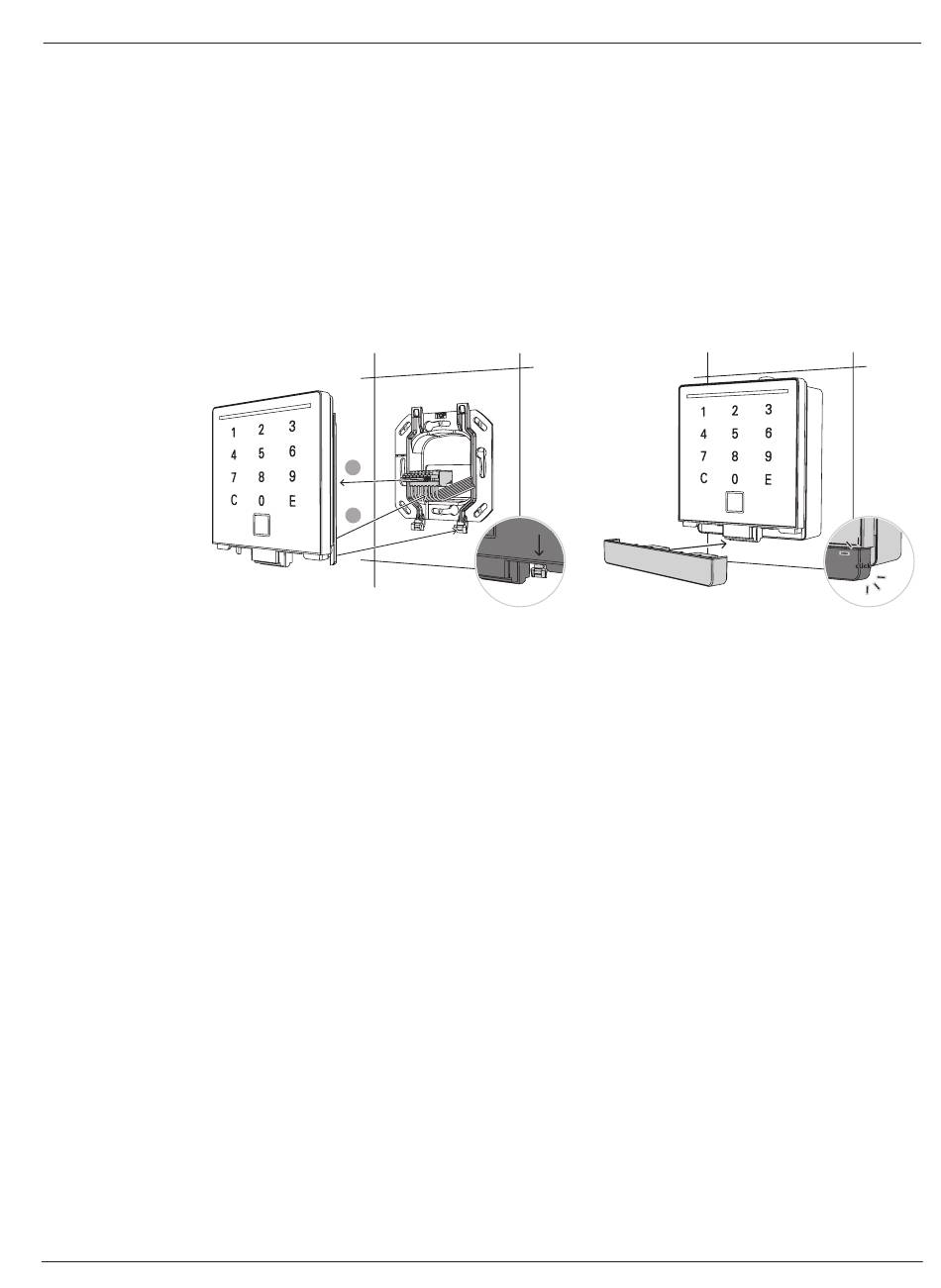

Insert the wired connection terminal on the reader module.
Place the reader module flat on the wall bracket. Push the connection cable with the
reader module back into the flush-mounted box.
Push the attached reader module down until the reader module clicks into place on the
wall bracket.
After it has successfully clicked into place, slide the locking bar into the reader module
until it also clicks into place.
NOTE: A clear click can be heard each time it clicks into place.
