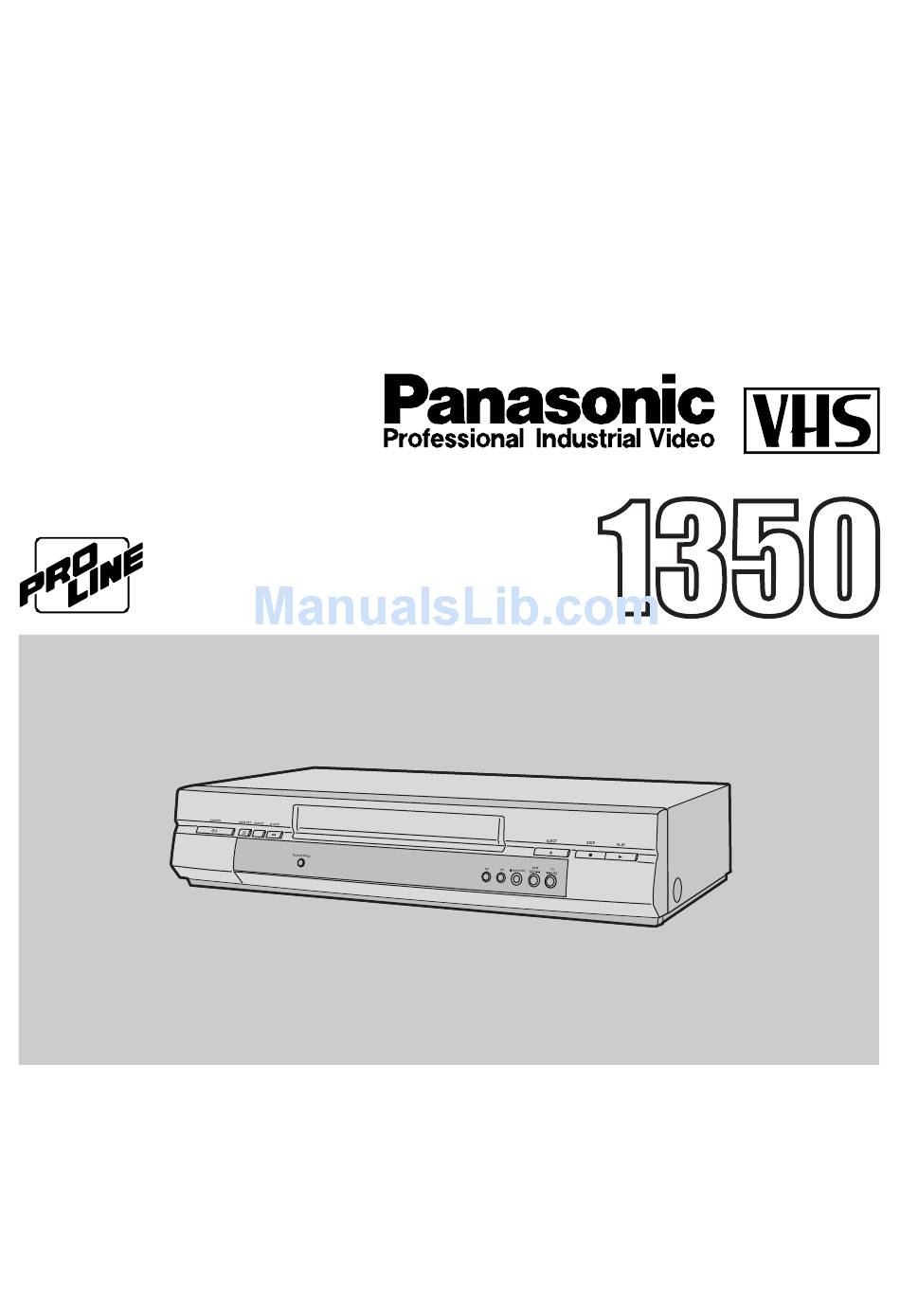

- Page 1 Operating Instructions Model No. Video Cassette Recorder Before attempting to connect, operate or adjust this product, please read these instructions completely. VQT9634...
-
Page 2: Dear Customer
Dear Customer Thank you for purchasing this Panasonic Video Cassette Recorder. We strongly suggest that you carefully study the Operating Instructions before attempting to operate the VCR, and that you note the listed precautions. FCC NOTE: This equipment has been tested and found to comply with Part 15 of the FCC Rules. -
Page 3: Table Of Contents
≥Installing the Batteries ... 7 Setting Up Connections ... 08 Tuning the TV to your VCR ... 10 ≥Plug in Auto Tuning ... 10 Storing TV Broadcasts in your VCR ... 12 Setting the Clock of your VCR ... 14 Settings Using the On Screen Display ... -
Page 4: Controls And Connection Sockets
Controls and Connection Sockets This section describes in detail the function of each button, switch and connection socket. POWER TIMER REC SEARCH Í/ I Á AC IN To Power Outlet JET REW PICTURE MODE VIDEO AUDIO EJECT STOP PLAY REC/OTR 5 / 5 16 17... - Page 5 FRONT 01 POWER Í/I (VCR Í) (‘ 10) 02 TIMER REC Á (TIMER Á) (‘ 25) 3 SEARCH (‘ 31) 4 JET REW 6 (‘ 20) 05 Cassette Compartment (‘ 19) 6 EJECT < (‘ 11) 87 STOP ∫ (‘ 19, 22) 08 PLAY 1 (‘...
-
Page 6: Infra-Red Remote Controller
Infra-red Remote Controller The remote control unit for this VCR is a universal remote controller. As such, some of its buttons are not used to operate this VCR. VCR OPERATION VOLUME Í OSD/DISPLAY RESET/CANCEL Í PICTURE MODE AUDIO VCR/TV SEARCH... -
Page 7: Installing The Batteries
TV OPERATION Only Panasonic TVs can be operated with the provided remote control. The settings for operating the TV with the remote control have already been made. No additional settings need to be performed. However, some Panasonic TVs cannot be operated using this remote control. -
Page 8: Connections
Connections This section shows you how to connect the VCR to an antenna, TV, etc. When the VCR is turned on after connecting the antenna cable and the AC power cord, Plug in Auto Tuning starts automatically. Basic Connections The following connections are required to record and play back the video cassette through the TV. -
Page 9: Cable Connection
Band, Ultra-Band, and Special cable channels (Channels A-5–A-1, A–W, AA–FFF, GGG– WWW, WWWr1–WWWr12, 100–125, 5A). Also, the VCR can tune to any of the 56 UHF channels (14–69). Refer to Storing TV Broadcasts in your VCR on page 12. BASIC Hook-Up... -
Page 10: Tuning The Tv To Your Vcr
SPEED DIRECT REC DATE The VCR supplies a signal to the TV via the RF coaxial cable on channel US3 or 4. It is possible to view the video picture on your TV in the same way that you watch TV broadcasts. - Page 11 To Restart Plug in Auto Tuning 1 Press EJECT < and remove the video cassette. 2 Keep the I and J buttons on the VCR pressed simultaneously for 3 seconds or more during the VCR on. ≥The channel displayed on the VCR display...
-
Page 12: Storing Tv Broadcasts In Your Vcr
Storing TV Broadcasts in your VCR Auto Tuning Using the On Screen Display The VCR is tuned automatically by Plug in Auto Tuning. However, Auto Tuning using the On Screen Display should be performed according to the following method if necessary. - Page 13 :MENU SUPER BANDS CATV HYPER BAND ULTRA BAND SPECIAL CATV CHANNEL CHANNEL CHANNEL SELECTION & RECEIVED OF INDICATION THE AIR ON VCR 2–13 2–13 14–69 14–69 CHANNEL CHANNEL SELECTION & RECEIVED INDICATION FROM CABLE ON VCR 2–13 2–13 A-5–A-1 95–99 A–W...
-
Page 14: Setting The Clock Of Your Vcr
It employs the 24-hour system. Preparations ≥Confirm that the TV is on and the VCR viewing channel is selected. ≥Turn on the VCR. ≥Press VCR/TV to select the VCR mode. -
Page 15: Settings Using The On Screen Display
Settings Using the On Screen Display Preparations ≥Confirm that the TV is on and the VCR viewing channel is selected. ≥Turn on the VCR. ≥Press VCR/TV to select the VCR mode. On Screen Display 1 Press MENU. 2 Select OPTION by pressing 3 or 4 and then press OK. - Page 16 DELETE NAVIDATA JET SEARCH background function is deactivated. of the blue background function. TAPE SELECT BLUE BACK JET NAVIGATOR DELETE NAVIDATA JET SEARCH appears on the VCR display and Jet Navigator function works. OPTION ≥ON T160 T180 ≥T120 ≥ON ≥ON ≥OFF ≥NO...
- Page 17 ON: The power consumption is greatly ≥x35 SELECT s/r: :MENU reduced when the VCR is turned off. ≥When the VCR is set to the timer recording standby mode, the “Á” indication appears in the VCR display. OPTION DIRECT REC ON ≥OFF POWER SAVE ≥ON...
-
Page 18: To Select The Desired Language
To Select the Desired Language Select one of the four languages displayed: English, Spanish, Portuguese and French. 1 Press MENU. 2 Select LANGUAGE (IDIOMA) by pressing 3 or 4 and then press 3 Select the desired language by pressing 3 or 4. -
Page 19: Playback
Playback POWER TIMER REC SEARCH JET REW Í/ I Á VOLUME Í OSD/DISPLAY RESET/CANCEL Í PICTURE MODE AUDIO VCR/TV SEARCH INDEX ¥ MENU NAVI JET REW ∫ PROG./CHECK SPEED DIRECT REC TIMER Á ¥ DATE Note: ≥If you keep 5 (FF) or 6 (REW) pressed in step 3 or 4, search playback is activated while the button is pressed, and operation returns to normal playback when the button is released. -
Page 20: Jet Search
To Activate the Playback Off Timer Function During normal playback, press 1 (PLAY) on the VCR for more than 2 seconds to put the VCR in the Playback Off Timer mode. After that, press 1 (PLAY) on the VCR repeatedly until the desired playback duration is displayed on the VCR display. -
Page 21: Using The Remote Controller
(at least 5 sec.) Notes: ≥Repeat Playback function does not work during Play-Off Timer. ≥Press ∫ (STOP) to release the VCR from the Repeat Playback mode. To Playback in the Desired Picture Quality (Picture Mode) This function reproduces optimum playback picture from various kind of recorded tapes and contents. -
Page 22: Manual Recording
¥ DATE SEARCH JET REW PICTURE MODE Operations 1 Insert a video cassette tape 2 Press VCR/TV to select the ¥ NAVI 3 Press the I and J TIMER Á 4 Press REC ¥ (¥ REC/ 5 Press ∫ (STOP) to stop... - Page 23 To View One TV Program while Recording Another One 1 Refer to steps 1–4 of the manual recording operation. 2 Press VCR/TV to select the TV mode. 3 Select the TV program on your TV that you wish to view now. To Display the Approximate...
-
Page 24: One-Touch Recording (Otr)
Operations 1 Ready the video source which is to be recorded, and start recording. 2 Press ¥ REC/OTR on the VCR repeatedly to select the desired recording duration. ≥The VCR will automatically switch off when OTR is completed. To turn the VCR on again, press POWER Í/I (VCR Í). -
Page 25: Timer Recording
Preparations ≥Insert a video cassette tape with an intact erasure prevention tab. ≥Confirm that the TV is on and the VCR viewing channel is selected. ≥Turn on the VCR. ≥Check that the clock is set to the correct time. - Page 26 End (Auto SP/EP Change Function ) If, during a timer recording performed in the SP mode, the VCR determines that the remaining tape time is insufficient to record the program to its end, the Auto SP/EP Change function automatically changes the tape speed to EP to ensure that the whole program will be recorded.
- Page 27 ≥Every time you press SPEED, the indication changes in the following order: SP>EP>A>SP Checking a Timer Program ≥The VCR must be turned on, or the timer recording indicator “Á” lit. ≥Confirm that the TV is on and the VCR viewing channel is selected.
-
Page 28: Search Functions
Search Functions Jet Navigator This VCR can display a list of the recorded programs on the inserted video cassette on the TV screen. You can then select the desired program, and the VCR will quickly locate its beginning and start playback. - Page 29 In this case, press NAVI at a portion of the tape where a program has been recorded of this VCR. This will allow signal checking to be performed more reliably. When a signal can still not be found, [CAN NOT FIND JET...
-
Page 30: Time Stamp Function
(called Time Stamp) appears on the TV screen for approx. 5 seconds. Preparations ≥Display the VCR picture on the TV. ≥Be sure to set OSD to ON. (See page 15.) Erased ≥Press VCR/TV to select the VCR mode. -
Page 31: Vhs Index Search System
≥Load the pre-recorded video cassette. Operations 1 Press SEARCH. (This operation is performed while the VCR is off or while the VCR is in the stop mode or normal playback mode with the VCR on.) ≥The tape is rewound to the beginning, and... -
Page 32: Editing
Video movie camera Operations 1 Search for the end of the previous recording 2 Press ;/D (PAUSE/SLOW). 3 Press REC ¥ to switch the VCR from the 4 Start the new recording by pressing 5 Press ∫ (STOP) to stop recording. Notes: ≥If DIRECT REC is set to ON, connect with... -
Page 33: Other Functions
VCR display. ≥If you press a button while the Child Lock function is on, the “!" hold” indication appears in the VCR display to inform you that no operation is possible. To Cancel the Child Lock Function Hold down OK and OFF (i i i i i ) simultaneously until the “!"... -
Page 34: Before Requesting Service
Set timer recording. [VCR IS IN THE TIMER STANDBY MODE.] ‘ POWER Í/I (VCR Í) has been pressed during the timer standby mode. Press TIMER Á (TIMER REC Á) to release the VCR from the timer standby mode. - Page 35 Horizontal bars or lines run down the screen.” ‘ Tracking is not correct. Adjust the tracking. See page 33. ‘ The TV has not been tuned to the VCR. Tune the TV to the VCR. See page 10. ‘ The video heads are clogged or worn.
-
Page 36: Usage Precautions
Please read these precautions before you operate this VCR. Avoid Sudden Changes in Temperature If the VCR is suddenly moved from a cold to a warm place, dew may form on the tape and inside the VCR. Humidity and Dust... - Page 37 Plus, “Alumina” Head Cleaner further enhanced cleaning efficiency. ≥Based on in-house tests with Panasonic video cassettes. Actual head life may vary according to conditions of use, tape type, temperature, humidity, etc.
-
Page 38: Specifications
Specifications AG-1350P Power Source: Power Consumption: Power Consumption When in Standby Mode: Video Recording System: Video Heads: Tape Speed: Tape Format: Record/Playback Time: FF/REW Time: VIDEO Television System: Modulation System: Input Level: Output Level: AUDIO Input Level: Output Level: Audio Track: Video Horizontal Resolution: Signal-to-Noise Ratio: Audio Frequency Response:... - Page 40 PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY UNIT COMPANY OF MATSUSHITA ELECTRIC CORPORATION OF AMERICA Executive Office: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7000 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7621 Southeast Region: 1225 Northbrook Parkway, Ste 1-160, Suwanee, GA 30024 (770) 338-6835...
