Summary of Contents for LG SQC2

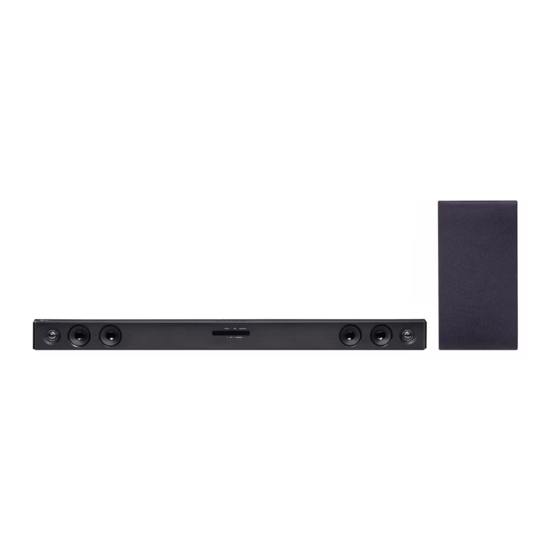

- Page 1 OWNER’S MANUAL Wireless Sound Bar Please read this manual carefully before operating your set and retain it for future reference. MODEL SQC2 (SQC2, SPQ2-W) www.lg.com Copyright © 2022 LG Electronics Inc. All Rights Reserved. 2211_Rev01...
- Page 2 Getting Started Safety Information WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled RISK OF ELECTRIC SHOCK with liquids, such as vases, should be placed on the DO NOT OPEN apparatus.
- Page 3 Getting Started CAUTION concerning the Power Cord For models using a battery The Power Plug is the disconnecting device. In This device is equipped with a portable battery or case of an emergency, the Power Plug must accumulator. remain readily accessible. Check the specification CAUTION: Risk of fire or explosion if the battery is page of this owner’...
- Page 4 Getting Started Symbols Refers to alternating current (AC). Refers to direct current (DC). Refers to class II equipment. Refers to stand-by. Refers to “ON” (power). Refers to dangerous voltage.
-
Page 5: Table Of Contents
Installing the sound bar BLUETOOTH devices – BLUETOOTH connection lock (BT lock) Using BLUETOOTH App Connecting – Install “LG Sound Bar” App onto Your BLUETOOTH Device Wireless subwoofer connection – Activate BLUETOOTH with “LG Sound Bar” Connecting to your TV –... -
Page 6: Getting Started
Indicates cautions for preventing possible damages from abuse. LG Sound Sync Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync. BLUETOOTH® Listens to music stored on your Bluetooth device. -
Page 7: Remote Control
Getting Started Remote control • • • • • • • • • • • • • • a • • • • • • • • • • • • • 1 (Power) : Switches the unit ON or OFF F : Selects the function and the input source. -
Page 8: Front Panel
Getting Started Front panel D E F A 1/! (Standby/On) F Function LED B F (Function) G Speakers Selects the function and input source. C p/o (Volume) Adjusts volume level. D Standby LED It lights up in red on standby mode. E Remote sensor Rear panel A PORT.IN : Portable input... -
Page 9: About Led Condition
About LED condition Condition Description OPTICAL LED turns on. OPTICAL function is selected. OPTICAL LED blinks twice and LG Sound Sync (Optical) function is turns on. selected. Bluetooth LED turns on. Paired with Bluetooth device. Bluetooth LED blinks. Waiting for Bluetooth connection. - Page 10 Getting Started Useful functions for using the unit Function Description To do Do this TV Remote On/ It allows you to control the Press and hold NIGHT ON on the remote volume of this unit by your TV control for about 2 seconds. remote control even by other (Page 16) The standby LED (Red) blinks once.
-
Page 11: Installing The Sound Bar
Getting Started Installing the sound bar You can hear the sound by connecting the unit to the other device : TV, Blu-ray disc player, DVD player, etc. Place the unit in front of the TV and connect it to the device you want. -
Page 12: Connecting
Connecting Wireless subwoofer 1. Press Pairing button on the rear of the wireless subwoofer. connection LED indicator of wireless subwoofer LED Color Status Green Attempting to make (Blink) connection. - The green LED on the rear of the wireless Green The connection is completed. -
Page 13: Connecting To Your Tv
OPTICAL OUT jack on the TV using an It is compatible with an LG TV that supports OPTICAL cable. LG Sound Sync. Make sure of the LG Sound Sync logo on your TV. Controllable function by LG TV's remote control :... - Page 14 Connecting With wired connection With wireless connection 1. Connect your LG TV to the unit by using an 1. Turn on the unit by pressing 1 on the remote optical cable. control or 1/! on the unit. 2. Select the input source to LG TV by pressing F button on the remote control or unit repeatedly.
-
Page 15: Optional Equipment Connection
Connecting Optional equipment PORT. IN connection connection OPTICAL IN connection Connect an optical output jack of external devices to the OPTICAL IN jack. Portable cable Optical MP3 player, etc... cable To the digital optical output jack of external device Listening to music from your portable 1. -
Page 16: Operating
Vizio y Make sure that the sound output of your TV is set to [External speaker]. y Depending on the remote control, this function may not work well. y This function does not operate on LG TV's magic remote control. -
Page 17: Auto Power On/Off
This unit automatically turns on by an input source : function, it will be automatically turned off if Optical, LG TV or Bluetooth. there is no signal for a certain period of time When you turn on your TV or an external device from the external device. -
Page 18: Auto Function Change
When LG TV signal comes in When you turn on your LG TV connected by LG Sound Sync (Wireless connection), this unit changes the function to LG TV. You can hear the sound from your TV. When connect a Portable device... -
Page 19: Using Bluetooth® Technology
Bluetooth device display y Available Devices : Smart phone, MP3 player, depending on the type of Bluetooth device. Notebook, etc.. Your unit appears as “LG SQC2 (XX)” . y Bluetooth 4.0 technology Note y Codec : SBC y XX means the last two digits of Bluetooth address. -
Page 20: Bluetooth Connection Lock (Bt Lock)
You can limit Bluetooth connection to only the Bluetooth device as close as possible and Bluetooth and LG TV function to prevent unintended keep the distance. Bluetooth connection. However it may not work well in the cases... -
Page 21: Using Bluetooth App
Only Android OS is available to use “LG Sound Store)” icon. Bar” app with this unit. 2. In the search bar, type in the “LG Sound Bar” and y Additional data charges may apply according search it. to your internet environment or mobile plan. - Page 22 Operating Note y “LG Sound Bar” app will be available in the software version as follow; - Android O/S : Ver 5.0 (or later) y If you use “LG Sound Bar” app for operation, there would be some differences between “LG Sound Bar”...
-
Page 23: Sound Adjustment
Operating Sound adjustment Adjust the woofer level settings You can adjust the sound level of woofer by pressing WOOFER LEVEL o / p button. Setting the surround mode Note When the subwoofer level reaches maximum This system has a number of pre-set surround sound or minimum, standby LED (Red) on the main fields. -
Page 24: Troubleshooting
Depending on the connected device, this function may not operate. work. y Check whether your LG TV supports LG Sound Sync. LG Sound Sync does y Check connection of LG Sound Sync (Optical or wireless). not work. -
Page 25: Notes To Use Wireless
Troubleshooting PROBLEM CAUSE & CORRECTION Check the details below and adjust the unit according to them. y Change Audio DRC setting on connected device setup menu to [OFF] state. y With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on When you feel the TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM]. -
Page 26: Appendix
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of Manufactured under license from Dolby their respective owners. -
Page 27: Specifications
Appendix Specifications General Power requirements Refer to main label. Refer to main label. Power consumption Networked standby : 0.5 W Dimensions (W x H x D) Approx. 950.0 mm x 71.0 mm x 47.0 mm Operating temperature 5 °C to 35 °C Operating humidity 5 % to 90 % Available Digital Input Audio... -
Page 28: Maintenance
Appendix Maintenance Handling the unit When shipping the unit Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory. Keeping the exterior surfaces clean y Do not use volatile liquids such as insecticide spray near the unit.
