CD RECEIVER
KDC-MP242U/MP342U
KDC-MP443U/MP5043U
KDC-MP543U
SERVICE MANUAL

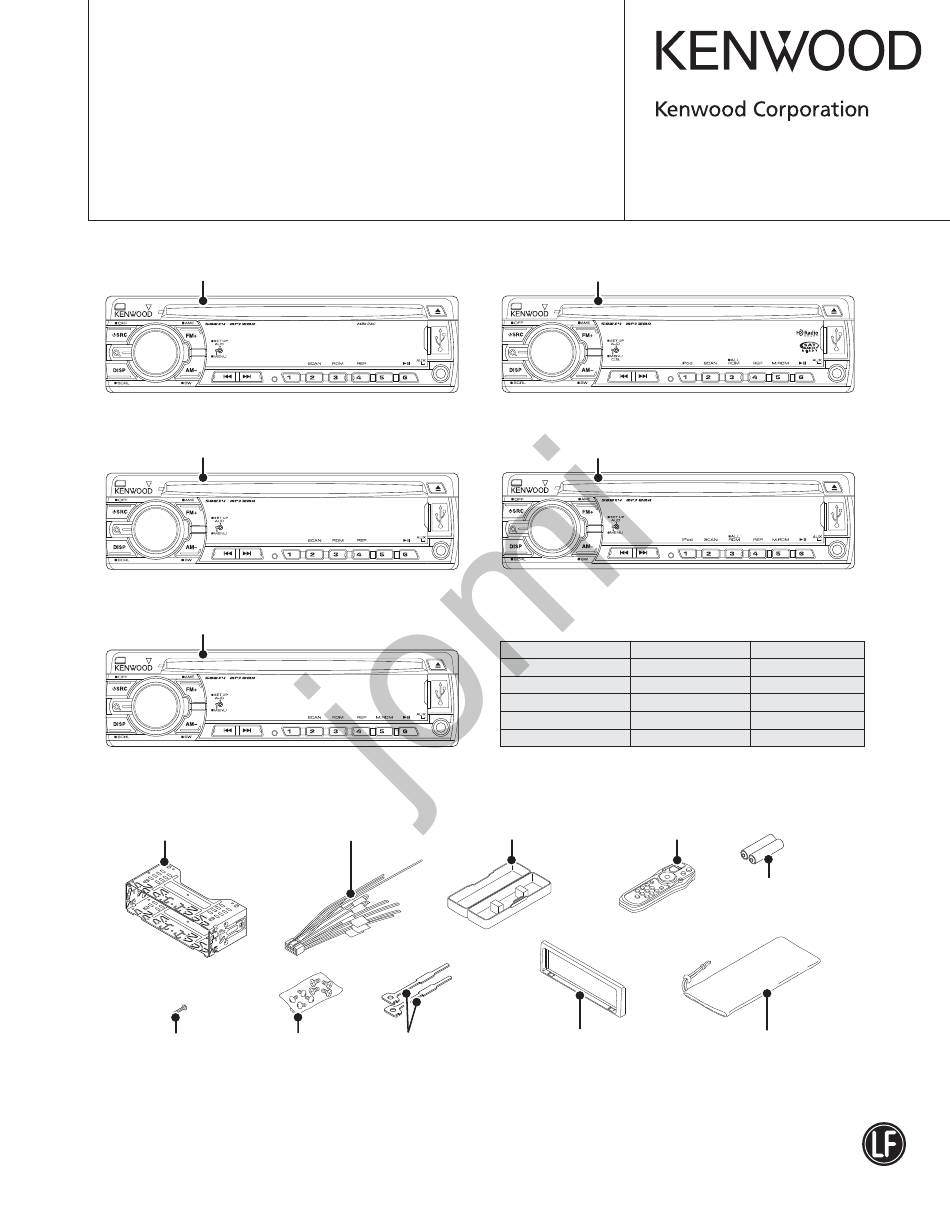

Panel assy
KDC-MP242U (A64-4667-02)
Panel assy
KDC-MP443U (A64-4688-02)

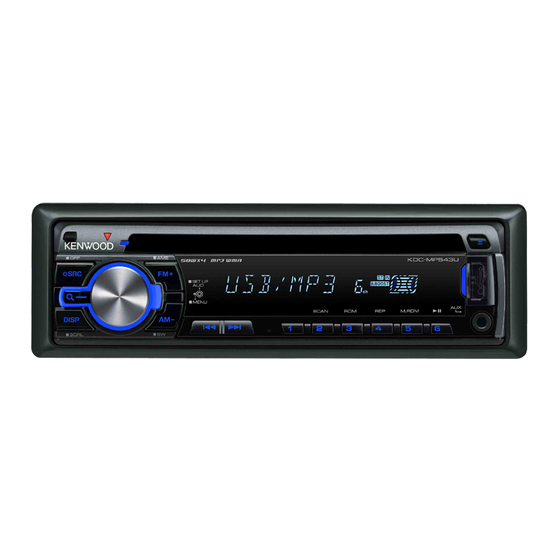

Panel assy
KDC-MP543U (A64-4669-02)
Mounting hardware assy
(J22-0789-03)
Screw (4x16)
Screw set
(N84-4016-48)
(N99-1757-15)
* Depends on the model. Refer to the parts list.
KDC-MP242U
KDC-MP443U
KDC-MP543U
DC cord
* Plastic cabinet assy
(A02-2757-13)
(E30-6798-05)
Lever
(D10-7049-04) x2
© 2008-11 PRINTED IN JA PAN
B53-0687-00 ( N ) 313
Panel assy
KDC-MP342U (A64-4666-02)
Panel assy
KDC-MP5043U (A64-4668-02)
TDF SPARE-PANEL
MAIN UNIT NAME
TDF PARTS No.
KDC-MP242U
Y33-3030-11
KDC-MP342U
Y33-3030-10
KDC-MP443U
Y33-3030-23
KDC-MP5043U
Y33-3030-21
KDC-MP543U
Y33-3030-22
* Remote controller assy (RC-5xx)
(A70-xxxx-xx)
Escutcheon
(B07-3271-01)
This product uses Lead Free solder.
RoHS
This product complies with the
KDC-MP342U
KDC-MP5043U
TDF NAME
TDF-MP92DCR
TDF-MP93D
TDF-MP443U
TDF-MP5043U
TDF-MP543U
Battery
(Not supplied)
* Carrying case
(W01-1710-05)
directive for the European market.
