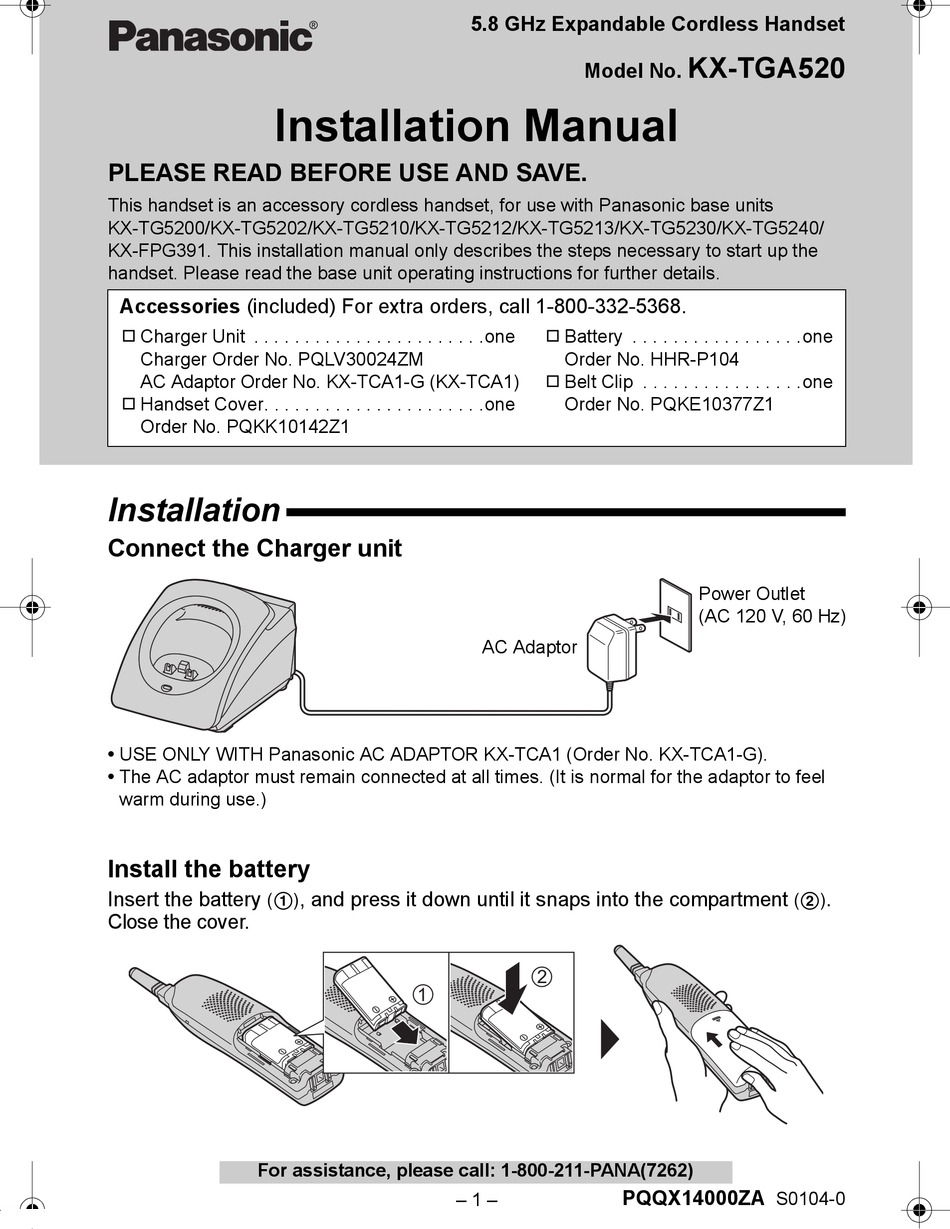

PLEASE READ BEFORE USE AND SAVE.
This handset is an accessory cordless handset, for use with Panasonic base units
KX-TG5200/KX-TG5202/KX-TG5210/KX-TG5212/KX-TG5213/KX-TG5230/KX-TG5240/
KX-FPG391. This installation manual only describes the steps necessary to start up the
handset. Please read the base unit operating instructions for further details.
Accessories (included) For extra orders, call 1-800-332-5368.
Charger Unit . . . . . . . . . . . . . . . . . . . . . . .one
A
Charger Order No. PQLV30024ZM
AC Adaptor Order No. KX-TCA1-G (KX-TCA1)
Handset Cover. . . . . . . . . . . . . . . . . . . . . .one
A
Order No. PQKK10142Z1
Installation
Connect the Charger unit
• USE ONLY WITH Panasonic AC ADAPTOR KX-TCA1 (Order No. KX-TCA1-G).
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel
warm during use.)

Install the battery

Insert the battery
Close the cover.
For assistance, please call: 1-800-211-PANA(7262)

Installation Manual

, and press it down until it snaps into the compartment
(1)
1
5.8 GHz Expandable Cordless Handset
Model No.
Battery . . . . . . . . . . . . . . . . .one
A
Order No. HHR-P104
Belt Clip . . . . . . . . . . . . . . . .one
A
Order No. PQKE10377Z1
AC Adaptor
2
– 1 –
KX-TGA520
Power Outlet
(AC 120 V, 60 Hz)
PQQX14000ZA
.
(2)
S0104-0
