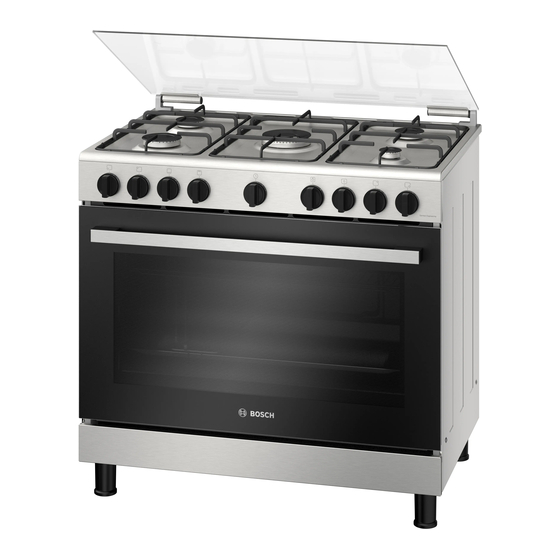

- Page 1 Free standing cooker HGV1D0V50M User manual and installation instructions [en]...
-
Page 2: Table Of Contents
en Safety Table of contents Warning: The appliance is only used for cook- ing. Do not use the appliance for other pur- poses, e.g. for heating up rooms. INFORMATION FOR USE Only allow a trained professional to connect Safety .............. 2 the appliance and to convert the appliance to a different type of gas. - Page 3 Safety en Children must not perform cleaning or user WARNING ‒ Risk of suffocation! maintenance unless they are at least 15 years Using the gas cooking appliance leads to a old and are being supervised. build-up of heat, moisture and combustion Keep children under the age of 8 years away products in the room where the appliance is from the appliance and power cable.
-
Page 4: Safety
en Safety Opening the appliance door creates a WARNING ‒ Risk of electric shock! draught. Greaseproof paper may come into Incorrect repairs are dangerous. contact with the heating element and catch ▶ Repairs to the appliance should only be fire. carried out by trained specialist staff. ▶... - Page 5 Safety en If there is water in the cooking compartment WARNING ‒ Risk of injury! when it is hot, this may create hot steam. Faults or damage to the appliance and re- ▶ Never pour water into the cooking compart- pairs that have not been carried out correctly ment when the cooking compartment is are dangerous.
-
Page 6: Preventing Material Damage
en Preventing material damage 2 Preventing material damage Sitting or placing objects on the appliance door may 2.1 Oven area damage it. Follow the corresponding instructions when using the Do not place or hang objects on the appliance door. ▶ oven. Do not place cookware or accessories on the appli- ▶... -
Page 7: Environmental Protection And Saving En- Ergy
Environmental protection and saving energy en Penetrating liquid may cause damage to the appliance. Do not hold and move the appliance at the gas pipe The area around the appliance must be clean and (collector). Damage to the gas pipe may lead to gas ▶... - Page 8 en Installation and connection Lift lids as infrequently as possible. Use cookware that is suitable for the quantity of food. ¡ When you lift the lid, a lot of energy escapes. ¡ Large items of cookware containing little food need more energy to heat up. Use a glass lid.
-
Page 9: Installation And Connection
Installation and connection en Find out which gas type and which gas pressure CAUTION ‒ ! your local gas supply network uses before installing The power cable may be damaged. The damage to the the appliance, and ensure that the gas setting for power cable may lead to a dangerous situation. - Page 10 en Installation and connection 4.4 Appliance categories Country Category P (mbar) RU, BY, KZ, AM, KG II 2H3B/P 2000 тта–3000 тта II 2H3B/P 20 - 28 - 30 I 3+ 28 - 30/37 AE, LB, JO II 2H3B/P 20 - 28 - 30 II 2H3+ 20 - 28 - 30/37 Adjacent units...
-
Page 11: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Your appliance Explanation Control panel You can find an overview of the parts of your appliance here. Appliance door Note: On certain models, specific details such as col- Plinth drawer our and shape may differ from those pictured. - Page 12 en Familiarising yourself with your appliance Symbol Type of heating What it's used for and how it works Bottom heating Final baking or cooking food in a bain marie. 140-255 °C The heat is emitted from below. Gas grill Grill flat items such as steak, sausages, or toast. Large flame The whole area below the grill element becomes hot.
- Page 13 Familiarising yourself with your appliance en Multi-function control knob Position Function Explanation Light Switch on the oven light. and Fan position and defrosting Switch on the fan and defrosting function. Gas hob selector The gas hotplate selector is used to set the heat set- ting for the hotplates.
-
Page 14: Accessories
Accessories vary from one appliance to another. When Tray Slide the tray in with the sloping edge purchasing accessories, always quote the exact E.g. -
Page 15: Before Using For The First Time
Before using for the first time en 7 Before using for the first time Configure the settings for initial start-up. Clean the ap- Type of heat- Lower oven gas burner/gas grill pliance and accessories. Temperature Maximum 7.1 Cleaning the appliance before using it Cooking time 30 minutes for the first time... - Page 16 en Operating the hotplate 8.2 Tips for using a wok ¡ Never use multiple burners to heat up Note the following information to ensure the safe use of cookware. The build- a wok. up of heat that results from this will damage WARNING ‒ Risk of injury! the appliance.
-
Page 17: 9.3 Operating The Hotplate
Operating the hotplate en 9.2 Important information about the gas hob ATTENTION! The burner may not ignite or the burner flame is not Follow these instructions when using your gas hob. even. ¡ A slight whistling when operating the burner is nor- Ensure that the hotplate burners are clean and dry. -
Page 18: Basic Operation
en Basic operation ¡ ** Optional. Available for some appliances. Depend- Note: Information ing on the appliance type. (For frying on the wok ¡ * If you are using a pan with a lid, turn the flame burner, we recommend that you use a wok.) down as soon as the food starts to boil. - Page 19 Time-setting options en To activate the safety pilot, press and hold the func- To activate the safety pilot, press and hold the se- tion selector for 10 seconds. lector for 10 seconds. a This activates the safety pilot. If the gas flame goes a This activates the safety pilot.
-
Page 20: Rails
en Cleaning and servicing Surface Suitable cleaning agents Information Enamel, plastic, ¡ Hot soapy water Do not use a glass cleaning product or a glass scraper. painted, and screen-printed surfaces E.g. control panel Knobs ¡ Hot soapy water Clean with a dish cloth and dry with a soft cloth. Do not remove or scrub. - Page 21 Cleaning and servicing en 12.2 Cleaning the appliance 12.6 Using cleaning gel for burnt-on dirt In order to avoid damaging the appliance, clean your For hard-to-remove, burnt-on dirt, you can order a appliance only as specified, and using suitable clean- cleaning gel from our online shop, from your specialist ing products.
- Page 22 en Rails 13 Rails To clean the rails and cooking compartment thor- ATTENTION! oughly, you can remove the shelf supports. Incorrect assembly Never move the rail before the two hooks are se- ▶ cured fully in the upper holes. Otherwise the 13.1 Unhooking the rails enamelled coating may be damaged and break.
-
Page 23: Appliance Door
Appliance door en 14 Appliance door It is normally sufficient if you clean the outside of the Open the locking levers on the left- and right-hand appliance door. If the appliance door is very dirty on hinges. the inside and outside, you can remove the appliance door and clean it. - Page 24 en Appliance door To remove the upper cover of the oven door, press Note: Only use the oven once the glass panes have in the tabs on the left and right using your fingers. been correctly fitted. Pull out and remove the cover. 14.5 Attaching the appliance door Reattach the oven door in the reverse sequence to re- moval.
-
Page 25: Top Cover
Top cover en 15 Top cover For cleaning, remove the top cover. Take hold of the sides of the cover with both hands and pull the cover upwards. 15.1 Removing the upper cover WARNING ‒ Risk of injury! A scratched upper glass cover may break and frag- ment. - Page 26 en Troubleshooting Fault Cause and troubleshooting The appliance is not The circuit breaker is faulty. working. Check the circuit breaker in the fuse box. ▶ There has been a power cut. Check whether the lighting in your kitchen or other appliances are working. ▶...
-
Page 27: Transportation And Disposal
Transportation and disposal en Turn the glass cover anti-clockwise. Replace the oven lamp with the same type of lamp. Screw in the glass cover. Remove the tea towel from the cooking compart- ment. Connect the appliance to the power supply. 17 Transportation and disposal You can find out here how to prepare your appliance 17.2 Transporting the appliance for transportation. - Page 28 en How it works 19 How it works Here, you can find the ideal settings for various types ¡ The setting values apply to food placed in the cook- of food as well as the best accessories and cookware. ing compartment while the cooking compartment is These recommendations are perfectly tailored to your still cold.
-
Page 29: How It Works
How it works en Topic Topic You want to bake accord- Use similar items in the Use bakeware made of ¡ The baking tin must be ing to your own recipe. baking tables as a guide. silicone, glass, plastic or heat-resistant up to ceramic. - Page 30 en How it works 19.5 Bread and bread rolls ATTENTION! When the cooking compartment is hot, any water in- The values for bread dough apply to both dough side it will create steam. The change in temperature placed on a tray and dough placed in a loaf tin. may cause damage.
- Page 31 How it works en Recommended settings Bakes and gratins Meal Accessory/cookware Shelf posi- Type of Temperature Cooking tion heating in °C time, minutes Pasta bake Ovenproof dish 40-50 and Goulash Ovenproof dish 60-70 and Meatballs with potatoes, in sauce Ovenproof dish 70-80 Potato gratin, raw ingredients, 4 cm...
-
Page 32: General Information
en How it works Stir 30 g yoghurt into the milk. 19.9 Yoghurt Pour the mixture into small containers, e.g. small You can also use your appliance to make your own jars with lids. yoghurt. Cover the containers with film, e.g. cling film. Place the containers on the cooking compartment Making yoghurt floor. - Page 33 Installation instructions en Recommended settings Cakes in tins Meal Accessory/cookware Shelf posi- Type of Temperature Cooking tion heating in °C time, minutes Sponge cake 35-40 Place the glass cookware side-by-side in the centre of the wire rack. Use heat-resistant glass cookware only. Never set hot glass cookware down on a cold or wet surface after taking it out of the oven.
- Page 34 en Installation instructions Note: Use a torque wrench when connecting the ap- ¡ After working on the gas connection, al- pliance. ways check that the connection is not leak- Secure the gas connecting piece to the appliance ing. The manufacturer accepts no respons- using a 22 mm spanner and place the blind plug ibility for a gas leak at a manipulated gas onto the connecting piece using a 24 mm spanner.
- Page 35 Installation instructions en Secure the gas connecting piece to the appliance Secure the connecting piece using a 24 mm span- using a 22 mm spanner and place the connecting ner. Use a 24 mm spanner to place the threaded fit- piece into the connecting piece using a 24 mm ting of the gas pipe or safety gas hose on the con- spanner.
- Page 36 en Installation instructions Fit the safety gas hose and use a pipe union or Note: cable clamp to tighten it securely. The accessories supplied may differ depending on the appliance model. ¡ The gas connecting piece may vary depending on the gas type and the country-specific regulations. ¡...
- Page 37 Installation instructions en If your appliance features a wok burner with side ac- For ovens – converting the appliance from cess, remove the burner nozzle as shown below. natural gas to liquid gas If the appliance was set to natural gas at the time of delivery (factory setting) (NG: G20, G25) and is now being converted to liquid gas for the first time (LPG: G30, G31):...
- Page 38 en Installation instructions Remove the pan support grids or the pan support Remove the screws from the corners of the front racks and the burner parts. panel. If burner connection screws are present on the hob, Remove the screws that become visible after you re- remove all of these.
- Page 39 Installation instructions en Insert the screws that were removed from the front At this stage, it is important to test for leaks. You ‒ panel. can find additional information about this in the Insert the screws into the corners of the front section entitled ‒...
- Page 40 en Installation instructions Press on the tap spindle and turn it anti-clockwise. Set the gas cooker knob to the small flame setting. Gas therefore comes to the nozzle. Check whether the flame safety system is working by keeping the flame at the "small flame" setting for a If dispersions and bubbles occur on the foamy sur- 1 minute.
- Page 41 Installation instructions en Nozzle (mm) Bypass Burner type Power (kW) Min. Max. consump- power (kW) tion G30 (g/h) 0.65 0.40 Standard-output burner 1.75 ≤ 0.9 127 (g/h) 0.50 0.32 Economy burner ≤ 0.55 73 (g/h) 1.00 0.59 Wok burner ≤ 1.7 291 (g/h) 0.95/0.44 0.57/0.30 Dual-flame wok burner...
- Page 44 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory.
