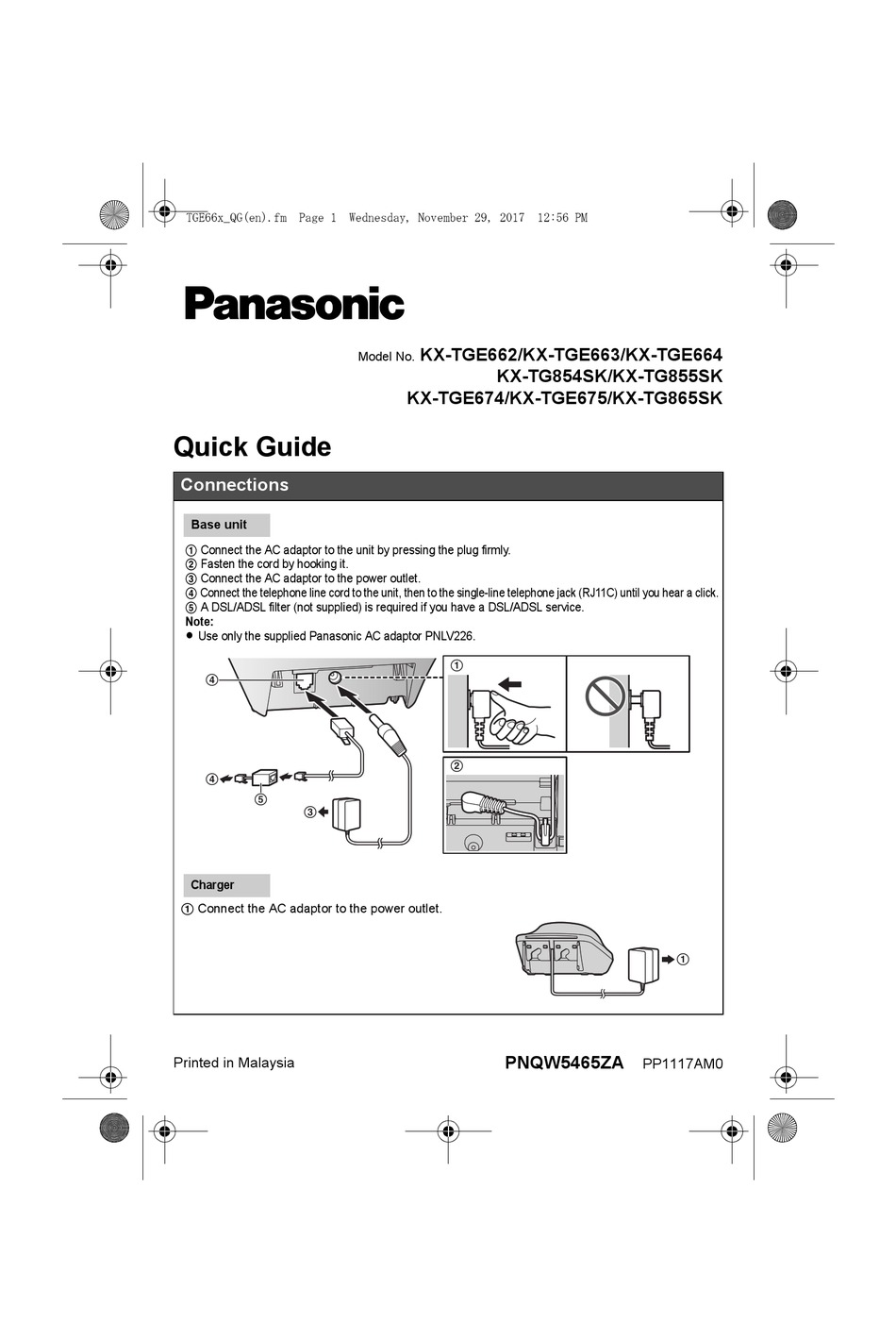

TGE66x_QG(en).fm Page 1 Wednesday, November 29, 2017 12:56 PM
Quick Guide
Connections
Base unit
1 Connect the AC adaptor to the unit by pressing the plug firmly.
2 Fasten the cord by hooking it.
3 Connect the AC adaptor to the power outlet.
4 Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click.
5 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
Note:
L Use only the supplied Panasonic AC adaptor PNLV226.
4
4
5
3
Charger
1 Connect the AC adaptor to the power outlet.
Printed in Malaysia
KX-TGE662/KX-TGE663/KX-TGE664
Model No.
KX-TG854SK/KX-TG855SK
KX-TGE674/KX-TGE675/KX-TG865SK
1
2
PNQW5465ZA
1
PP1117AM0
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TGE662
Summary of Contents for Panasonic KX-TGE662
- Page 1 4 Connect the telephone line cord to the unit, then to the single-line telephone jack (RJ11C) until you hear a click. 5 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: L Use only the supplied Panasonic AC adaptor PNLV226. Charger 1 Connect the AC adaptor to the power outlet.
- Page 2 TGE66x_QG(en).fm Page 2 Wednesday, November 29, 2017 12:56 PM Battery installation/Battery charging Charge for about 7 hours. Note: L USE ONLY rechargeable Ni-MH batteries AAA (R03) size ( L Do NOT use alkaline/manganese/Ni-Cd batteries. L Confirm correct polarities (S, T). L Follow the directions on the display to set up the unit.
-
Page 3: Operating Tips
TGE66x_QG(en).fm Page 3 Wednesday, November 29, 2017 12:56 PM Operating tips Soft keys By pressing a soft key, you can select the feature shown directly above it on the display. Pay attention to the display to see what functions the soft keys are assigned during operation. -
Page 4: Link To Cell
L The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Panasonic Corporation is under license. L All other trademarks identified herein are the property of their respective owners. - Page 5 TGE66x_QG(en).fm Page 5 Wednesday, November 29, 2017 12:56 PM Link to cell Base unit: CELL indicators Status Meaning A cellular phone is connected. Ready to make/receive cellular calls. − The cellular line is in use. Flashing − Phonebook entries are being copied from a cellular phone. −...
- Page 6 TGE66x_QG(en).fm Page 6 Wednesday, November 29, 2017 12:56 PM Link to cell Connecting/disconnecting the cellular phone (Handset) Auto connection to the Bluetooth devices (cellular phones) The unit connects to the Bluetooth devices at regular intervals if the connection is lost. To change the interval (default: “1 min”), see the operating instructions.
-
Page 7: Basic Operations
TGE66x_QG(en).fm Page 7 Wednesday, November 29, 2017 12:56 PM Basic operations Making/Answering calls (Handset) Making cellular calls Dial the phone number. s {CELL} L When the cellular line only mode is set, you can also press {C}/{s} instead of {CELL}. L When only 1 cellular phone is paired, the unit starts dialing. - Page 8 TGE66x_QG(en).fm Page 8 Wednesday, November 29, 2017 12:56 PM Basic operations Phonebook (Handset) Adding entries {<} k s {MENU} {r}: “Add new entry” s {SELECT} Enter the party’s name (16 characters max.). s {OK} Enter the party’s phone number (24 digits max.). s {OK} {r}: Select the desired group.
-
Page 9: Using Bluetooth Devices
TGE66x_QG(en).fm Page 9 Wednesday, November 29, 2017 12:56 PM Using Bluetooth devices Copying phonebook entries from a Bluetooth cellular phone (phonebook transfer) You can copy phonebook entries from the paired cellular phones or other cellular phones (not paired) to the unit’s phonebook. Handset: {MENU}(618 Handset: To copy from paired cellular phones:... - Page 10 TGE66x_QG(en).fm Page 10 Wednesday, November 29, 2017 12:56 PM Using Bluetooth devices Using a Bluetooth headset (optional) By pairing a Bluetooth headset to the base unit, you can enjoy hands-free conversations when talking on landline calls. L Only 1 Bluetooth device can be used with the unit at a time. *1 You cannot use a Bluetooth headset to talk on a cellular line.
-
Page 11: Frequently Asked Questions
AC adaptor to the base unit. L The handset is not registered to the base unit. Register it. Handset: {MENU}(13) Handset: {r}: “Panasonic DECT” s {SELECT} Base unit: Press and hold {LOCATOR} or {HANDSET LOCATOR} for about 5 seconds. Handset: Press {OK}, then wait until a long beep sounds. - Page 12 TGE66x_QG(en).fm Page 12 Wednesday, November 29, 2017 12:56 PM Notes – 12 –...
