Sealey MPS2 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY

DO NOT sit on the motorcycle on the stand.

DO NOT start the motorcycle on the stand.

DO NOT mount the stand on tarmacadam, as the surface may be unstable.

DO NOT use the stand for a purpose it is not designed to perform.

DO NOT use the stand when you are tired or under the influence of alcohol, drugs or intoxicating medication.

DO NOT allow untrained persons to operate the stand.
DO NOT make any modifications to the stand.


DO NOT operate the stand if parts are missing or damaged.
 Maintain the stand in a good clean condition for the best and safest performance.
Locate the stand and motorcycle in a suitable area. Keep area clean, tidy and free from unrelated materials and ensure that there is

adequate lighting. Also ensure that the floor/ground is level and strong enough (preferably concrete) to take the weight of the stand
and the motorcycle.
Maintain correct balance and footing whilst positioning the motorcycle on the stand, do not over reach.

 Ensure that the floor is not slippery, wear non-slip footwear.
 Keep children and unauthorised persons away from the work area.
Always support the motorcycle to prevent falling sideways (stabiliser).

 Before removing a motorcycle from the stand, ensure that there are no obstructions or persons around the motorcycle.
 When not in use, store in a safe, dry, childproof location.
2. INTRODUCTION

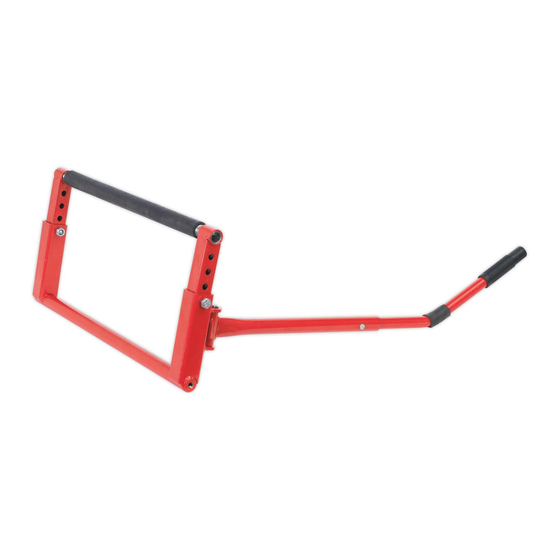

Lifts and stabilises front or back end of hard and soft tail cruiser style bikes quickly and safely. Features adjustable arm height and soft PVC
sheath for protection to underside of bike. Design of stand ensures rim and tyre protection and once bike is supported, allows easy removal of
front or rear wheel.
3. SPECIFICATION
Model No: .......................................................................MPS2
Minimum/Maximum Height: ....................................200/275mm
Maximum Lift Capacity: ...................................................180kg
Note: This stand is only intended to lift part of the total weight of the motorcycle.
4. ASSEMBLY
Refer to fig.1.
4.1. Visually inspect and measure the motorcycle to be lifted. Check that there is nothing underneath that will be damaged when it is lifted up.
4.2. Assemble the handle, ensure that it is cranked downwards.
© Jack Sealey Limited
INSTRUCTIONS FOR:
TWO ARM CENTRE STAND
MPS2
MODEL NO:
Original Language Version
fig.1
MPS2 Issue: 1 - 03/06/14
