Replacing Fuse - Yamaha FL250A Owner's Manual

Trouble Recovery
TIP:
When you are maneuvering at low speed,
such as near a dock, it is recommended that
both engines be running with one in neutral
gear if possible.
EMU29474

Replacing fuse

If a fuse has blown, remove the electrical cov-
er, open the fuse holder and remove the fuse
with a fuse puller (if equipped). Replace it with
a spare one of the proper amperage.
EWM00631
WARNING
Substituting an incorrect fuse or a piece of
wire could allow excessive current flow.
This could cause electric system damage
and a fire hazard.
Consult your Yamaha dealer if the new fuse
immediately blows again.
85

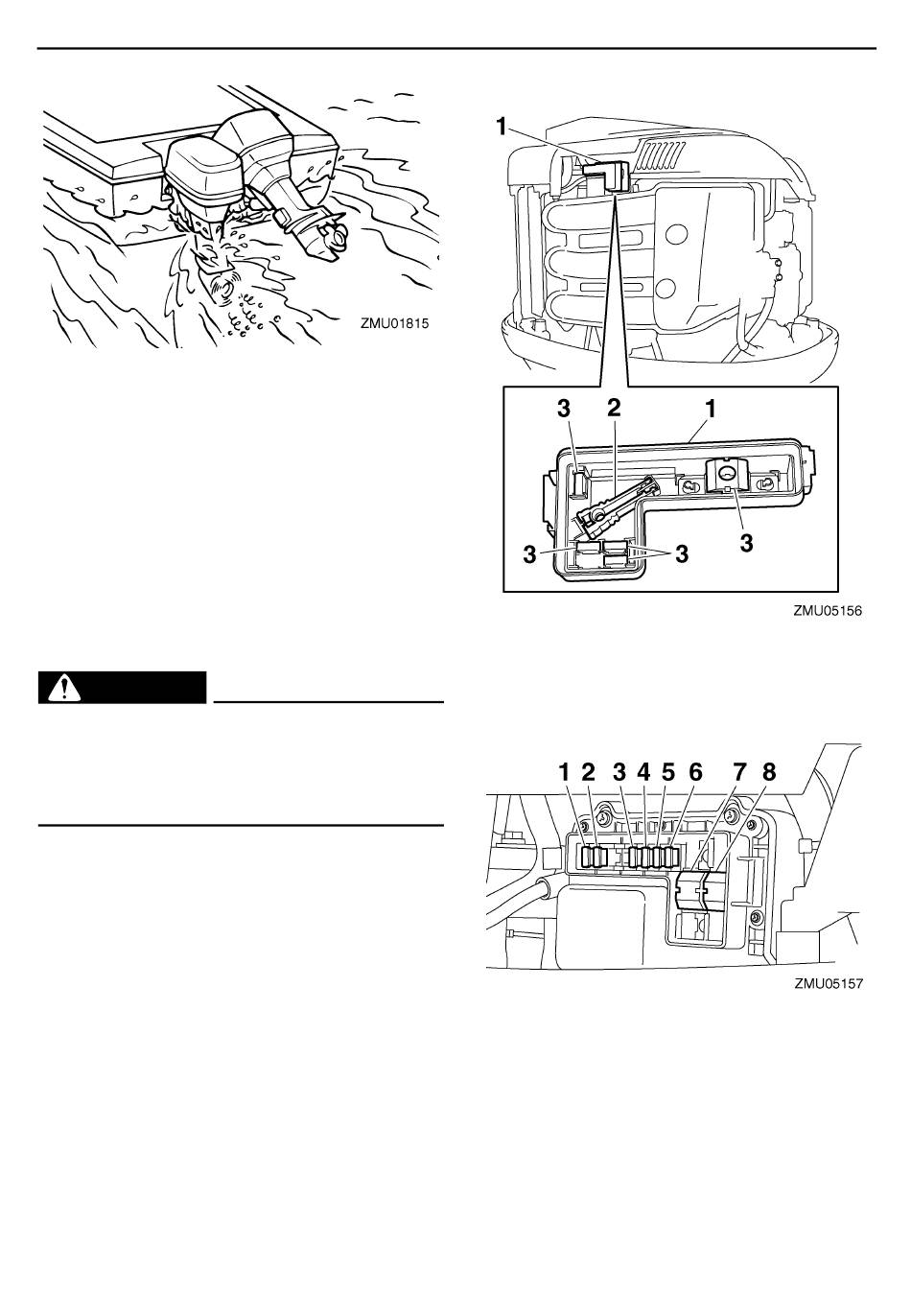

1. Electrical cover
2. Fuse puller
3. Spare fuse (10 A, 15 A, 20 A, 30 A, 60 A)
1. Electric throttle valve / ECM (Electronic con-
trol module) fuse (10 A)
2. Ignition coil / Fuel injector / Variable cam-
shaft timing / ECM (Electronic Control Mod-
ule) fuse (30 A)
3. Main switch / PTT switch fuse (20 A)
4. Starter relay fuse (30 A)
5. Fuel feed pump fuse (10 A)
6. Fuel pump fuse (15 A)
