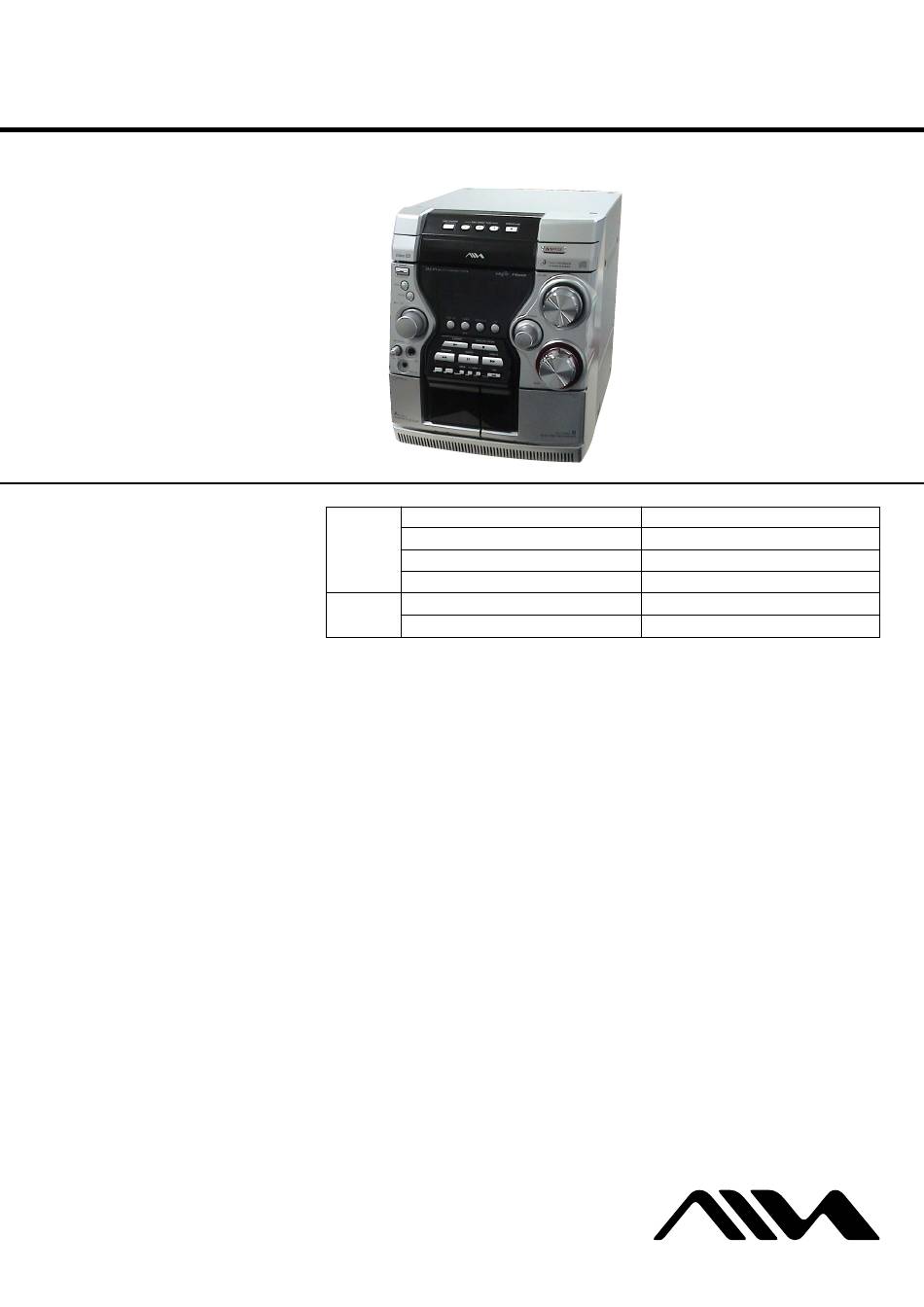

SERVICE MANUAL
Ver 1.1 2004.01
CX-JV1 is the tuner, amplifier, cassette deck and
disc player section in JAX-V1.
TUNER
FM tuning range
87.5 MHz to 108 MHz
FM usable sensitivity (IHF)
13.2 dBf
FM antenna terminal
75 ohms (unbalanced)
AM tuning range
Middle Eastern model:
531 kHz to 1602 kHz (9 kHz step)
Other models:
530 kHz to 1710 kHz (10 kHz step)
530 kHz to 1602 kHz (9 kHz step)
350 µV/m
AM usable sensitivity
AM antenna
Loop antenna
AMPLIFIER
Power output
Rated: 36 W + 36 W (1 kHz, T.H.D.
1 %, 6 ohms)
Reference: 45 W + 45 W (1 kHz,
T.H.D. 10 %, 6 ohms)
Total harmonic distortion
0.08 % (20 W, 1 kHz, 6 ohms, DIN AUDIO)
Input
VIDEO/AUX: 1.2 V
Outputs
FRONT SPEAKER: 6 ohms or more
PHONES: 32 ohms or more
REC OUT: 0.775 V
VIDEO OUT: 1 Vp-p (75 ohms)
CASSETTE DECK
Track format
4 tracks, 2 channels stereo
Frequency response
50 Hz – 8 kHz
Recording system
AC bias
Heads
Deck A: playback x 1
Deck B: playback x 1
DISC PLAYER
Laser
Semiconductor laser ( = 795 nm)
Emission duration: continuous
Sony Corporation
9-877-388-02
2004A05-1
Home Audio Company
C 2004.01
Published by Sony Engineering Corporation
Model Name Using Similar Mechanism
CD Mechanism Type
CD
Section
Base Unit Name
Optical Pick-up Name
Model Name Using Similar Mechanism
Tape deck
Section
Tape Transport Mechanism Type
SPECIFICATIONS
D/A converter
Signal-to-noise ratio
Harmonic distortion
Video signal
Video data
Audio data
GENERAL
Power requirements
Saudi Arabia model:
Thai model:
Other models:
Power consumption
Power consumption
in standby mode
Dimensions (W x H x D)
Weight
Specifications and external appearance are subject to change
without notice.
COPYRIGHT
Check copyright laws relevant to recordings from discs, tuner or tape for the
country where the unit is to be used.
Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897.
CX-JV1
NEW
CDM74B-30BD61S
BU-30BD61S
OP Assy (A-MAX.3)
NEW
CWM43FF13, CWM43FF25
1 bit dual
90 dB (1 kHz, 0 dB)
0.05 % (1 kHz, 0 dB)
NTSC/PAL color system (selectable)
MPEG1
MPEG1, Layer2 (VIDEO CD)
MPEG1, Layer3 (MP3-CD)
120-127 V/220 V AC (Switchable),
50 Hz/60 Hz
220 V AC, 50 Hz/60 Hz
110-120 V/220-240 V AC (Switchable),
50 Hz/60 Hz
85 W
With ECO mode on: 0.25 W
With ECO mode off: 25 W
280 x 330 x 392.5 mm
6.8 kg
COMPACT DISC DECK RECEIVER
E Model
