HP E5412 ZL Datasheet

Hp e5412 zl: specifications
Hide thumbs Also See for E5412 ZL:

Advertisement

Table of Contents

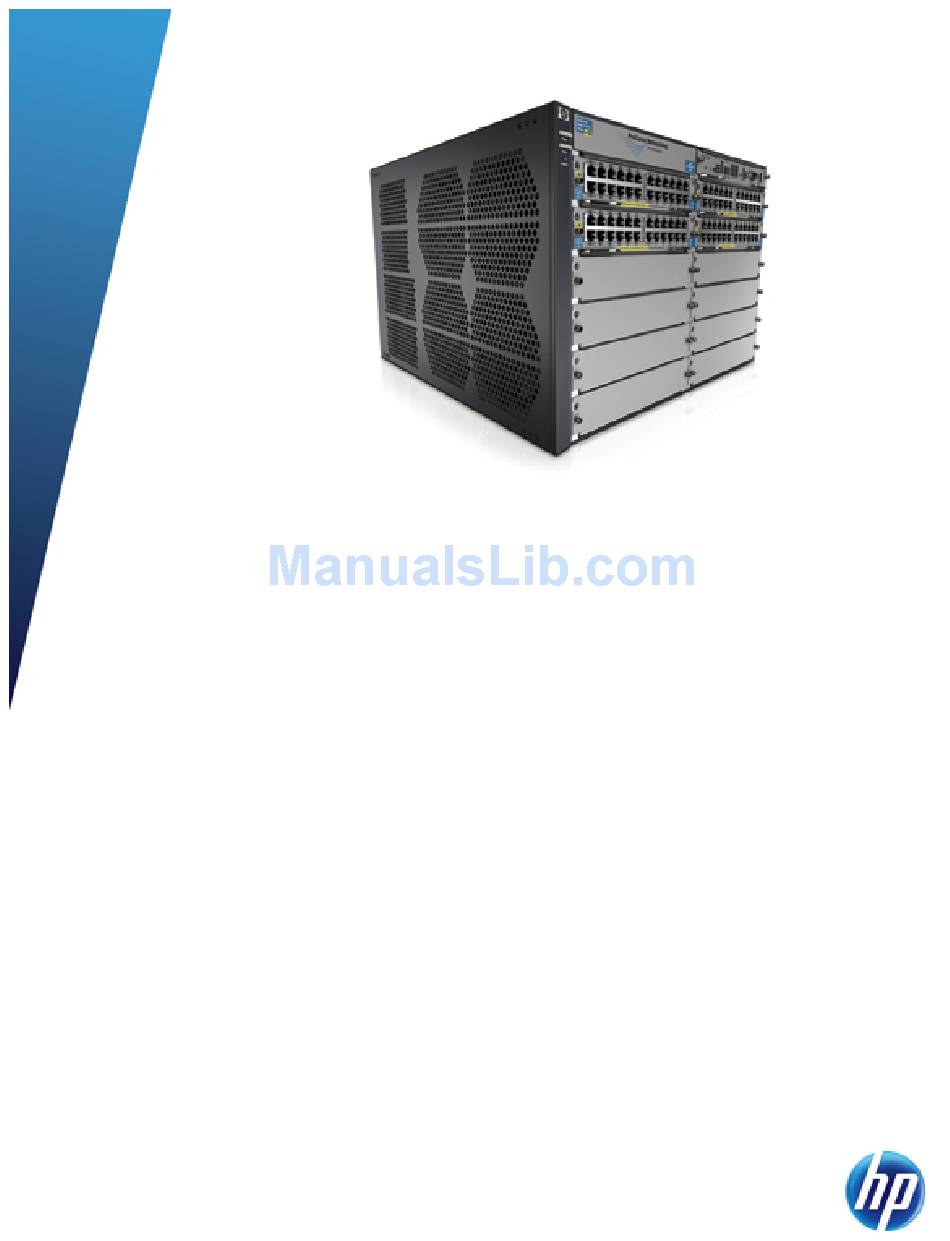

HP E5400 zl Switch Series
Data sheet

Product overview

The HP E5400 zl Switch Series consists of advanced
intelligent switches in the HP E-Series product-line. The
E5400 zl series includes 6-slot and 12-slot chassis and
associated zl modules and bundles. The foundation
for all of these switches is a purpose-built,
programmable ProVision ASIC that allows the most
demanding networking features, such as quality of
service (QoS) and security, to be implemented in a
scalable yet granular fashion. With 10/100, Gigabit
Ethernet and 10 Gigabit Ethernet interfaces, choice of
PoE+ & Non-PoE, integrated layer 3 features and HP
allianceONE Solutions, the E5400 zl switches offer
excellent investment protection, flexibility, and
scalability, as well as ease of deployment, operation,
and maintenance.

Key features

Advanced access layer, distribution & Core
Integrated L2 to L4 intelligent edge feature set
Enterprise-class performance and security
HP Alliance ONE integrated
Scalable 10/100/1000 and 10 GbE connectivity

Advertisement

Table of Contents
loading

Related Manuals for HP E5412 ZL

Summary of Contents for HP E5412 ZL

  • Page 1: Product Overview

    HP E5400 zl Switch Series Data sheet Product overview The HP E5400 zl Switch Series consists of advanced intelligent switches in the HP E-Series product-line. The E5400 zl series includes 6-slot and 12-slot chassis and associated zl modules and bundles. The foundation...

  • Page 2: Features And Benefits

    • Management simplicity: includes HP E-Series common networking features and CLI implementation (common across HP E5400/E8200/E6200/E6600/E3500 switches) •...

  • Page 3: Resiliency And High Availability

    • IEEE 802.3ad Link Aggregation Control Protocol (LACP) and HP port trunking: support up to 60 trunks, each with up to 8 links (ports) per trunk • Optional redundant power supply (HP...

  • Page 4: Warranty And Support

    *Hardware warranty replacement for as long as you own the product, with next business day advance replacement (available in most countries) with a five-year hardware warranty replacement for the disk drive included with HP AllianceONE Services zl Module, HP Threat Management Services zl Module, HP PCM+ Agent with AllianceONE Services zl Module, and HP E-MSM765 zl Mobility Controller.
  • Page 5 • Software releases: refer to www.hp.com/networking/warranty for details on the software releases provided and the period during which software releases are available for your product(s)

  • Page 6: Specifications

    (J9643A) Premium Software (J9533A) 1 HP E5400 zl Switch Premium License (J8994A) 1 HP 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module (J9536A) 1 HP 1500 W PoE+ zl Power Supply (J9306A) 1 HP 24-port Gig-T PoE+ v2 zl Module (J9534A)
  • Page 7 When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with the letter "B" or later, e.g., J4858B, J4859C) are required. HP E5412 zl Switch with Premium Software HP E5406-44G-PoE+/2XG-SFP+ v2 zl Switch with (J9643A) Premium Software (J9533A) Power supplies must be ordered separately.
  • Page 8 Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP E5412 zl Switch with Premium Software (J9643A) 3-year, 4-hour onsite, 13x5 coverage for hardware...
  • Page 9 IP multicast RFC 3376 IGMPv3 (host joins only) RFC 3973 Draft 2 PIM Dense Mode RFC 4601 Draft 10 PIM Sparse Mode HP E5412 zl Switch with Premium Software HP E5406-44G-PoE+/2XG-SFP+ v2 zl Switch with (J9643A) Premium Software (J9533A) RFC 1850 OSPFv2 MIB...
  • Page 10 1 HP 24-port Gig-T PoE+ v2 zl Module (J9534A) 3 HP 24-port Gig-T PoE+ v2 zl Module (J9534A) 1 HP 20-port Gig-T PoE+ / 4-port SFP v2 zl Module 1 HP 20-port Gig-T PoE+ / 4-port SFP v2 zl Module...
  • Page 11 HP E5400 zl Switch Series Specifications (continued) HP E5412-92G-PoE+/2XG-SFP+ v2 zl Switch with Premium Software (J9532A) Notes Idle power is the actual power consumption of the device with no ports connected. Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.
  • Page 12 Refer to the HP website at www.hp.com/networking/services service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP E5406-44G-PoE+/4G-SFP v2 zl Switch with Premium Software (J9539A) 3-year, 4-hour onsite, 13x5 coverage for hardware...
  • Page 13 HP E5400 zl Switch Series Specifications (continued) HP E5412-92G-PoE+/2XG-SFP+ v2 zl Switch with Premium Software (J9532A) Standards and protocols Device management (applies to all products in series) RFC 1591 DNS (client) HTML and telnet management General protocols IEEE 802.1ad Q-in-Q IEEE 802.1AX-2008 Link Aggregation...
  • Page 14 Specifications (continued) HP E5406-44G-PoE+/4SFP zl Switch (J9447A) Included accessories 1 HP ProCurve 24-Port 10/100/1000 PoE+ zl Module (J9307A) 1 HP ProCurve 20-Port 10/100/1000 PoE+ and 4-Port Mini-GBIC zl Module (J9308A) 1 HP ProCurve 1500W PoE+ zl Power Supply (J9306A) Ports 44 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE...
  • Page 15 5 Yr 6 hr Call-to-Repair Onsite (UW379E) Refer to the HP website at service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP E5412-92G-PoE+/4SFP zl Switch (J9448A) IEC 61000-4-5; 1 kV/2 kV AC IEC 61000-4-6;...
  • Page 16 HP E5400 zl Switch Series Specifications (continued) HP E5406-44G-PoE+/4SFP zl Switch (J9447A) Standards and protocols Device management (applies to all products in series) RFC 1591 DNS (client) HTML and telnet management General protocols IEEE 802.1ad Q-in-Q IEEE 802.1AX-2008 Link Aggregation IEEE 802.1D MAC Bridges...
  • Page 17 Specifications (continued) HP E5406-48G zl Switch (J8699A) Included accessories 2 HP ProCurve Switch zl 24-Port 10/100/1000 PoE Module (J8702A) 1 HP ProCurve Switch zl 875 W Power Supply (J8712A) Ports 48 autosensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T);...
  • Page 18 Refer to the HP website at service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office. HP E5412-96G zl Switch (J8700A) IEC 61000-4-11; >95% reduction, 0.5 period; 30% reduction, 25 periods...
  • Page 19 HP E5400 zl Switch Series Specifications (continued) HP E5406-48G zl Switch (J8699A) Standards and protocols Device management (applies to all products in series) RFC 1591 DNS (client) HTML and telnet management General protocols IEEE 802.1ad Q-in-Q IEEE 802.1AX-2008 Link Aggregation IEEE 802.1D MAC Bridges...

  • Page 20: Power Supply

    HP E5400 zl Switch Series accessories Modules HP 20-port Gig-T PoE+ / 4-port SFP v2 zl Module (J9535A) HP 20-port Gig-T PoE+ / 2-port 10-GbE SFP+ v2 zl Module (J9536A) HP 24-port SFP v2 zl Module (J9537A) HP 8-port 10 GbE SFP+ v2 zl Module (J9538A)
  • Page 21 © Copyright 2009-2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
